Item Descriptions:

specification

Main processor

Sensor: GM 8136S

Image sensor: 1 / 2.7 "color CMOS sensor (AR0237)

Display resolution: 1920 * 1080 (2 MP)

Lens: F: 3.6 mm, 2.0 MP

Visual angle: H: 80 °; V: 45 ° C .; D: 92 °

Minimum subject illuminance: 0.01 Lux

audio

Input / output: Built-in microphone and speaker

Audio compression: AAC

video

Video compression: H.264

Lighting frequency: 50 Hz, 60 Hz

Image frame rate: 30 fps

Image resolution: 2 MP

Image adjustment: Brightness, Contrast, Saturation, Sharpness

White balance, BLC: automatically

Night vision: 1 dot matrix infrared light, IR distance: about 10 m

the internet

Wireless network: 2.4 G WIFI (IEEE 802.11 b standard / G / N), PCB board 2 DB Antenna built in antenna

Ethernet: 10/100 Mbps

Protocol: TCP / IP, UDP / IP, HTTP, DHCP, RTMP, MUTP

IP address: static IP address and dynamic IP address

RF device connection: No

Intelligence

Face detection: No

POE: No

Pan & Tilt: Horizontal: 350 ° & Vertical: 100 °

Alarm detection: Motion detection

Alarm linkage: Snapshot, audio / video recording

Alarm notification: Real-time application push notification

Rf peripheral: No

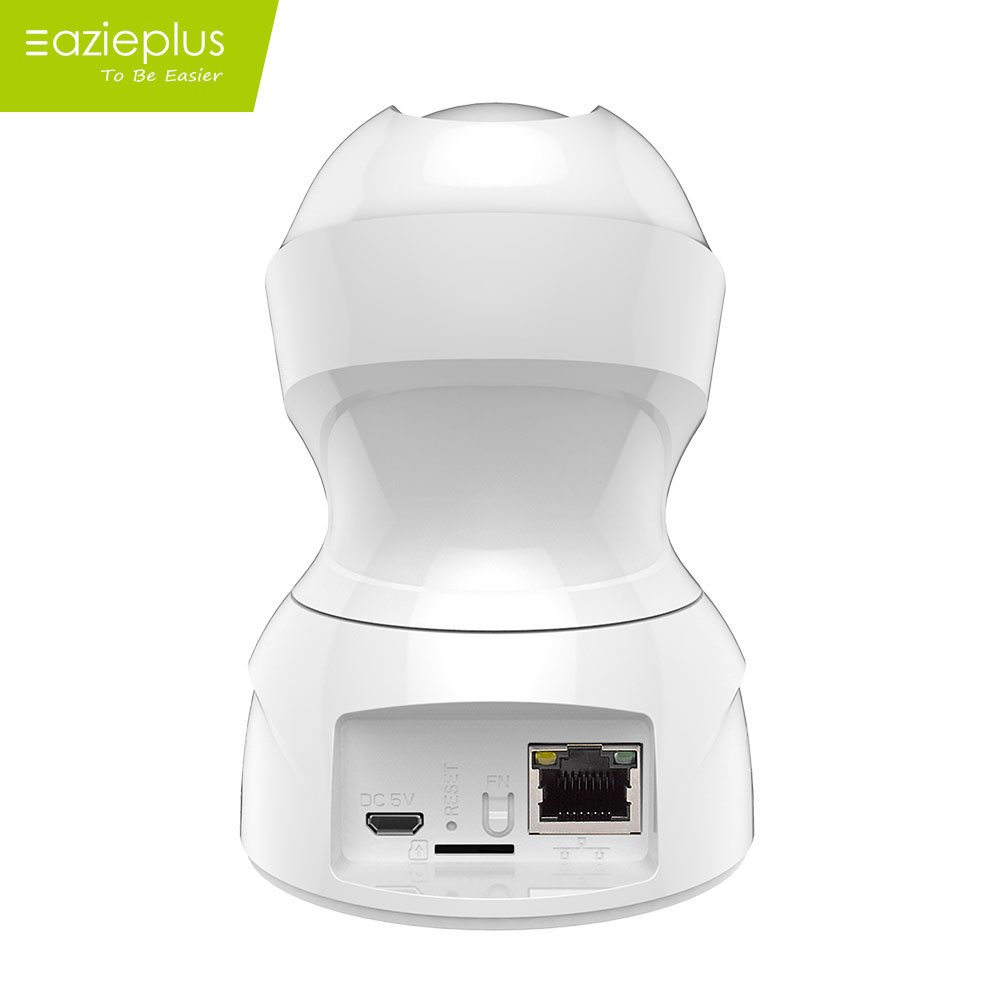

interface

Power supply: DC 5V / 2A

Button: Reset hole, FN button

Network interface: RJ 45

Other functions

Adjustable lens: No

Led Instruction: Network Signal / Function Indicator

Video Storage: Micro SD, Cloud Computer Box, Cloud Storage

environment

Operating temperature: -10 ° to 55 ° C (14 ° F to 131 ° F)

Work humidity: 10% to 80% (noncondensing)

Storage temperature: -10 ° C to 60 ° (14 ° F to 140 ° F)

Storage humidity: 0% to 90% (noncondensing)

general information

Material: ABS

Color: Black / White

Dimension: (8.5 x 8.5 x 12) CM (L x width x H) About

Weight: About 267 g

Authentication: RoHS, CE, FCC, NCC, PSE

Product content

1 x camera

1 x Japanese manual

1 x Charging Cable

1 x adapter

1 x rack

1 x Network cable

1 x Screw set

Characteristic

Automatic patrol up and down, left and right

It is a smart IP camera with a new type of head swinging type.

You can manipulate the orientation of the lens in the range of 350 ° horizontal rotation and 100 ° up and down and you can monitor in a wide range.

Bidirectional voice

Audio bidirectional function is attached.

The microphone is built in the camera body, and you can listen to the sound along with the video.

(While holding down the microphone of the smartphone, call out and speak out if you finish, you can tell this story to the camera.)

Night photography

IR-CUT We adopt a system to switch intelligence and switch day and night fast.

Infrared LEDS is mounted, recognizing the ambient brightness automatically switches to infrared shooting when it gets black.

It is a security camera that can achieve visible distance of 10 m at night, even nighttime surveillance.

Motion detection

Since there is also a motion detection function, when detecting a moving object, it will automatically send a mail to a smartphone application.

With the recording function installed, you can record the video on the memory card by attaching a microSD memory card (optional) to the camera.

Always recording to MollyCard and saving images when linked with motion detection function are possible.

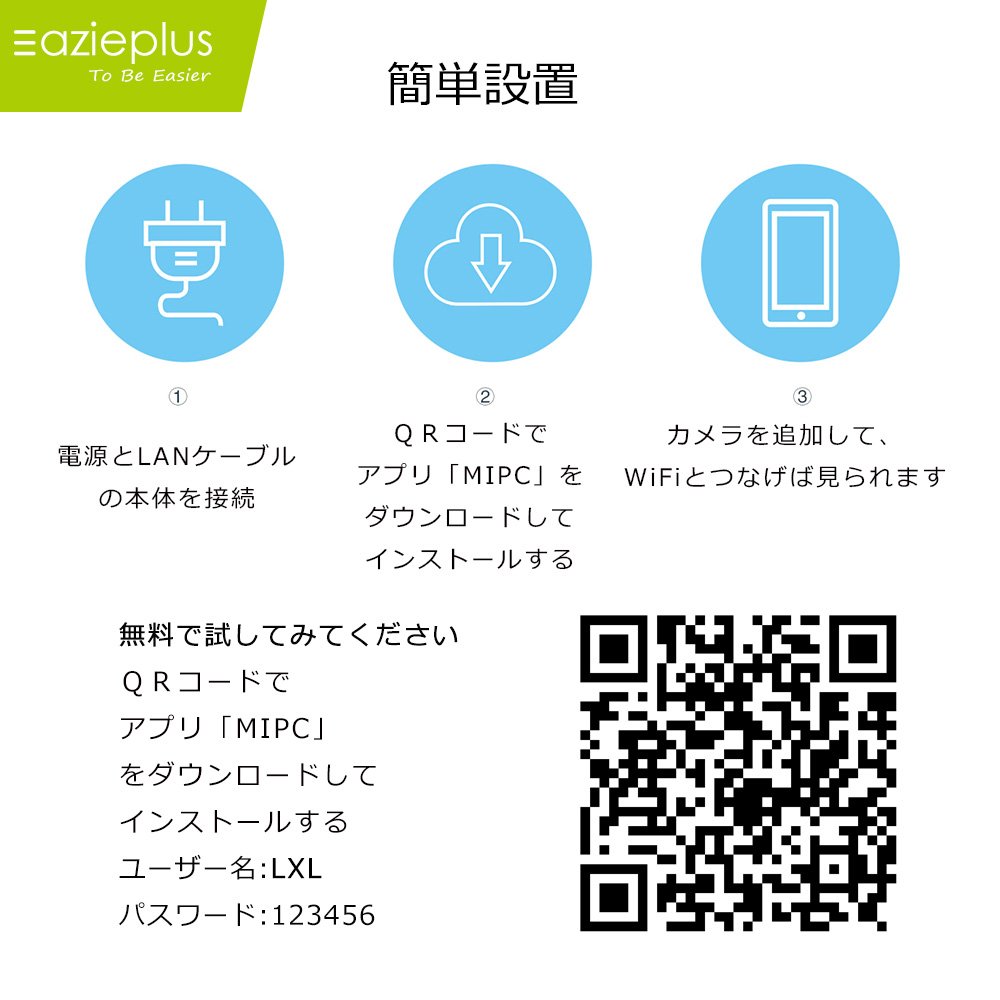

Easy installation

Easy network setup: If the camera has its own LAN cable and WiFi antenna, you can download free MIPC application for Android / iPhone and connect it with WiFi.

Note: This product only supports 2.4 GHz wifi, it will not support WiFi of 5 GHz for a while for a while, so if it does not connect for the first time, please try wired connection first, install wifi on the camera

To do.

Features:

• Please enter model number Confirm this is compatible:
• 【HD compatible high image quality】 Want to monitor inside your home when you go out, want to check if your pet or kids at home are safe, have you thought of seeing babies and children in different rooms
• What?
• Then, this product is recommended.
• This product is equipped with a 2 megapixel CMOS sensor and can shoot clearly and clearly with 1080 P HD resolution.
• It is a network camera which can watch the image of the camera easily even on the road with both wired and wireless connection compatible.
• [Pan / tilt (head swing) function & with microphone] It is possible to adjust the shooting direction by remote control from a smartphone or the like.
• It can move direction up to 350 ° in the horizontal direction and up to 100 ° in the vertical direction, so you can easily see the place you want to see in a wide field of view.
• As the field of view of the camera is wide, you can use it with confidence in a wide room.
• Also, with a microphone, you can listen to the sound over the camera, you can also send this voice over the camera, so you can use it in various ways.
• 【Night vision mode & intrusion notice】 Infrared LED is mounted around the camera and switches to night vision mode when it gets dark.
• Viewing and shooting is also possible at night and in dark indoors, depending on the night vision mode.
• You can also use it to check pets, babies and children's days off in a dark place.
• Also, with the motion detection system, if you detect movement in the image, you will be notified that there was a suspicious movement by e-mail, so you can also play the role of a simple surveillance camera.
• 【Easy setting】 LAN cable and WiFi antenna are mounted on the camera body.
• Download and set up a free application for Android / iPhone "MIPC", you can watch the video of the camera via WiFi connection.
• Please note: This product currently only supports Wifi in the 2.4 Ghz band, there is no support in the 5 Ghz band for a while, so please connect in the 2.4 Ghz band.
• If you can not connect to the wireless, please try wired connection first, please set Wifi.
• As for purchased items, we will provide manufacturer's warranty for one year after purchase, so if there is a problem with the item by any chance, please contact us from the Amazon purchase history.

Product information:

Shipping Weight: 571 g

Package Dimensions: 10.49 x 16.51 x 19.00 cm
