Item Descriptions:

SUPERS mobile battery camera

If the item has problems, please contact us

Please pay attention to illegal sellers!

Please purchase the regular product of the brand "SUPERS".

If you purchase from "TEBAK CAM" store other than the store, TEBAK CAM can not be judged as a regular item, it will be out of the scope of TEBAK CAM security assurance.

Please be careful.

"TEBAK CAM" store

Products purchased from,

We offer free exchange service

Correlation parameter

Pixel: 5 million

Video resolution: 1920 * 1080 P

Video format: AVI

Video frame rate: 30 fps

Night vision distance: 5 m

Image format: JPG 4032 * 3024

Battery capacity: 5000 mAh

Recording time: 15 z hours

Charging time: 3 to 6 hours

Memory card: TF card

Maximum support: 32 GB

Low illuminance: 1 LUX

Charging voltage: DC-5V

Operating system: XP / Visat32 / Win7

USB port: USB 1.1 / 2.0

Battery type: High capacity polymer - Electrodelectric

This instrument has a built-in lithium battery, please use it before charging for the first time before charging.

1) With the power off, you can connect to the computer with the included USB charging cable and charge it.

Blue · Red When the lamp is on, charging, when the lamp goes off, charging completed.

2) With the power off, you can charge the 5 V charger separately by using the included USB charging cable.

take a picture:

In the standby state, short press the "1. Operation key" button, the red lamp blinks, taking a picture and succeeding once

Recording:

In the standby state, after pressing the "1. Operation key" button long (2 seconds), after the red light starts flashing, loosen the button, turn off the red light, go into recording

Infrared night vision:

In the course of the video, short press "1. Operation key" button to open the visible capability of the infrared lamp, once more press the "1. Operation key" button shortly to close the visible capability of the infrared lamp

Turn off:

In the standby state, press the "1. Operation key" button long, the red light flashes at 5 degrees and disappears, and the product is turned off, the product turns off (note: blinking at 3 degrees, recording

let's start doing )

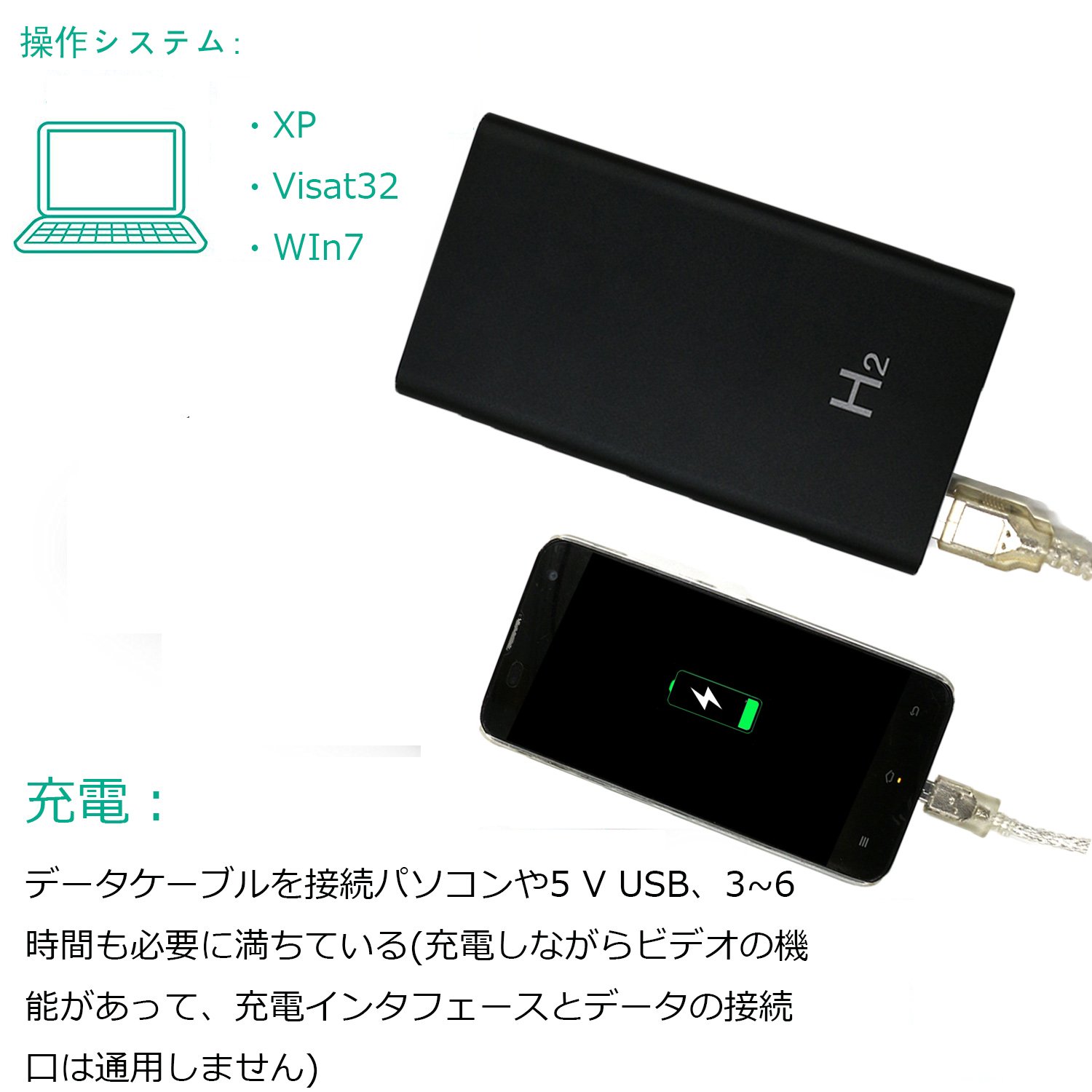

charging:

Connecting data cable Computers and 5 V USB, 3 to 6 hours are also needed (There is video function while charging, charge interface and data connection do not apply)

Time set:

After starting the machine, there is a file called "time.text".

And write "2015-05-01 23:59:59" in a file with such a style.

After setting, restarting the product is OK (time is set and the machine can clock time automatically)

This product is a necessary and practical tool in the field of security, education, life etc. at home for the purpose of crime prevention and security for protecting important families and property.

● Evidence collecting items to protect yourself in daily life such as talkers and suspicious people, DV damage!

● To protect important people, such as nursing care facilities and babysitter suspected abuse.

● This product is intended for crime prevention and security to protect important families and property.

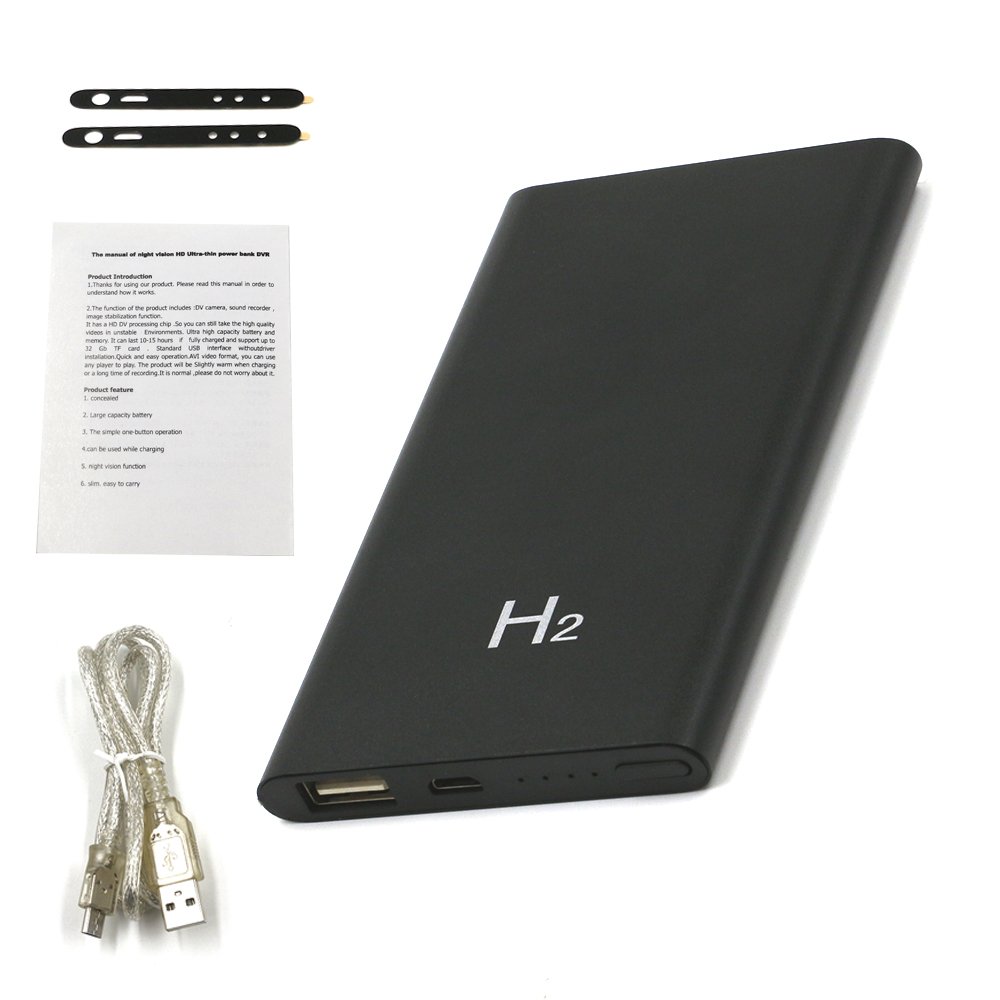

Included in package:

1 * body

1 * USB cable

1 * Instruction Manual (Japanese · English · Chinese)

When the blue lamp is lit, it is charging.

At this time, you can record while charging.

Caution:

When charging the 5 V charger separately without inserting the TF card, it takes 3 to 6 hours to charge the battery when the lamp blinks once, it is charged, it is charged.

Features:

• Please enter model number Confirm this is compatible:
• The appearance and function are mobile batteries themselves, because they are mobile battery type, power capacity is enough, so long continuous recording is possible.
• High image / high resolution: The video is "real 1920 x 1080 pixels"!
• Compared with conventional models, overwhelming high image quality / high resolution shooting is achieved!
• First, insert the SD card that came with the device.
• (Be sure to charge beforehand, of course) Next, push the recording button and immediately release the red lamp → go to the recording standby state.
• Press the record button again and release the red lamp as soon as it flashes → Start recording.
• To stop recording, press the record button for a long time → flash the red lamp → push it as it is → the red lamp goes out
• In this way, in order to view the recorded file, connecting the device and the PC with USB will be recognized as external storage.
• Recording stops automatically when the capacity becomes full.
• About our instruction manual we will translate easily, if you have any problems, please do not hesitate to contact us)

Product information:

Shipping Weight: 240 g

Package Dimensions: 4.50 x 9.30 x 15.09 cm
