Item Descriptions:

Product introduction

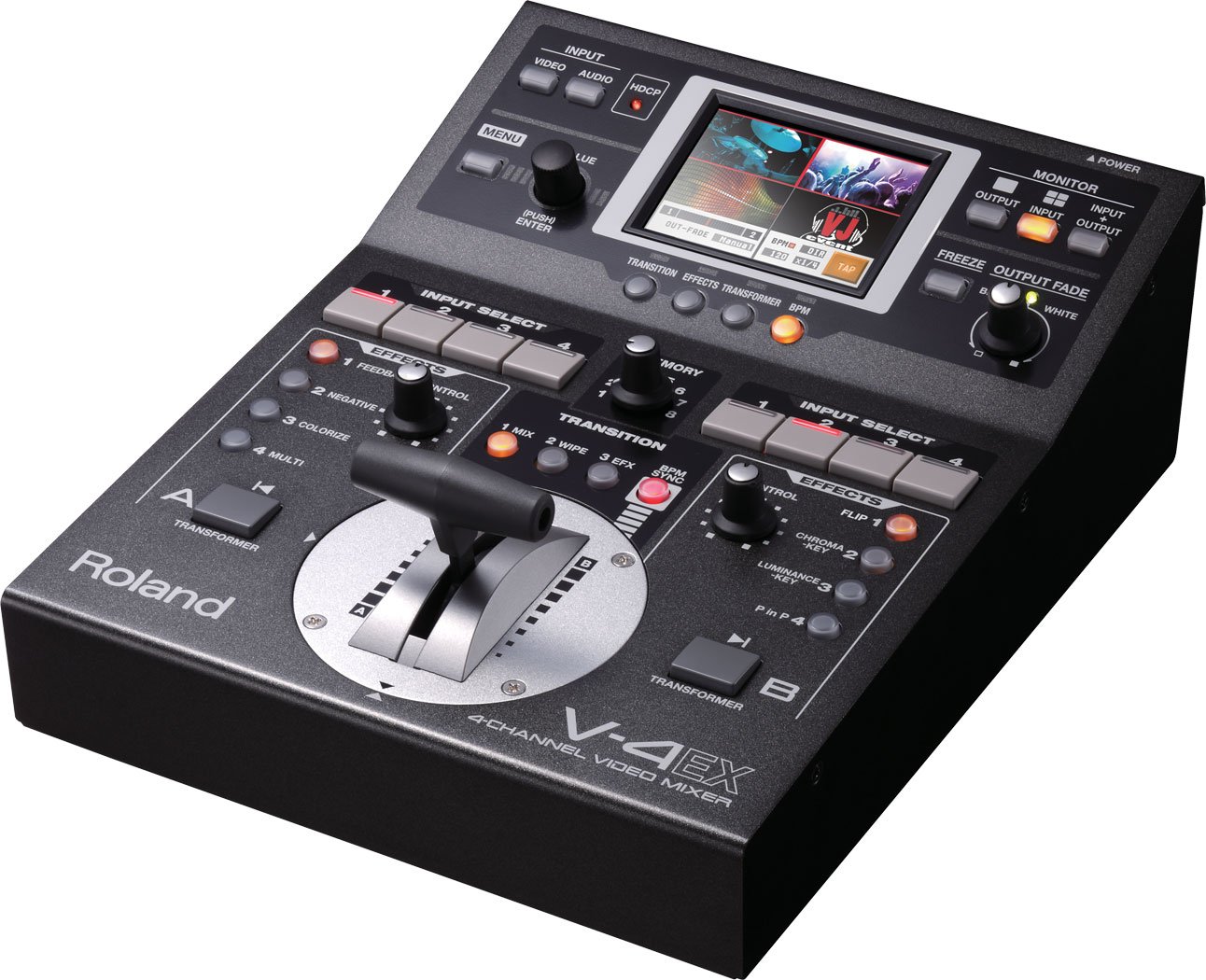

Compact video mixer with 4 channels 10-input / 3-output compatible with HDMI

From Amazon

480p processing, 4 channel 10 input / 3 output video mixer

You can input up to 10 kinds of video to 4 channels and output up to 3 lines.

Frame synchronizer (FS) is mounted on all 4 channels, and noise does not get on switching.

Since it is possible to intuitively operate change of connection setting with touch monitor, performance that changes connection according to scene is possible.

The image engine operates with high image quality 480p.

SD images can also be processed to high image quality.

HDMI compatible

Supports HDMI signal input / output.

Furthermore, if you use the HDCP mode, you can switch and synthesize HDCP-encrypted video sources.

* 1: Inputs 1 to 3 can be up to 480p.

Input 4 corresponds to a maximum of 1080p, but internal processing is done at 480p.

* When inputting the DVI - D signal, use the HDMI - DVI conversion connector.

※ In order to use the content commercially, permission from the right holder is necessary.

* In HDCP mode, only HDMI output can be used.

RGB / component output, composite output, USB output can not be used.

For display and projector connected to HDMI output, HDCP compliant ones are required.

Terminals and scalers corresponding to various signals

It has HDMI, composite, RGB, S-video and supports various digital and analog input sources.

Output signal also corresponds to HDMI, composite, RGB signals.

※ RGB, S - Video input is equipped with CH4 only.

※ HDMI and RGB can input signals up to WUXGA (1920 × 1200).

Scaler function

"Scaler" is installed in input CH 4.

Converts signal formats other than 480p to 480p.

It is also installed in the final output, HDMI terminal and RGB terminal can up-convert up to WUXGA (1920 × 1200) and output it.

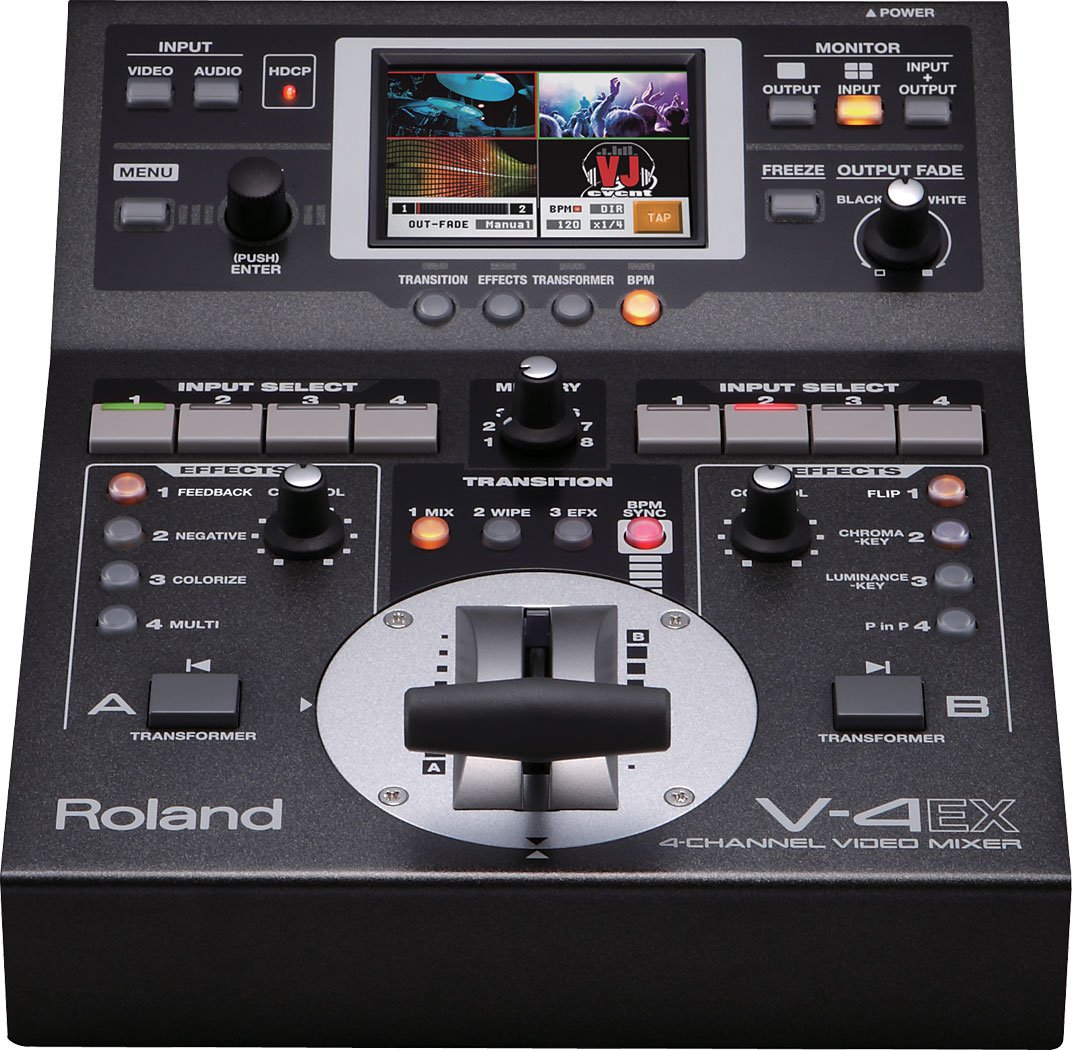

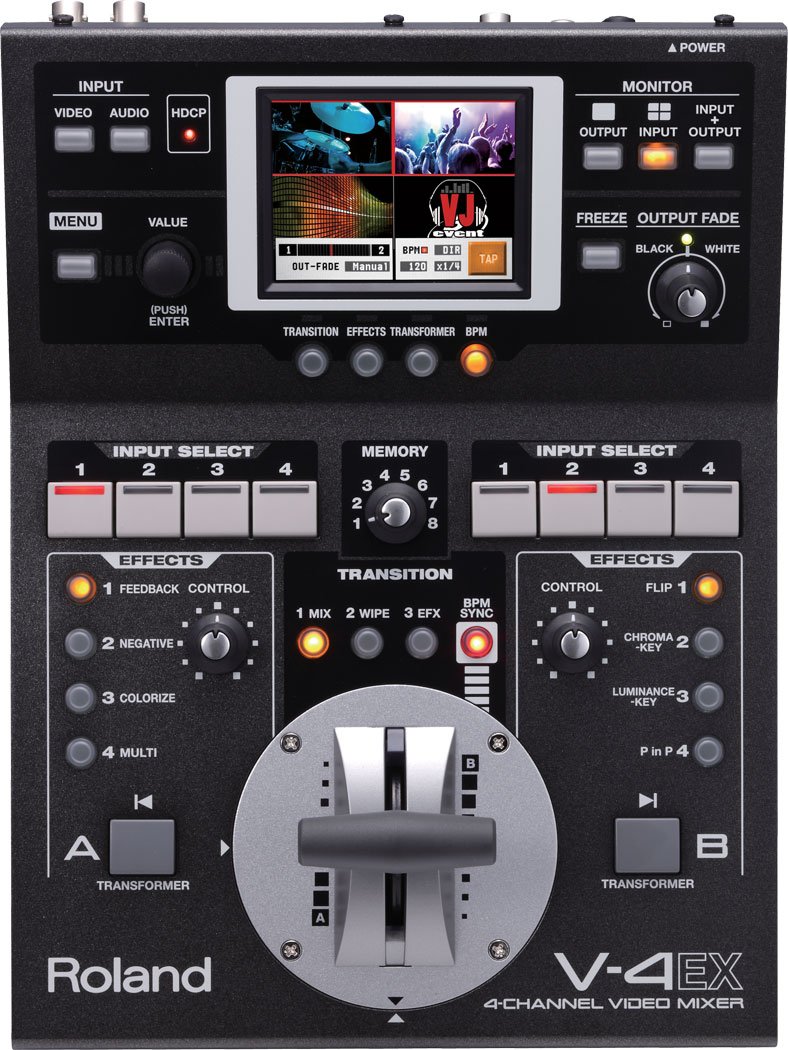

Intuitive operation with touch monitor

Equipped with a touch monitor, realized intuitive operation just touching the screen.

In addition to the familiar T bar, you can also directly operate the effects.

The connection setting can also be intuitively operated on the touch panel.

Various effects

Various effects are loaded.

You can make a change in performance.

■ Switch effect

Mix, wipe built-in 256 types.

■ Picture effect

148 kinds of after image, key combination, etc. are loaded.

Voice correspondence

It is possible to output video and audio together from HDMI terminal and USB terminal by connecting source device of analog audio.

Up to 4 frames of audio delay can be loaded, and lip sync can be taken.

(Audio Embedded)

USB stream output

Connecting a personal computer, live distribution and recording are possible.

It corresponds to USB VIDEO CLASS / AUDIO CLASS which can operate without Windows / Mac without driver / software.

Supported format (fixed) Resolution 720 × 480 pixels (29.97 fps / Motion JPEG) Audio 16 bits (48 kHz / linear PCM)

Video Capture for VR

Free application that can record on PC "Video Capture for VR"

Video Capture for VR is a PC with USB connection with V-4EX, free application software that can capture video / audio output from V-4EX and save it to a file.

[Main functions]

· Capture video / audio of USB output output from V-4EX / VR-5 / VR-3.

· Movie is saved in MOV (Quick Time format).

· Still images are saved as BMP files.

※ This software requires V-4EX for operation.

* This software operates on Microsoft Windows Vista / 7 / MacOSX.

MIDI that can be synchronized with instruments and audio equipment

By using MIDI, you can synchronize multiple V - 4 EX and control V - 4 EX from other equipment.

■ MIDI VISUAL CONTROL

MIDI Visual Control is a worldwide common recommendation specification added to the MIDI standard to connect music performance and video expression.

By connecting MIDI Visual Control compatible video equipment and electronic musical instruments with MIDI, you can control the video according to the performance.

For example, if you connect with V - Mixer M - 200i with MIDI, the V - Mixer 's fader follows the V - 4 EX video switching.

■ PR control

Equipped with the control function of the video presenter PR - 80/50, which is popular with V - 4 and V - 8.

Cooperate with MIDI connection, realize easy operation.

Automatic input switching according to video playback of the PR series and automation by the scheduler are possible.

Rear panel

Features:

• Please enter model number Confirm this is compatible:
• Compact video mixer with HDMI compatible 4 channels 10 input 3 output

Product information:

Shipping Weight: 3651 g

Package Dimensions: 18.21 x 28.80 x 42.70 cm
