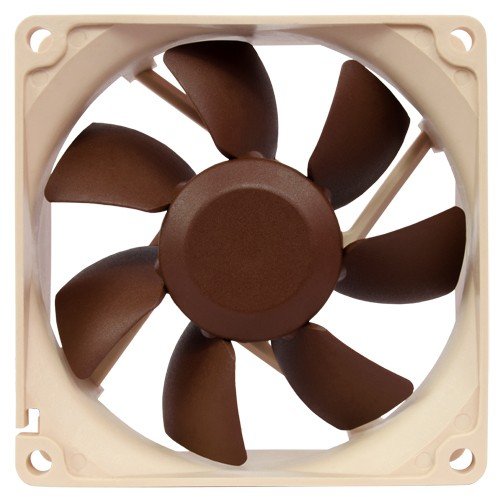

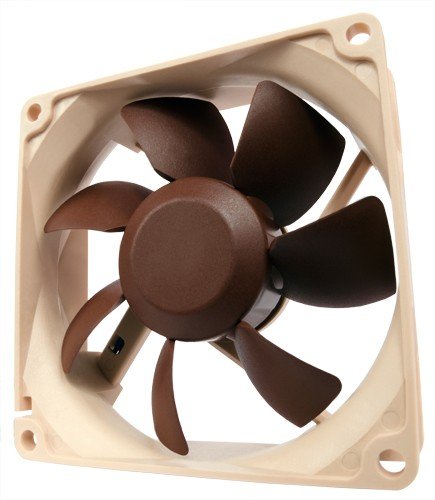

Proven NF-R8 Design. Tens of thousands of quiet cooling enthusiasts swear by Noctua’s classic NF-R8. Its impressive quietness， excellent performance and impeccable， time-tested quality made the R8 a default choice for 80mm quiet cooling.
Supporting fully automatic PWM speed control， the NF-R8 PWM uses Noctua’s novel， custom designed NE-FD1 PWM IC that integrates Smooth Commutation Drive (SCD) technology.
The NF-R8 PWM is supplied with a Low-Noise Adaptor (L.N.A.) that reduces the maximum fan speed from 1800 to 1300rpm. The L.N.A can be used either to run the fan at a fixed speed of 1300rpm or to cap the maximum speed when using automatic PWM control.
Extensive Cabling Options that are fully sleeved and a 4-pin y-cable allows to connect a second NF-R8 fan to the same PWM fan header for automatic control.
Combining the proven concept of hydrodynamic bearing w/ an add'l magnet tht supports the self-stabilisation of the rotor axis， Noctua’s time-tested SSO-Bearing tech. has become synonymous w/ supremely quiet operation & exceptional long-term stability.
Size: 80x80x25 mm. Connector: 4-pin PWM. Bearing: SSO. Blade Geometry: Raised Blade Design. Rotational Speed (+/- 10%): 1800 RPM. Rotational Speed with L.N.A. (+/- 10%): 1300 RPM. Min. Rotational Speed (PWM): 300 RPM. Airflow: 53，3 m³/h. Airflow with L.N.A.: 39，4 m³/h. Acoustical Noise: 17，1 dB(A). Acoustical Noise with L.N.A.: 10，2 dB(A).
Static Pressure: 1，41 mm H2O. Static Pressure with L.N.A.: 0，74 mm H2O. Max. Input Power: 0，72 W. Max. Input Current: 0，06 A. Voltage: 12 V. MTBF: > 150.000 h. Scope of Delivery Low-Noise Adapter (L.N.A.): 4-Pin Y-Cable，30cm Extension Cable，4 Vibration-Compensators，4 Fan Screws
