Item Descriptions:

[veesee] cigar socket charger expansion 2 series in-car USB charger 2 port current automatic detection voltage meter attaching 12V 24V car correspondence (cup type)

Cigar Socket Charger Cup type

◆ Cigar socket expansion, two cigar socket distributor ◆

● While the number of electronic devices that can be used in the car is increasing, supply and securing of in-vehicle power supply are required.

This cup type charger adds and branches two cigar sockets of car cigar socket,

Charging for smartphone / tablet, car transmitter, navi and drive recorder,

It can be used as a power source when used inside a car.

In case

High power car appliances such as car handy type vacuum cleaners and car refrigerators can also be connected and used.

It is very useful as a car electronics power supply in everyday car life.

In case

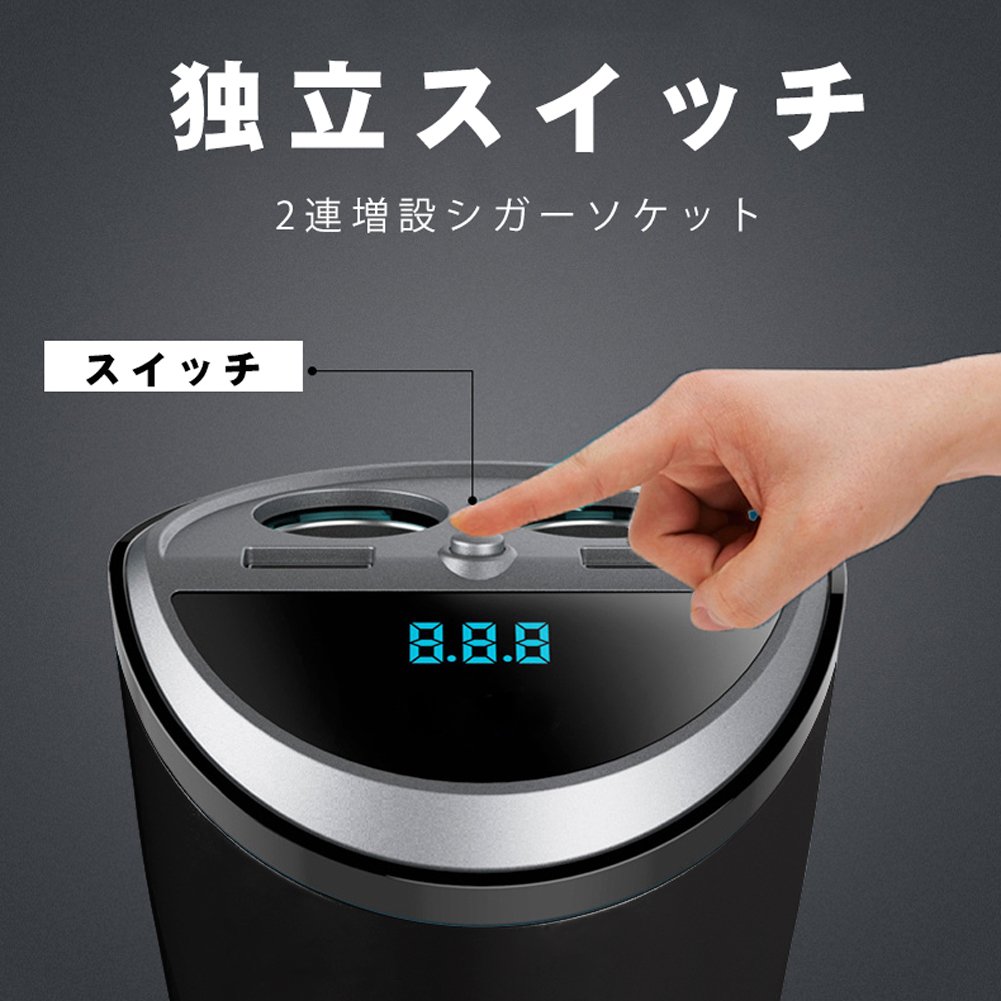

● When the dual cigar socket distributor has an independent power switch, when using only the USB port, turn it off with the independent power switch.

In case

◆ 3.1A · 2USB charger ◆

In addition to adding 2 cigar sockets, we also have a 2 port onboard car charger and we will charge two appliances at the same time.

In case

USB port is not fixed 1A or 2A,

0.5 to 3.1 A

Automatic detection output, USB is chargeable such as iPhone / iPad / Android, charging performance is high.

In case

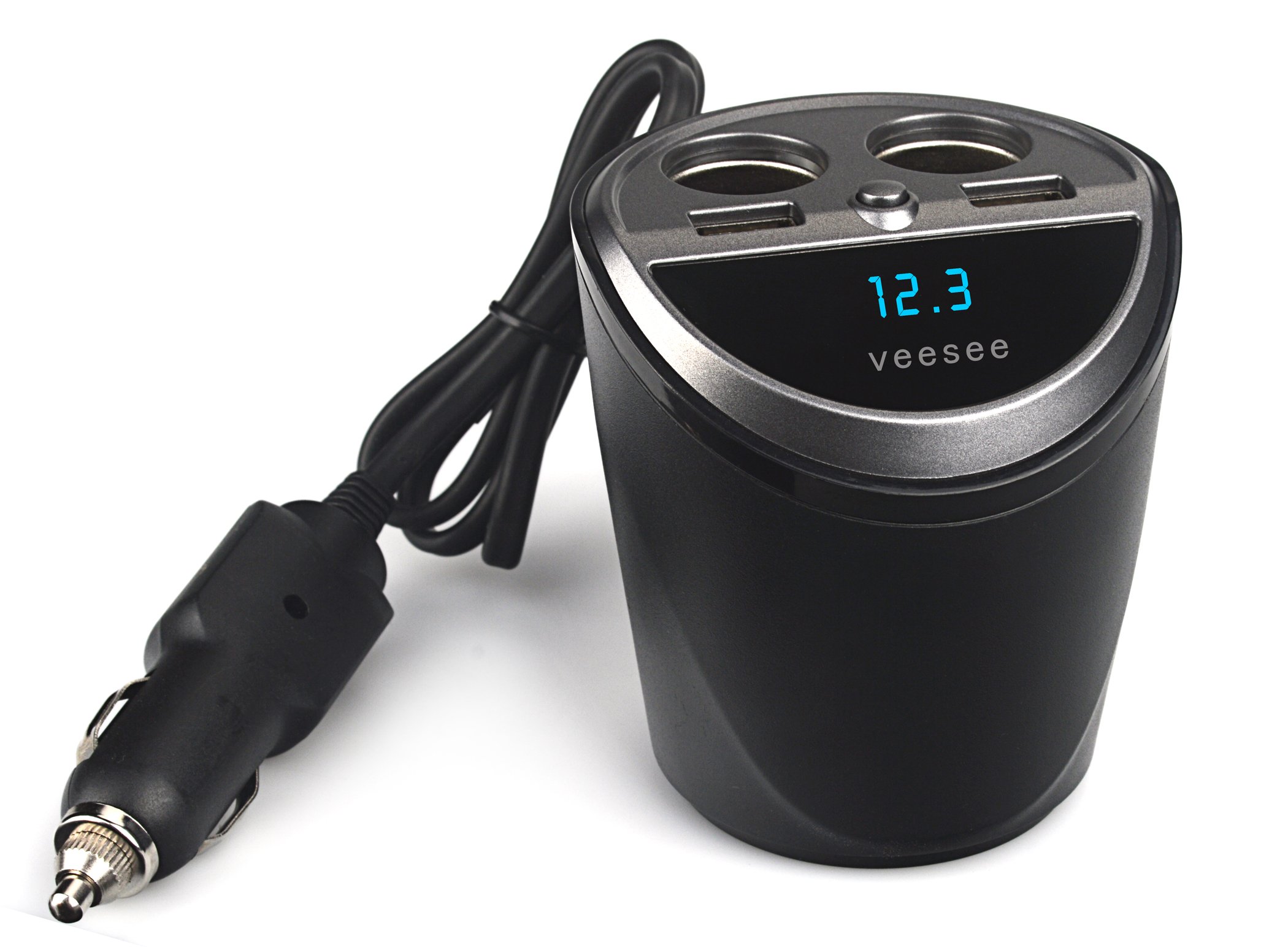

Cigar socket expansion 2 cup type 2 USB charger

◆ Automatic supply of appropriate current ◆

Built-in charge current automatic detection function IC, it automatically charges with appropriate current by charging current corresponding to the device side.

In case

※ Please use good quality or genuine cable to supply sufficient power.

◆ Voltmeter, car battery protection ◆

Since the reduction of the car battery is fast as the amount of electricity used increases, it is important to rise and protect the car battery.

In case

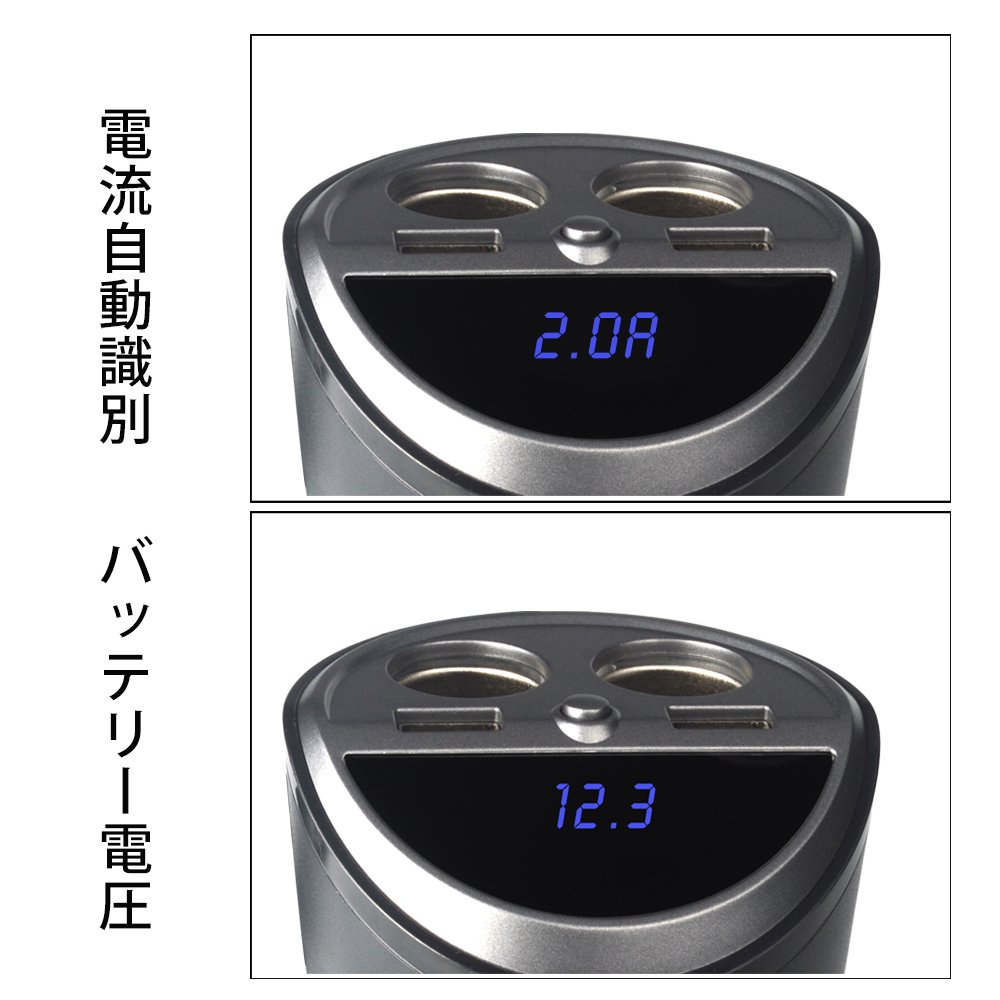

This cigar socket charger has a voltmeter and displays the voltage of the car battery in real time on the LCD screen.

In case

If the voltage is abnormal, the LCD screen blinks and alerts.

12V car:

Blinking below 11.5 V ⇒ Insufficient battery voltage ⇒ Charge the battery of the car.

Blinking at 15V - 22V ⇒ Battery too high ⇒ Please check the car battery

24 V car:

Blink below 22 V ⇒ Insufficient battery voltage ⇒ Charge the battery of the truck.

Flashing above 25 V ⇒ Battery too high ⇒ Check the battery on the truck.

◆ Current overload protection, double protection ◆

The built-in reset type fuse cuts overload, overheat, shot moment and automatically reduces it in a very short time.

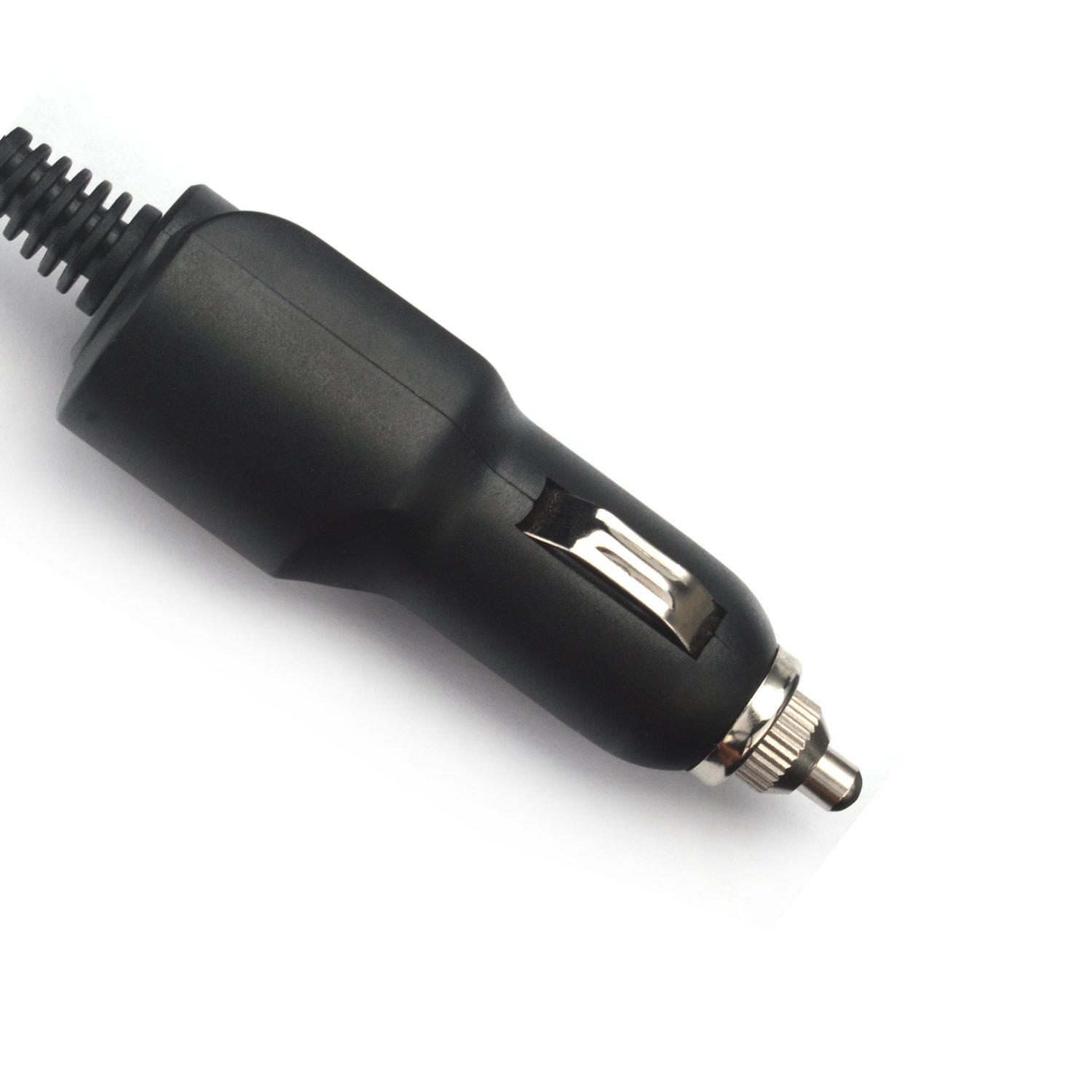

● There is a 10 A fuse at the tip of the cigar socket charger, and when excessive current flows, the circuit is shut off.

Protect car battery and smartphone.

Battery voltage measurement

◆ 12V / 24V cigar socket car correspondence ◆

- As well as 12V mini vehicles, 24V track cigar sockets of 2 tons or more are also compatible.

In case

● The output voltage of the 2 extension cigar socket matches the car's genuine cigar socket.

12V can also output 24V.

That is, even if the original port port is switched from 12 V to 12 V

Genuine port port 24V → 24V expansion port

※ Because it matches the voltage of the car, please do not use 24V non-compliant products for vehicles with 24V voltage.

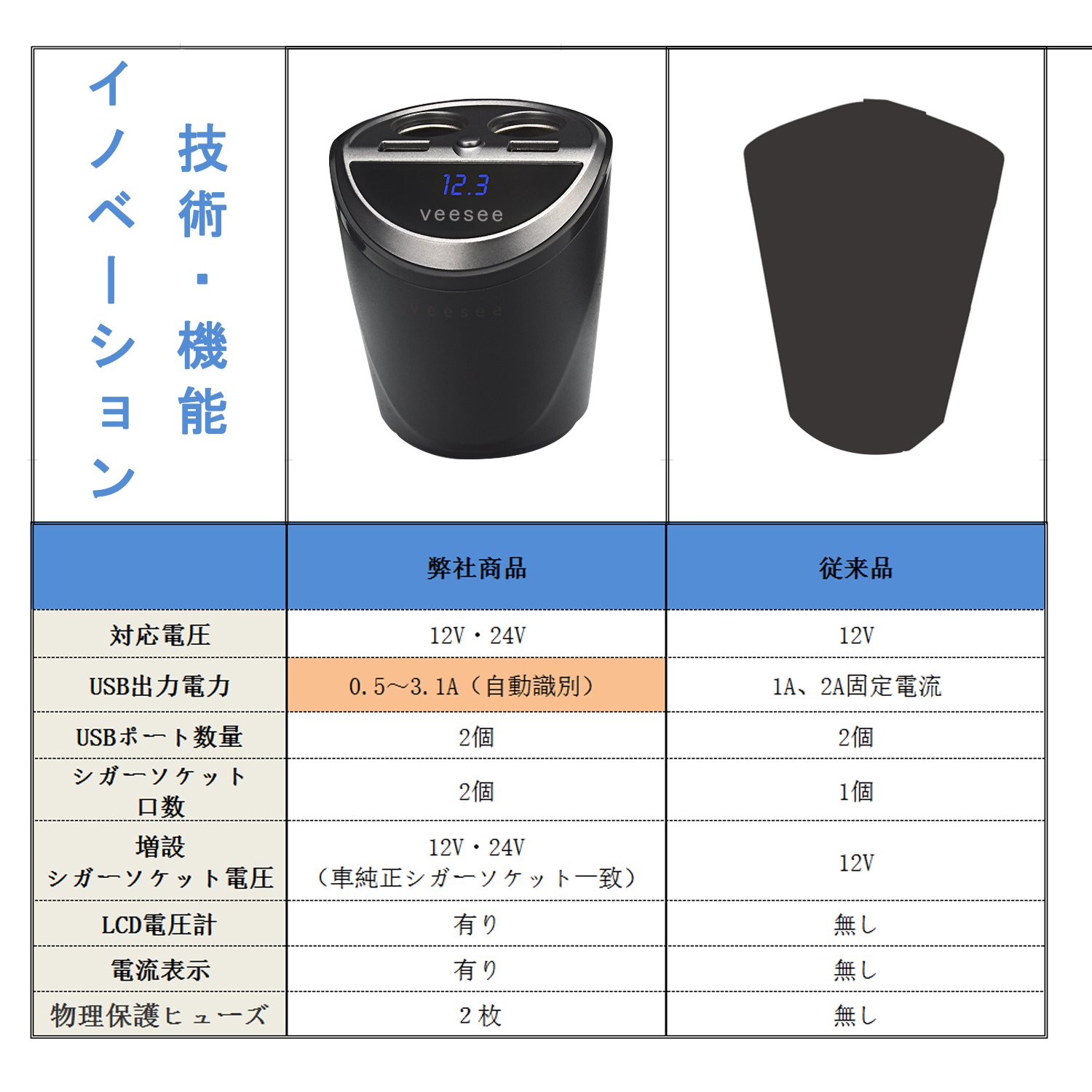

◆ Product Specifications ◆

Product type: Cup type

Number of items: USB port X 2 cigar socket X 2

Corresponding car voltage: 12V · 24V

Output power: 5 V / 3.1 A (USB port)

Maximum efficiency: 120 W

Cable length: 65 cm

Size: 85 x 80 x 56 mm

Weight: 153 g (approx)

Package contents:

Car charger body * 1 piece replacement fuse * 1 piece

Japanese Instruction Manual * 1

12 · 24 V cigar socket addition (car cigar socket voltage match)

Protection fuse

Replacement protective fuse

Features:

• 【2USB port】 USB car charger is two cars in the car, you can charge at the same time, look forward to car life!
• USB port supplies 5 V / 3.1 A Max intelligent floating current, various smartphones can also be quickly charged

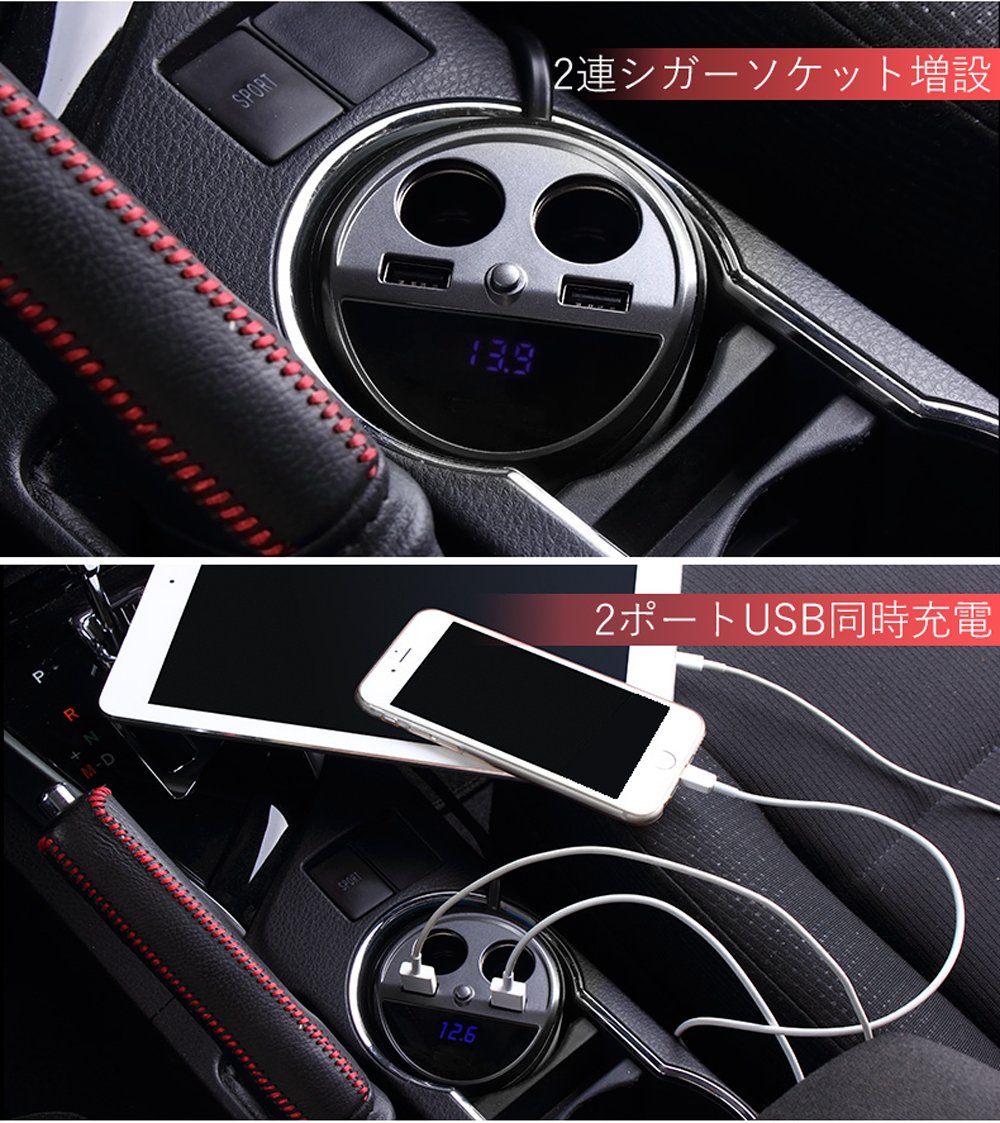

• 【2 cigar sockets expansion】 Two cigar sockets are added to the drink holder and car appliances such as car cleaner and transmitter connected with cigar socket are also compatible!
• Convenient with independent power switch!
• [Expansion cigarette socket output voltage]: 12V - 24V (matches car genuine cigar socket mouth)
• 【LCD voltmeter】 With LCD voltmeter, measure and display real time voltage and current, detect voltage abnormality, protect car battery
• 【Current detection】 Automatic current detection, powering appropriate power, by charging smartphone, iPhone / iPad / Xperia / Glaxy / smartphone and tablet charging compatible
• [12V · 24V correspondence] General 12V passenger car cigar socket also supports large car such as 24V truck, hybrid car, minivan, compact car, mini car, SUV, wagon, sedan car cigar socket, 【package
• 】 USB Car Charger * 1, Japanese Instruction Manual * 1 Replacement Fuse * 1 【Warranty】 Please note that veesee® product is an authorized dealer only, safe one year from purchase date
• We will provide warranty.

Product information:

Shipping Weight: 240 g

Package Dimensions: 8.89 x 13.49 x 19.10 cm
