TP-LINK Archer C2 AC750 Router 2.4GHz + 5GHz

• ㆍProduct Highlights

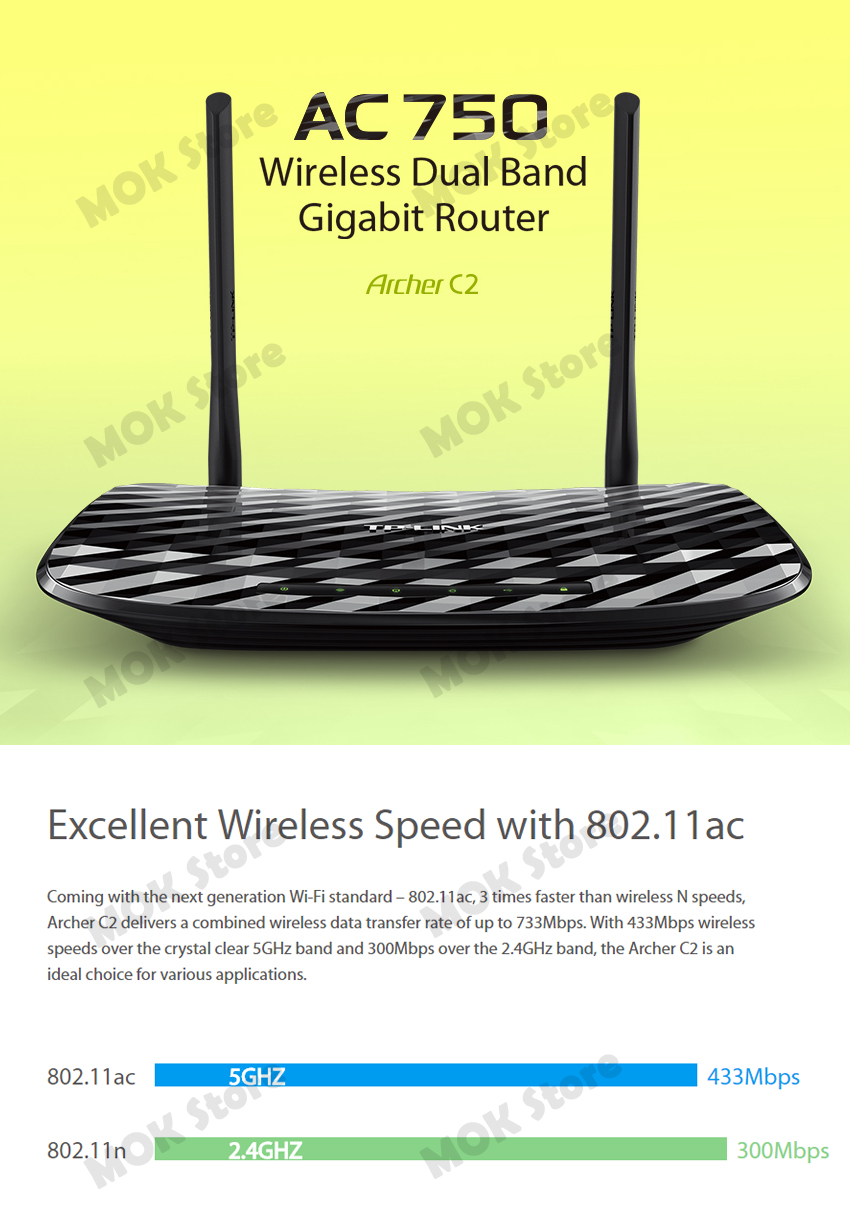

  - Supports 802.11 ac standard - the next generation of Wi-Fi

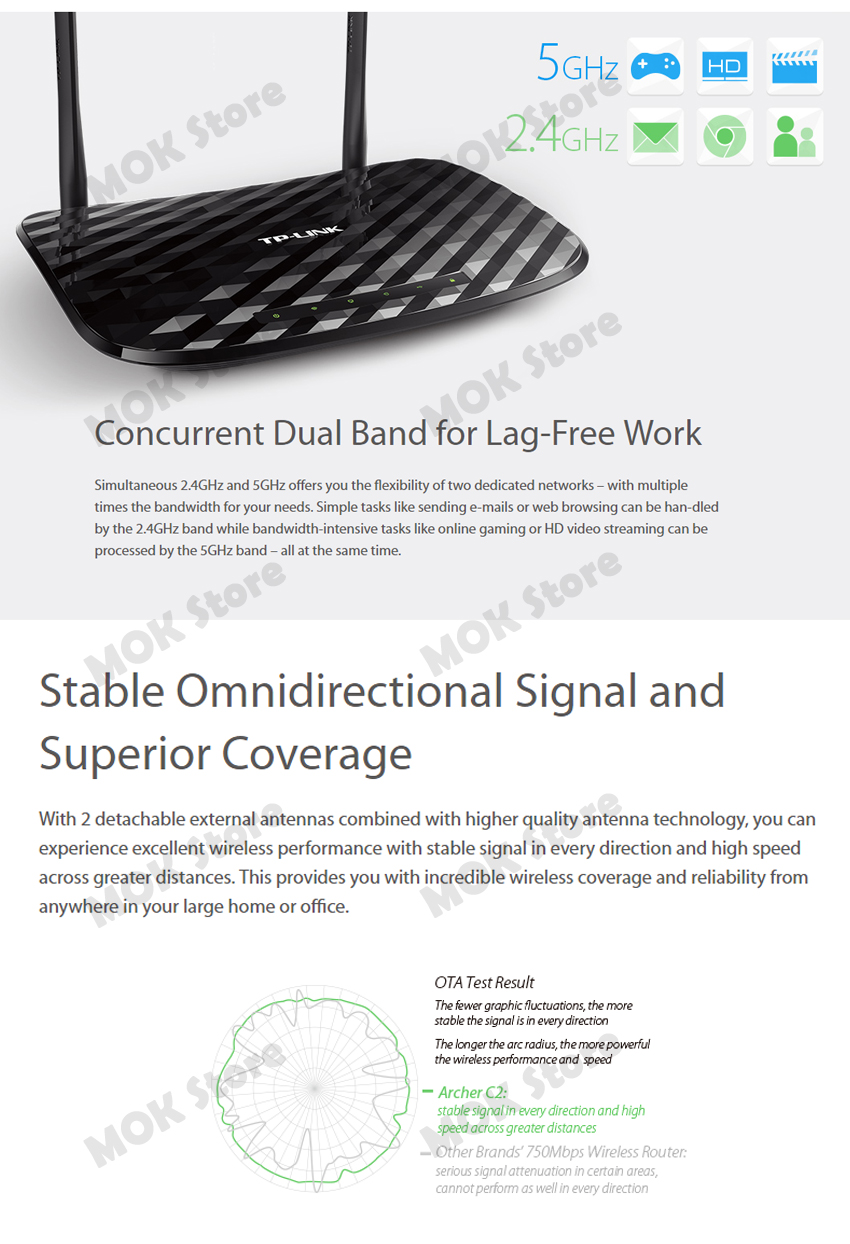

  - Simultaneous 2.4 GHz 300Mbps and 5GHz 433Mbps connection for 733Mbps of total available bandwidth

  - 2 detachable external antennas provide stable omnidirectional signal and superiror wireless coverage

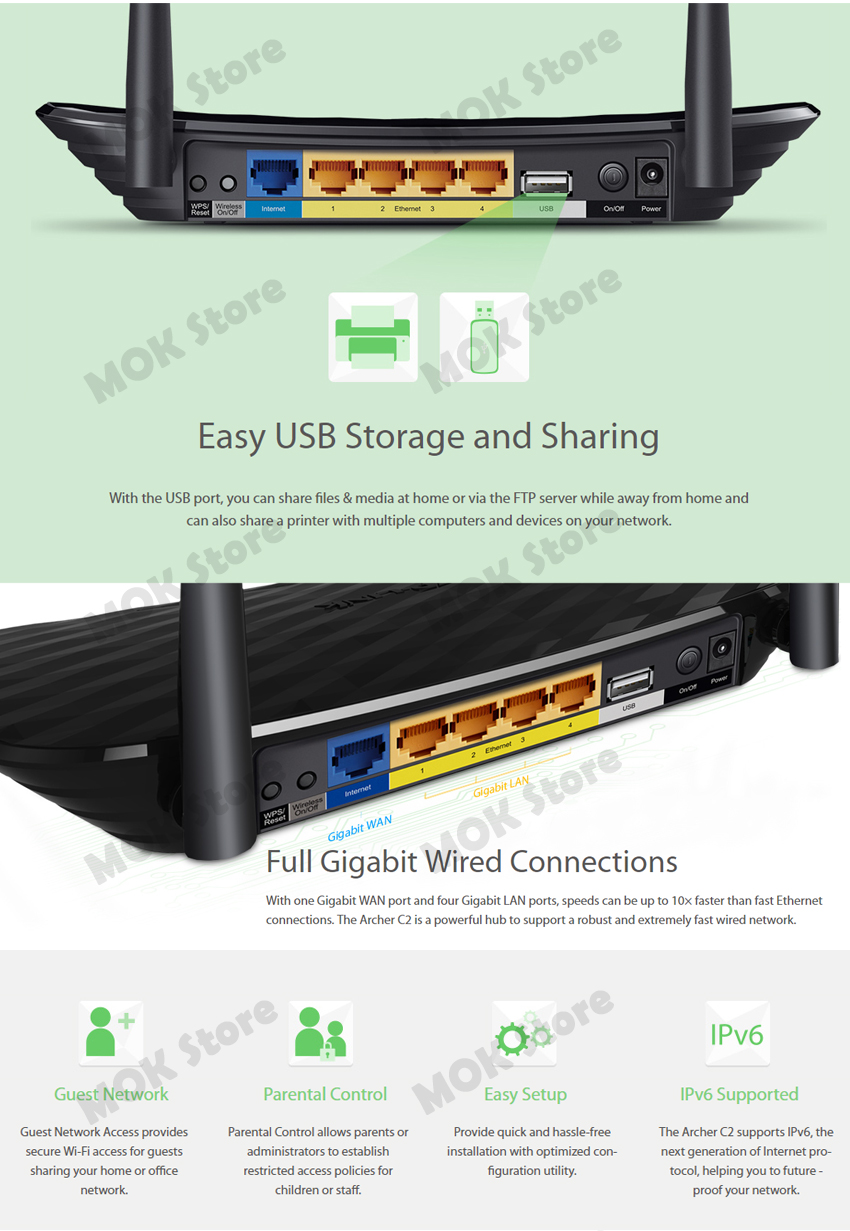

  - Full gigabit ports ensure ultrafast data transfer speeds

  - USB port - share a printer locally and files and media with networked devices or remotely via FTP server





• ㆍSpecification



  Hardware Specification
  Interface	4 x 10/100/1000 Mbps LAN ports 1 x 10/100/1000 Mbps WAN port 1 x USB 2.0 port
  Buttons	WPS/Reset Button Wireless On/Off Switch Power On/Off Button
  External Power Supply	12 V DC / 1.5 A
  Antenna Type	2 x dual band detachable antennas (RP-SMA)




  Wireless Specifications
  Wireless Standards	IEEE 802.11ac/n/a @ 5 GHz IEEE 802.11b/g/n @ 2.4 GHz
  Frequency	2.4 GHz and 5 GHz
  Signal Rate	5 GHz: Up to 433 Mbps 2.4 GHz: Up to 300 Mbps
  EIRP	<20 dBm (EIRP)
  Reception Sensitivity	5 GHz 11a 6 Mbps: -91 dBm 11a 54 Mbps: -74 dBm 11ac HT20: -66 dBm 11ac HT40: -64 dBm 11ac HT80: -61 dBm 11n HT20: -71 dBm 11n HT40: -69 dBm 2.4 GHz 11g 54M: -74 dBm 11n HT20: -72 dBm 11n HT40: -69 dBm
  Wireless Functions	Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
  Wireless Security	64/128-bit WEP, WPA/WPA2, and WPA-PSK/WPA2-PSK encryption




  Software Features
  WAN Type	Dynamic IP/Static IP/PPPoE/PPTP (Dual Access)/L2TP (Dual Access)/BigPond
  DHCP	Server, Client, DHCP Client List, Address Reservation
  Quality of Service (QoS)	WMM, Bandwidth Control
  Port Forwarding	Virtual Server, Port Triggering, UPnP, DMZ
  Dynamic DNS	DynDns, Comexe, NO-IP
  VPN Pass-Through	PPTP, L2TP, IPSec
  Access Control	Parental Control, Local Management Control, Host List, Access Schedule, Rule Management
  Firewall Security	DoS, SPI Firewall IP Address Filtering/MAC Address Filtering/Domain Filtering IP and MAC Address Binding
  Protocols	Supports IPv4 and IPv6
  USB Sharing	Support Samba(Storage)/ FTP Server/Media Server/Printer Server
  Management	Access Control Local Management Remote Management
  Guest Network	1 x 2.4 GHz guest network 1 x 5 GHz guest network




  Other Specifications
  Certification	CE, FCC, RoHS
  System Requirements	Windows 8/7/Vista/XP, Mac OS or Linux-based operating system
  Operating Temperature	32 to 104°F / 0 to 40°C
  Storage Temperature	-40 to 158°F / -40 to 70°C
  Operating Humidity	10 to 90% non-condensing
  Storage Humidity	5 to 90% non-condensing




  Dimensions & Weight
  Dimensions	9.1 x 5.7 x 1.4" / 230 x 144 x 35 mm
  Weight	Not specified by manufacturer




  Packaging Info
  Package Weight	1.55 lb
  Box Dimensions (LxWxH)	11.3 x 8.8 x 2.7"






• ㆍWhat is in the box ?

  - AC750 Wireless Dual Band Gigabit Router Archer C2

  - 2 Detachable Antennas

  - Power Supply Unit

  - Resource CD

  - Ethernet Cable

  - Quick Installation Guide
