Product Description

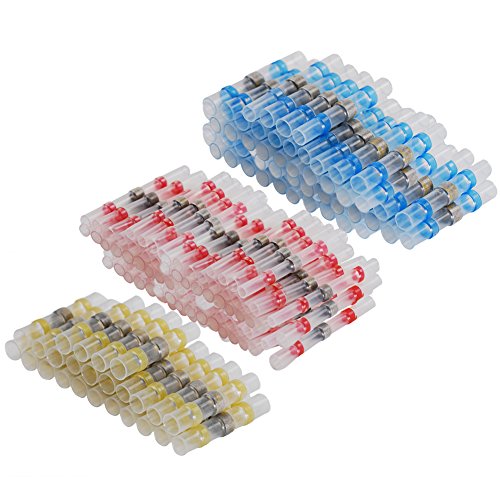

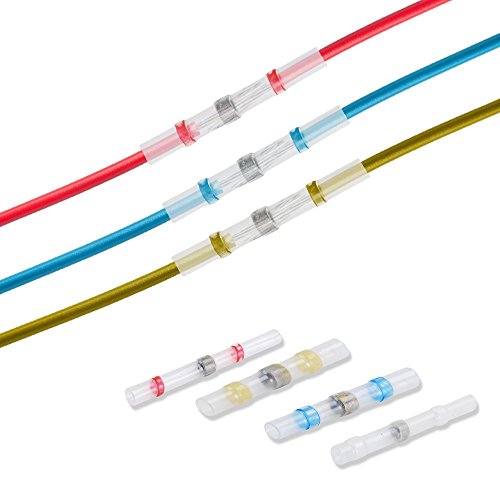

This set includes 3 different sizes:
65 x Red Shrink Connectors: Diameter 2.7 mm, Cable cross-section: 0.5-1.0 mm2(A.W.G:22-18);
60 x Blue Shrink Connectors: Diameter 4.5mm, Cable cross-section: 1.5-2.5 mm2(A.W.G:16-14);
25 x Yellow Shrink Connectors: Diameter 6.0 mm, Cable cross-section: 4.0-6.0 mm2(A.W.G:12-10).
Color: Red, Blue, Yellow

Specification
Shrinkage ratio 2:1
melt adhesive inside
Material : Preformed Solder Rings
Minimum shrink temperature: 80¡aC
Minimum temperature for solder to melt: 138¡aC
Dual-walled design tubing: polyolefin tubing on the outside and hot

Note:
Solder and Hot Melt Adhesive inside can be perfectly Waterproof.

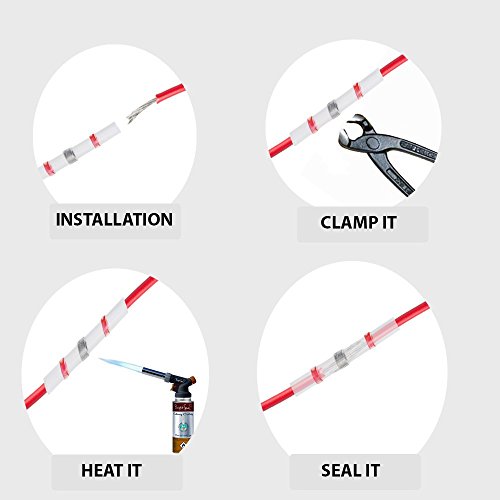

You can control the operating temperature and heating time.
Measure your wire, and easily choose the right connector by looking at wire size chart on the box.

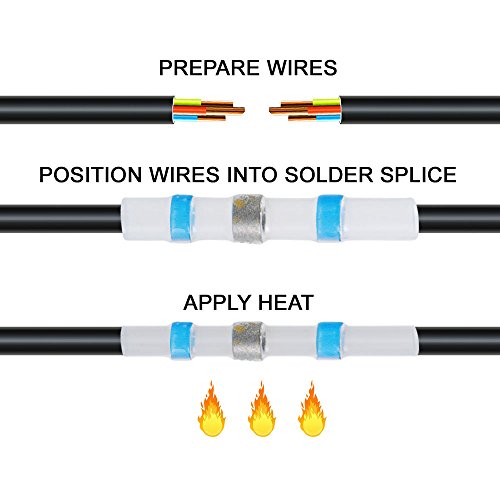

When heat is applied, polyolefin tubing reduces in size and adhesive flows inside the insulation. Dual walled tubing ensures waterproof seal and prevents wire corrosion.
