Item Descriptions:

color:

Silver · white

This product is a multi-functional lighter compact high-vision camera, easy to operate, small, aesthetic practical, easy to carry, it is a necessary practical tool in the fields of security, education, life at home, traveling and going out

Suitable for.

【Product function】 Movie shooting / Single voice recording / Vibrating function / Recording lamp off Model / One push easy operation WEB camera / High sound quality microphone / Date change function.

■ Compact and light weight heating wire writer design

When you slide the switch of the heating wire lighter, the same heating wires as the real thing are exposed.

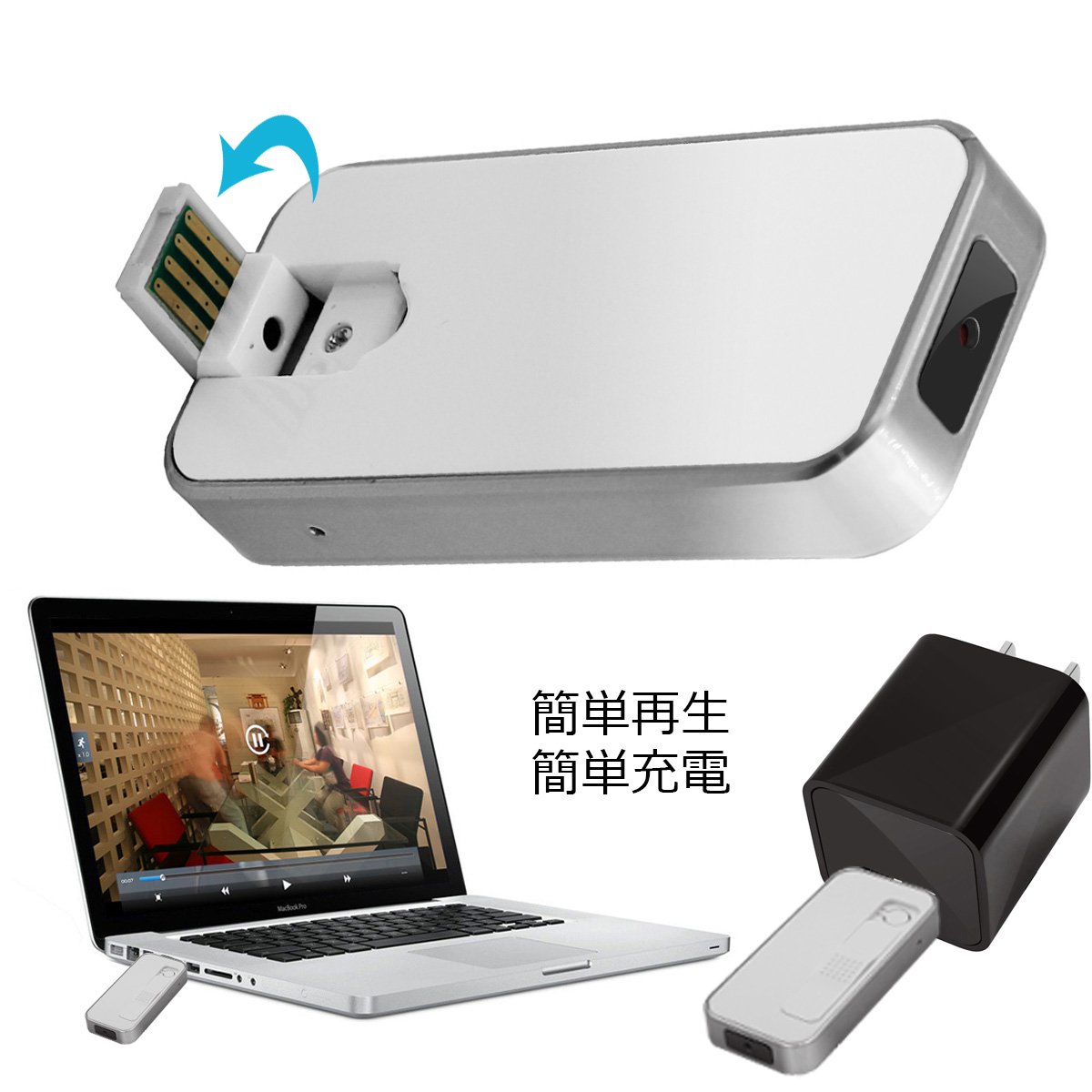

The USB terminal is foldably stored in the main body.

■ Mirror type lens cover included

If you attach a cover seal to protect the camera lens, the pinhole lens will not be visible, making it more natural design.

■ Lighter type Recording time greatly improved than conventional products!

Although it is a small size that does not change so much from the conventional product, the continuous recording time is greatly increased to about 150 minutes by FHD size.

The continuous recording time of the voice recorder is about 210 minutes.

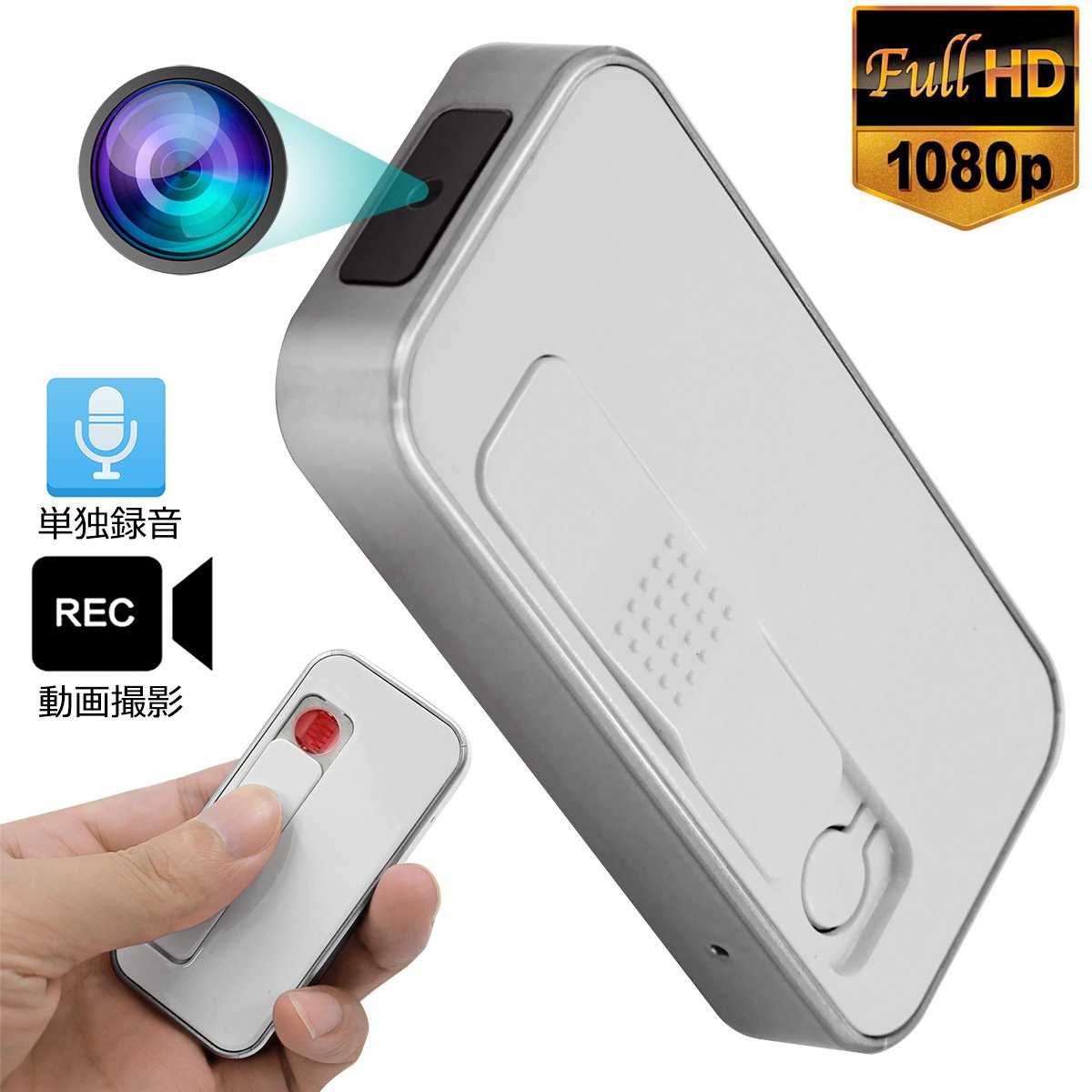

Realized "1920 × 1080pix" movie of small camera.

High image quality & high resolution realized an overwhelming beautiful movie shooting which has never existed before.

Easy data transmission can be done simply by connecting to the USB terminal of the PC, shooting for about 3 hours with 4 hours charging, single recording for 6 hours, support up to 32GB micro SD card.

Single recording function

, With a single recording function, as well as movies and pictures, it is possible to record only audio, just like a voice recorder.

■ Heating wire type writer function,

As the heating wire gets hot it can actually ignite the cigarette.

Related parameters

Video Format

: AVI

Video code:

M-JPEG

Video Resolution:

1920 * 1080 P FULL HD

Video frame rate

: 30 fps

Image format

: JPG

Image Proportion:

4: 3

Charging voltage:

DC-5V Battery capacity: 450 mAh

Interface type:

USB

charging time:

3-4 hours

Recording time:

About 3 hours

Recording time:

About 6 hours

Save support:

Supports microSD card up to 32GB

Battery type:

High capacity polymer lithium battery

Media player:

Operating system included, or mainstream audio / video media player

Supported OS:

Windows me / 2000 / xp / 2003 / vista; Mac OS; Linux;

Connect to PC

In the state that the product is switched off, when connecting to the PC without being removed, it is available as a U disk.

Copy files, cut and paste, delete, U disk initialization, etc. can be operated freely.

When this device is inserted in the USB interface of the PC, the PC pops up the mobile disk icon after a few seconds.

When the green lamp lights up, USB equipment is recognized and data can be transmitted.

Presentation:

a. After connecting this equipment to the PC, if the PC can not be recognized and connect again, or if you do not pop up the mobile icon even after 30 seconds, please reset and insert this equipment again.

b Recommend using the card reader of the microSD card to directly read and play the video file.

When directly reproducing the video file stored in the internal memory of this recording device by USB connection, there is a possibility that the data quantity is excessive, the transmission speed is slow, and the reproduction can not be performed smoothly.

If the microSD card is not recognized, format it.

Time correction setting

As for the installation method, connect to the computer, locate the mobile disk, click the right button in the blank part of the disc, and name "time" as "new" → "text document" on the menu

.

The name of the extension is ".txt".

In the PC desk, you can copy to the folder and copy it to the disk file by the above method.

The contents are as follows: year, month, day, hour: minute: second as follows: 2016.08.10 12:05:10 Then please save.

Save the file and exit.

Restart, time setting is completed.

After setting the time, the time set for the video file became the same as the set time.

Note: After the time setting is good, it will surely come into effect after restarting.

reset:

If the button becomes invalid, it can not be used properly, etc., this device will be connected to the power supply, pulled out from the power supply after 3 to 5 seconds, and reset when the red lamp is blinking.

After resetting, it can be used normally.

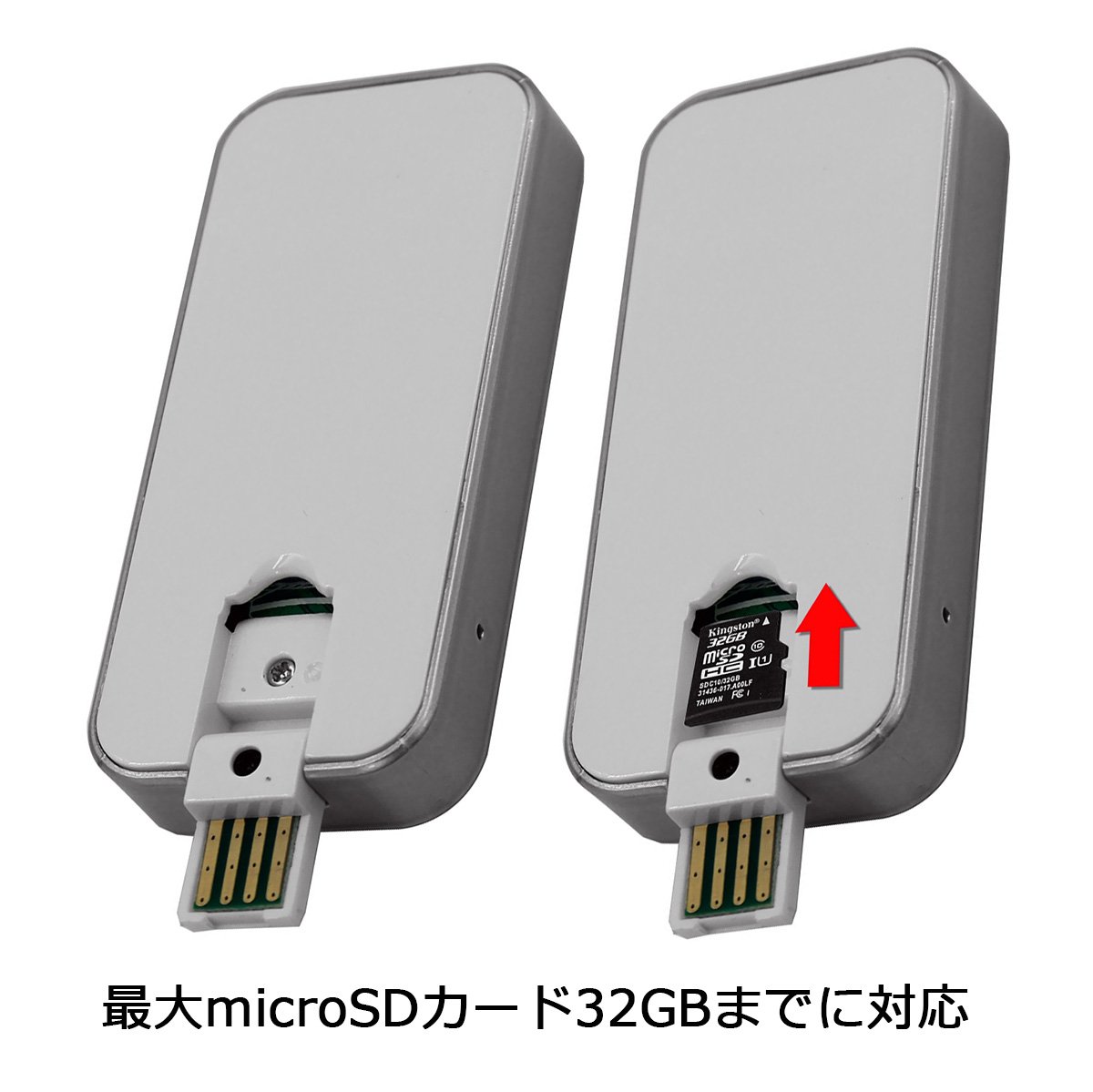

About inserting microSD card

Please insert the microSD card into the SD card slot next to the product USB.

Please push it once again when you take out.

If the microSD card is not inserted, malfunction may occur.

Always turn on this product after inserting microSD card.

If the switch is turned on without inserting the microSD card, the lamp flashes rapidly and then the switch is turned off.

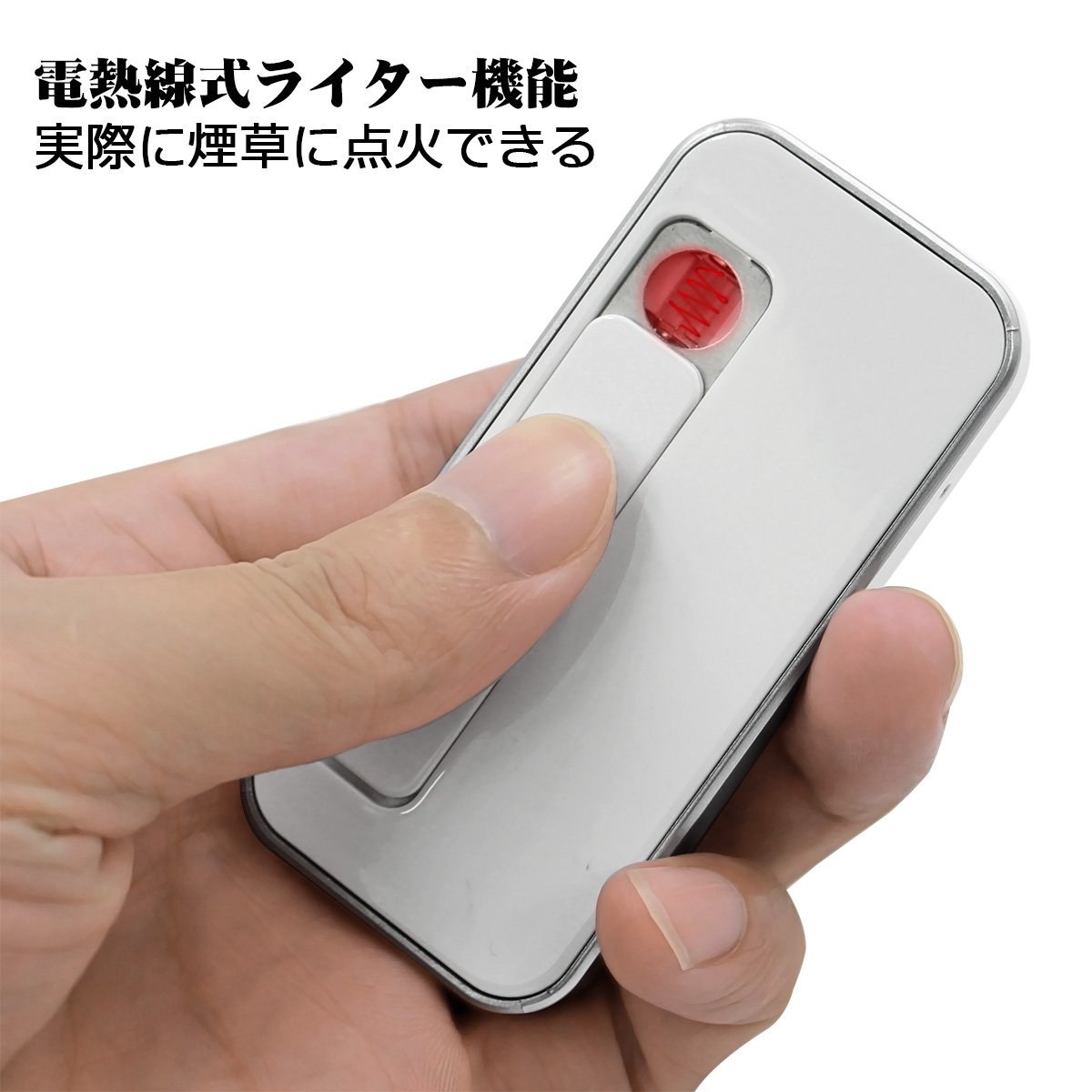

Heating wire type writer function

As a lighter, please let the igniter of the machine gently slide toward the function button, if the red lamp lights up, you can actually ignite the tobacco as the heating wire gets hot.

※ Please note that the heating wire becomes very hot.

※ The battery will be quickly drained during ignition.

accessories

Body · Japanese instruction manual, service card

Shooting illuminance:

Please use it for satisfying environmental conditions of the light source.

Avoid damaging the optical equipment and do not direct the camera directly to an ultra-strong light source such as sunlight.

Disposal process:

Please consider environmental protection, please do not discard this product at will.

Please be careful as throwing this product into fire as there is a danger of explosion.

Features:

• Please enter model number Confirm this is compatible:

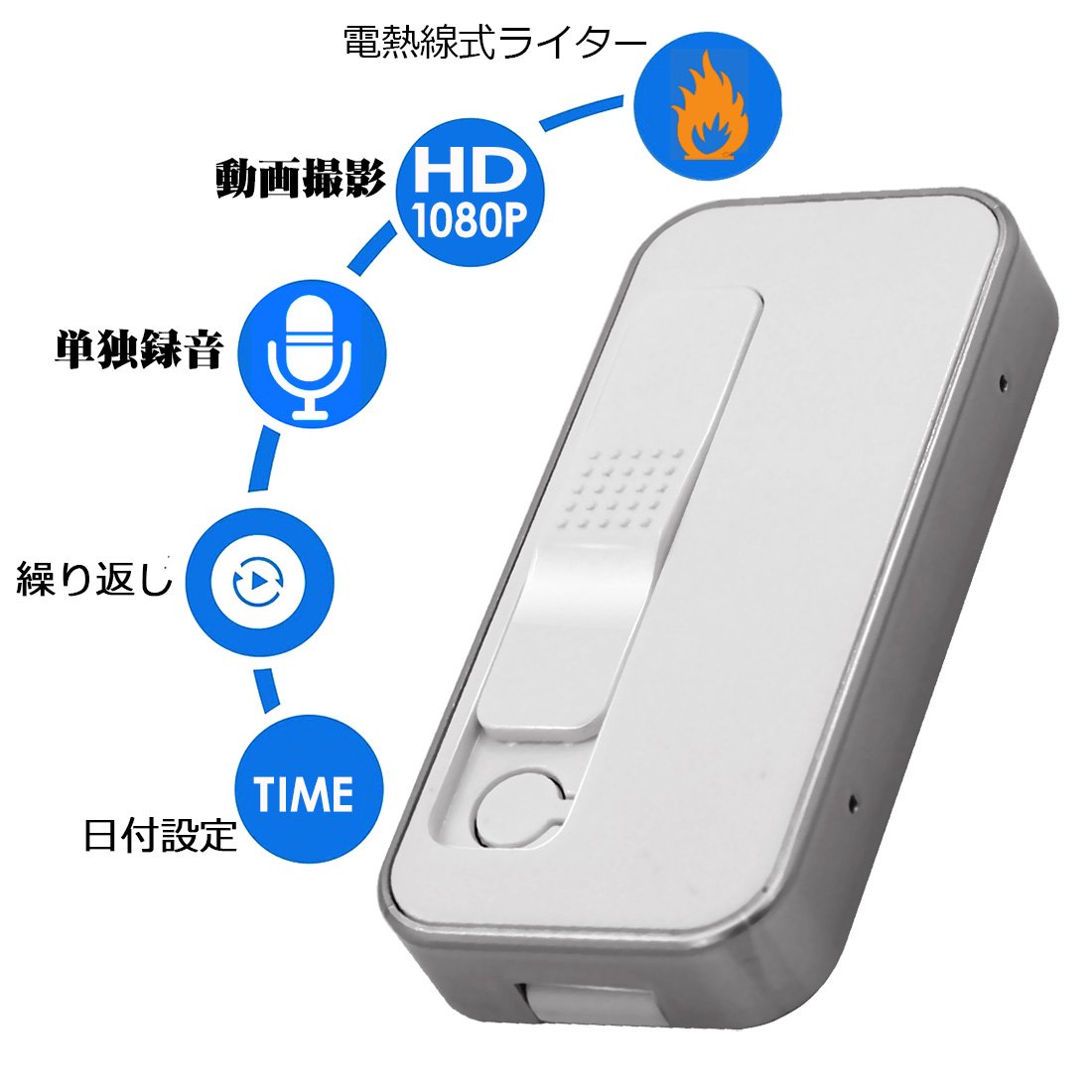

• 【Product function】 Movie shooting · Single recording · Hot wire type writer function · Date change function · High sound quality microphone · Under recording recording lamp · Easy operation · WEB camera
• [High Image / High Resolution] High image quality of movie resolution "1920 * 1080pix" is realized, 30 fps is mainstream in small camera, and it is a sufficiently smooth image.
• [Independent recording function] With single recording function, as well as movies and pictures, it is possible to record only audio, just like a voice recorder.
• 【High Mobility Type】 Small security camera, appearance is an ordinary writer, you can carry it anywhere, so you can use it without any discomfort and become easy operation.
• [Heating wire type writer function] Equipped with a heating wire that can actually ignite cigarettes.
• ※ Please note that the heating wire becomes very hot.
• ※ The battery will be quickly drained during ignition.

Product information:

Shipping Weight: 122 g

Package Dimensions: 3.99 x 9.60 x 13.79 cm
