Item Descriptions:

Simple small USB memory type

Since it is compact and lightweight, it is easy to put it in your pocket

Easily shoot videos and pictures!

Even though it's small, you can take a good picture!

If you insert the microSDHC card you can use it as a USB memory stick.

Easy operation with one button

Easy operation of the button Continuous recording by pushing the button after turning on the power.

Press it twice to see the picture.

It does not get lost by simple operation.

If you insert it in the USB terminal you can also detect moving subject detection Recording can also be detected by inserting it into the active PC or the USB / AC adapter plugged into an outlet.

Movie resolution: 1280 × 960px

Movie compression format: Motion JPEG

Movie file format: AVI

Frame rate: 30 FPS

Still image resolution: 1600 × 1200 px

Still image file storage format: JPEG

Motion detection method: New high sensitivity microphone

Built-in microphone: microSD card Supports up to 32GB

※ microSD card is not included.

Memory: USB 2.0

USB interface: about 60 minutes

* It is a standard of battery performance at the time of initial full charge.

In case

* It will change depending on the usage environment of the customer.

* Battery running time is the theoretical value and it does not guarantee operating time.

Product size: About 20 mm × 52 mm × 11 mm (length × width × thickness)

Weight: Approx 9 g

Battery: lithium polymer rechargeable battery

Charging method: USB bus power and AC adapter (sold separately)

take a picture:

In the standby state, press the Continuous 2 times mode key, the instruction light flashes, the photographing of one piece is successfully performed once, and the TF card is saved.

Recording:

In the standby state, press the mode key (once) and this product starts recording.

In the course of the video, the instruction light flashes and video is being recorded.

U disk mode:

When this product is turned off, connect this product to the PC from the USB connection wire, this product enters the U disk mode, and the user can observe the contents of the U disk and the broadcast video on the personal computer.

PC Camera:

With the U disk connected, press the mode button briefly, this product exits the U disk, immediately enters the PC camera, the driver software does not install the driver, the user can select the video chat and audio

You can use chat.

Time set:

Time can be displayed on the picture.

After connecting the product to pc, please set the text file "time.txt" at the location of the removable disk.

In the text, "2012-05-01 23:59:59" Please set and save with this kind of formatting.

After completing the set, remove the product from the USB and start again, it is OK.

Shooting while charging:

When this product is cranked in, it connects itself with a 5 V charger with a USB terminal, this product does not enter U disk mode, entered shooting mode while charging.

Connect to PC

: When connected to a PC without being disconnected to the state of switch off, it is available as a U disk.

Copy files, cut and paste, delete, U disk initialization, etc. can be operated freely.

PC camera

: With U disk connected, push button For a short time, this product exits U disk, enters the PC camera immediately, no installation drive software, users will use video chat of this product

I can.

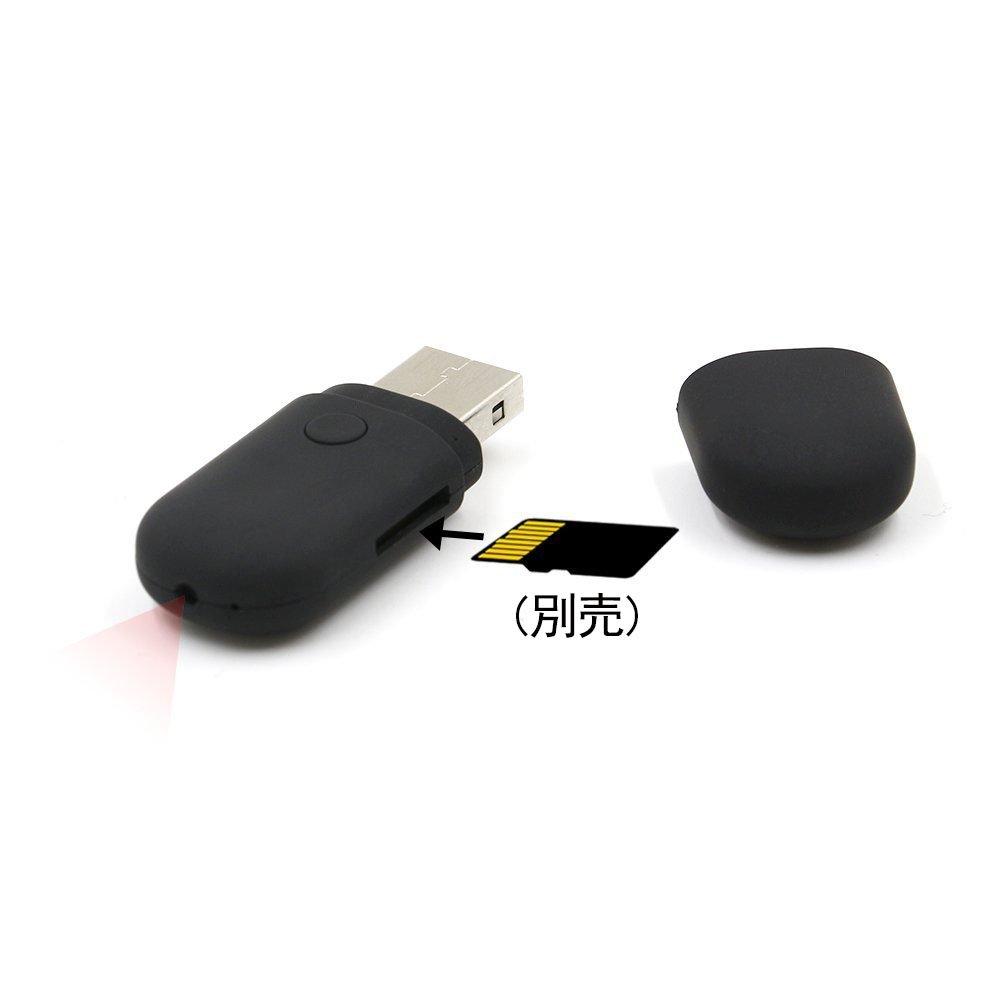

microSD

About card insertion

: Please insert the microSD card (sold separately) into the microSD slot on the product side.

Please push it once again when you take out.

U disk mode

: This product is in U disk mode from the product to be USB connected in the power off state of this product, the user can see the contents and broadcast video in the U disc on the PC

Application location

We instantly deliver video in the fields of conference, business negotiation record, various business scenes, nursing care, monitoring of shops, lectures, accidents, crime records, crime prevention.

Also to protect important people such as nursing homes and babysitter suspected abuse.

This product is intended for crime prevention and security to protect important families and property.

This product is a necessary and practical tool in the field of security, education, life etc. at home for the purpose of crime prevention and security for protecting important families and property.

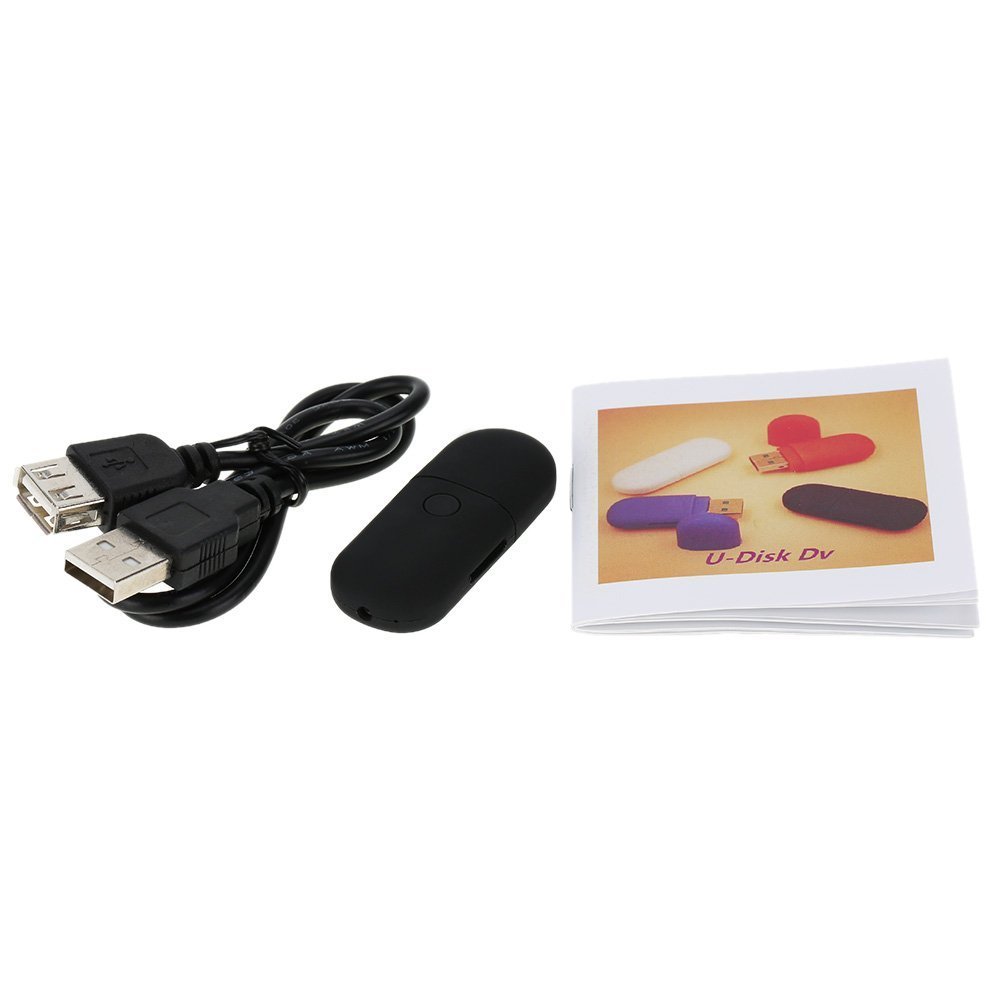

set content:

1 * body

1 * USB cable

1 * Japanese manual

Caution:

Identify the success of the TF card:

The light flashes once, then the instruction lamp lights up, and the product is in the standby state.

No cards:

The instruction light blinks and turns off this product three times.

Card full:

The instruction light will blink and turn off the power of this product six times.

Features:

• Please enter model number Confirm this is compatible:
• Because the size is small, you can record secretly in dubious scenes such as things disappear.
• Although it is the shape of the memory, microSD card is used (up to 32 G) because there is no memory in the main body.

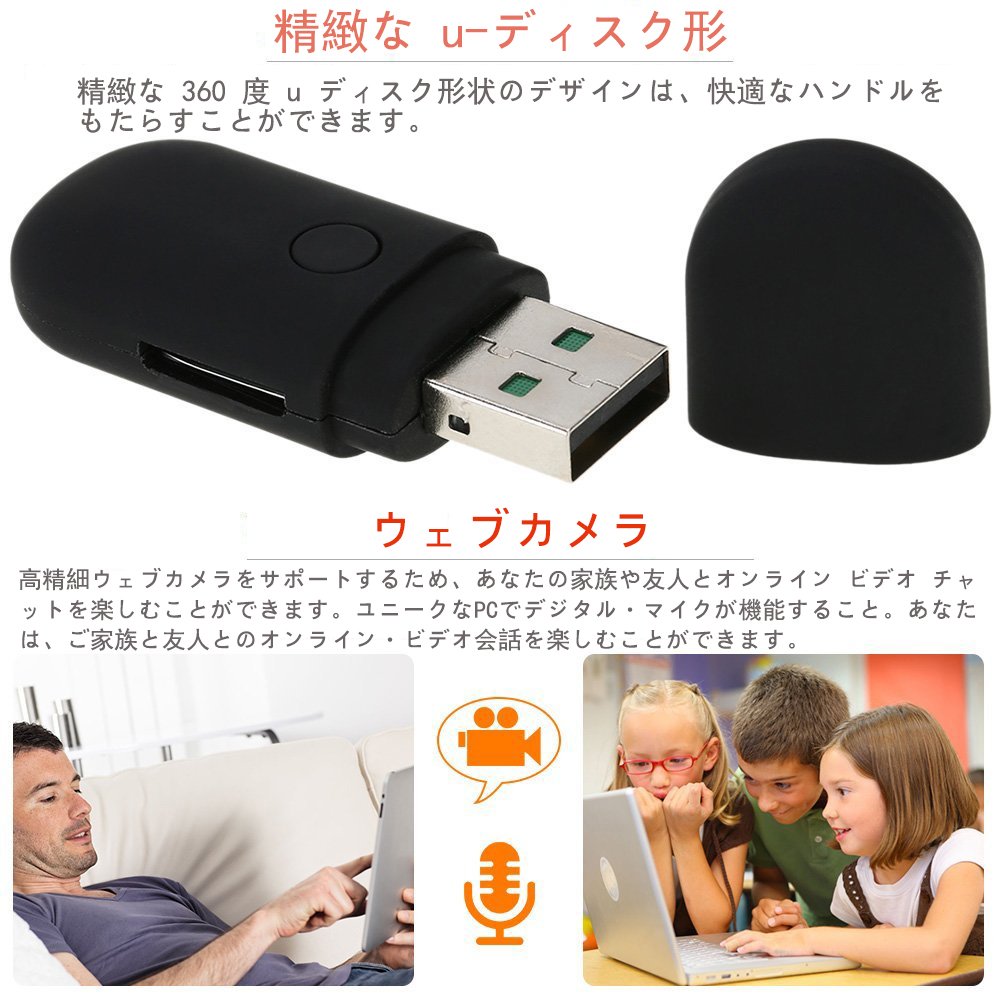

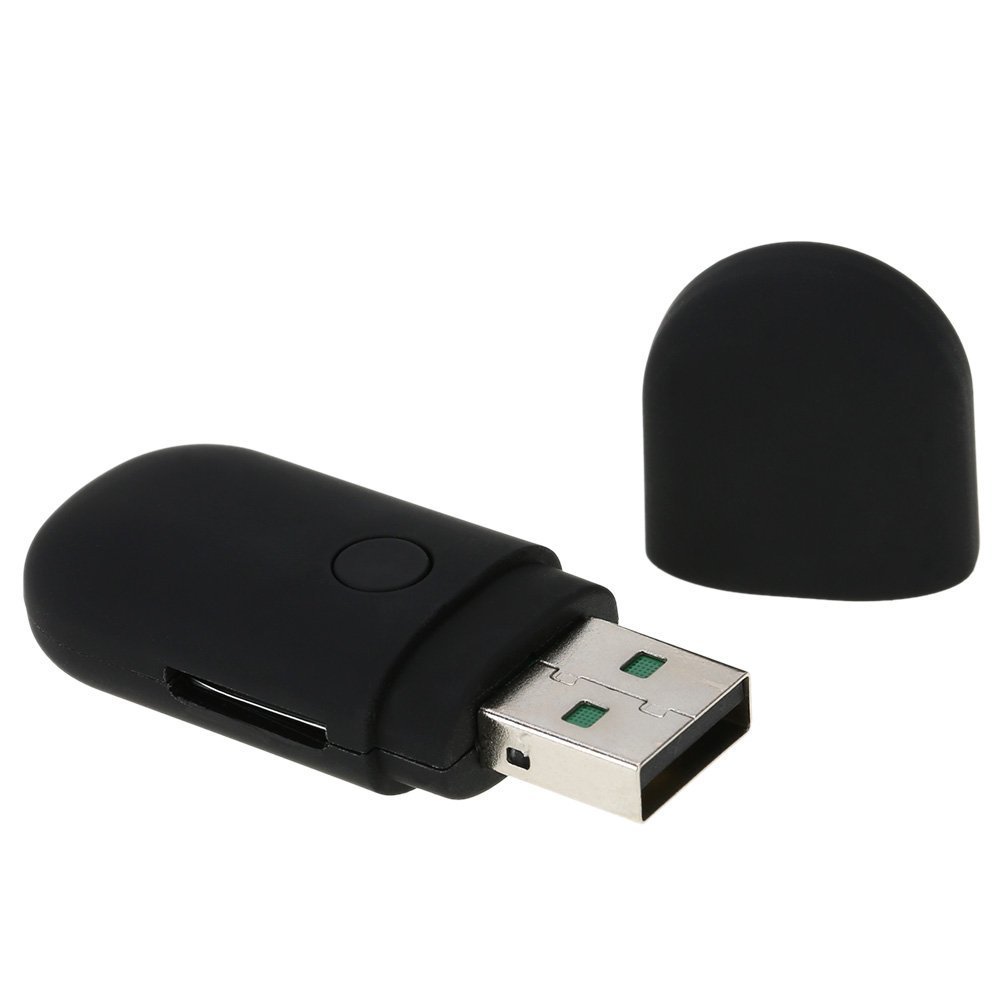

• It looks like normal USB memory, but if you slide the cap, a tiny lens is!
• HD960P standard movie shooting / Motion JPEG codec / still image shooting / motion detection function mounted / PC camera function / external power supply while charging while shooting / date change function / high sound quality microphone / easy operation.
• There are still picture "1600 × 1200" and movie "1280 × 960".
• For USB memory type video cameras, movie shooting and still image shooting are available.
• PC Network Camera function, add unique built-in USB digital microphone function, convenient internet video audio chat anytime
• Even if you do not wear it on a PC, it's built in battery so you can record for 1 hour.
• Of course, you can record the memory by keeping it connected to the PC.
• We will instantly deliver video in the fields of conference, business negotiation record, various business scenes, nursing care, monitoring of stores, lectures, accidents, crime records, crime prevention, do not mind, actively use as evidence backing
• I think that should be done.

Product information:

Shipping Weight: 72 g

Package Dimensions: 3.40 x 8.10 x 8.20 cm
