Main Features: 1. Analog High Definition; 2. BNC interface, connect normal coaxial cable up to 500M; 3. Real-time transmission,no delay; 4. Support UTC function,control camera in DVR menu via coxial cable; 5. Support IR-CUT auto-switch; 6. Software supports TVI-AHD-CVI-CVBS 4 in 1.

Camera
Image Sensor	1/4" CMOS	1/3" CMOS	1/2.8" CMOS	1/3" CMOS	1/3" CMOS	1/2.9" CMOS
Image Resolution	720P	960P	1080P	3.0MP	4.0MP	5.0MP
Effective Pixels	1280*720	1280*960	1920*1080	2048*1536	2592*1520	2592*1944
Video Format	PAL/NTSC
Electronic Shutter	1/25s~1/50,000s , 1/30s~1/60,000s
Sync System	Internal
Usable Illumination	0.001Lux
S/N Ratio	≥50dB
Scanning System	Progressive Scan
Video Output Mode	CVBS(BNC)
Transmission Distance	>500M (75-5 coaxial cable )
Lens
Focus Length	2.8 / 3.6 / 4 / 6 / 8 / 12mm Optional
Focus Control	Fixed
Pixels	3MP Pixels				4MP Pixels	5MP Pixels
Auto Iris Support	NO
Night Vision
Infrared LED	36pcs IR Leds
Infrared Distance	30M
IR Status	Under 10 Lux by CDS
IR Power On	CDS Auto Control
Day/Night	Auto (ICR) / Color / B&W
Camera Features
OSD Menu Language	EN, CN, DE, FRA, IT, ES, PL, RU, PT, NL, TR, etc…
White Balance	Auto/Manual
Gain Control	Auto
Noise Reduction	3D NR
Picture Adjustment	Yes
OSD Support	Optional
General
Material	Metal, IP66
Color	White
IR Cut Filter	YES
Operation Temperature	-10℃ ~ +50℃ RH95% Max
Storage Temperature	-20℃ ~ +60℃ RH95% Max
Power Source	DC12V±10%, 1000mA

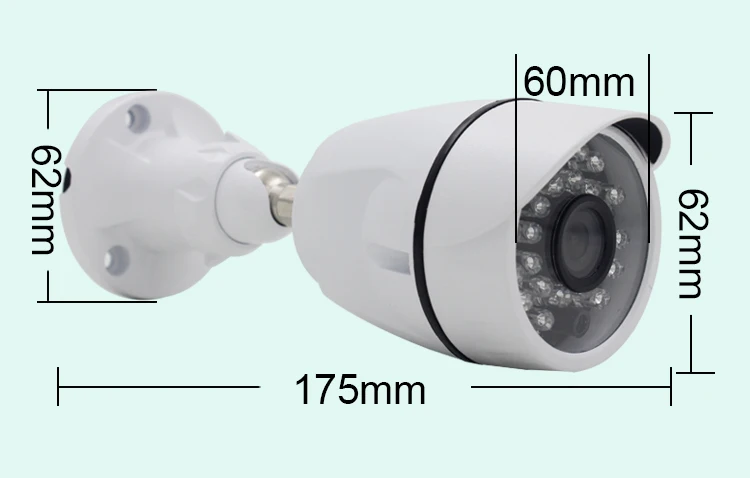

Dimension	Φ60×180mm
Weight	0.3Kg
