Item Descriptions:

The wonderful flight distance which the synergistic effect of "NEW 4 × 8 DC brake" and "NEW Magnum light spool" brings.

"NEW 4 × 8 DC brake" which automatically controls the explosive initial speed in units of 1/1000 sec with the most advanced microcomputer, "NEW Magnum light spool" which minimizes the moment of inertia and drastically increases the distance of flight, fine

"Micromodule gear" that engagement of different gears delivers windings of different dimensions, "Silent tune" to stabilize spool rotation during casting.

These Shimano's top technology is the highest peak model of Bait Lille wrapped in high precision · high rigidity "HAGANE Body".

Features:

• Gear ratio: 5.6
• Maximum drag force (kg): 5.0
• Spool size (diameter mm / width mm): 37/22
• Nylon thread wound amount (lb.-m): 12-130, 14-110, 16-100
• Maximum winding length (cm / 1 turn of handle): 65
• Handle length (mm): 42
• Number of bearings (SA - RB / Roller): 10/1

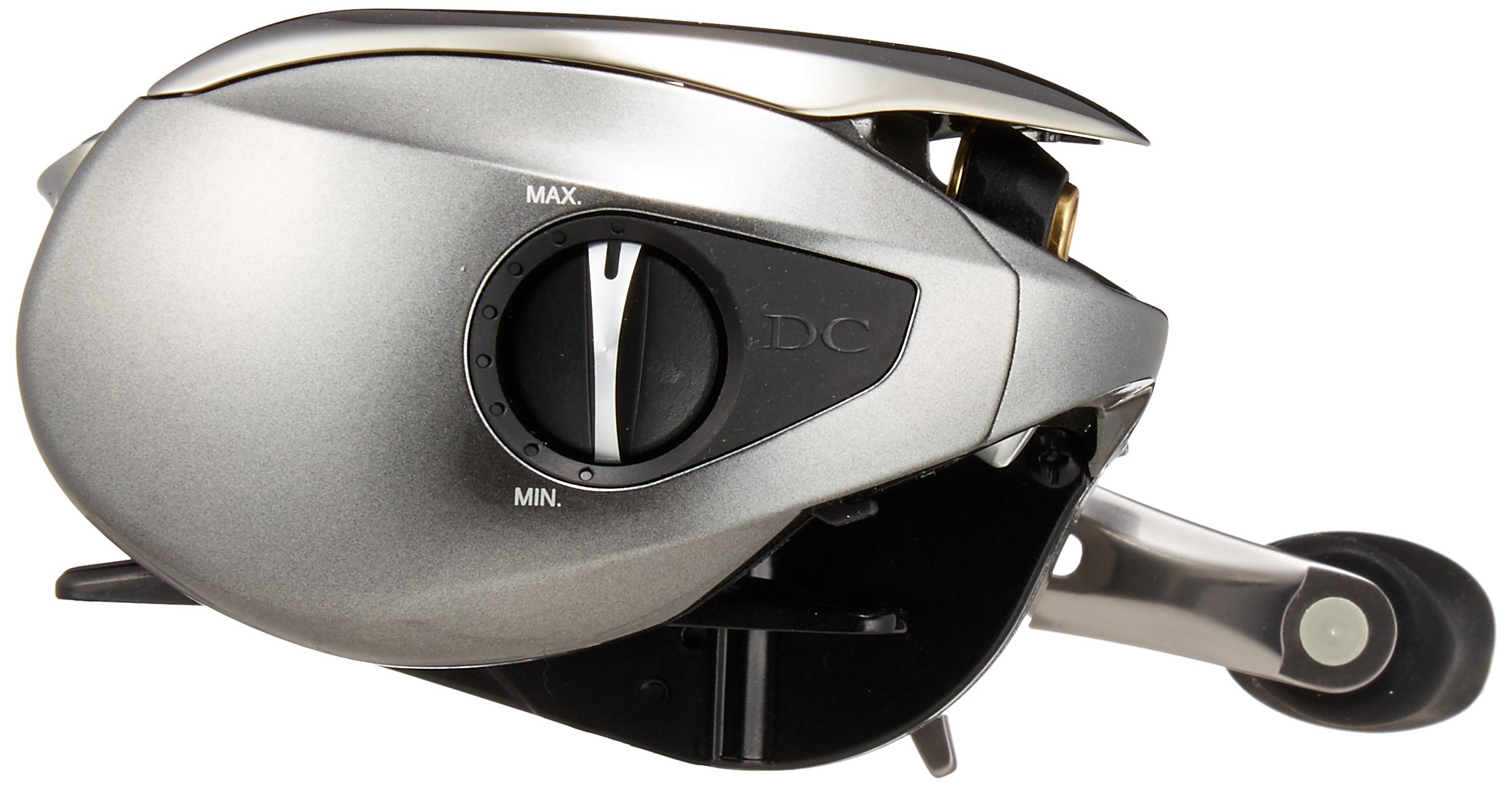

• [NEW 4 × 8 DC brake] No brake time is controlled in units of 1 / 1000th of a second.
• Maximum revolution speed is maintained and flying distance is improved.
• : DC = Digital control brake is a system unique to Shimano that brakes with electronic control only when necessary.
• Braking which can not be achieved with magnets and centrifugal force enables outstanding far throw.
• "NEW 4 × 8 DC brake" which becomes the seventh DC will greatly improve the control function of the microcomputer.
• Automatically controls the no-brake time immediately after casting, which is the most important factor in far-casting performance, in thousandths of a second.
• By maintaining the Max rotation speed, we can make further far throws possible.
• [Magnum light spool] A new form of a light and strong "flying" spool with a hole on the side wall.
• : The moment of inertia of the spool that affects the casting performance of the bait reel.
• In development, we have made blanking and thinning to the spool barrel diameter for the purpose of decreasing it, but in "NEW Magnum Light Spool", in order to puncture the side of the spool which has been considered technically impossible
• success.
• We achieved about 10% reduction in moment of inertia compared to our company, and in fact marked up about 20% increase in flight distance.
• Micro module gear: refine teeth to the limit, realize silky engagement and power transmission.
• Noiseless winding catches even delicate Atari.
• The gear continues to demonstrate its potential while being protected by the HAGANE body.
• X-SHIP: Increasing diameter of drive gear, optimal arrangement of pinion and drive gears, and 2 point support by pinion gear bearings.
• The engagement of these robust gears holds a light reeling that is strong against the load.
• "HAGANE" Body: Metal such as aluminum and magnesium with high rigidity is reduced to the utmost limit while firmly suppressing deflection, distortion, and twisting of the reel.
• It enables smooth reeling with less power loss.
• S3D spool: It is a spool which improves weight balance and dimensional accuracy and suppresses vibration during casting.
• Vibration noise has been reduced by half from conventional products (compared to our company).
• Even during release of the line at high speed, rattling and uneven rotation are extremely few, demonstrating stable casting performance.
• Both the flight distance and casting accuracy have dramatically improved.
• Silent tune: This mechanism reduces the vibration of the bearing during high-speed rotation by applying a slight pressure to the bearing holding the spool.
• This realizes further quietness improvement during casting.
• Rise of spool rotation has become even smoother.
• S A - RB: It is the industry 's first "surface reforming" to form a "passive layer", realizing a rust - free bearing A - RB.
• In addition, SA-RB has sealed its side with a rustproof material and greatly reduced salty garbage due to salt recrystallization inside the bearing.

Product information:

Shipping Weight: 430 g

Package Dimensions: 9.19 x 13.41 x 15.09 cm
