Product Description

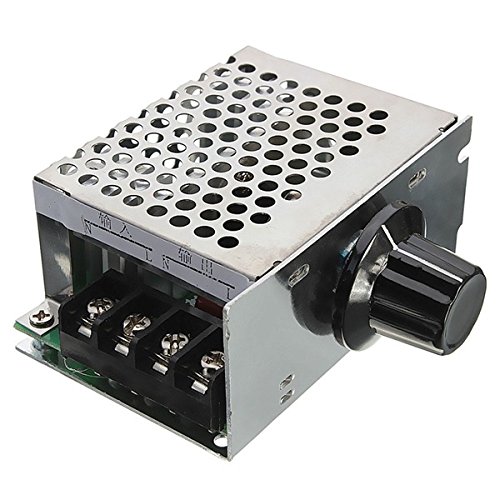

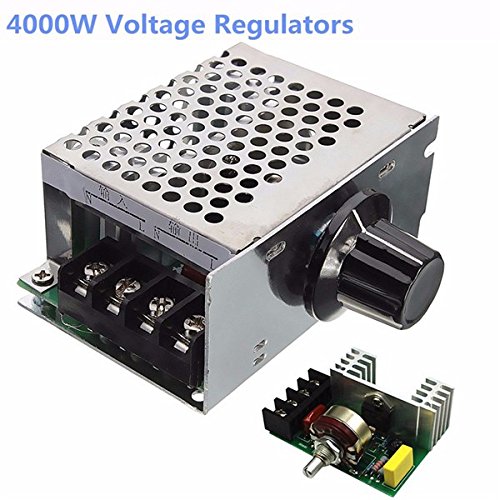

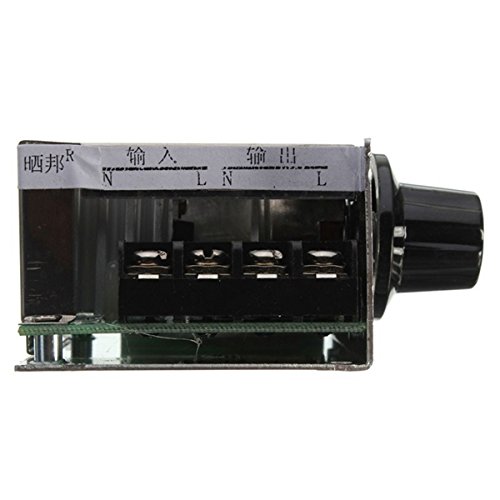

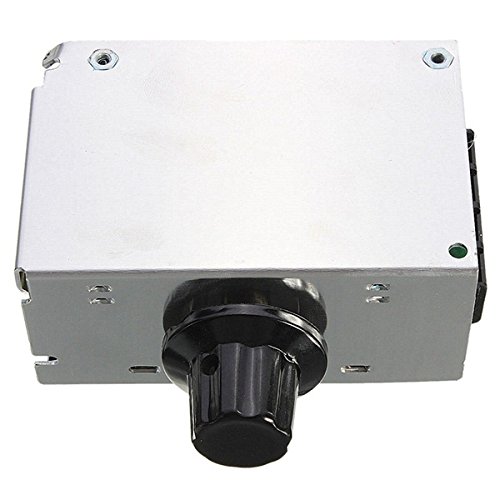

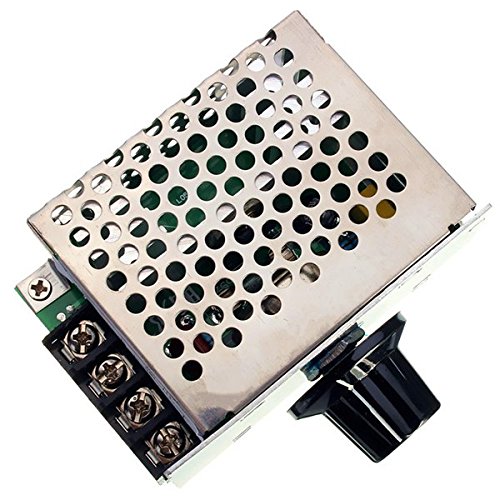

4000W 220V AC SCR Voltage Regulator Dimmer Electric Motor Speed Controller

Feature:
Voltage: AC 0-220V Maximum power: 4000W Voltage Regulation: AC 0-220V Size: L85mm x W60mm x H40mm rotation hole 6mm SCR Model: BT-800B Instruction:
The role of the product access AC 0-220V, output is connected to the electric wire or electrical appliances, rotary potentiometer, can play speed, pressure, thermostat Suitable for:
Using the new two-way high-power thyristor, because the design maximum current can reach 20A, a good solution to the problem of over-current electric wire in the case of cooling caused by the resistance is too small, can easily adjust the output voltage at DC0 ~ any adjustment between DC220V Precaution:
Note that the load can not exceed the specified maximum power, otherwise it will burn the module and electrical. Try using a resistive load, inductive capacitive load power to be greatly reduced. Do not try to open or modify regulator.
Package included:
1 x 4000W 220V AC SCR Voltage Regulator Dimmer Electric Motor Speed Controller
