Item Descriptions:
Product introduction
PCIe Sound Blaster Z is a series basic model for PC gaming and PC entertainment while inheriting the top model technology and performance.
With the included Sound Blaster Beamforming microphone and CrystalVoice technology, you can enjoy clear and comfortable voice communication with Skype or other voice chat or in-game chat.
Advanced Quad-Core Audio & Voice Processor Sound Core 3 D is an innovative Quartet DSP consisting of four independent processor cores, supporting various audio effects of SBX Pro Studio technology and CrystalVoice technology in hardware.
From Amazon

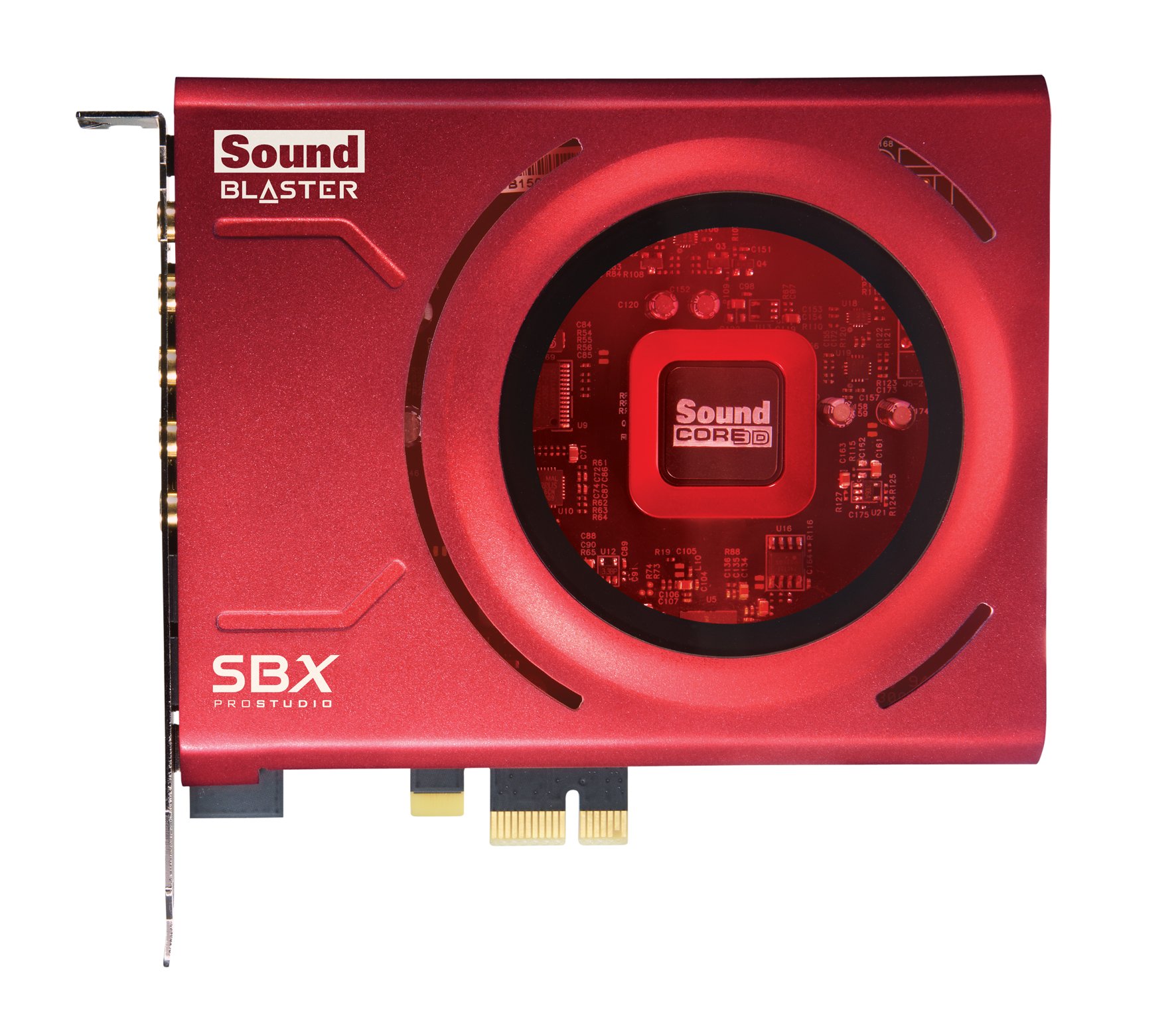

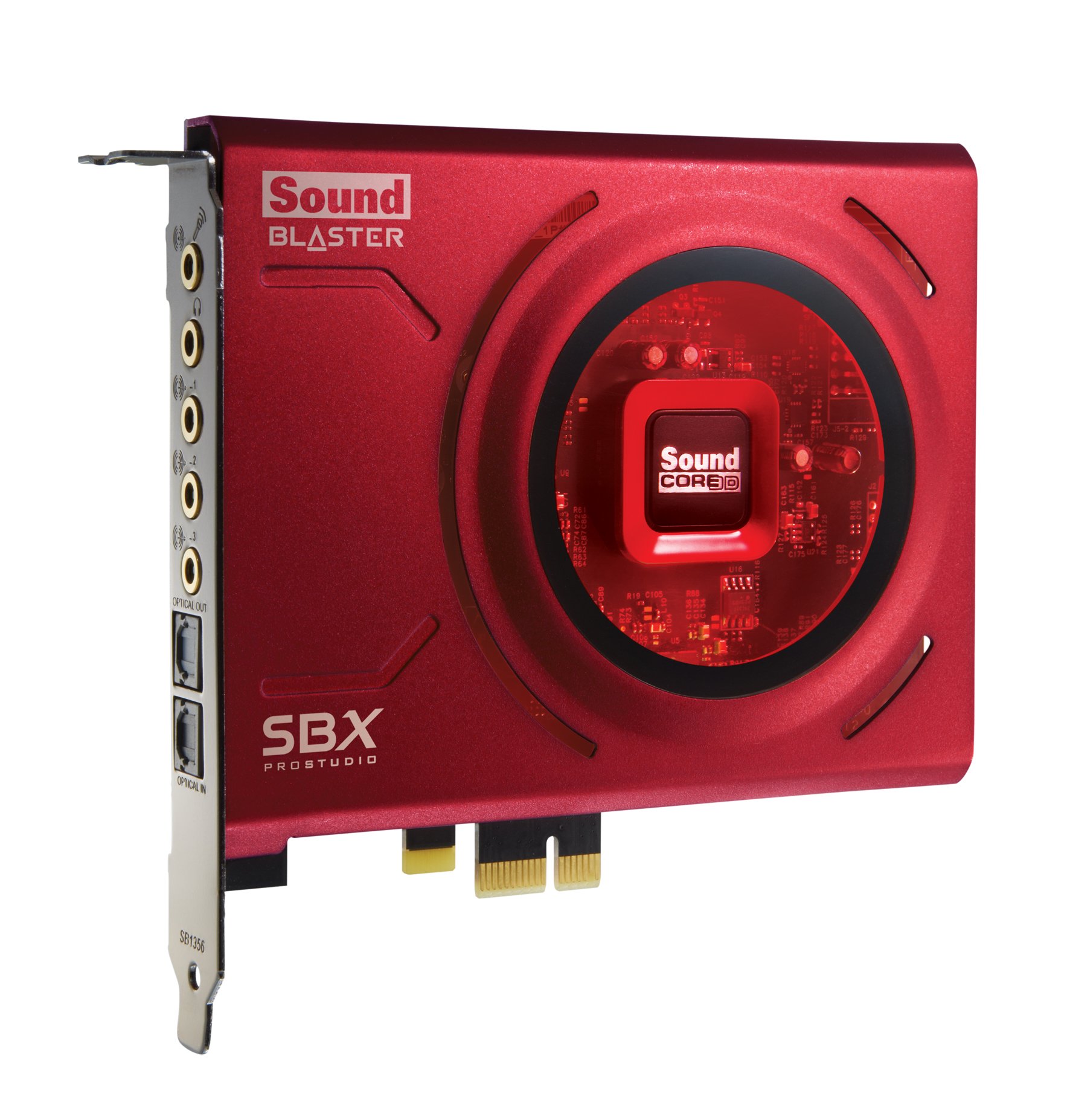

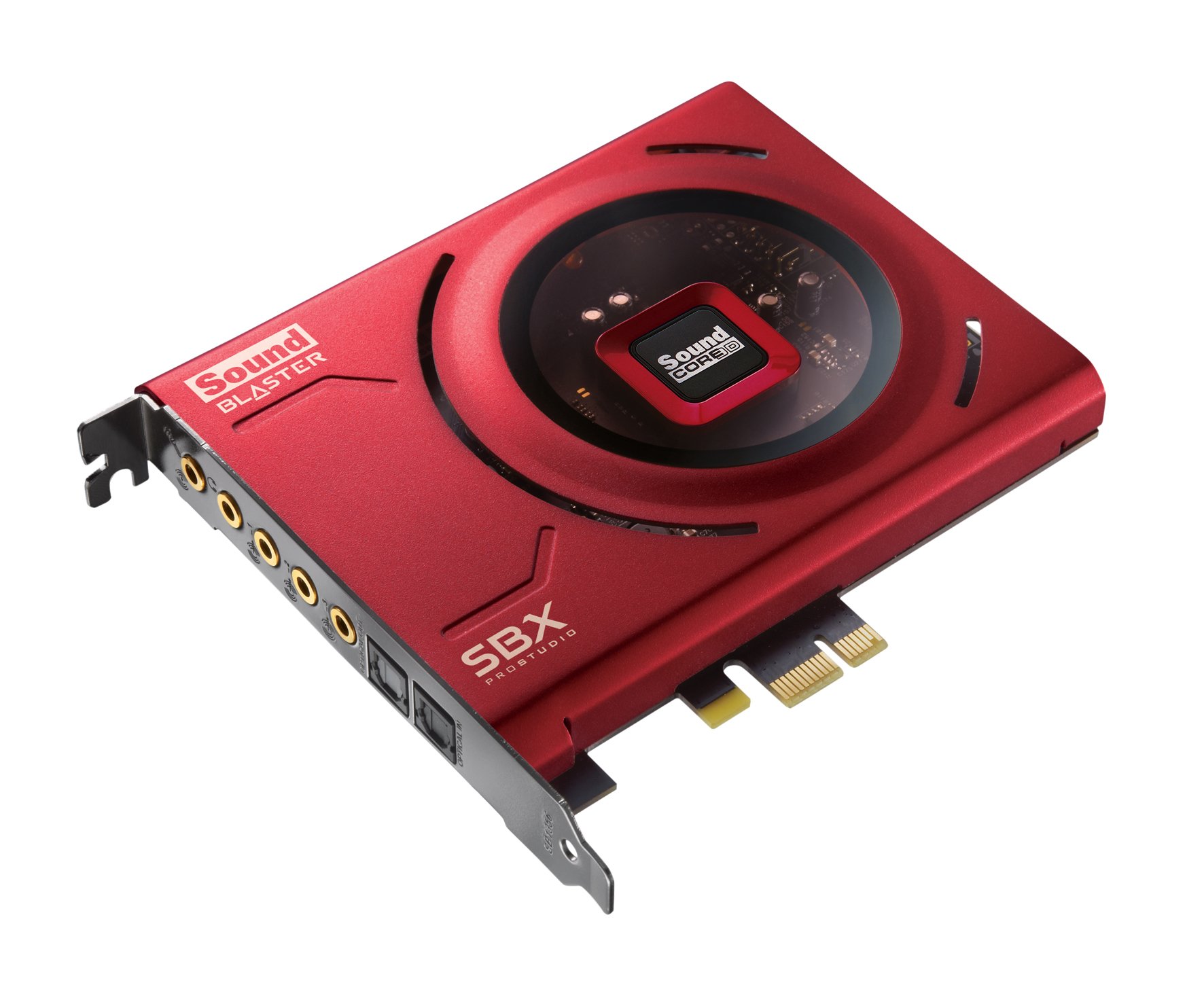

Creative PCIe Sound Blaster Z
High performance PC gaming & entertainment audio with basic model of Sound Blaster Z series
Sound Blaster Z series common functions and features
· Sound Blaster series used by over 400 million people worldwide
· Quad-core Audio & Voice Processor Sound Core 3D
· Powerful PC entertainment with SBX Pro Studio technology
· Clear and comfortable voice communication with CrystalVoice technology
· 24 bit / 192 kHz stereo direct output mode
· Connected to home entertainment system with one digital cable
· Highlight the movement in the game with sound in "Scout mode"
· Independent headphone output capable of driving headphone at maximum 600 Ω impedance
Main features of PCIe Sound Blaster Z
Audio realism
A high-quality DA converter is mounted on the card, and a low-noise audio environment with an S / N ratio of 116 dB can be constructed with card measurement values.
With SBX Pro Studio technology integrated into a powerful Sound Core 3D processor,
You can enjoy high quality next generation audio with PC entertainment such as music appreciation, movie appreciation, games etc.
Advanced home entertainment audio
Adopted gold-plated terminals with minimal degradation in sound quality for analog input terminals and analog output terminals compatible with up to 5.1 channels.
Moreover, optical digital input / output terminal is also mounted on the card, and it is based on Dolby Digital Live or DTS Connect encoding function
It can perform digital transmission and high sound quality recording which is not easily affected by external noise.
Sound Blaster audio
Please experience advanced quality and power with home entertainment.

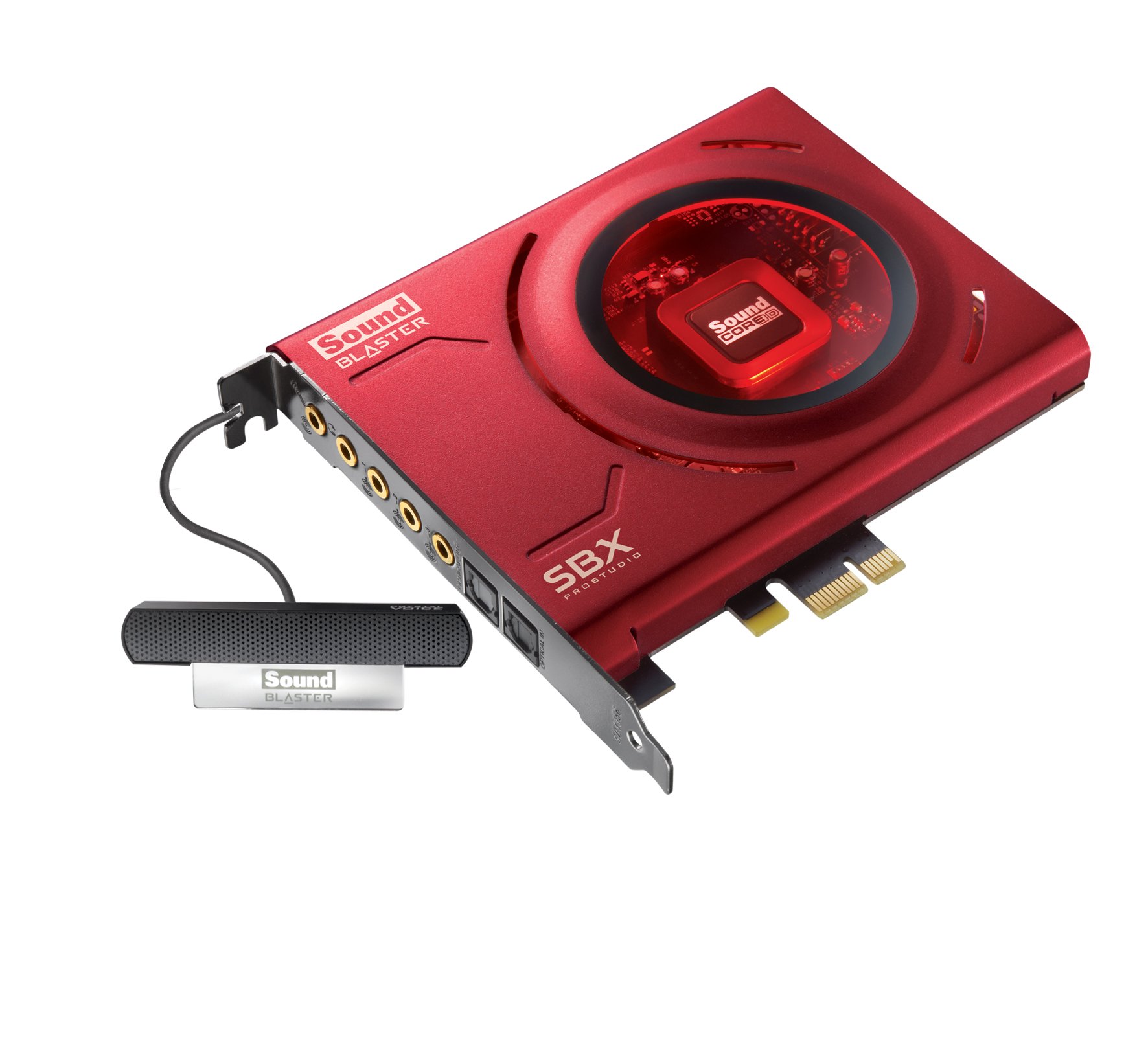

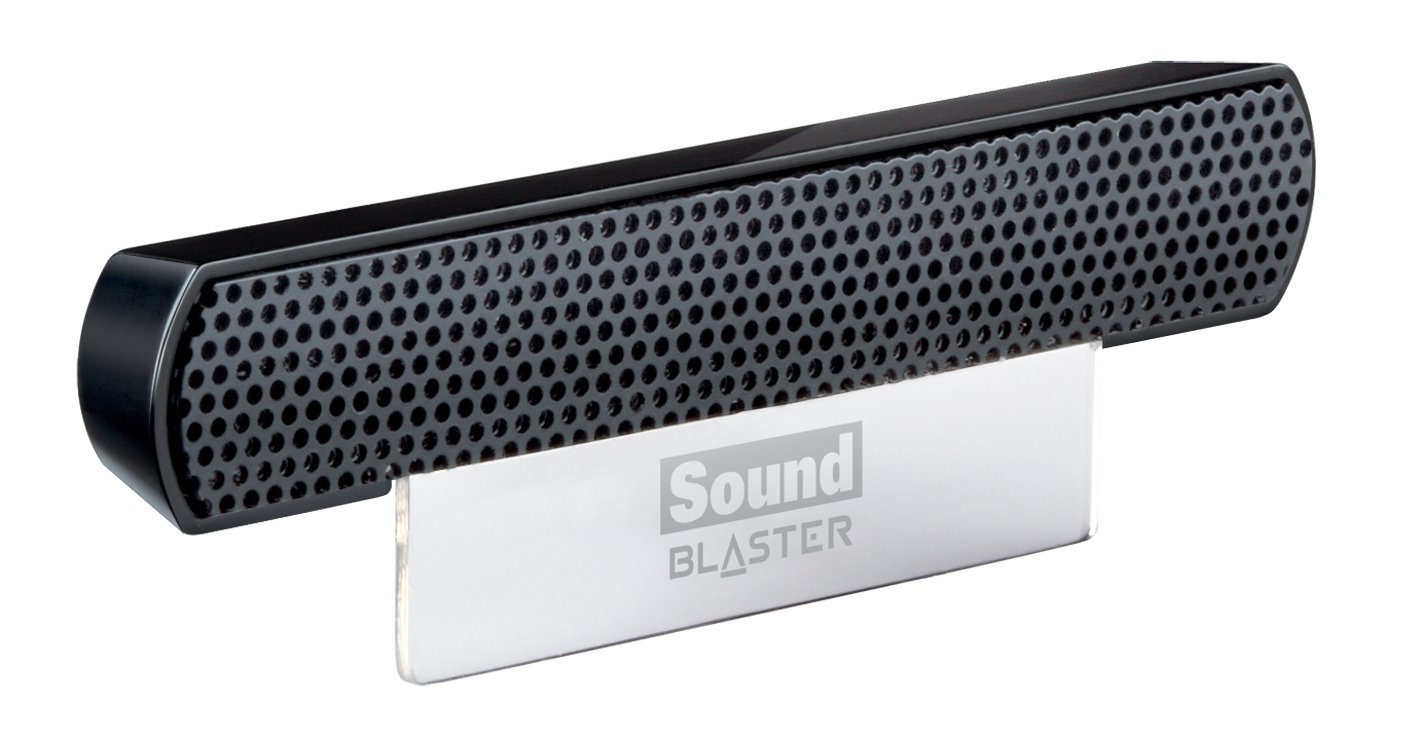

Sound Blaster Beamforming Microphone included
By combining with the CrystalVoice Focus function, it is possible to control the sound collecting range of the microphone.
Since it cuts off sound outside the range, it surely picks up your voice and communicates it to the chat partner.
Also with various CrystalVoice technologies such as Acoustic Echo Cancellation function and Noise Reduction function
You can also perform clear and comfortable voice chat.
EMI shield
Adopt EMI shield to protect the analog path on the circuit from digital noise.

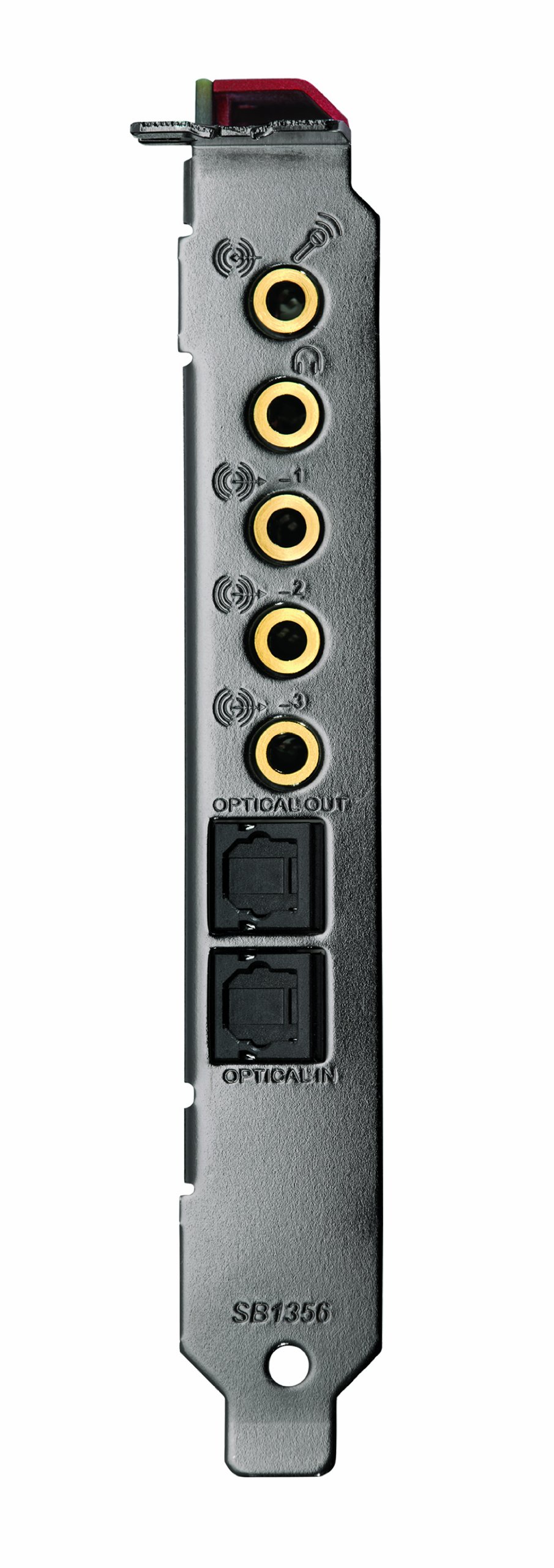

Connecting terminal
From the left:
Analog line input / microphone input common terminal
Headphone output terminal
Analog line output terminal (front)
Analog line output terminal (rear)
Analog line output terminal (subwoofer / center)
Optical digital output terminal
Optical digital input terminal
Features:
- Please enter model number Confirm this is compatible:
- A high-quality DA converter is mounted on the card, and a low-noise audio environment with an S / N ratio of 116 dB is built with card measurement values.
- Equipped with stereo direct output mode capable of high-quality stereo output of 24 bit / 192 kHz processing from the front analog output terminal
- Equipped with a headphone output terminal equipped with a headphone amplifier that can be driven even with headphone at maximum output of 600 Ω.
- New function "Scout mode" loaded.
- It is possible to feel a minute movement with sound by highlighting the environmental sound in the game such as "footsteps".
- With CrystalVoice technology feature you can enjoy friends' mutual voice chat even more clearly and comfortably.
- Analog input / microphone input: 24bit / 96kHz / stereo, digital input: light 1 system (square type),
- Analog output: 24 bit / 192 kHz / stereo or 24 bit / 96 kHz / 5.1 ch
- Digital output: 1 optical system (square type), AC-3 / DTS pass through, Dolby Digital Live / DTSConnect
- Supported OS: Microsoft Windows 8, Windows 7 (32-bit, or 64-bit)
- Package contents: SoundBlaster Beamforming microphone, quick start guide, installation CD
Product information:
Shipping Weight: 439 g
Package Dimensions: 6.20 x 19.81 x 28.40 cm
