Product Description

Product information:
Power supply: DC 8-25V; 2.1 interface
Audio inputO(Stereo input): Support various versions of bluetooth connection; with built-in CSR8630 bluetooth chip， V 4.0 bluetooth. This Amplifier has super software compatibility
Output Impedance: 8Ω Best(4Ω，6Ω，8Ω，16Ω impedance can drive speakers)
Output power: Add pre-5532 output foot (powered 25V ，6-ohm impedance output 2*50W ，8 ohm impedance output 2*40W dual-channel)
Instructions: After power on the amplifier， waiting for 3 seconds till the blue and red light flash alternately and then you can use your device to connect my bluetooth moudle-"SANWU Audio"; the next time you use the amplifier， the device will automatically connect.
Color of the amplifier board: Red
Digital Amplifier Board Size: 82.1mmX50.5mmX18.8mm(L*W*H)

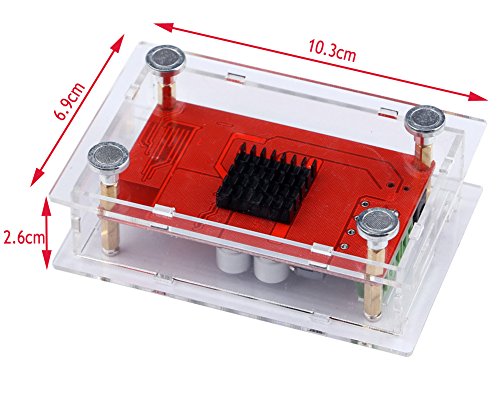

Acryliccaseor Size: 103.4mmX69.5mmX26.5mm(L*W*H)
Weight: about 118g(amplifier+case)

Package Includes

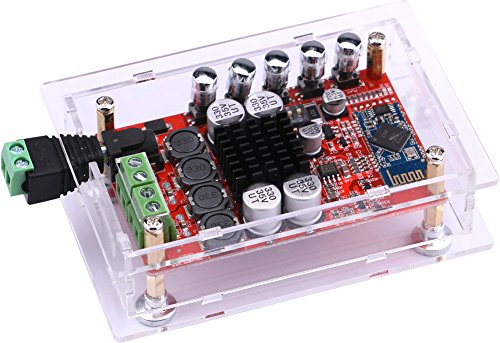

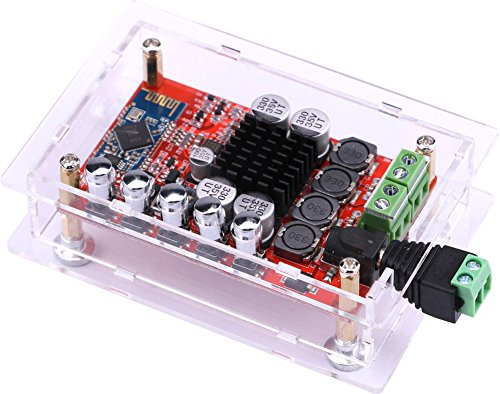

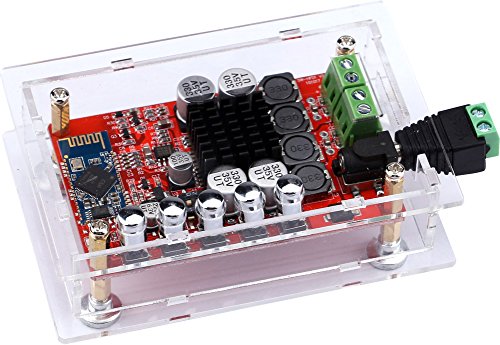

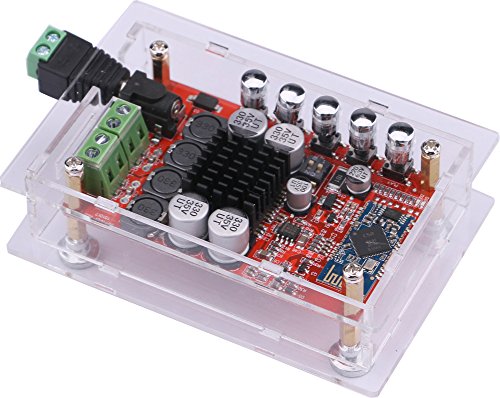

1 x Amplifier Board
1 x Acryliccaseor Parts and components

Feature

Dual-channel 50Wx50W DC 8-25V power supply digital amplifier board audio stereo receiver module
Digital Amplifier Board Size: 82.1mmX50.5mmX18.8mm(L*W*H); Acryliccaseor Size: 103.4mmX69.5mmX26.5mm(L*W*H)
V4.0 Bluetooth， high software compatibility;Output Impedance: 8Ω Best(4Ω，6Ω，8Ω，16Ω impedance can drive speakers)

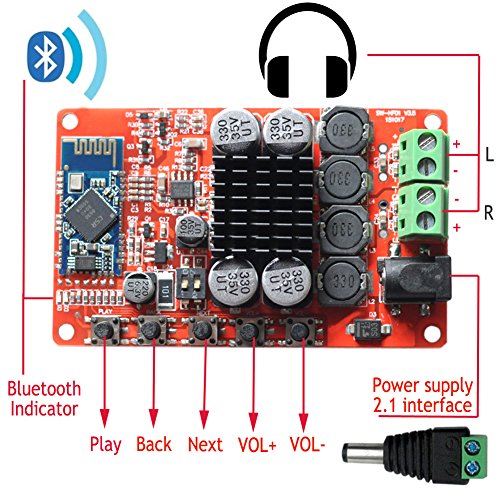

With five buttons for controlling: "PLAY"; "BACK"; "NEXT"; "VOL+"; "VOL-"; heatsink chip provide good heat dissipation

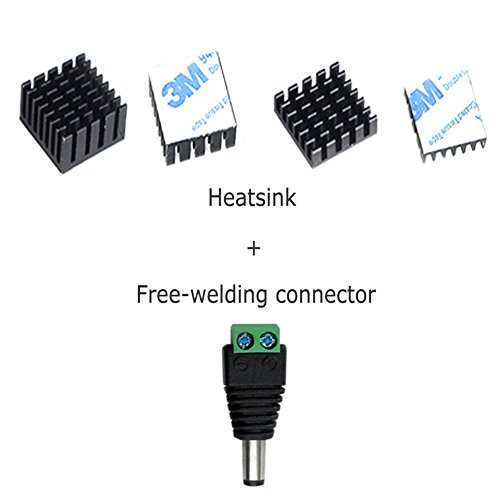

More convenient: with free-welding connector; magnet ottomans that you can easily fix it on a place with iron surface
Brand : Yeeco
Item model num : 1600043
MPN(PartNumber) : Y1600043
Product Dimensions(LxWxH) :
