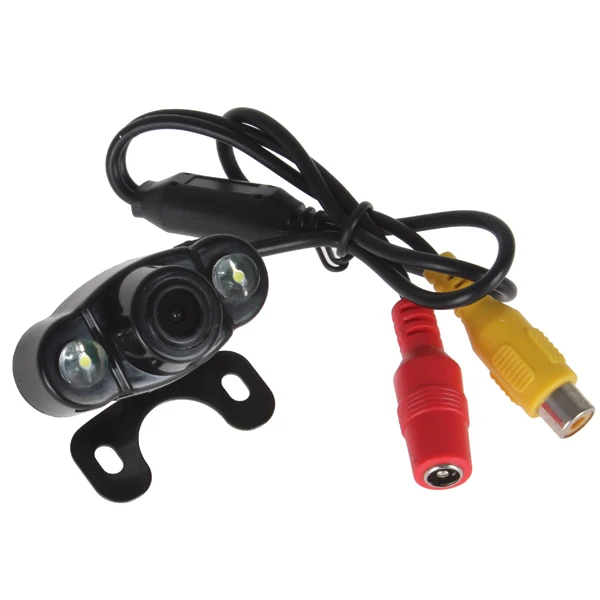

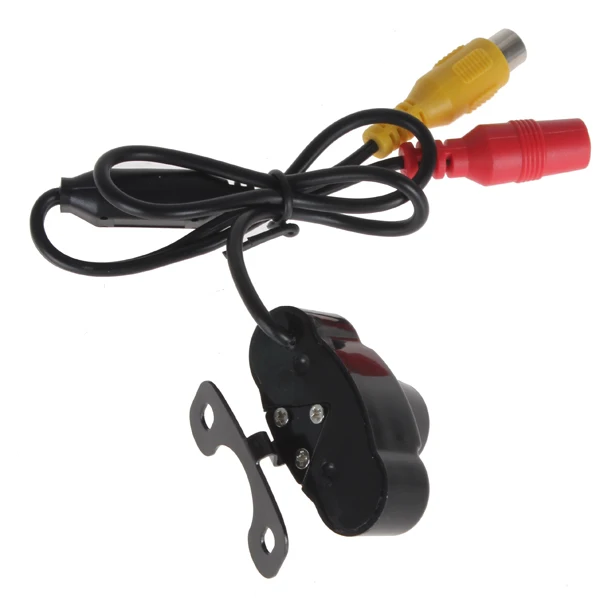

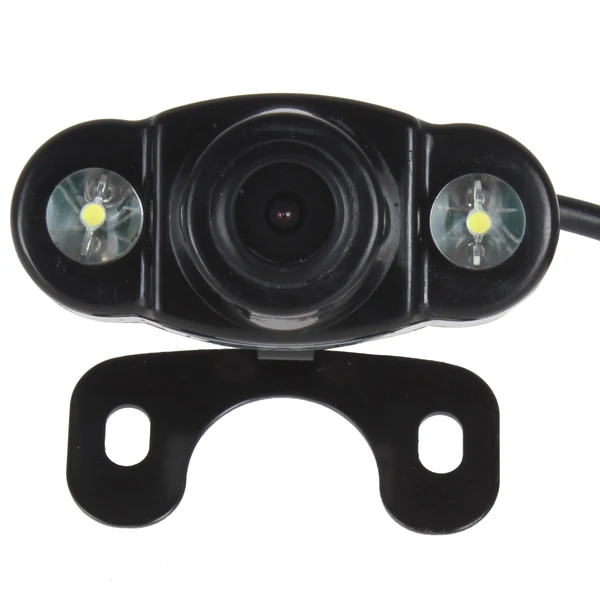

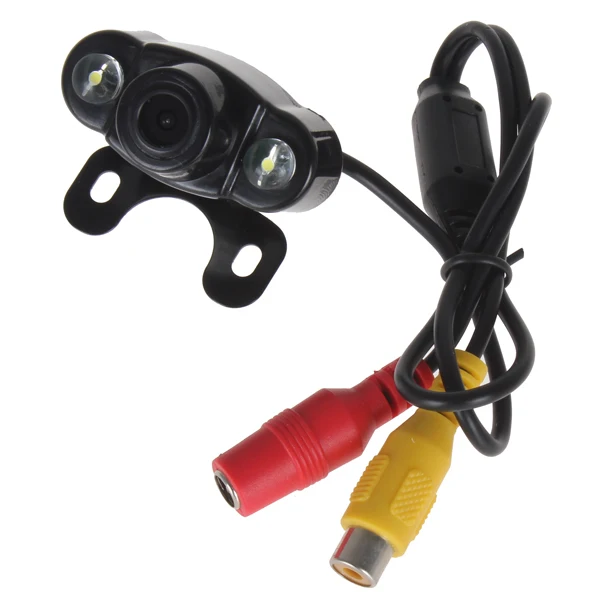

E400 480TV Lines Waterproof & High Sensitivity 120 degrees Color CMOS Rear View Camera
Main Features:
- Display a reversed camera image on the monitor to duplicate the normal view seen in a rear view mirror. With the high sensitivity, you can get rid of the poor rear vision.
- Fit into most vehicle key holes, no other installation needed.
- It's a night vision camera, you can easily get the clear situation in your back.
- With the waterproof design, there is no need to concern the rainy days.
- Low power consumption and low maintenance.
- Easy to install.
Specifications:
- Features:
- Display a reversed camera image on the monitor to duplicate the normal view seen in a rear view mirror. With the high sensitivity, you can get rid of the poor rear vision.
- Fit into most vehicle key holes, no other installation needed.
- It's a night vision camera, you can easily get the clear situation in your back.
- With the waterproof design, there is no need to concern the rainy days.
- Low power consumption and low maintenance.
- Easy to install.
- Resolution: 480 TV lines
- Effective Pixel: 628 x 586
- Lens Angle: 2.8mm / 120 degrees
- TV System: PAL / NTSC
- LED Light Quantity: 2pcs
- Sync System: Internal
- Scanning System: 2 : 1 Interlace
- Sensor Area: 5.961mm x 4.276mm
- Video Output: RCA/ Double track video interface, 1.0Vp-p, 75Ohm
- S / N Ratio: More than 48 db
- Water-proof: IP67 - IP68
- IR Distance: 0-3m
- Current Consumption: >=80mA
- Minimum Illumination: 1.0LUX (0LUX when IR lighting)
- Power Supply: DC 12V
- Operating Temperature: -20 ~ 80 degrees(RH95%Max.)
- Storage Temperature: -20 ~ 60 degrees(RH95%Max.)
- Wired Or Wireless: Wired
- Shell Material: Plastic
- Lens Material: Plastic + Glass
- Video Line Length: 6m
- Other Feature: Automatic white balance, Agc and BLC
- Package Weight : 177 G / 6.24 Ounces
- Package Dimensions (L*W*H) : 115*110*50 MM / 4.53*4.33*1.97 Inches
- Retail Packaging: Yes, Colored Box
- EPC_CAL_023

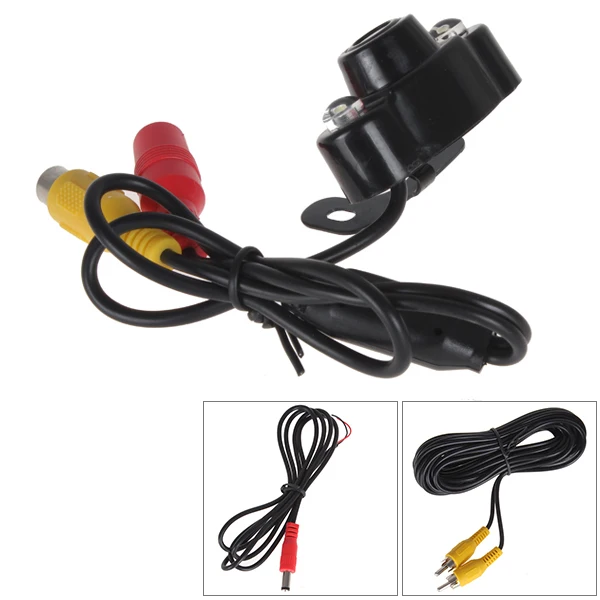

Package Include:
- 1 x Camera
- 1 x Manual
- 1 x Video Cable
- 1 x Power Cable
