Item Descriptions:

8 in 1 dial type electronic

Soldering iron set

It is one of the necessary tools for hobbies.

I think that modern toys, boxes playing sounds, etc. drop out when wiring drops out, but I think that it is natural to dispose of them, but electronic tools like soldering irons necessary for repairing themselves are reproduction tools.

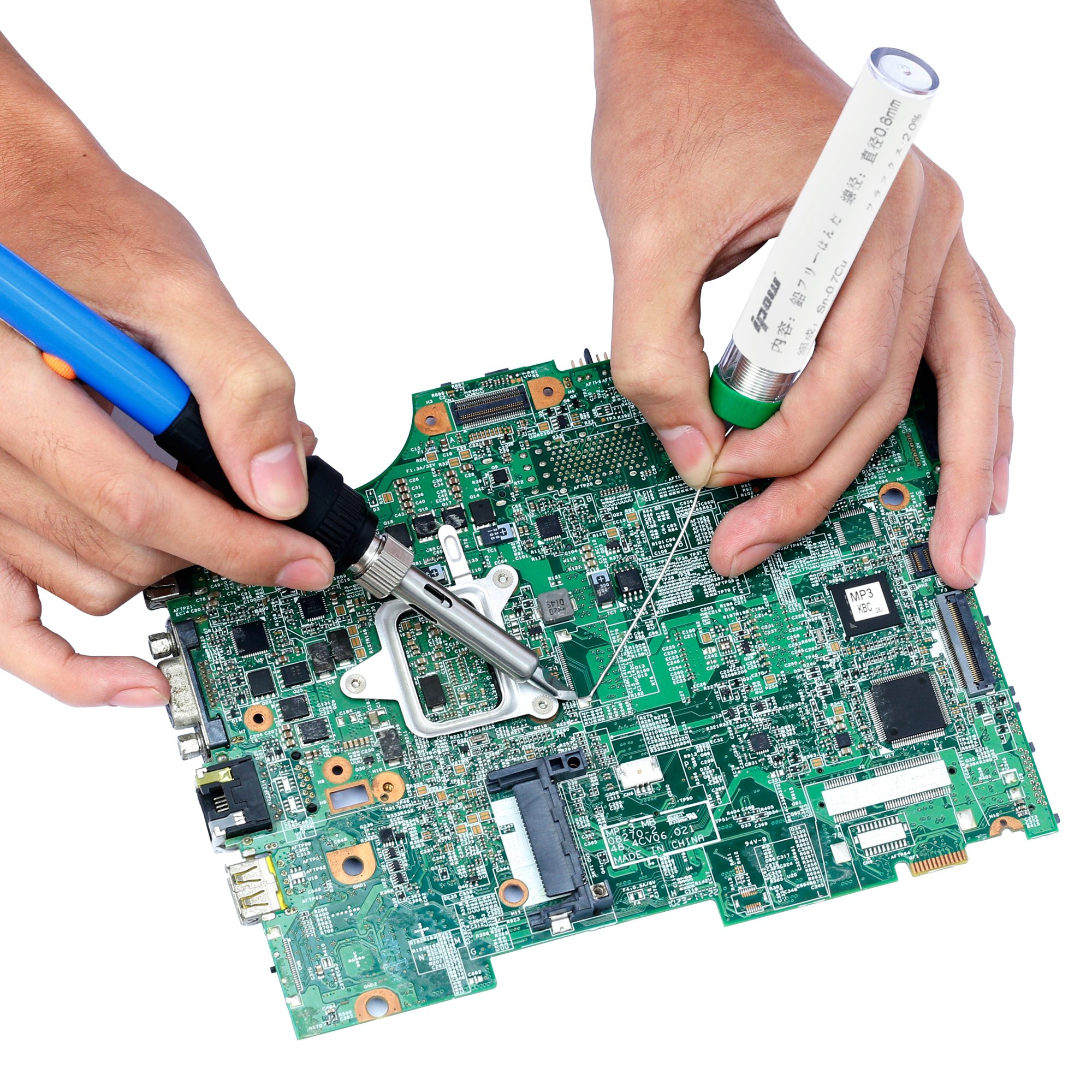

Usage: Printed circuit board, electronic work, audio, AV equipment, radio control etc.

It is recommended for those who do DIY such as electronic work.

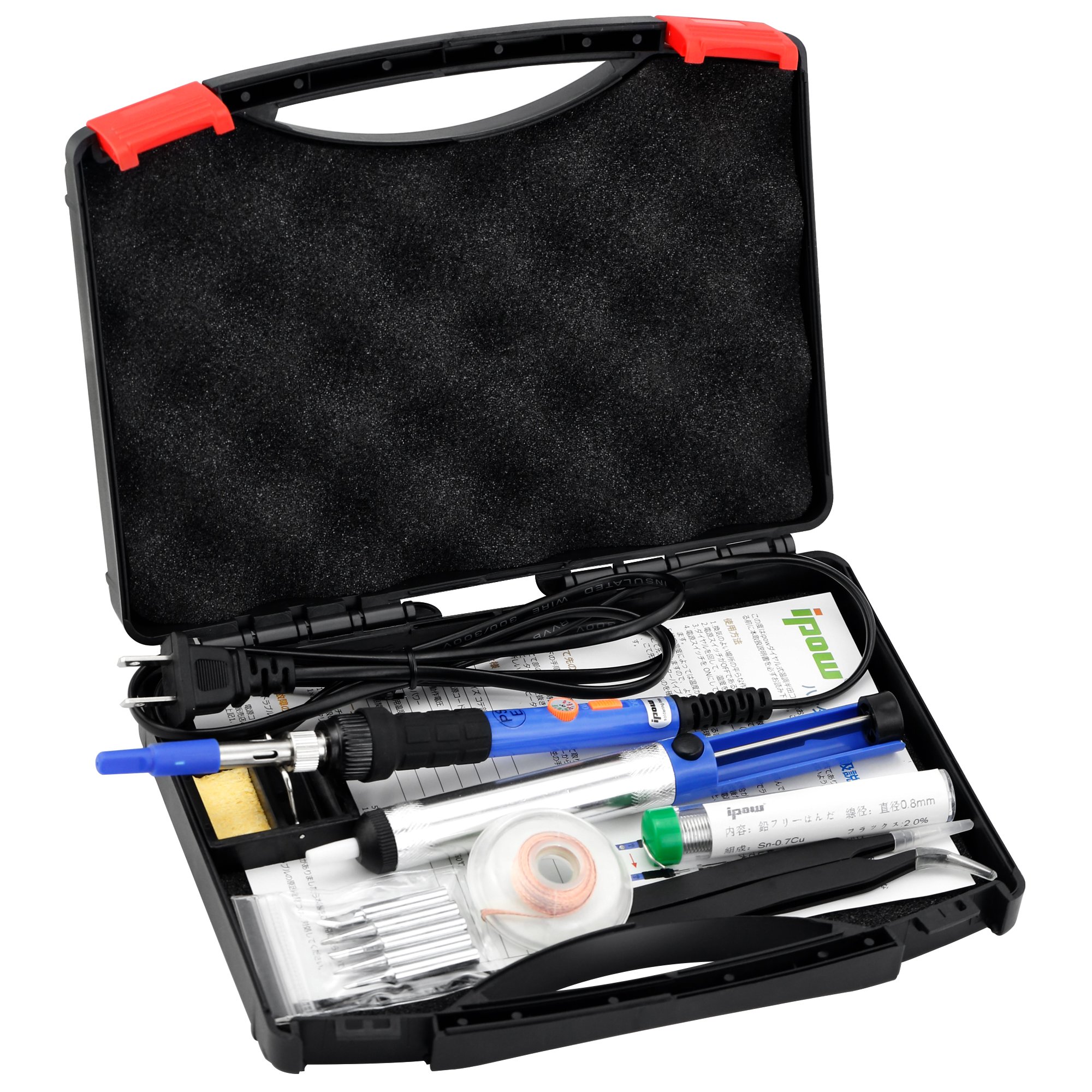

Package Contents

1 x soldering iron with switch

5 × exchange iron tip

1 x Lead-free solder

1 x solder suctioner

1 x solder suction line

2 x Antistatic tweezers

1 x Soldering iron with solder tip cleaner

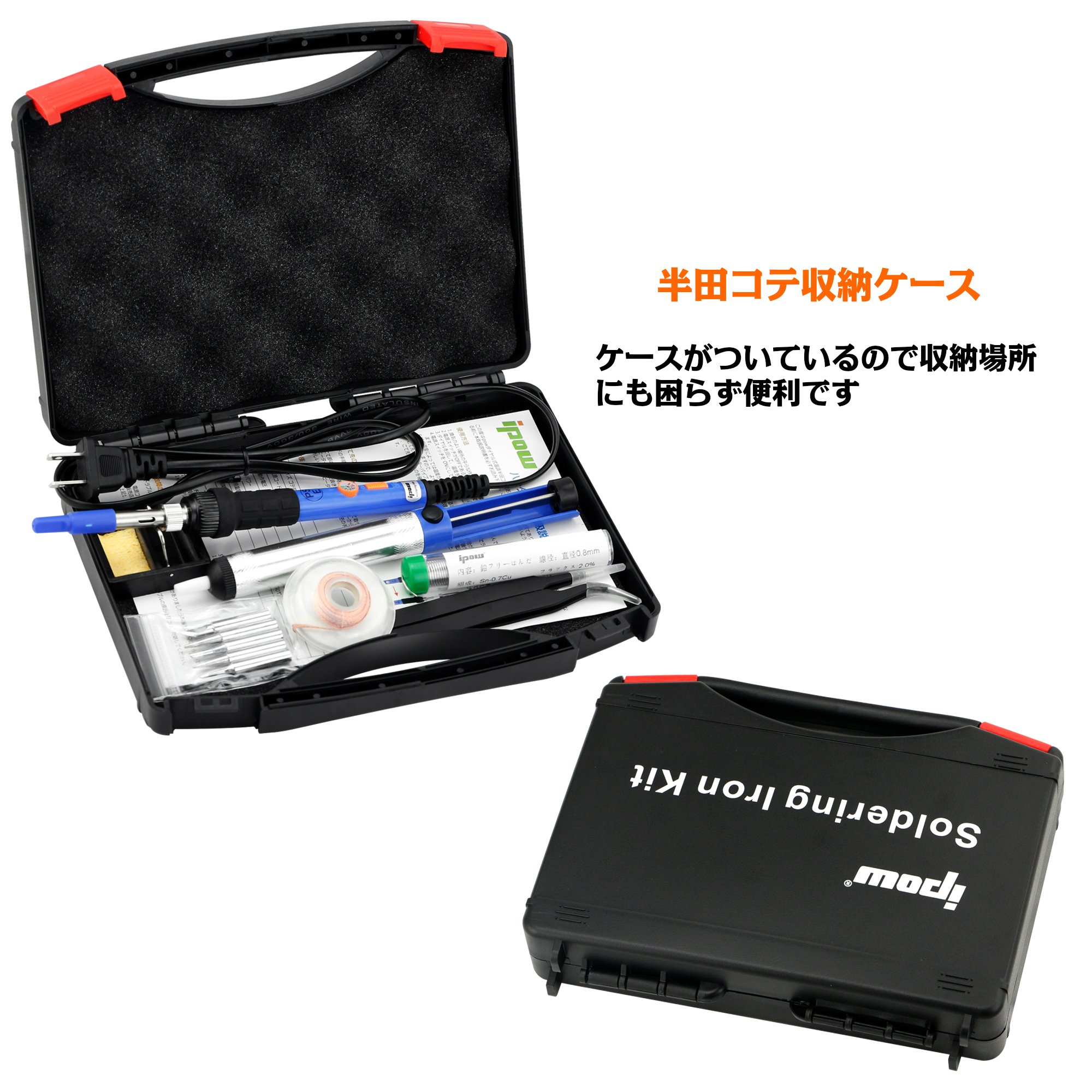

1 x Storage case

1 x Japanese Instruction Manual is included

specification

In case

Soldering iron Length: 18.5 cm

Cable length: 143 cm

Operating voltage: 110V

Power: 60 W

With switch, more convenient.

Make sure the power switch is OFF and plug in the power plug.

Turn on the power switch.

Heater energization solder The main body lights up and the heater begins to heat up.

Please remove it from the outlet and then air-cool it.

Do not cool by any other method.

Please do not sprinkle water or soak in water to cool the tip.

Dial type temperature control is attached

Turn the dial to adjust the temperature.

(From 200 to 450 ° C)

Depending on the set temperature, time may be required before the temperature stabilizes.

Since it stabilizes to the set temperature in about 2 minutes after turning on the power supply, if more reliable temperature control is desired, we recommend you use it after 2 minutes

Solder iron with iron tip cleaner

While applying solder to the tip, Tip tip

Repeat the task of wiping with a screw (sponge of a soldering iron)

Please return it.

Cleaner (sponge), brown, black etc.

When the color of it comes in, wash it and remove dirt

Please take.

If it becomes impossible to remove dirt, exchange it for a new one

please.

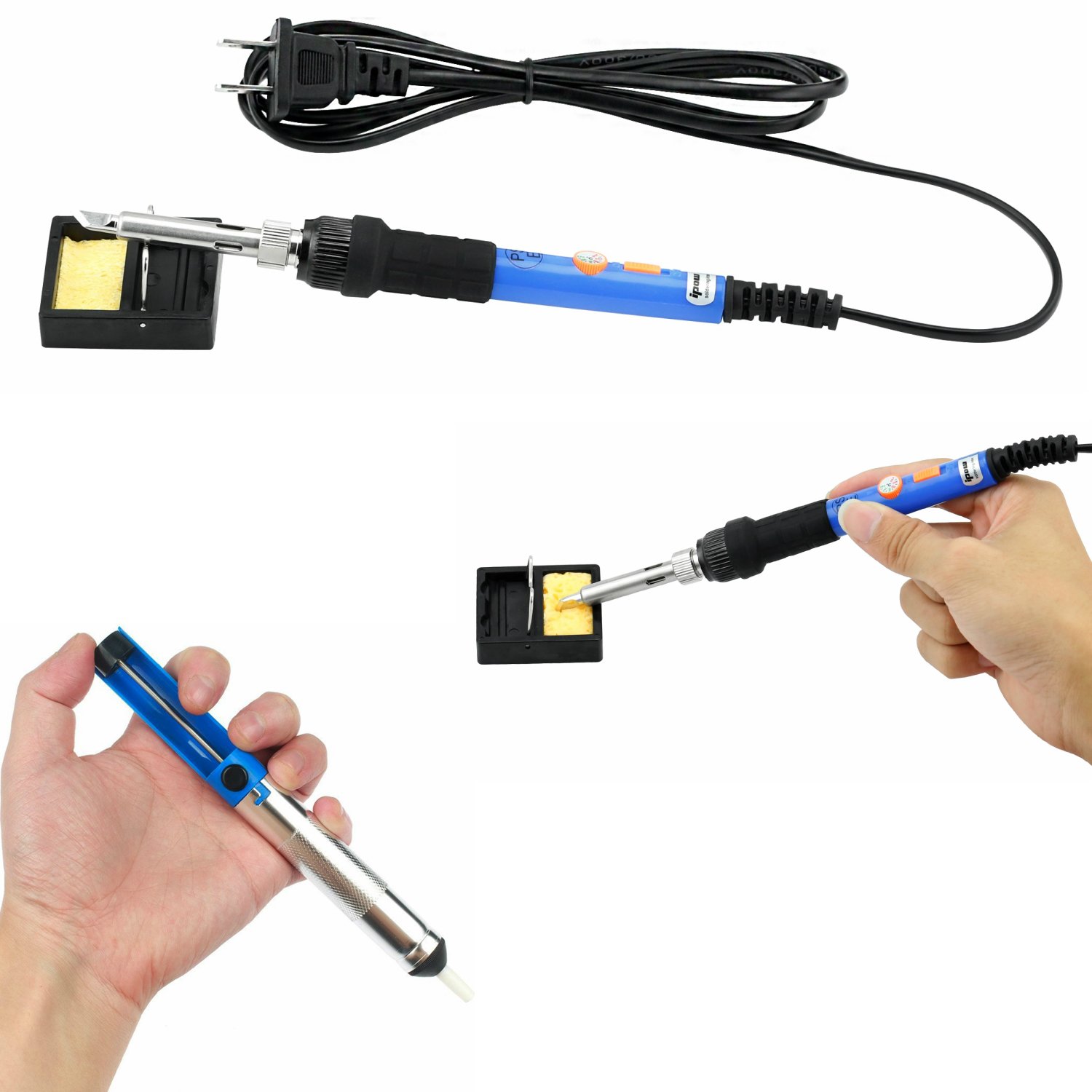

Solder suction device

Melted solder can be easily absorbed strongly.

Easy continuous operation with one hand is possible.

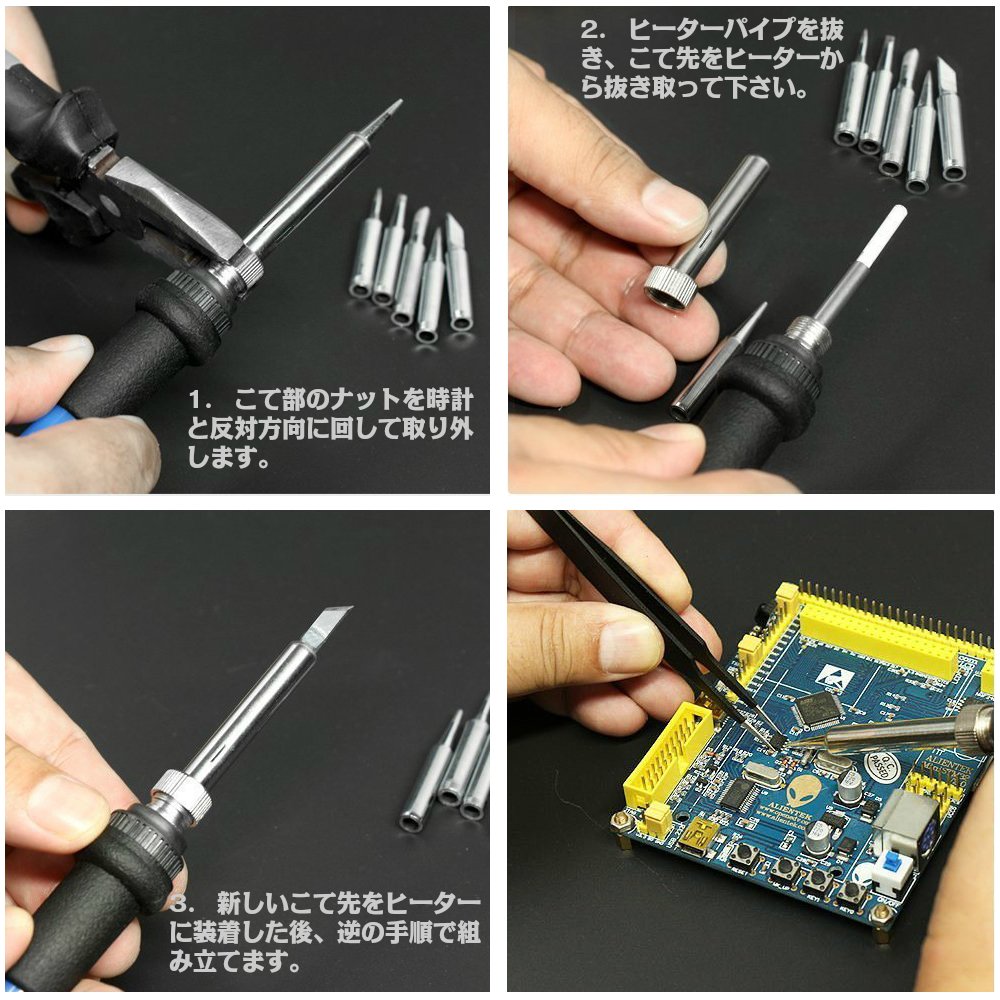

Replacing the tip

1. Follow the steps below.

Remove by turning the nut of the iron tip in the direction opposite to the clock.

2. Pull out the heater pipe and remove the tip from the heater

3. After installing the new soldering tip on the heater, assemble it in the reverse order.

please note:

Always turn OFF the power switch and remove the power plug before replacing the soldering iron tip, heater pipe, nut, heater etc, after confirming that the tip has cooled down.

Failure to do so will cause serious accidents such as electric shock, burns and so on.

Although I made the preliminary inspection, the box / contents corruption that occurred while transporting is also available.

If you have broken the case during transportation, please contact us.

Features:

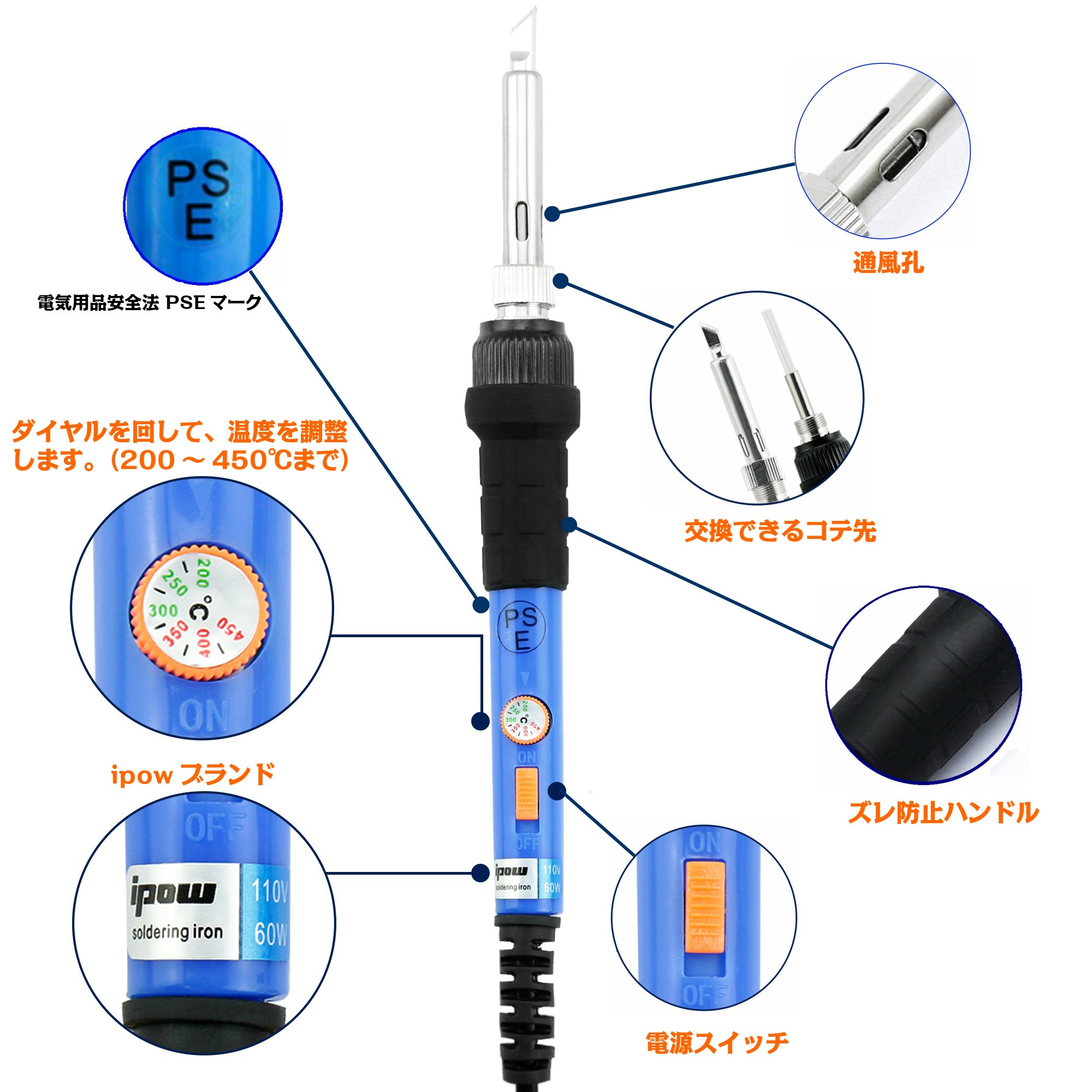

• 【Temperature control type soldering iron, with switch】 8 in 1 dial type, temperature controllable 200 to 450 ° C with solder body switch, more convenient and safe to use.
• 【Specification】 Operating voltage 110V Power 60W Temperature controlled soldering iron, electric soldering iron 【Safety warranty】 ※ There is PSE certification (Electrical Appliance and Material Safety Law PSE mark)

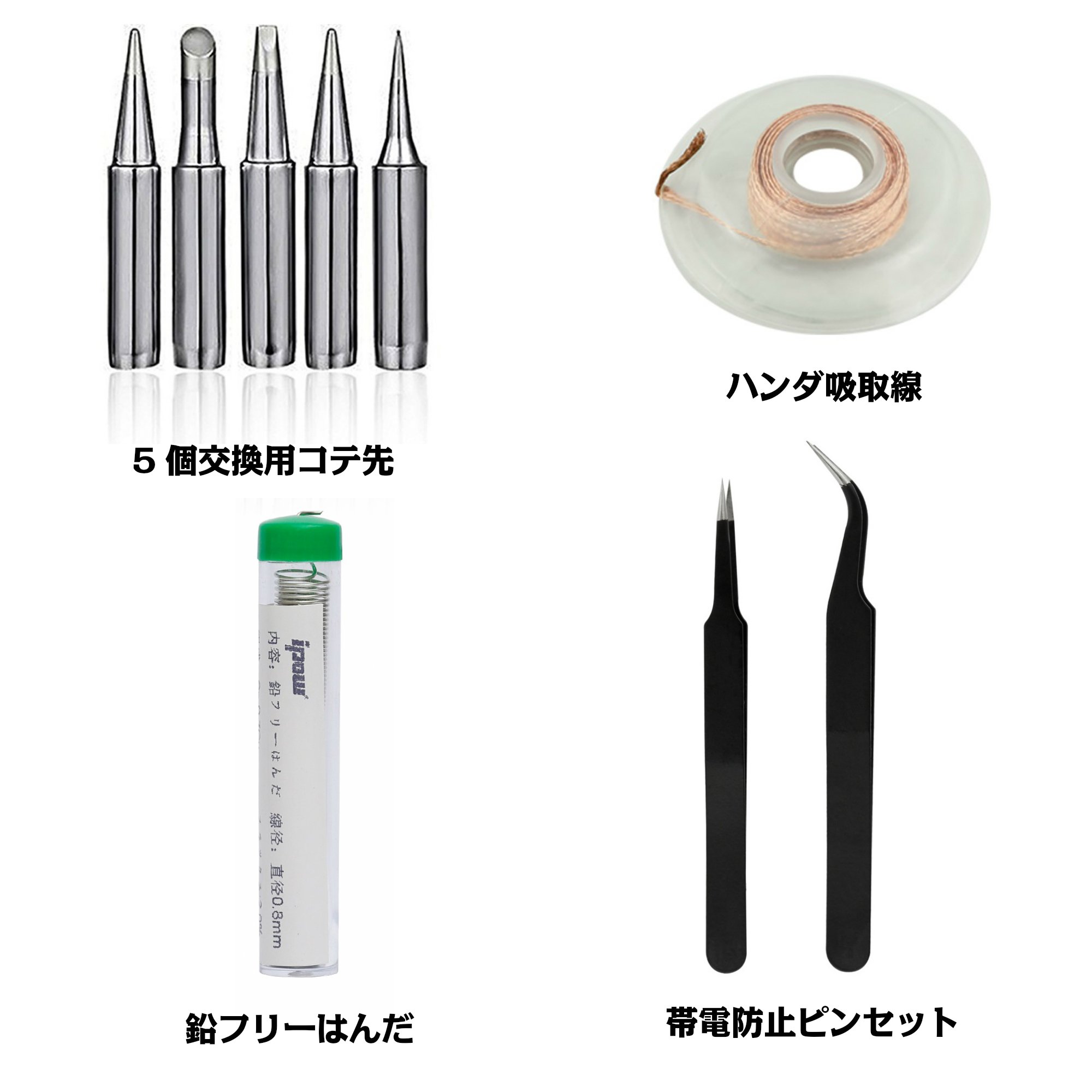

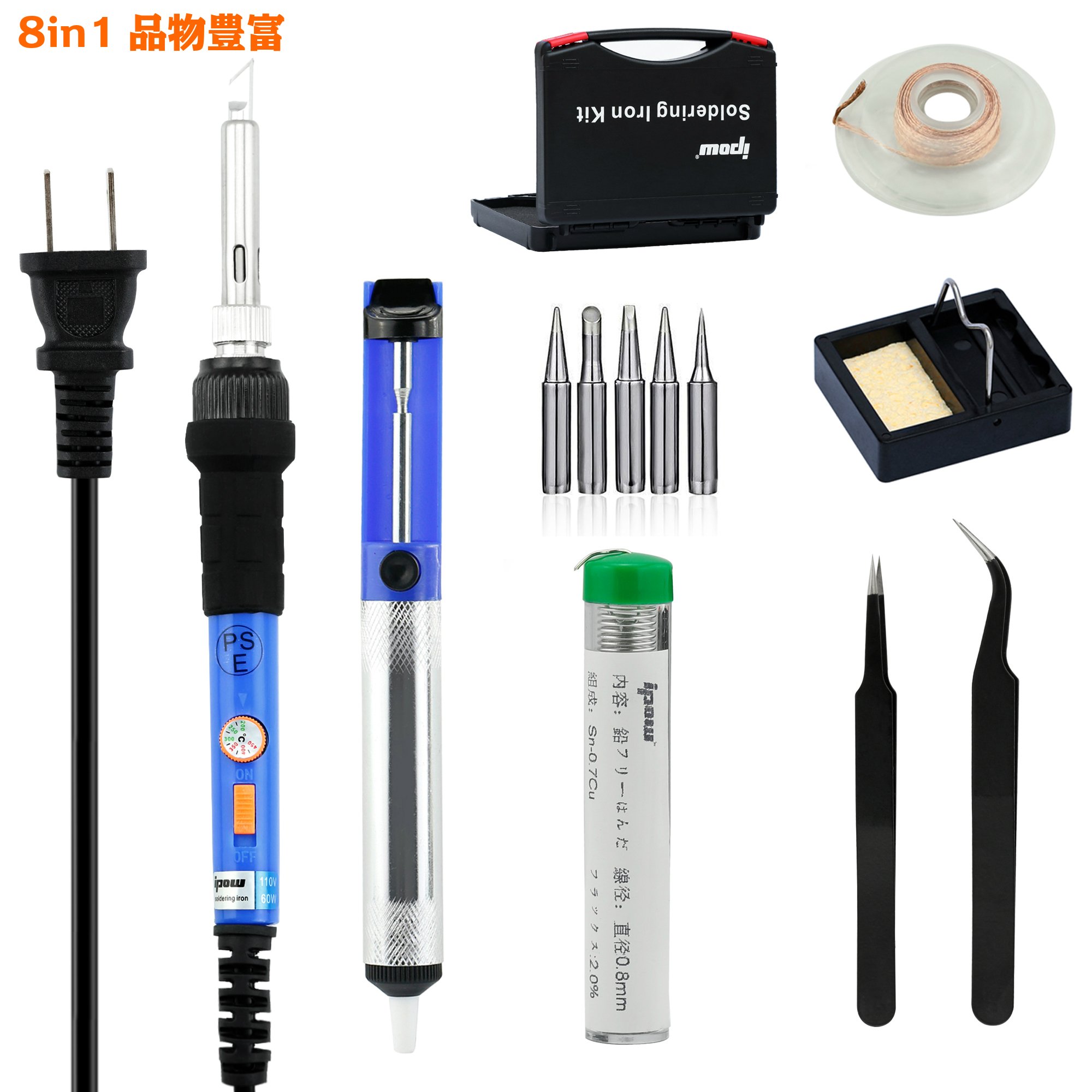

• 【8 in 1 item rich】 1 x soldering iron with switch, 5 pieces soldered iron tip, 1 x lead free solder, 1 x solder sucker, 1 x solder suction line, 2 x antistatic tweezers, 1 x tip solder cleaner
• With soldering iron base, 1 x storage case, 1 x Japanese instruction manual attached
• 【Wide range of use】 It is also recommended for beginners · beginners.
• It is one of the necessary tools for hobbies.
• For contemporary toys, boxes playing sound, etc., I think that it is natural to dispose of wires when the wiring falls out, but the soldering iron for electronic work necessary for repairing oneself is the ultimate playback tool
• Note: The connection part between the soldering iron and the cable adopts a new design.
• Now, two kinds of products are in stock simultaneously.
• We will randomly ship.
• Please note.

Product information:

Shipping Weight: 508 g

Package Dimensions: 5.41 x 19.41 x 26.80 cm
