description:

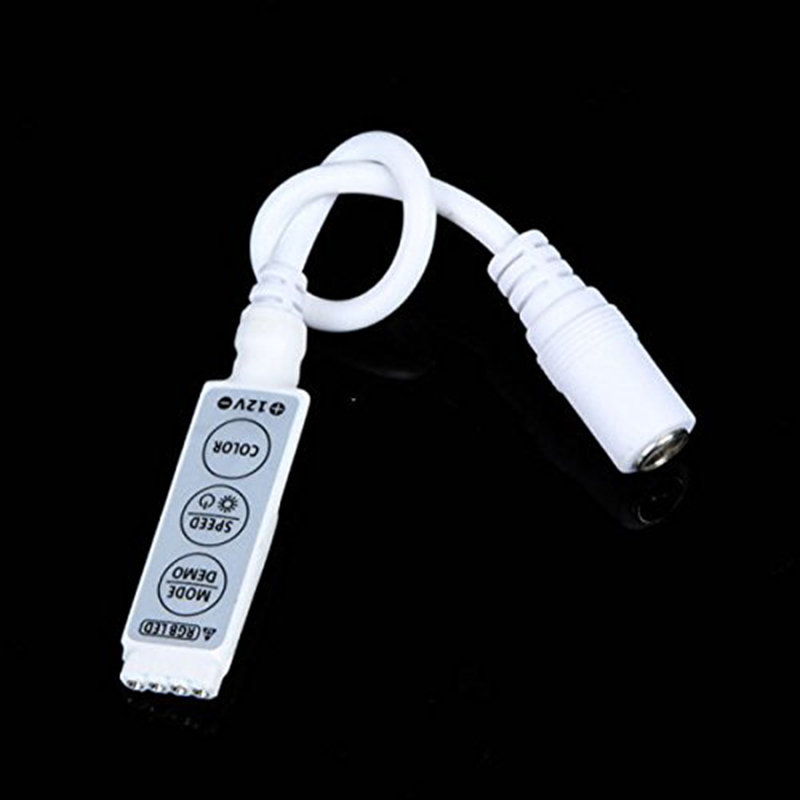

3 Key Mini IR Remote Controller

Working Voltage:12V DC

Max Output Current:3*4A
Max Output Power:144W

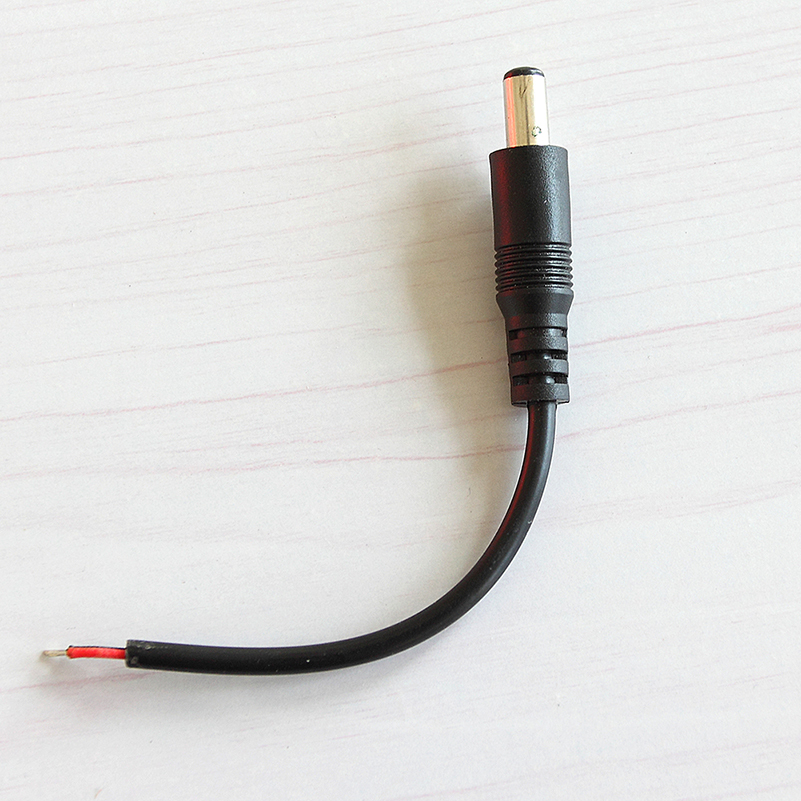

DC plug Female(5.5x2.1) included at the end of the controller.
19 Dynamic modes
20 Static colors
256-level PWM control mode
Auto-cycle dynamic mode
Speed and brightness adjustable
Up to 144W power
Auto memorize function
Easy operate keys
Ultra slim design, as slim as the led strip lights.

Package include:1 xMini LED Controller

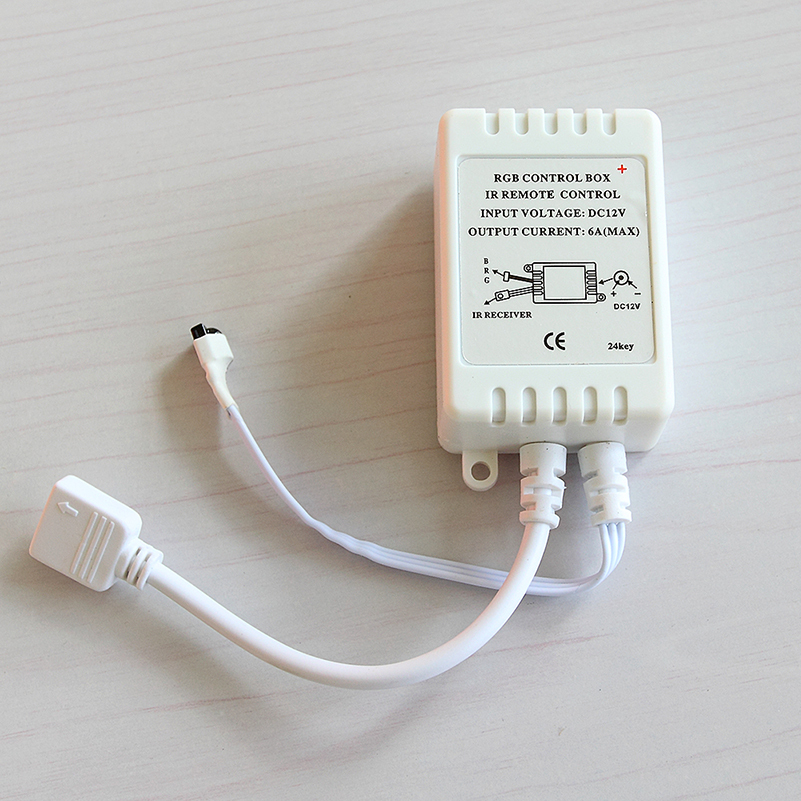

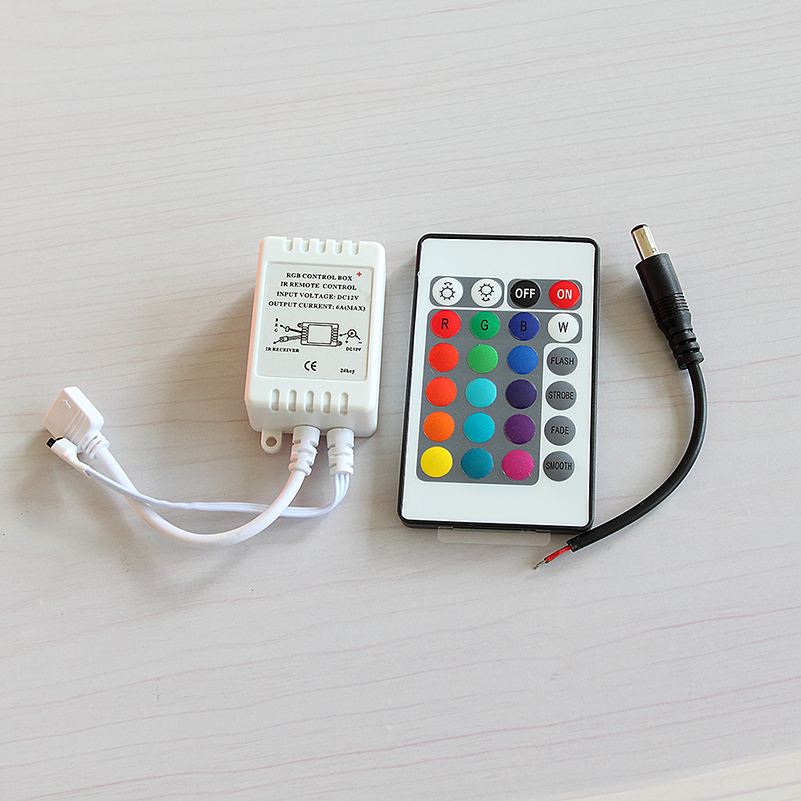

24 Key IR Remote Controller

The remote controller has 16 different colored buttons and 4 different light control functions: Flash / Strobe / Fade / Smooth. Great for SMD LED light lamp strip.

Easy connection and simplicity to use.
Meanwhile, you could adjust brightness, static color choices and various dynamic changes in lighting effects through infrared remote control.
Type: 24-Key Remote Controller.
Supply voltage: DC 12V
Output Current: 6A max
Working Temperature: -20℃-60℃
Connecting mode: common anode
Control Box size: 5 x 3.5 x 2.2cm (approx)
Remote controller size: 8.5 x 5.2 x 0.7cm (approx)
Remote controller battery: 1 x CR2025

How to use:
1. Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power.
2. Operation, you will receive infrared remote control in front of infrared receiver to ensure that there is no barrier between the remote control and receiving head

Package includes:

1*24 KEY IR Remote Controller


44 Key IR Remote Controller

44-key infrared controller adopts the advanced micro control unit, it is used for LED light strip.
Easy connection and simplicity to use.
Meanwhile, you could adjust brightness, static color choices and various dynamic changes in lighting effects through infrared remote control.
Type: 44-Key Remote Controller.
0utput: 3 channels.
Input/Output: 12V.
Output current: 3 x2A
Output power: 12V: <72W.
Working Temperature: -20℃-60℃

How to use:
1. Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power.
2. Operation, you will receive infrared remote control in front of infrared receiver to ensure that there is no barrier between the remote control and receiving head

Package includes:

1*44 KEY IR Remote Controller


RF Wireless Remote Mini Controller
Voltage: 5V -24V
Output Current: 12A
Working Temperature: -20°C-60°C
Size: (about) L34mm x W13mm x H3mm
Remote controller dimension: about L85mm x W40mm x H6mm
Remote controller battery 3V CR2025 (Excluding)
DC Power Female Jack Connector Plugs Size:（D）5.5x2.1mm
Remote distancet:>15M at open area

20 static colors, 9 dynamic modes, 5-level for speed.
ON/STANDBY: to turn on or switch to standby mode.
MODE+ / MODE- : switch to dynamic mode from static lighting mode, or switch between dynamic modes.
SPEED+ /SPEED- : adjust dynamic mode lighting speed.
BRIGHT+ / BRIGHT- : adjust lighting mode brightness.
COLOR+ / COLOR- : static color adjustment.Switch to static color from dynamic mode, or between static colors.
DEMO : at demo mode, strip will cycle 9 dynamic modes and each mode for 3 times.
Applications: RGB 5050 3528 LED Light Strip.

Package included :
1PCS 10Key RF Wireless Remote Mini Controller


DC12V 6A Mini 44Key IR Remote Controller for 5050 3528 SMD RGB LED Strip Light

Features:
100% Brand new and high quality!!
Features small size but powerful functions.
Easy and Flexible to use.
Ideal for home and business use
Light up colorful home life, DIY household lights for hallways, stairs, trails ,windows

Specifications:
Size: 123 x 55 x 7mm
Connection mode: Common Anode (+)
Powered by: 1 x button cell(not included)
Input: 12V
Output: 12V
Max load current: 6A( 2A each color)
Working Temperature: -20C-60C
Mode & Pattern:
20 Colors, 8 Light Pattern: Quick / Slow / Auto / Flash / 7 color fade change / 3 color fade change / 7 color jumpy change / 3 color jumpy change R / G / B increase and decrease control
6 DIY keys
44 keys infrared controller which has 6 keys(DIY keys) for momories the colors what you preferred.
Control range: 10cm - 500cm RGB LED Strips
Support 10 meters SMD 5050 30LEDs/M LED Strips or 5 meters SMD 5050 60LEDs / M LED Strips

Package included:
1 x Mini 44Key IR Controller


10 Key RF Wireless Remote Mini Dimmer

1. Type: RF Wireless Remote Mini Dimmer
2. Voltage: 5V -24V
3. Output Current: 12A
4.  Working Temperature: -20°C-60°C
5. Size: (about) L34mm x W13mm x H3mm
6. DC Adapter Size:5.5mm*2.1mm
7. Remote controller dimension: about  L85mm x W40mm x H6mm
8. Remote controller battery 3V CR2025 (Excluding)

Details:
1. ON/STANDBY: to turn on or switch to standby mode.
2. LIGHT: switch to static lighting mode from dynamic mode 20% / 50% / 100% : switch to 100%, 50%, 25% brightness lighting mode.
3. MODE+ / MODE- : switch to dynamic mode from static lighting mode, or switch between dynamic modes.
4. SPEED+ /SPEED- : adjust dynamic mode lighting speed.
5. BRIGHT+ / BRIGHT- : adjust lighting mode brightness.
6. Applications: Single Color 5050 3528 LED Light Strip.
Package included:
1 × RF Remote.

1 × Mini Dimmer.

12V RF Wireless Remote Switch Controller Dimmer for Mini LED Strip Light New

Instructions for RF Wireless Remote
1.Turn On/ Standby
Press this key to turn on unit or switch to standby mode. Unit will turn on and restore to previous status at powering on moment.
2. Lighting mode
Switch to lighting mode from dynamic mode.
3/8/9. Dimmer Adjust Shortcuts
Switch to 100%, 50%, or 25% brightness lighting mode.
4/6. Dynamic Mode Adjust
Switch to dynamic mode from lighting mode, or switch between different dynamic modes.
5/7. Speed Adjust
Adjust playing speed of dynamic modes. Press SPEED+ to increase seed and press SPEED- to decrease.
10/11. Brightness Adjust (Dimmer)
Adjust lighting mode brightness. Press BRIGHT+ to increase brightness and press BRIGHT- to decrease

Functions for RF Wireless Remote
Dimmer & Dynamic
8 Dynamic Effects
10-level Dimmer
256-Grade PWM
Speed Adjustable
Card Type Remote
Ultra Slim Design
Smooth Dimmer Effect
1 to 1 Remote Paired
Auto Save Function

Installing for RF Wireless Remote
1. Power Supply
This unit accepts DC 5V to 24V power supply. The red cable should be connected to positive and black cable to negative.
Please select proper power supply according to the LED application.
2. LED Output
The red cable should be connected to LED positive and black cable to negative. The peak output current is 12A, please reduce load if main unit is overheating.
CAUTION:Do not short circuit the LED output, this may lead to permanent damage!
3. Remote Control
Please pull out the insulate part before using. The RF wireless remote signal can pass through barrier, so it’s not necessary to aim at the main unit when operate. For proper receiving remote signal, do not install the main unit in closed metal parts. The remote battery is 3V CR2025 type, please only replace with same type battery.

Specification
Dynamic mode: 8 modes
Dynamic speed level: 10 levels
Lighting brightness level : 10 levels
PWM grade: 256 grades
Smooth dimmer effect: Yes
Working voltage: DC 5~24V
Output current : peak 12A
Remote control mode: RF Wireless
Remote frequency: 433.92MHz
Remote distance : >15m at open area
Note: Battery is not included

Package includes:
1 x Mini In-line LED Light Controller/Dimmer
1 x RF Wireless Remote Controller R106

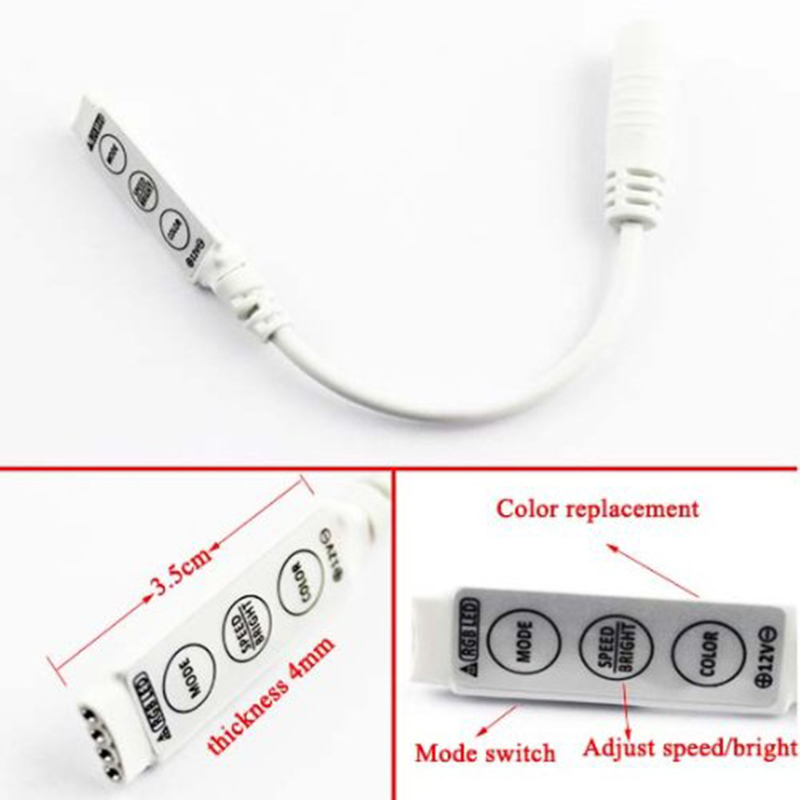

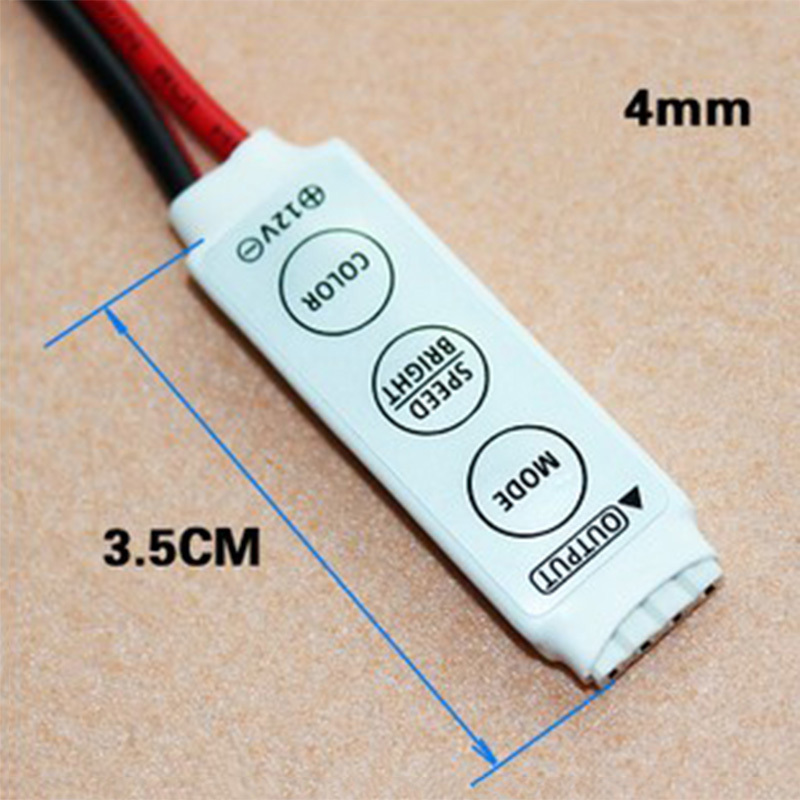

Mini Controller Dimmer Switch For RGB 5050 3528 SMD LED Lights Strip DC 12V
Features:
100% Brand new and high quality.
Connection mode: Common Anode(+)
Input: 12V
Max Output power: 144W
Working Voltage: DC 8-16V
Max Output Current: 3*4A
working temperature: -20℃~+60℃
Easy operate keys
Ultra slim design
Control: Brightness, flashing, flashing modes
Button:3 Keys
19 kinds of dynamic effect, 20 kinds of static effect
Size: 4.2cm x 1.3cm - 1.65inch x 0.51inch

Package Included:
1 x Mini LED RGB Controller
