Product Description

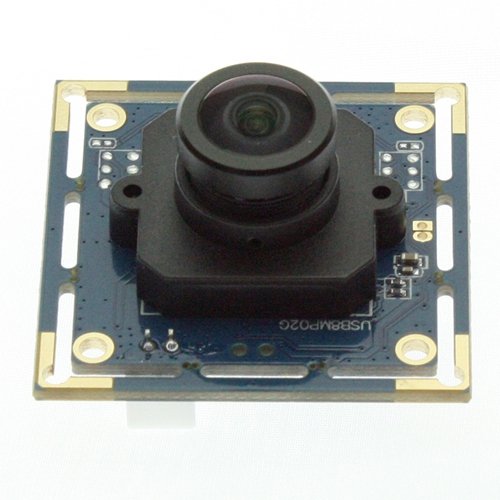

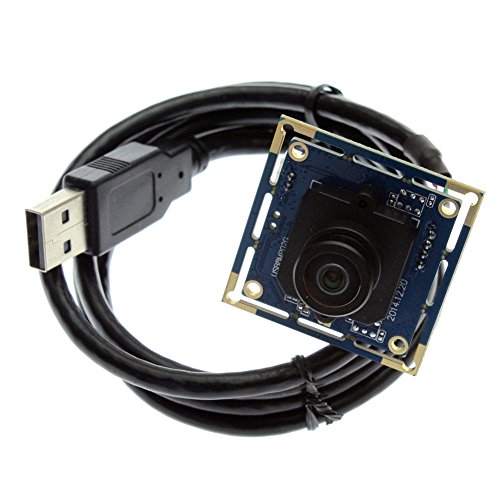

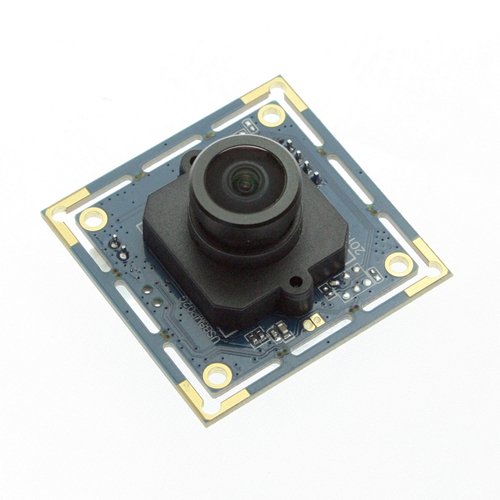

ELP-USB8MP02G-L75 USB Webcam is a high level usb camera for computer house security or HD industrial,
up to 8megapixel, 2015 newly come out HD video solve camera.

Specification:
image area 5.7mm x 4.28mm
Max. Resolution 3264(H) X 2448(V)
Compression format MJPEG / YUV2（YUYV）
Resolution & frame 3264x2448 MJJPEG 15fps YUY2 2fPS
3200X2400 MJPEG 30fps YUY2 30FPS
S/N Ratio 38dB
Dynamic Range 70dB
Sensitivity 1.4V/lux-sec@550nm
Mini illumination 0.1lux
Shutter Type Electronic rolling shutter / Frame exposure
Connecting Port type USB2.0 High Speed
Free Drive Protocol USB Video Class（UVC）
OTG protocol USB2.0 OTG
AEC Support
AEB Support
AGC Support
Adjustable parameters: Brightness, Contrast, Saturation, Hue, Sharpness,
Gamma, Gain, White balance, Backlight Contrast, Exposure
Power supply USB BUS POWER 4P-2.0mm socket
Operating Voltage DC5V
Working current 150mA~200mA
Working temperature -10～70℃
Storage temperature -20～85℃
Board size 38X38mm（compatible 32X32mm）
Operating system request WinXP/Vista/Win7/Win8,Linux with UVC（above linux-2.6.26)
MAC-OS X 10.4.8 or later, Android 4.0 or above with UVC

Feature

HD Digital camera with 8megapixel super high resolution
USB2.0 high speed output color cmos sensor for sharp image view
30fps@3200x2400 resolution for HD home security and HD industrial requirements
YUYV or MJPEG compression format optional, support IR Cut
Brightness,contrast,hue,saturation,sharpness,gamma,white balnce,exposure adjustable
Item model num : ELP-USB8MP02G-L75
