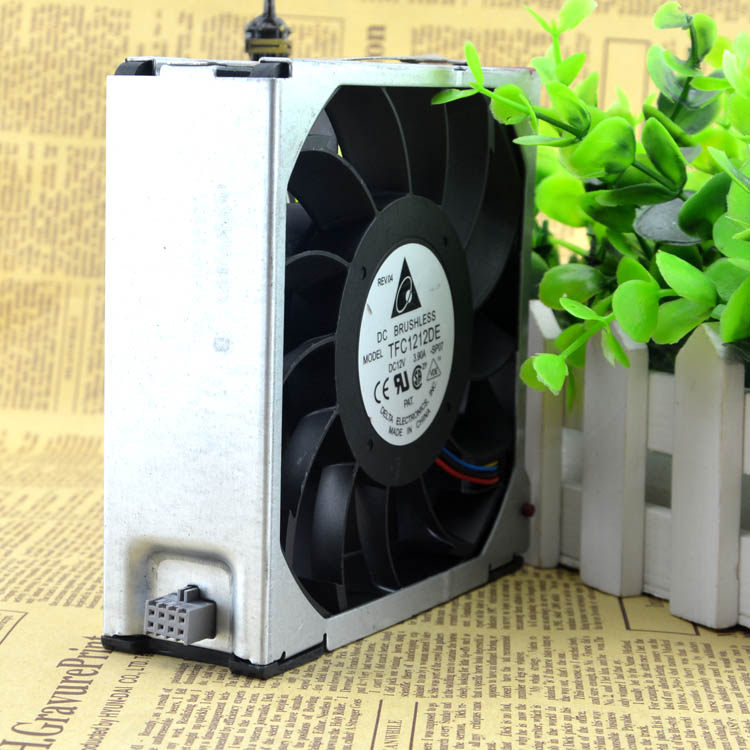

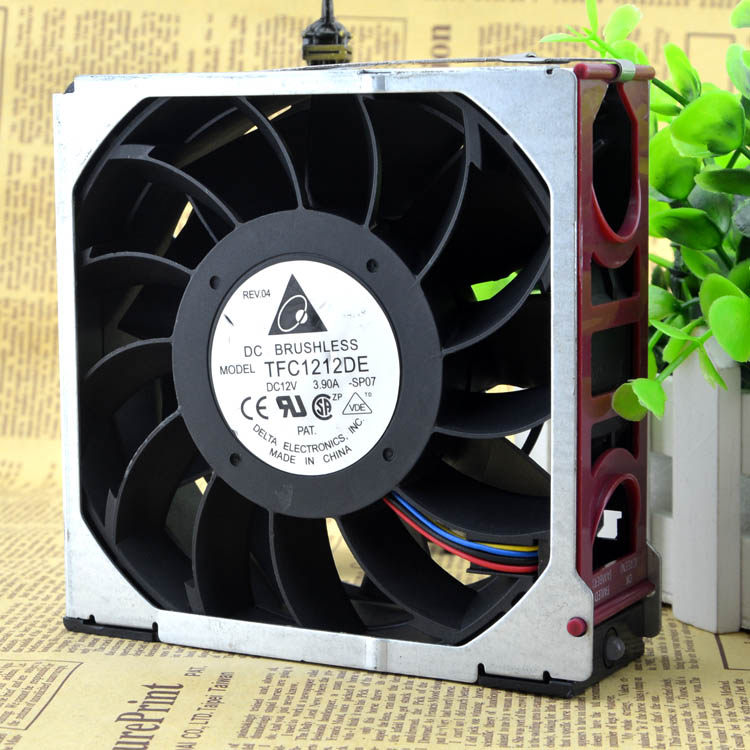

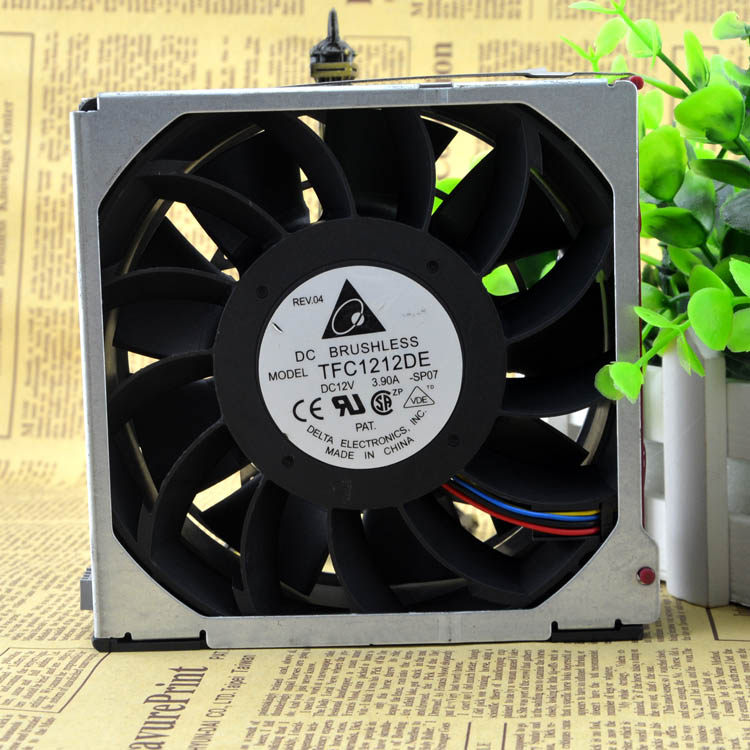

MODEL: TFC1212DE
Size: 120 × 120 × 38MM
Voltage: DC12V
Current: Nominal 3.90A (12V rated current of 2.98A， Delta fan vacuity more serious， understand goods friends all know that 12038 fans can reach such a large current is this， no other comparable models with him.)
Wind: 252.85CFM (7.16m3 / min)
Pressure: 1.412 in H2O (351.7 Pa)
Weight: 0.351kg
Noise: 66.5 dB (A) Power: 57.6W
Speed: Speed ​​PWM motherboard support
Speed: Supports
Interface: Motherboard 4P + 4D dual power big power connector
Cable length: 35cm
The number of revolutions: 12V at 5500 RPM
Fan Frame: injection molding， PBT + 30% glass fiber + VO grade flame retardant;
Blade: plastic injection molding， PBT + 30% glass fiber + VO grade flame retardant;
Fan rotation: counterclockwise as viewed from the fan;
Operating temperature: -10 degrees Celsius to +70 degrees Celsius;
Storage temperature: -40 degrees Celsius to +70 degrees Celsius;
Bearings: precision ball bearings;
Power range: plus or minus 15% of the rated power; Insulation resistance: greater than 500 megohms;
Withstanding voltage: Meeting the leakage current 0.5mA 500V / 1 min;
Working life: ambient temperature of 25 degrees 80，000 hours.



In the motherboard PWM speed control， the speed is adjusted to 10% or less are 1050 rpm， 10% to 100% increase each fan adjusting a level 405 turn， due to the motherboard current limit， it can not reach 5500 rpm.
12V power supply directly connected to the positive and negative power supply 2-pole， to achieve maximum speed.

Note: Please note that the fan violence is very， very good safety test， do not be finger blade to cut， high-speed rotation of the fan blades 11 when just 11 sharp knife as ruthless cutting the wind， if the finger into the cutting range， will be merciless cut down ... to when.
