Item Descriptions:
Product specification
Socket: T10 / T16 dual use
Starting voltage: 9 - 30 V
Polarity: free
Color temperature: 6500 K
Light Color: White (White)
Lifetime of use: 50000h or more
Light source: South Korea sole CSP chip × 9
Power consumption: 25 W
Waterproof level: IP65 complete waterproof
Lumen: 2200 Lm
Current: 1100 mA / piece
Material: Aviation aluminum material
Weight: 120 g
Warranty period: 1 year

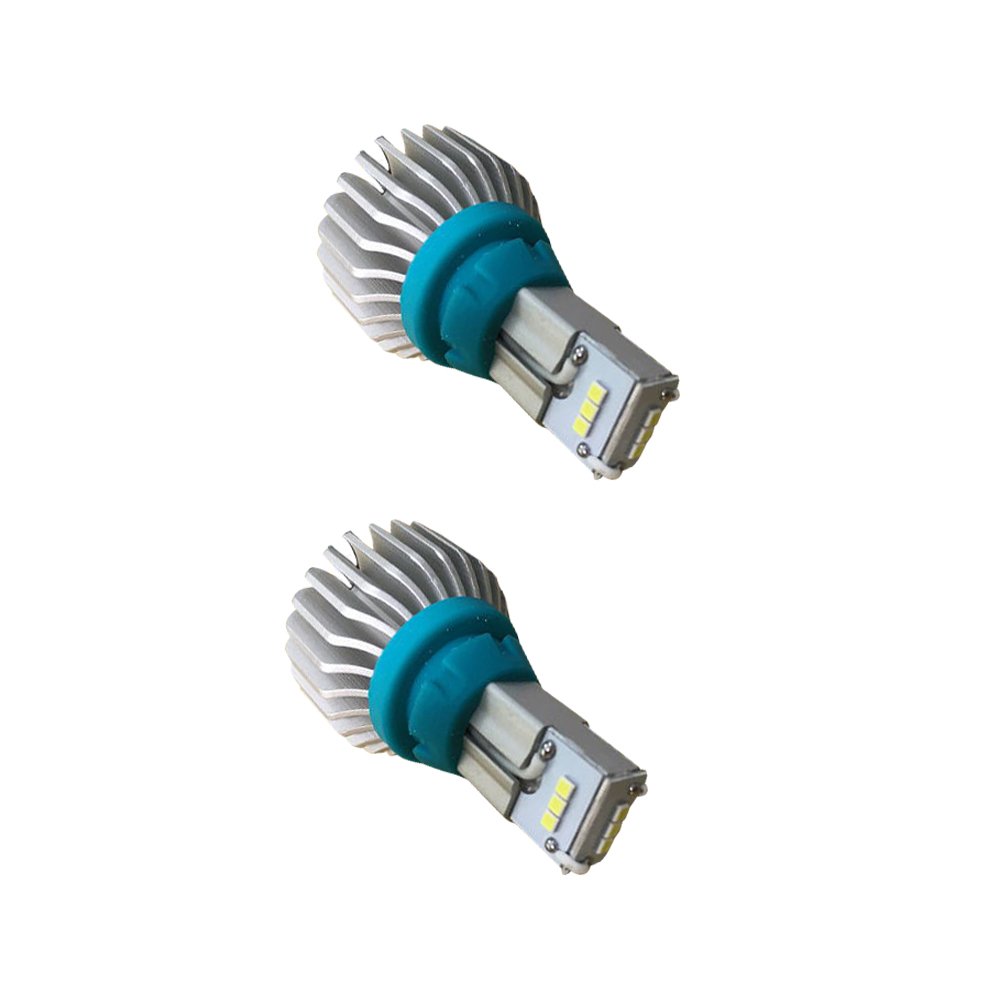

Product Content: LED Fog x 2 Cosmetic Box 1 Type
Also supports hybrid car imported cars
Product Features
Product Features
• 9 high brightness CSP LED chips
It is a bulb exclusively for back lamp boasting a large light quantity of 2000 LM total light flux with one bulb equipped with latest CSP LED.
Visibility is outstanding with brightness so that you can not see directly.
● Waterproof processed, packing specification
Because we strongly tighten the gold mouth with synthetic reinforced rubber, we are thoroughly waterproof measures as well.
● Back lamp first radiation type aluminum heat sink
By installing a radiation type aluminum heat sink, it enabled rapid heat dissipation, preventing deterioration and damage of the LED chip due to heat.
● Constant current circuit ensures steady lighting without being affected by sudden change in vehicle voltage.
It can be used safely in hybrid vehicles.
please note
Please note the installation space ※.
Valve, rear heat sink part,
Space is required compared with halogen bulb.
Not only the shape of the mouthpiece,
Please check the backspace of the actual car.
※ When lighting, the lamp body and the heat sink part become very hot.
In vehicles where the position of the LED and the lens are extremely close
Do not use it as it may deform the lens and housing.
* Since it is a risk of burns and breakage, installation and removal immediately after turning off should be avoided.
※ This item is precise, and we are making it delicately, please be careful handling.
* When installing, grasp the heat sink part and do installation without putting force on the light emitting part.
※ Specifications may change due to product lot.
* In any case, we will not pay fees for installing, or compensation for damaged parts.
Features:
- ① socket shape: T10 / T16 dual operation voltage: 10-30V luminescent color: white color temperature: approximately 6500K power consumption: 25W total luminous flux: 2200 lumen
- ② latest South Korea sole CSP chip 9 sheets loaded Top 3 parts 6 sides 660 360 ° no blind spot irradiation Recommended high brightness LED for replacing back lamp
- ③ Heat radiation aluminum heat sink body is adopted to prevent deterioration and damage of the LED chip due to heat.
- Constant current circuit equipped Vehicle will stay stable without being affected by voltage change.
- ④ High brightness back lamp that secured outstanding visibility as well as bright.
- It realized both brightness and visibility.
- ⑤ 【Packaging type】 Packing: "e-auto fun" case only Brand name e-auto fun is a registered trademark of our company.
- (Registration No. 5859199)
Product information:
Shipping Weight: 68 g
Package Dimensions: 4.19 x 7.80 x 11.91 cm
