品牌: GRIS
型号: GE-DY150
适用手机机型: Apple/苹果
是否原装: 品牌兼容
充电器适用形式: 车载充
手机机型: iphone6 plus
Brand: GRIS
Model: GE-DY150
For mobile phone models: Apple / Apple
Whether original: brand compatible
Charger Applicable forms: Car charge
Phone model: iphone6 plus

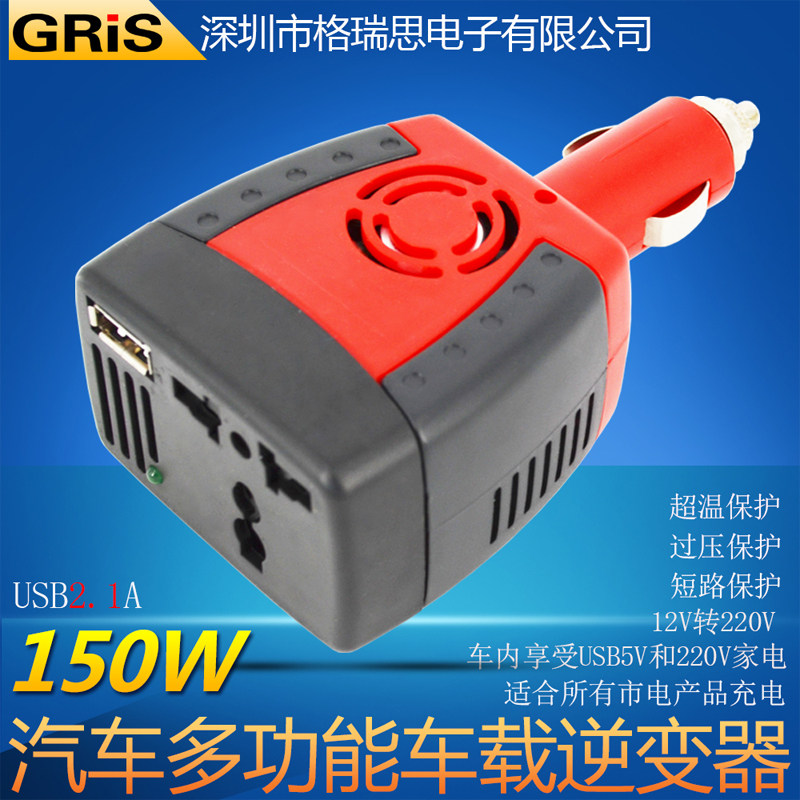

Car Power Converter (Inverter)
Input voltage: DC12V (11-14V) 15A MAX
Overload protection: ≥180W
Output voltage: AC110V / 220V ± 5% (optional)
Over-temperature protection: ≥60 °
Rated output power: 150W
Output short circuit protection: Yes
Peak output power: 300W
Product Size: 117.5 * 65 * 42.5mm
Output frequency: 50HZ / 60HZ ± 4HZ (optional)

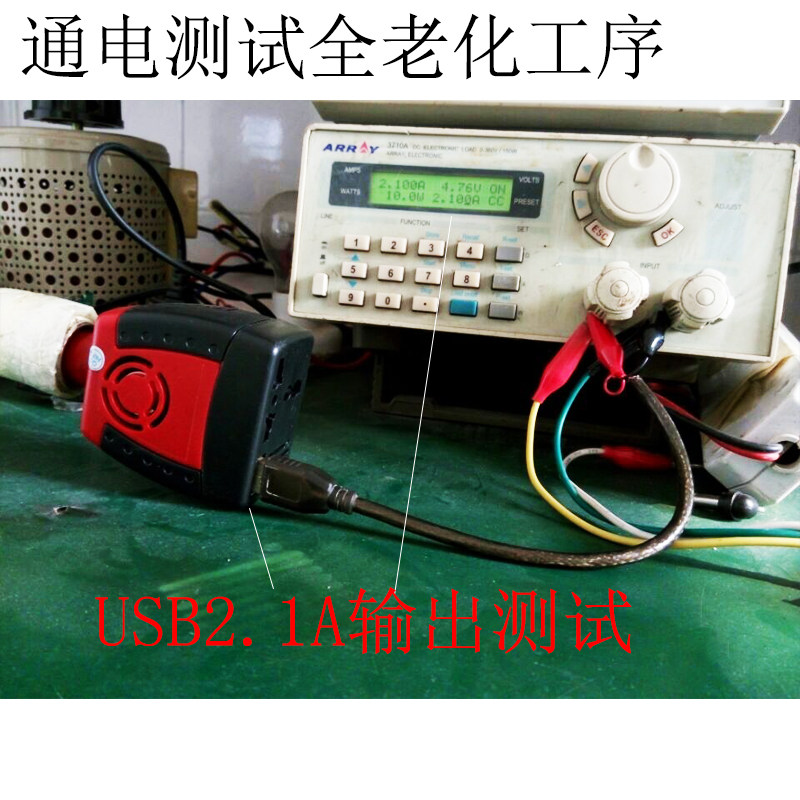

USB output voltage: 5V 500MA MAX
Output waveform: correct sine wave
Conversion efficiency: ≥87%
Undervoltage protection: 10-11V
Over-voltage protection: 15-16V
Output socket: Universal socket
Single (including packaging): 0.17KG
Set / box: 50 sets / 1 box
Net weight / gross weight: 8.5KG / 9.5KG
Carton size: 51 * 35 * 25.5cm
Product Features:
DC12V DC can be converted to the same AC220V AC power supply for general use, is a convenient power converter. The new high-frequency switching mode, the second frequency conversion technology, coupled with the integration module makes the volume and weight greatly reduced, only one fifth of the traditional inverter to one-tenth of the efficiency of a qualitative leap in conversion Achieve more than 90%, easy to use in the car, safe and reliable.
Some owners for the convenience of the map will be some DC DC devices such as: mobile phones, laptops, PDA, etc. in the car does not use its own 220V power supply coupled with a simple converter plug directly into the cigarette lighter, this is wrong, the car Battery voltage instability, direct access to electricity may burn the appliance is not safe, but will greatly affect the service life of electrical appliances, because the factory with 220V power supply is designed for its electrical appliances, there is great instability.
Applicable appliances:
 The 12V DC cigarette lighter is converted to 220V AC, so that you can move all the small appliances at home to use the car, such as mobile phones, laptops, PDA, MP4 / MP3 walkie-talkies, digital cameras, video cameras, car refrigerator, Rice cookers, lighting fixtures, car TVs, CD / DVD players, PDAs, game consoles, printers, electric razors and other appliances (inverter models, the power can be different at the same time, . Even if you're traveling, there's a feeling of staying home, no longer having to be awkward with no phone power, and no longer worrying about the inability to heat food while camping, and the convenience of using a high-powered AC waxing machine for your car DIY beauty ...
Buy more power inverter is good
Recommended use of the most frequent use of electrical power usually more than twice the power of the larger selection of car inverter than the use of power-hungry car inverter safer, because the larger power car inverter heat, power consumption Small, of course, to save electricity.
Inverter precautions
General cigarette lighter fuse rated power between 150-180W, the electrical power is greater than the rated power of the cigarette lighter fuse is blown dangerous, so the choice of inverter should be between 75-300W most appropriate.
Car owners, you want to use the car on the uninterrupted use of laptops, cell phones, cameras, digital cameras, MP4, MP3 and other digital products? This product meets the needs of an uninterrupted car 220V power supply or USB device (MP4, MP3) in your car.
Car inverter application in daily life
 Car Inverter (Power Inverter) is a kind of convenient car power converter that can convert DC12V DC to AC220V AC similar to mains for general electrical use. Car power inverter in the foreign markets are generally welcomed. In foreign countries because of the high penetration rate of cars, go out to work or travel can be connected to the inverter with battery-driven electrical appliances and a variety of tools. After China entered the WTO, there are more and more private vehicles in the domestic market. Therefore, as a DC-AC converter used in mobile power supply, the vehicle inverter power supply will bring a lot of convenience to your life and is a standing Car automotive electronics equipment supplies.
What are the main differences between inverters and UPS?
Inverter is a current conversion device that can convert DC to AC or AC to DC.
UPS is an uninterruptible power supply device, the principle is the battery + inverter, the electricity is converted to DC by the inverter, DC to the battery charge, if the mains power, immediately converted to battery by the inverter is converted to AC , Available for direct use of the appliance.
It should also be mentioned here that the word "regulator" regulators through the regulator device, can make the unstable mains to maintain a fixed voltage, which is good for the normal use of the appliance.
In civil use, the voltage regulator is widely used, such as refrigerators, air conditioners, and many users install a high-power voltage regulator on the total incoming line. In this way, all the electrical appliances are protected. We know that, especially after a power outage is resumed, the voltage will have an overload peak and the momentary voltage is too high, which is why most electrical appliances are damaged.
UPS power supply for computers like this accidental power outage may cause data loss appliances, such appliances are generally one second power outage will stop the loss of data will start, you can use the UPS is not connected to the power supply for protection, such as servers, mobile Unicom's signal transmission Tower and so on.
Some requirements are not too high equipment will also use some backup power supply system, such as emergency exit, the reaction a little slower, there are ten seconds using backup engine power supply, but also the use of batteries. For example, the power plant itself, the power system, equipped with worth millions of backup diesel generating units, preheated the day, in case of unplanned power outages, to ensure a dozen or tens of seconds to restore power supply.
However, since the inverter is only a current conversion device, it is seldom used alone. A typical example is an on-board power supply. It is an inverter that takes 12V DC from the car's cigarette lighter and converts it to 220 AC for AC Electrical appliances, such as laptops.
How to use:
 * Turn the switch to the OFF position, then hold the battery clip securely on the battery
* Make sure the power of all electrical appliances is below the nominal power of this product. Insert the 220V plug of the electrical appliance directly into the 220V socket on one end of the converter and ensure that the sum of the power of the electrical appliances connected to the two sockets is within the nominal Within power
* Turn on the switch of the converter, the green indicator light is on, indicating that it is working normally.
* The red LED is on, indicating that the converter is shut down due to over-voltage / under-voltage / over-load / over-temperature.
* In many cases, due to the limited output of the car cigarette lighter socket, so that the converter alarm or off during normal use, then just start the vehicle or reduce the use of power to return to normal.
Precautions:
During home use, appliances such as TVs, monitors, motors, etc., peak at power-up, and although the converter can withstand twice the peak power of nominal power, some appliances that meet the power requirements may exceed the peak power The peak output power of the device, causing overload protection, the current is turned off.At the same time to drive multiple appliances, this may happen, then you should first turn off the electrical switch, turn on the switch, and then turn on the switch one by one, and should be the first Open the highest peak electrical appliances.
Common problems and solutions:
(1) the problem: the electrical does not work, the converter light does not shine because the battery is bad or positive and negative reversed or the wiring is not tight
@ Recommended solution: Check the battery, depending on the circumstances to replace or check the battery connection, the converter may be damaged, the converter must be replaced or sent to the warranty or check the cables and connections, tighten the terminal.
(2) the problem: the electrical does not work, the red indicator light is bright because the electrical power rating exceeds the converter nominal power, causing overload shutdown or electrical power is less than the nominal power converter, the peak power is too high, causing overload shutdown or End of battery power (converter alarm) or poor ventilation, causing over-temperature shutdown or input voltage is too high
@ Suggested solution: Use appliances or appliances that have less than the nominal power of the converter Peak power exceeds the converter peak power, use peak power with the converter, or charge or replace the battery or turn off the converter, cool for 15 minutes, clear the fan And the converter around the items, the converter placed in a cool place, reduce the load as required, restart or check the charging system working condition, the battery output voltage 12V.
(3) Problem: The measured converter output voltage is too low because the voltmeter readings for normal measurement are too small
@ Suggested solution: Measure the output of the correction wave converter Apply "True RMS Multimeter" to get accurate data
(4) Problem: The converter can only drive the low-power load because the voltage is attenuated when the current flows through the wires
@ Suggested solution: Shorten wire length, use thicker wire.
(5) Problem: The battery life is too short because the power consumption of the appliance is greater than the rated load of the converter or the battery is bad or damaged or the battery is not charged enough or the current decays through the wire
@ Recommended solution: Use a large capacity battery or replace the battery or red device can not be charged to the battery Replace the better smart red or shortened wire length, the use of bold wirea
