Product Introduction:

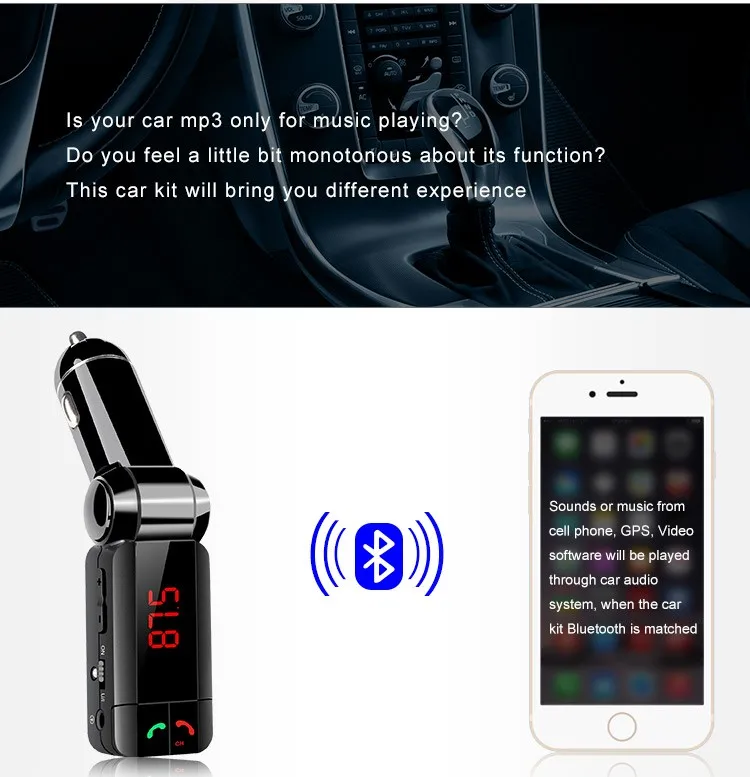

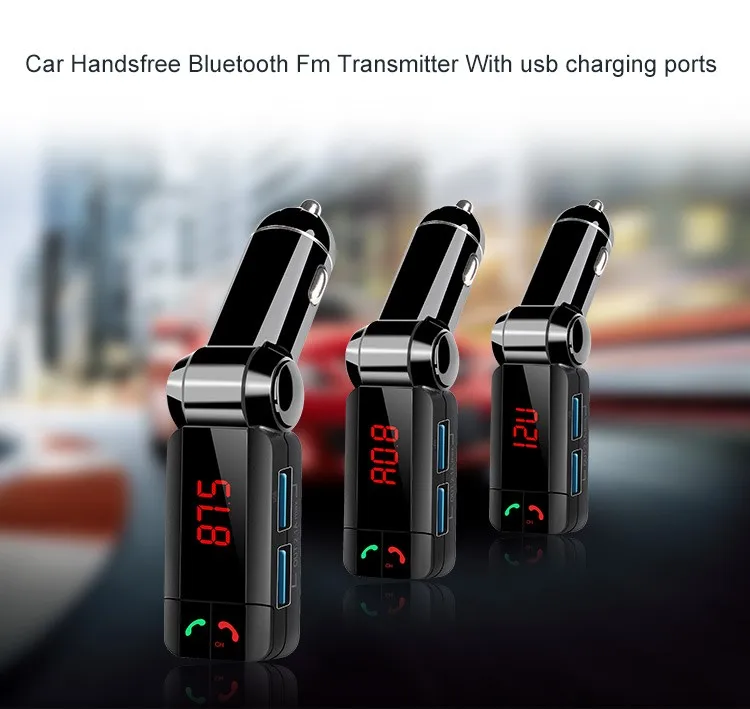

     This product is a special Bluetooth car charger with MP3 player, adopts professional high-performance Bluetooth module, built-in MP3 decoder chip that can transmit music files inside the USB disk to car stereo via wireless, and can switch an incoming call to the hands-free state as long as your mobile phone is provided with the Bluetooth function. When the call is finished, it will be switched to the music play automatically. It can also send the music in your phone to your car sound wirelessly. You can enjoy the music and answer the call in hand-free mode without refitting your car, which ensure the driving safety while enjoying music.

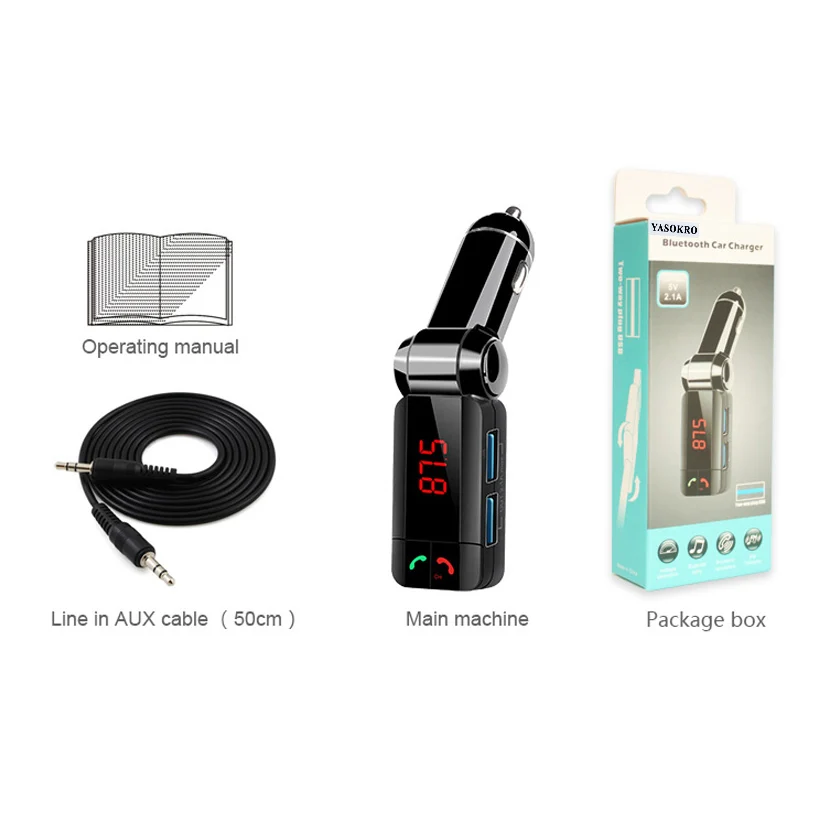

Packing listing :
1x  BC06S Car Kit ( Without retail package )

1X USE manual

1X Line in cable

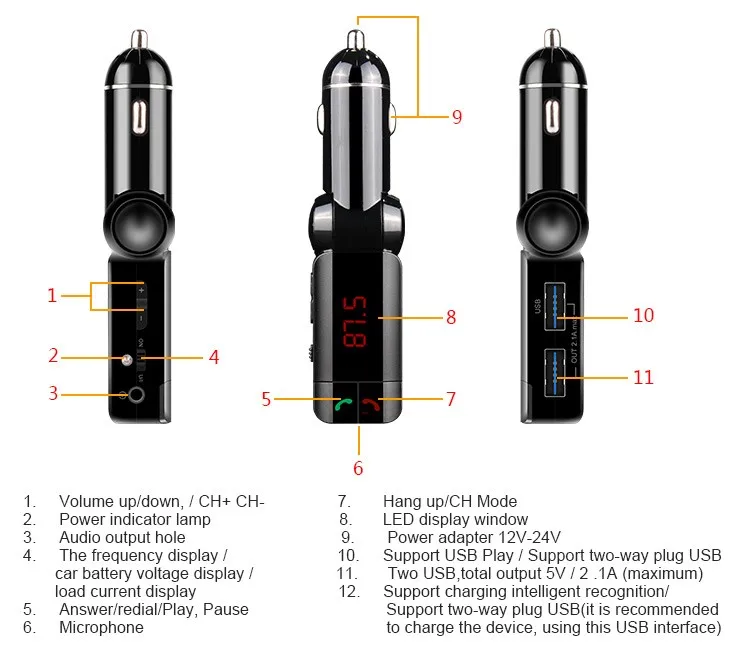

Product Features:

1. Any angle adjustable, and applicable for all types of vehicles

2: FM transmitter

3: LED display window

4: LINE audio input

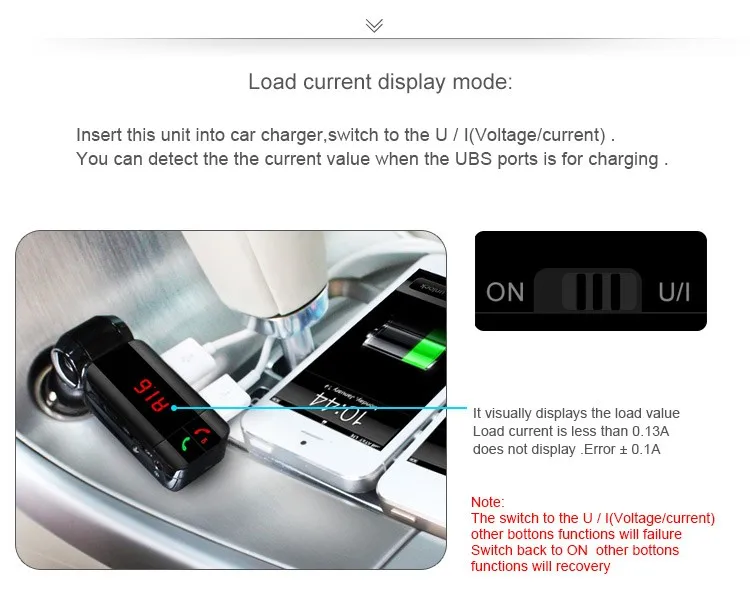

5: Support car battery voltage display / load current display

6: Supports playing music by USB disk

7: Supports MP3 music format

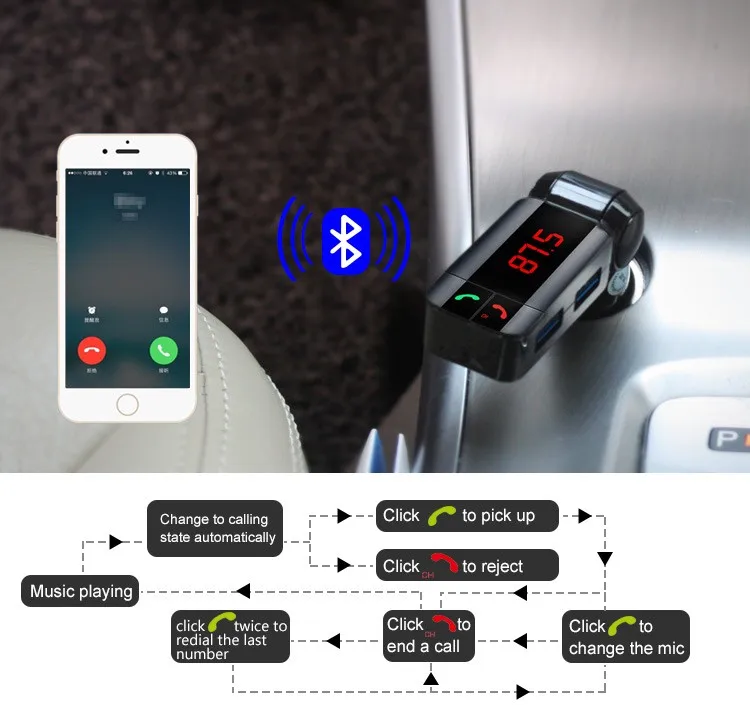

8: Answer/hang up/reject/redial the via Bluetooth

9: Bluetooth stereo music play

10: Call Echo Cancellation and Noise Reduction (CVC) technology

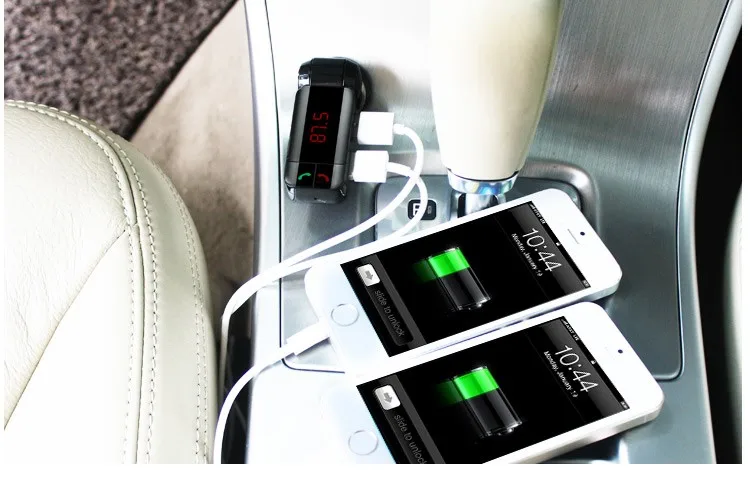

11: Dual USB output voltage, provides powers to other devices up to 5V/2.1A

12: Automatic memory function of power failure frequency point

Power-off memory:

Everytime when you power off this product, the system will memorize the information like the FM frequency and the song you are playing . And when you use it next time, the song will continue being played .But when you remove or change the storage or the system detects the wrong status, the system will play the first song .

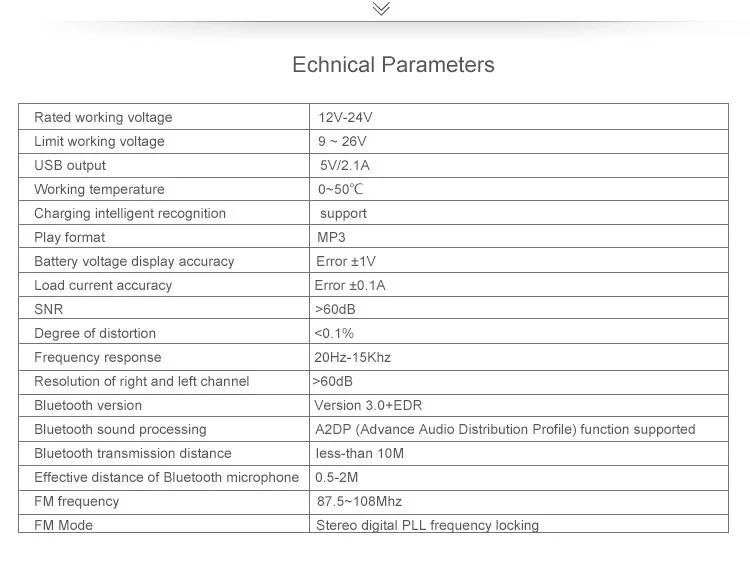

Specification:

Rated working voltage:  12V-24V

Limit working voltage:   9 ~ 26V

USB output :                 5V/2.1A

Working temperature :    0~50

Play format :                 MP3

Battery voltage display accuracy :       Error ±1V

Load current accuracy :            Error ±0.1A

SNR :                      >60dB

Degree of distortion :             <0.1%

Frequency response :              20Hz-15Khz

Resolution of right and left channel :               >60dB

Bluetooth version :                Version 2.1+EDR

Bluetooth sound processing :     A2DP (Advance Audio Distribution Profile) function supported

Bluetooth transmission distance  :       10M

Effective distance of Bluetooth microphone :             0.5-2M

FM frequency :       87.5~108Mhz

FM Mode:              Stereo digital PLL frequency locking

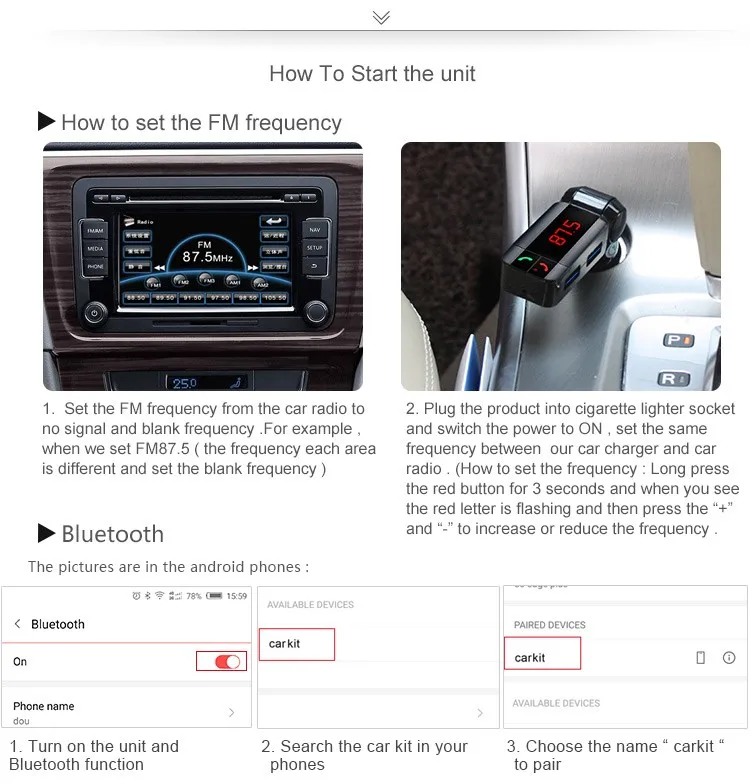

Instructions for use:

Step1.  Plug the FM transmitter into your vehicle's cigarette lighter or power port

Step2.  Tune your radio to an unused FM frequency , then match the FM transmitter and car FM radio at same frequency

Step3.  Please Make sure the Bluetooth feature on your device is turned on and is connected
