Product Description

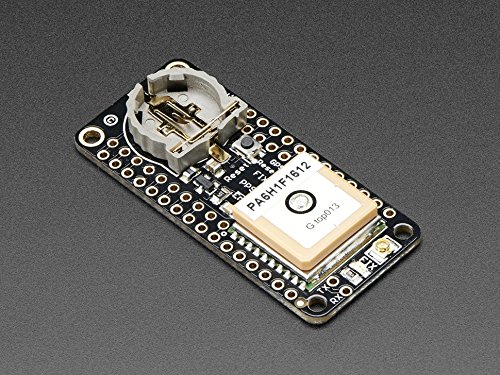

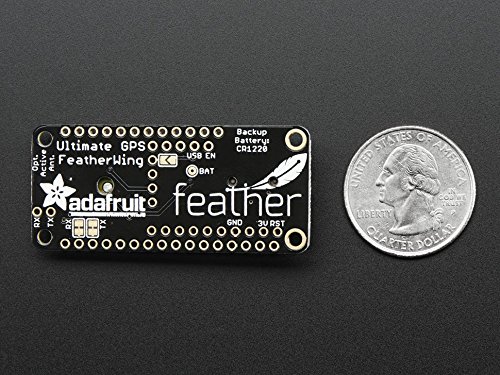

Give your Feather a sense of place, with an Ultimate GPS FeatherWing. This FeatherWing plugs right into your Feather board and gives it a precise, sensitive, and low power GPS module for location identifcation anywhere in the world. As a bonus, the GPS can also keep track of time once it is synced with the satellites.

Works with all Feathers except for those with USB-Serial converters that use the UART pins. Right now that means the ESP8266 Huzzah Feather and nRF52 Feather don't work

It has everything you need and more:
-165 dBm sensitivity, 10 Hz updates, 66 channels
Only 20mA current draw
RTC with coin battery backup
Built-in cataloging
PPS (pulse per second) output on fix
Internal patch antenna + u.FL connector for external active antenna
Fix status LED

The Wing is built around the MTK3339 chipset, a no-nonsense, high-quality GPS module that can track up to 22 satellites on 66 channels, has an excellent high-sensitivity receiver (-165 dB tracking!), and a built in antenna. It can do up to 10 location updates a second for high speed, high sensitivity logging or tracking. Power usage is incredibly low, only 20 mA during navigation.

The MTK3339-based module has external antenna functionality. The module has a standard ceramic patch antenna that gives it -165 dB sensitivity, but when you want to have a bigger antenna, you can snap on any 3V active GPS antenna via the uFL connector. The module will automatically detect the active antenna and switch over! Most GPS antennas use SMA connectors so you may want to pick up one of our uFL to SMA adapters.

Includes: a FET-driven ENABLE pin so you can turn off the module using any microcontroller pin for low power use, a CR1220 coin cell holder to keep the RTC running and allow warm starts and a tiny bright red LED. The LED blinks at about 1Hz while it's searching for satellites and blinks once every 15 seconds when a fix is found to conserve power.

Feature

Fully Assembled GPS FeatherWing for Adafruit Feather (Except ESP8266 Huzzah Feather and nRF52 Feather)
MTK3339 GPS chipset
22 satellites on 66 channels
Up to 10 location updates a second
uFL antenna connector, CR1220 coin cell holder (battery not included)
Brand : Adafruit
EAN : 0717520031208
Product Dimensions(LxWxH) : 8x6x3cm ; 86 g
Package Dimensions(LxWxH) : 8x6x3cm ; 86 g
