Manufacturer Specifications

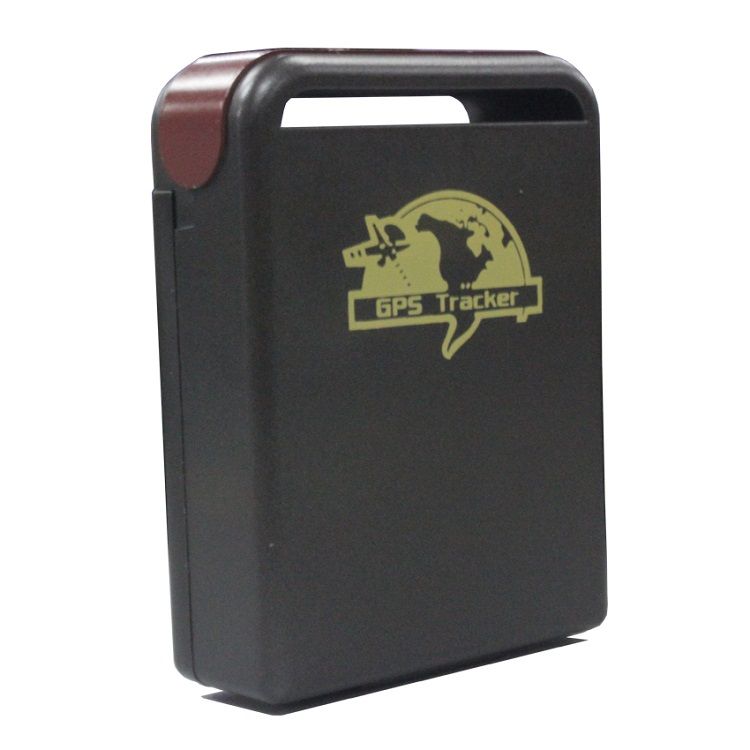

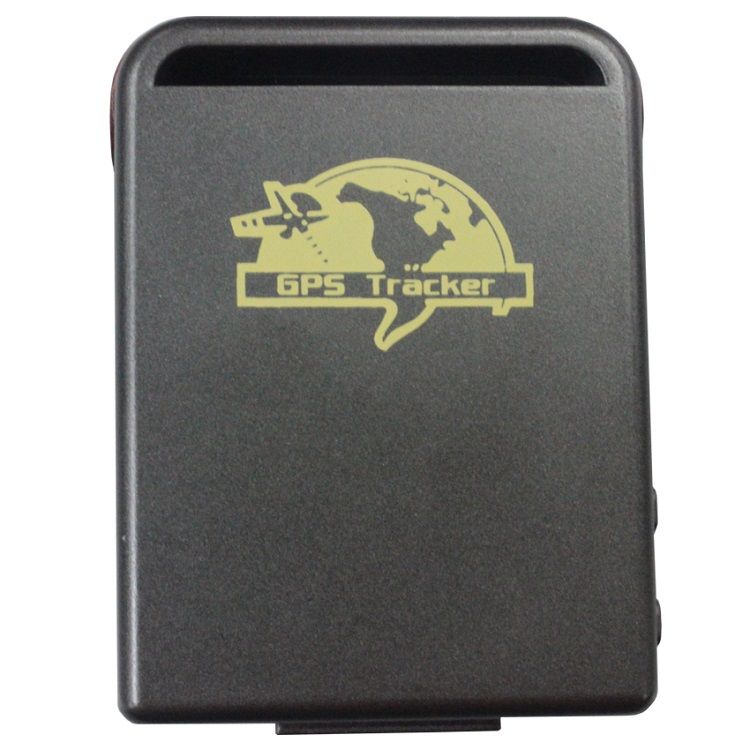

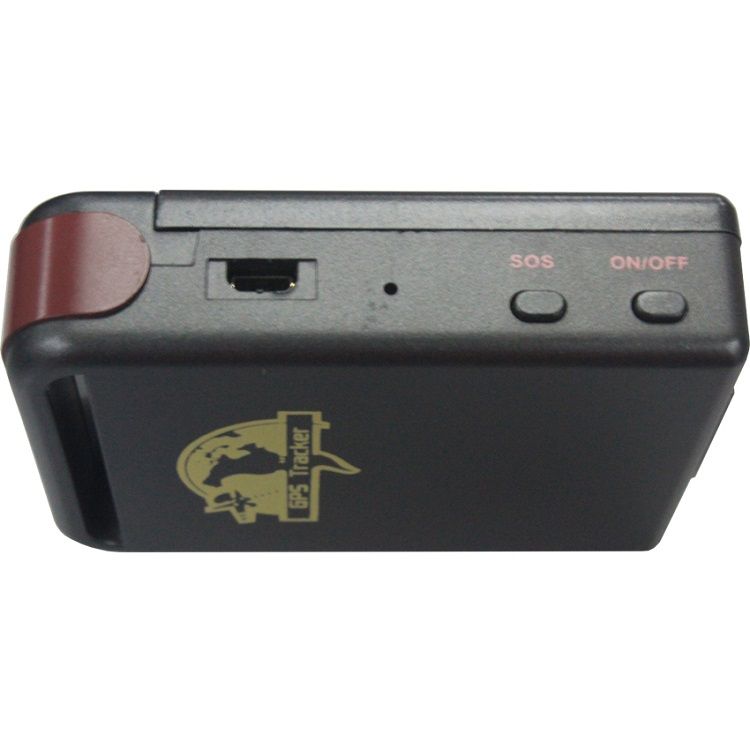

- Product Desctription: Mini Global GPS Tracker
- GPS Chip: SIRF III chip
- Network: GSM / GPRS
- GSM Frequency: 850 / 900 / 1800 / 1900
- GSM/GPRS Module: Simcom Sim340
- GPS Sensitivity: -159 dBM
- GPS Accuracy: 5 M
- Time to First Fix:
-Cold status: 45s
-Warm status: 35s
-Hot status: 1s
- Battery: Rechargeable 3.7 V 1000 mAh Li-ion Battery
- Battery life: 80 Hours standby
- Working Temperature: -20 to 55
- Humidity: 5% to 95% non-condensing
- Altitude Limit: 18,000 meters (60,000 feet) max
- Velocity Limit: 515 meters/second (1000 knots) max
- Acceleration Limit: Less than 4g
- Dimension: 64 (L) x 46 (W) x 17 (H) mm
- Weight: 50 g
Specifications:
Size: 64mmx 46mmx 17mm(1.8” x2.5” x0.65”)
Weight: 50g
Network: GSM/GPRS
The network band: 850/900/1800/1900Mhz or 900/1800/1900Mhz
Chip: SIRF3 chip
GSM/GPRS Modular: SIMCOM340 or SIMCOM340
The sensitivity of GPS: -159dBm
GPS accuracy: 5m
The first start time: Cold status 45s / Warm status 35s/ Hot status 1s
Portable charger voltage: 110-220V input/ 5V output
Battery: Chargeable changeable 3.7V 800mAh Li-ion
Standby time: 80 hours
Storage temperature: -40°C to +85°C
Working temperature: -20°C to +55°C
Humidity: 5%--95% non-condensing

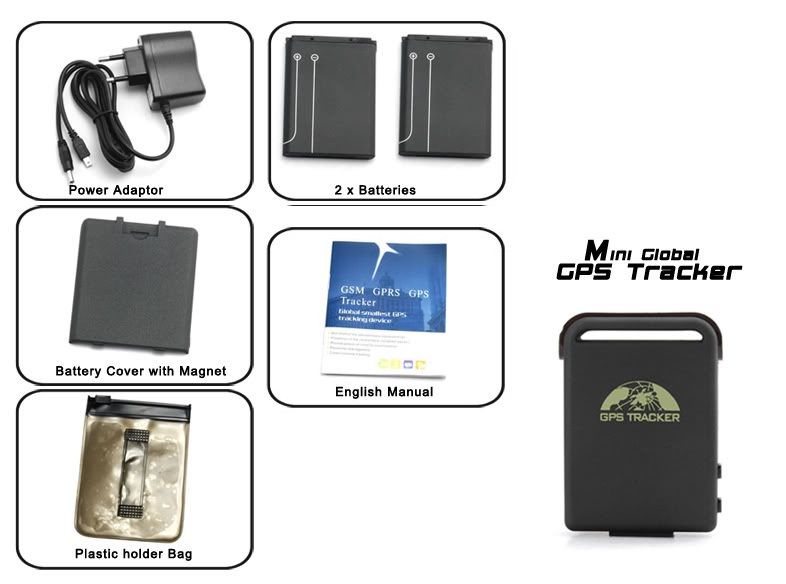

Package includes:
1 x TK102 Mini Global GPS Tracker

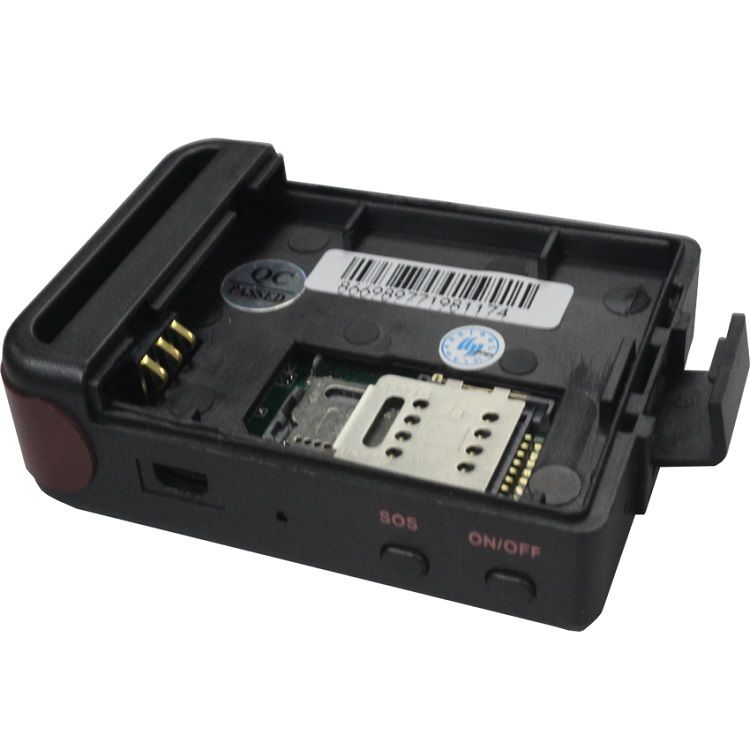

1 x Battery Slot
1 x Power Adaptor
2 x Batteries
1 x Plastic Holder Bag
1 x The magnet cover
1 x English Manua
1 x CD
1 x Retail Box

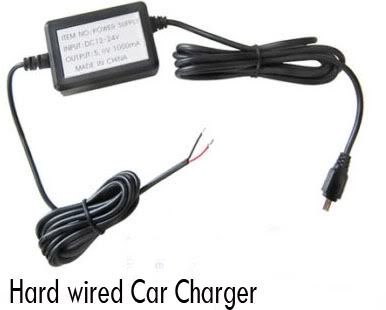

Hard Wired Car Charger
 .
Product Notes
- Compact, easy to carry, and comes with a magnetic battery cover to attach to any steel object

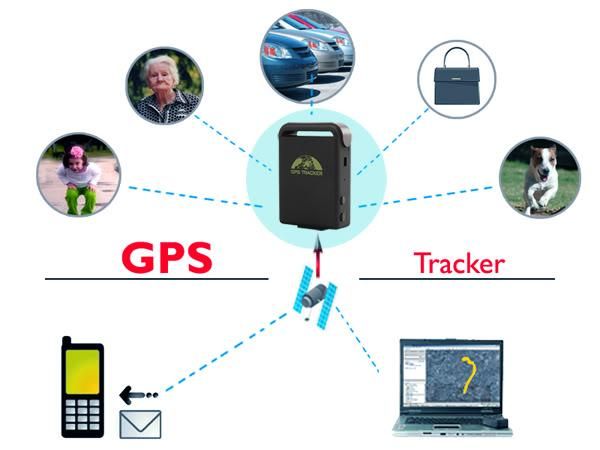

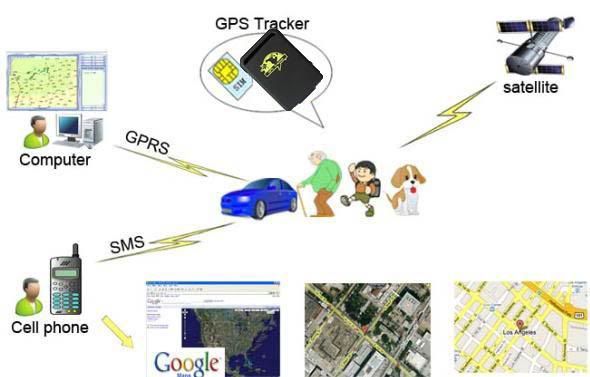

- Can send GPS information by SMS on demand or periodically within a time frame
- The unit has a built-in mic and can be used as a "silent listener" without letting the carrier know that his/her conversation or activities are been listened.
- Comes with detailed instructions on how to work with GPRS enabled SIM and setup internet monitoring(fixed IP only), so constant tracking information can be displayed on a detailed map

FAQ - Frequently Asked Questions
- How do I make sense of the longitude and latitude data this unit provides?
Both Google Maps and Google Earth can easily translate the data into usable visual information.
- How long does it take to recharge the battery for this unit?
First use requires 8 - 12 hours charging time, while subsequent usage only needs 3-5 hours of recharging time.
- The unit does not pick up a GSM signal and the SMS functions aren't working, what's wrong?
A number of things could cause this to happen:
1) Make sure the SIM card is compatible (only 2G, 2.5G, 2.75G SIM cards work)
2) Make sure there is money left on the SIM card and that it has not expired
3) Make sure there is no PIN code associated with the SIM card
4) Make sure roaming is enabled on your SIM account if you are in a different country
- Can I install the software on multiple computers?
No. Each tracker’s IMEI number is unique and can only be used to setup the software on one computer once and ONLY ONCE, which means you can only use the software on that computer exclusively after successfully set it up. This is due to the security requirements of the software and the product.
|
