Product Description

SIm300 Module is designed for global market, SIM300 is a Tri-band GSM/GPRS engine. It works on frequencies EGSM 900 MHz, DCS 1800 MHz and PCS 1900 MHz. SIM300 features GPRS multi-slot class 10/ class 8 (optional) and supports the GPRS coding schemes. CS-1, CS-2, CS-3 and CS-4. With a tiny configuration of 40mm x 33mm x 2.85mm. SIM300 can fit almost all the space requirements in your applications, such as smart phone, PDA phone and other mobile devices.

Applications

* Wireless data transfer
* Energy industry monitoring
* Traffic system monitoring
* Equipment diagnostics
* Point-of-Sale/transaction processing
* Intelligent house monitoring
* Mechanical rooms monitoring
* Vehicle tracking monitoring
* Agricultural feeding monitoring
* Parking monitoring
* Telecom monitors
* Meter reading
* Dial back-up for broadband connections
* Residential lighting controls
* Messages/alerts
* Personnel management

GSM Kit is a highly flexible plug and play quad band GSM modem. Reset button, power can be started automatically or manually started. It's for direct and asy integration to RS232. Supports features like Voice, Data/Fax, SMS,GPRS and integrated TCP/IP stack. Control via AT commands(GSM 07.07,07.05 and enhanced AT commands). Use AC - DC Power Adaptor with following ratings · DC Voltage : 12V /1A. Current Consumption in normal operation 250mA, can rise up to 1Amp while transmission.

Package Content

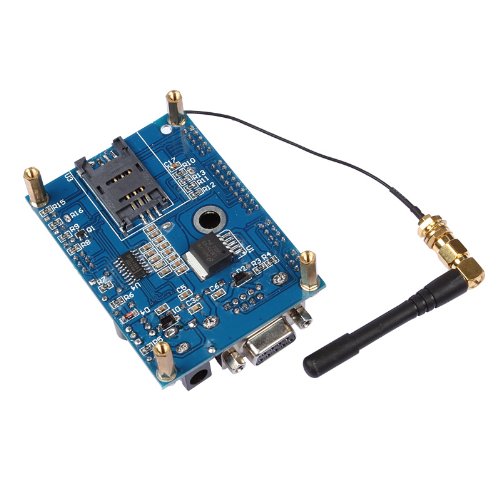

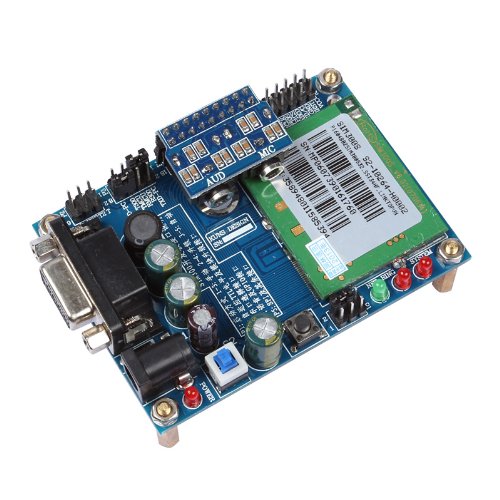

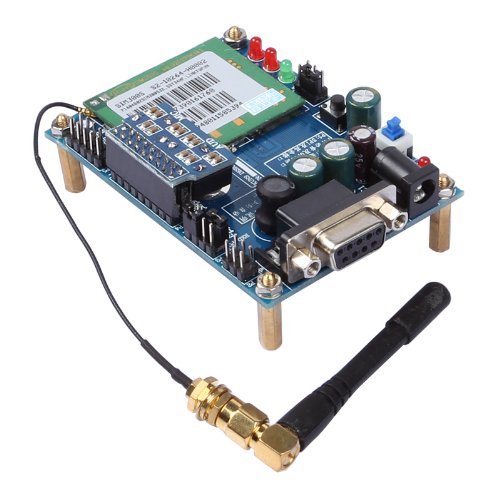

1 x GPRS+GSM UART/232 Development Board Version2
1 x SIMCOM SIM300 Module
1 x SMA interface converter
1 x Antenna for GSM/GPRS
1 x Voice/Audio adapter

Note: Please download documentation via the below link:
https://s3-ap-northeast-1.amazonaws.com/sain-amzn/20/20-012-103/arduino_gsm_gprs_code.rar

Feature

The SIMCOM SIM300 Module is AT Command - controlled GPRS+GSM module, via Serial Port (RS232/TTL communication).
SIM300 is a Tri-band GSM+GPRS engine that works on frequencies EGSM 900 MHz, DCS 1800 MHz and PCS1900 MHz.
SIM300 provides GPRS multi-slot class 10 capability and support the GPRS coding schemes CS-1, CS-2, CS-3 and CS-4.
The SIM300 integrates the TCP/IP protocol.Support Arduino!
To Send/Recieve/Read Text Message, Dial/Answer Phone Call, Fax, etc.
Brand : SainSmart
EAN : 6952131721672
