Product Description

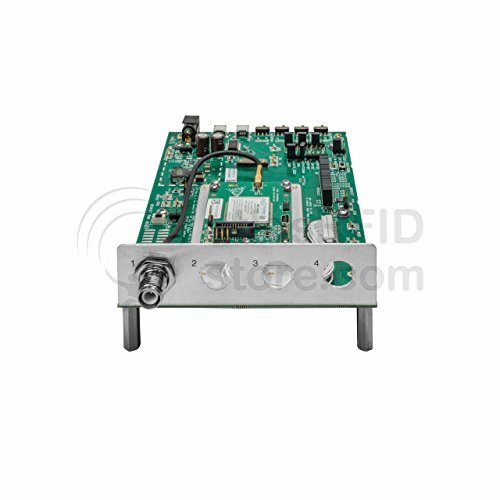

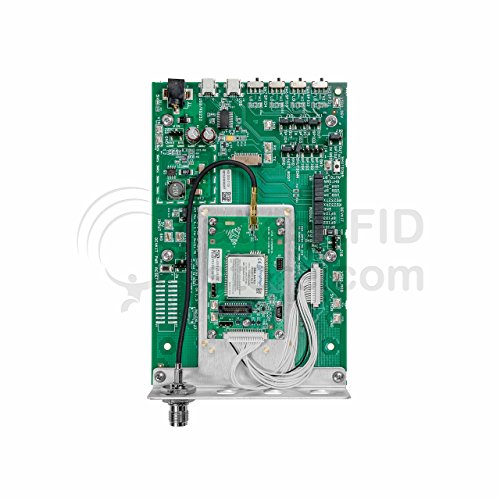

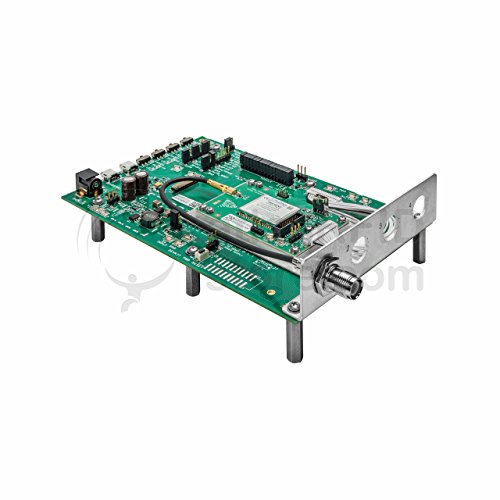

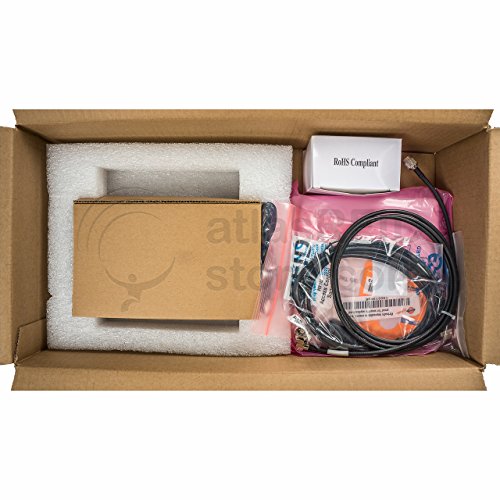

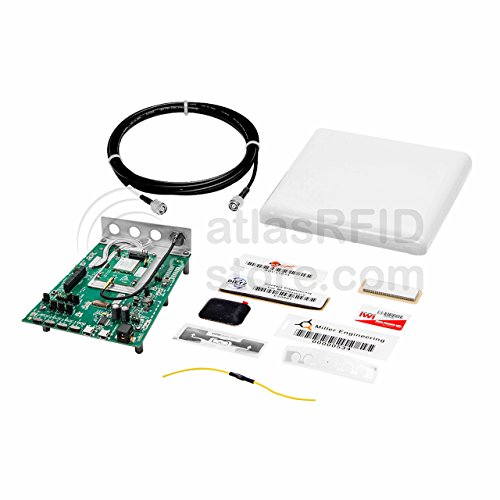

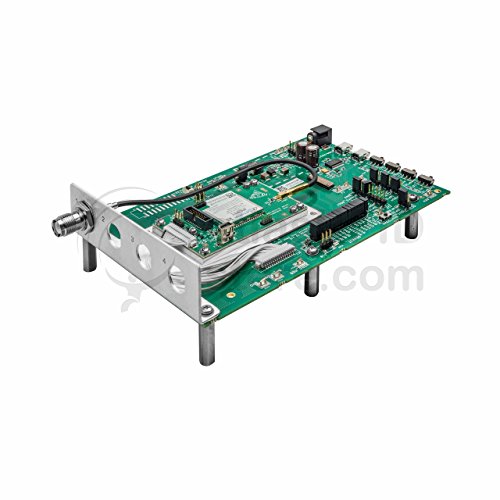

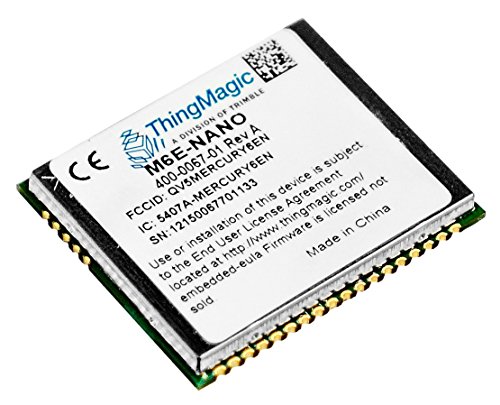

THINGMAGIC NANO EMBEDDED RFID MODULE DEVELOPER KIT The ThingMagic Nano Developer Kit allows you to utilize the wide RF output range (0 dBm to 27 dBm) of the Nano, a feature that is important for the read/write requirements for RFID-enabled printers and tag commissioning stations. It features a surface mount package designed for the efficiency of SMT manufacturing, driving down the total cost for embedding RFID in volume applications, including handheld devices, consumables authentication, device configuration and access control. This developer kit is the perfect way to make the most of your M6e-Nano reader module. NOTE: This product is a reader module - NOT a finished RFID reader - and is meant for OEM and developers to embed into products or to be used in the creation of a new finished reader. If you are interested in an existing finished reader product, check out our line of finished ThingMagic readers. What's Included? M6e-Nano Embedded RFID Module Unit, Test Chassis Unit, 6 ft RP-TNC to RP-TNC Antenna Cable, USB Cable, 9V AC Power Adapter Plug Adapter Kit (US, UK, EU, AU), Antenna Unit (7.5 in 7 dBiC patch antenna), Packet of Sample Tags, Mercury API, Full Schematics. SPECIFICATIONS ELECTRICAL: Air Interface Protocol: EPCglobal Gen 2 (18000-6C) Operating Frequency: Global (see data sheet for more info) Transmit Power: 0 to 27 dBm Max Receive Sensitivity: Not Published Max Receive Distance: Over 10 feet (3 m) Max Read Rate: Up to 200 tags/second Data Interface: UART 3.3V GPIO: Four 3.3V bidirectional ports Power Source: DC 3.3 to 5.25 V MECHANICAL: Antenna Ports: Single RP-TNC Female (on chassis) Dimensions: 0.87 in x 1.02 in x 0.118 in (22 mm x 26 mm x 3.0 mm) Weight: < 1 lb (453.6 g) ENVIRONMENT: IP Rating: Not Published Operating Temperature: -20° to 70°C APPLICATION INTERFACE: Host API: C#/.NET, Java, C Demo Software: Not Published
