Item Descriptions:

color:

Bluetooth Elm 327

Description of item

Description of item:

● New type ON / OFF switch Controllable type ELM 327 Bluetooth OBD 2 scanning tool

● Since it adopts App data chip, it is more stable than V2.1.

● CD containing the diagnostic tool software will be bundled together.

● Since you can check the engine's surroundings and temperature relationships, you can also check where the defect is when you break down.

● Android smart phone V4.0 to V4.3, compatible with Android Tablet PC.

● All correspond to OBD 2 vehicles

● Usage is easy

● Support all OBD2 protocol.

● Compact size, 16 pins

● Hardware version: 1.5

Various functions

function

Reading and erasing error codes.

The general (P 0, P 2, P 3, and U 0), the manufacturer's identification (P 1, P 3, and U 1) codes, pending codes, etc. are all readable, and their meanings are displayed.

The following sensor data can also be displayed:

1. About the engine such as engine speed 2. Calculated load value

3. Coolant temperature 4. Confirmation of fuel system

5. Speed ​​6. Short term engine trim

7. Long-term engine trim 8. Manifold pressure

9. Intake air temperature 10. Intake air temperature

11. Air flow rate 12. Absolute throttle position

13. Voltage intake manifold pressure of oxygen sensor

14. State of fuel system

15. Fuel pressure

Support ALL OBD 2 protocol

Support

1. ISO 9141-2 (5 baud init, 10.4 Kbaud)

2. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

3. ISO 14230-4 KWP (fast init, 10.4 Kbaud)

4. ISO 15765-4 CAN (11 bit ID, 500 Kbaud)

5. ISO 15765-4 CAN (29 bit ID, 500 Kbaud)

6. ISO 15765-4 CAN (11 bit ID, 250 Kbaud)

7. ISO 15765-4 CAN (29 bit ID, 250 Kbaud)

A. SAE J1939 CAN (29 bit ID, 250 * Kbaud)

B. USER 1 CAN (11 * bit ID, 125 * Kbaud)

C. USER 2 CAN (11 * bit ID, 50 * kbaud)

Ease of use

how to use

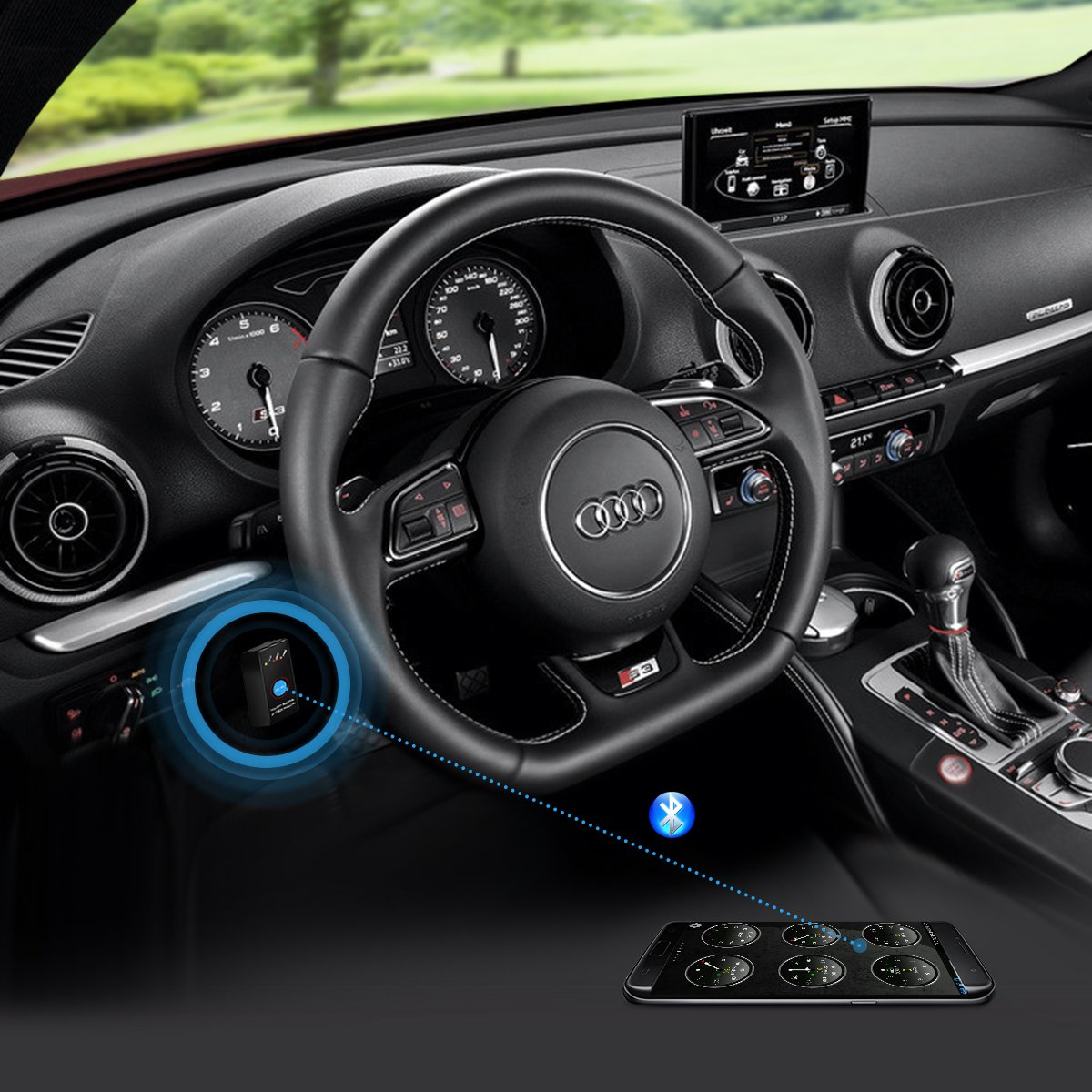

· Connect this product to the OBD 2 connector of the car

· Pairing with a device (PC, smartphone, tablet, etc.)

· Installing PC software and Android application and setting vehicle data

* Please download software and applications separately and use them.

(Torque, OBD Info-san !, OBD Driver, Car gauge, etc.)

※ PIN code required for connection is 1234.

standard

Product name: ELM 327 OBD 2 bluetooth

Function: Code Reader & Scan Tool

Export method: Bluetooth

Material: Plastic

Voltage: 12V

Current: 45 mA

Frequency: 38400 Hz

Applicable range: 5-10 m / 16.4 - 32.8 ft

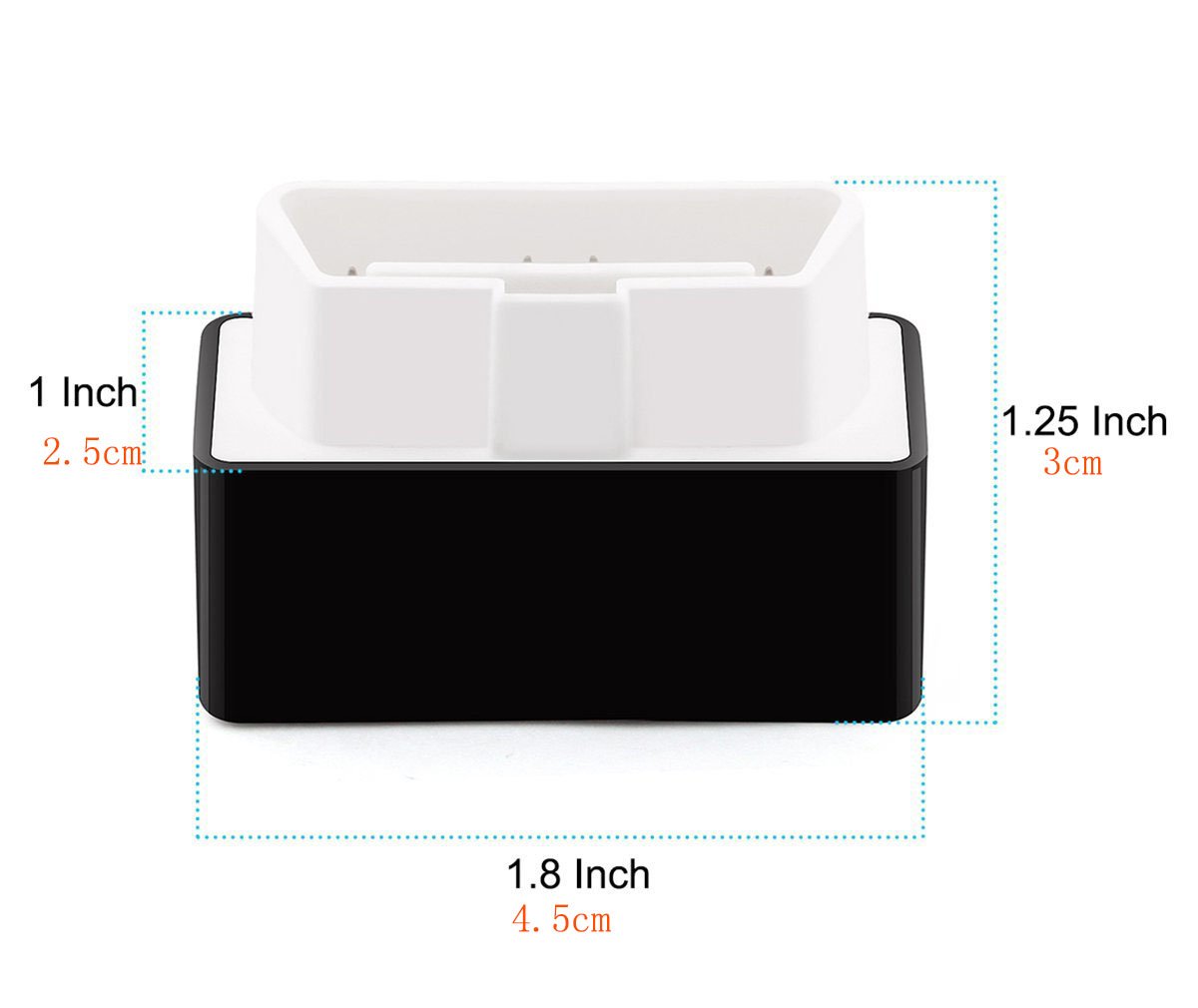

Size: 4.8 * 2.5 * 3.5 cm / 1.89 * 0.98 * 1.37 in

Weight: 23 g / 0.81 oz

Package size: 8.8 * 8.8 * 4 cm / 3.4 * 3.4 * 1.5 in

Package Weight: 48 g / 1.69 oz

package:

Main unit * 1, CD * 1

Quality assurance:

We offer one year warranty.

Features:

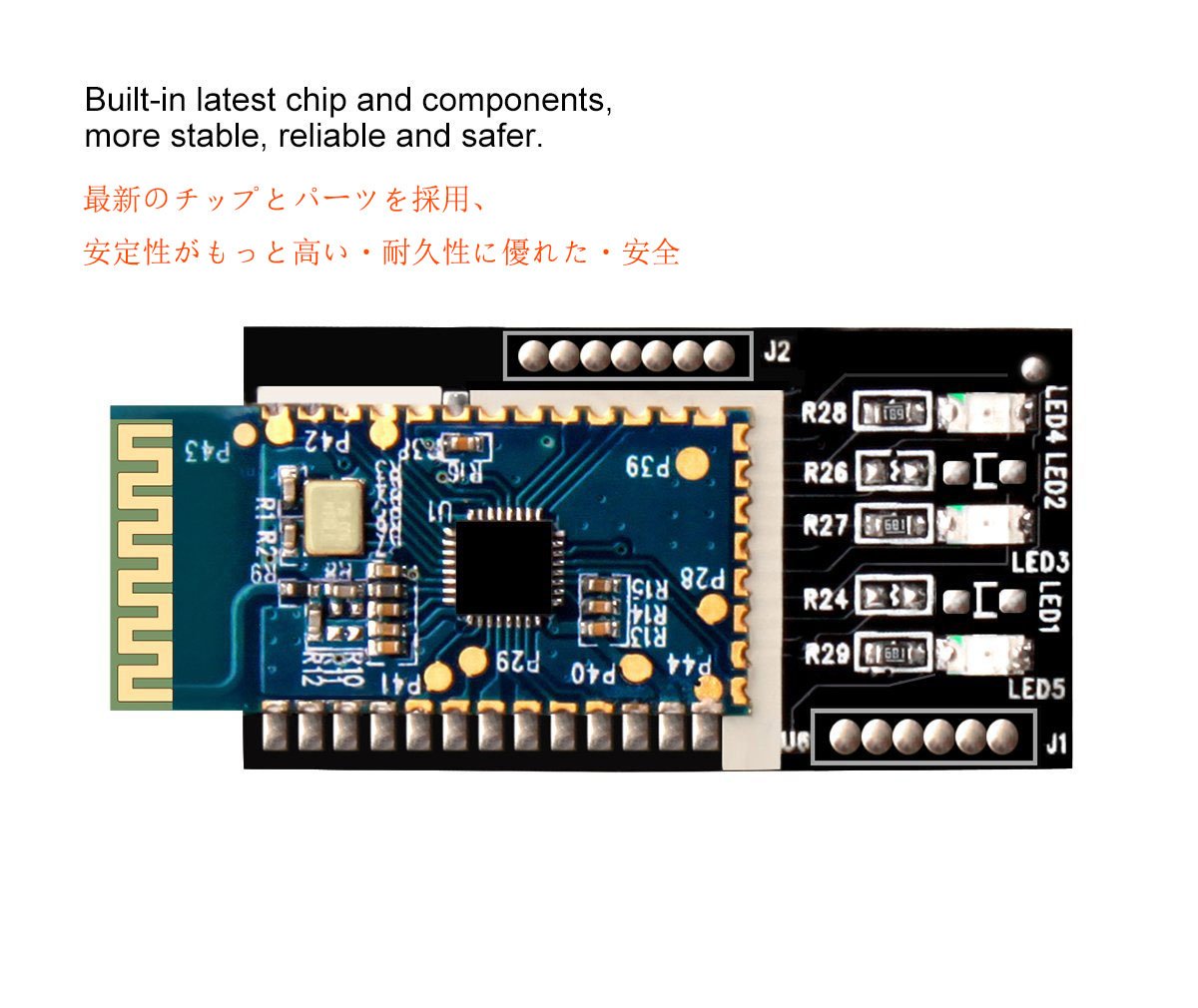

• Bluetooth (Bluetooth) adopting the latest chips and parts odb 2 Since it is a troubleshooting machine, it is more stable and safe than V2.1.
• The effective distance is connected up to 10 m.
• Easy to use!

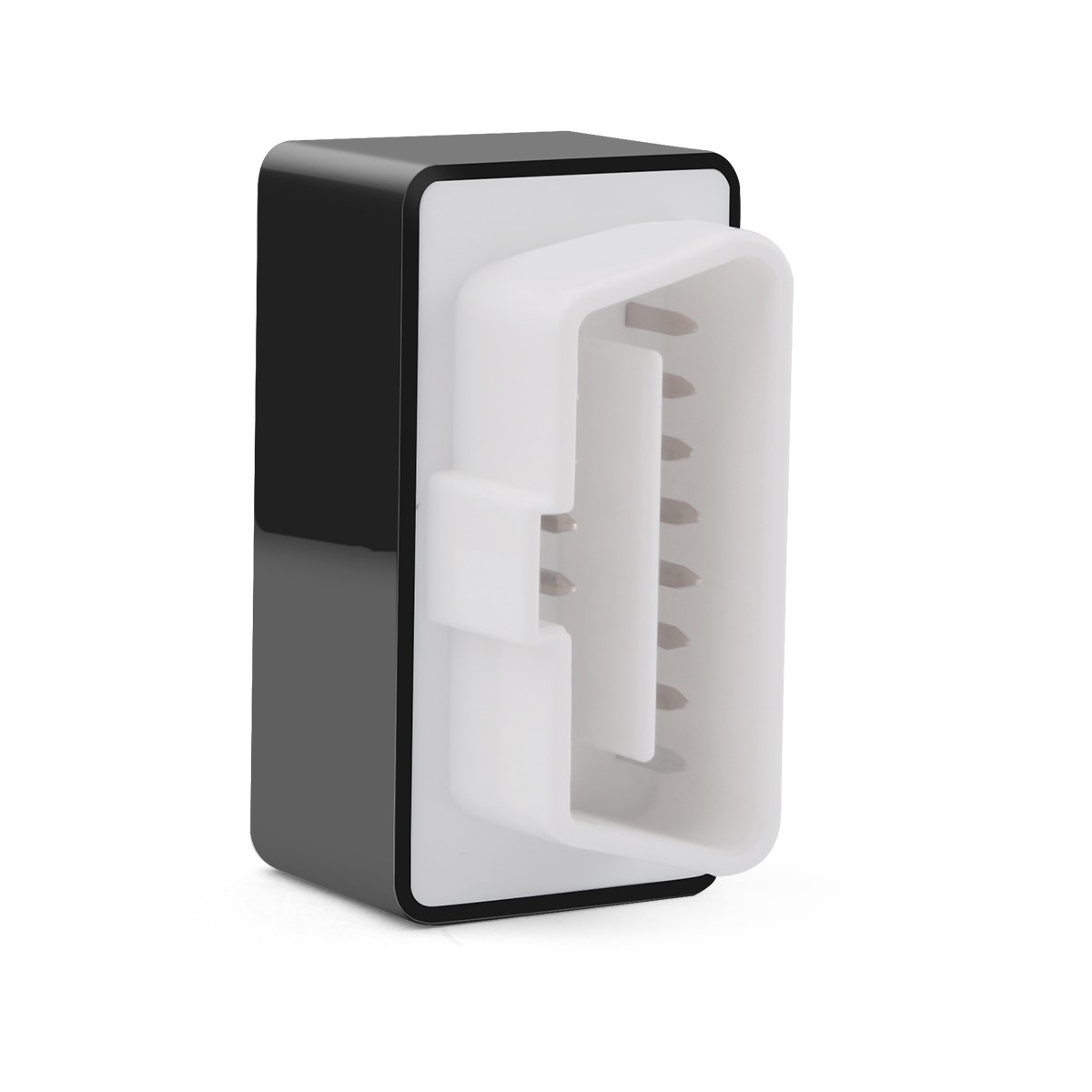

• Just plug this product Elm 327 into the car-mounted 16 PIN coupler and it's done.
• It is an Obd 2 scan tool (car diagnostic machine) which is switch controllable type and has no wasteful power consumption.
• Fault Diagnosis Overall: In addition to reading and erasing fault codes, data such as rotation speed, throttle opening, water temperature, intake air temperature, etc. can also be displayed.
• It is an interface which sends data of automobile ECU information from OBD 2 port to WIFI compatible equipment.
• You can diagnose the condition of the car in detail.
• Supported vehicles: American cars since 1996 (Heisei 7), European cars (BWM AUDI Benz) since 2001 (Heisei 13) and Asian cars since 2005 (Heisei era 2006) (Nissan Honda Toyota)
• Can be used.

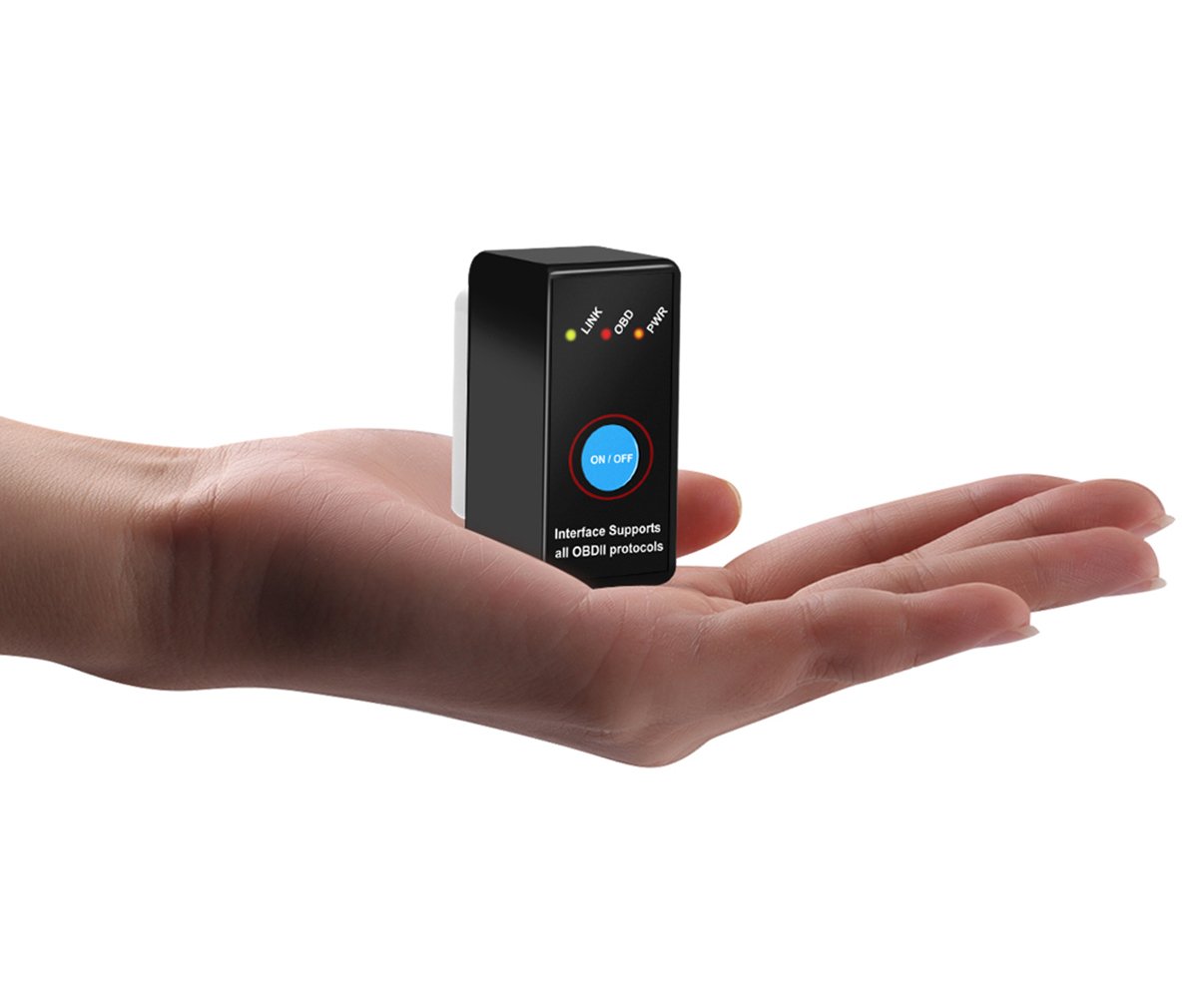

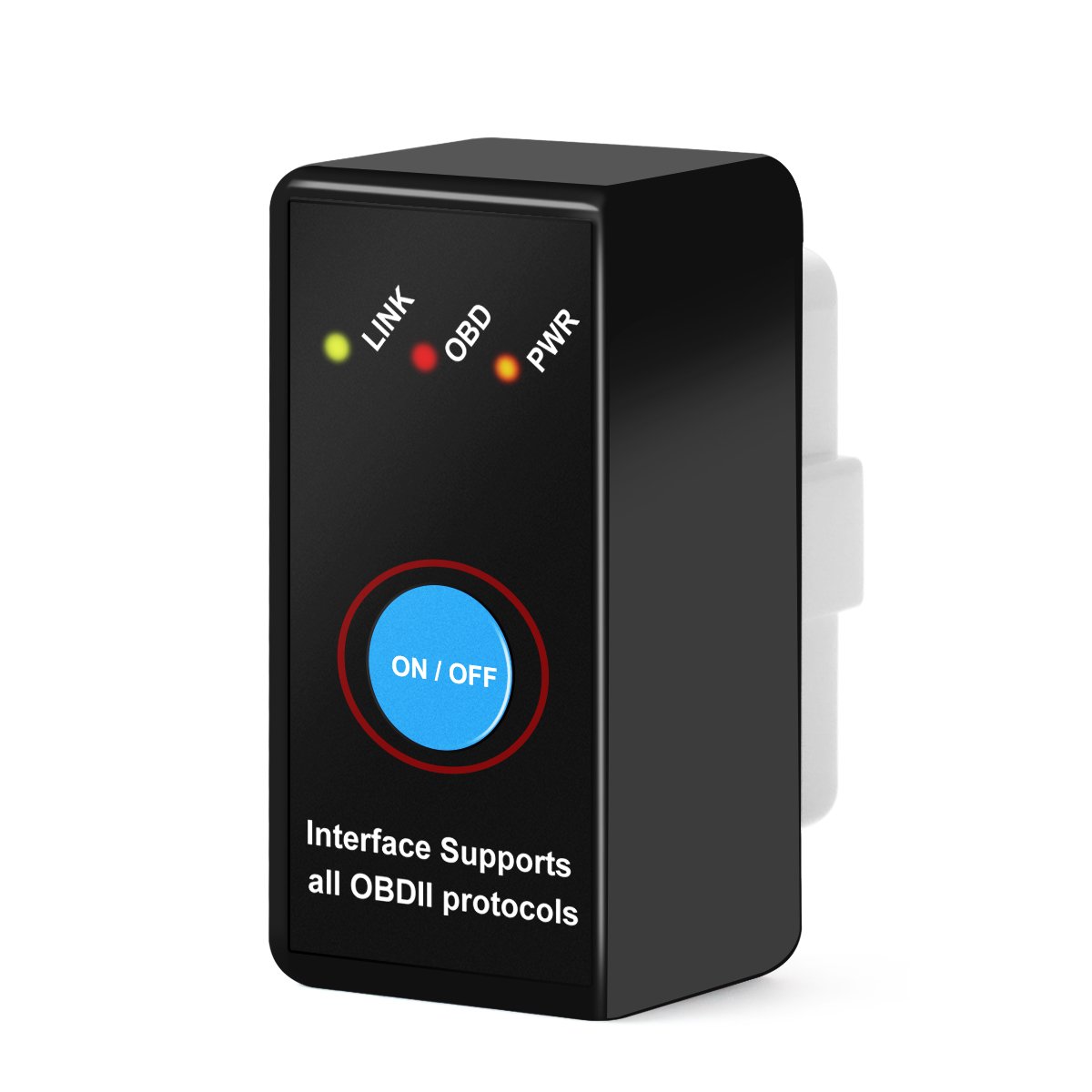

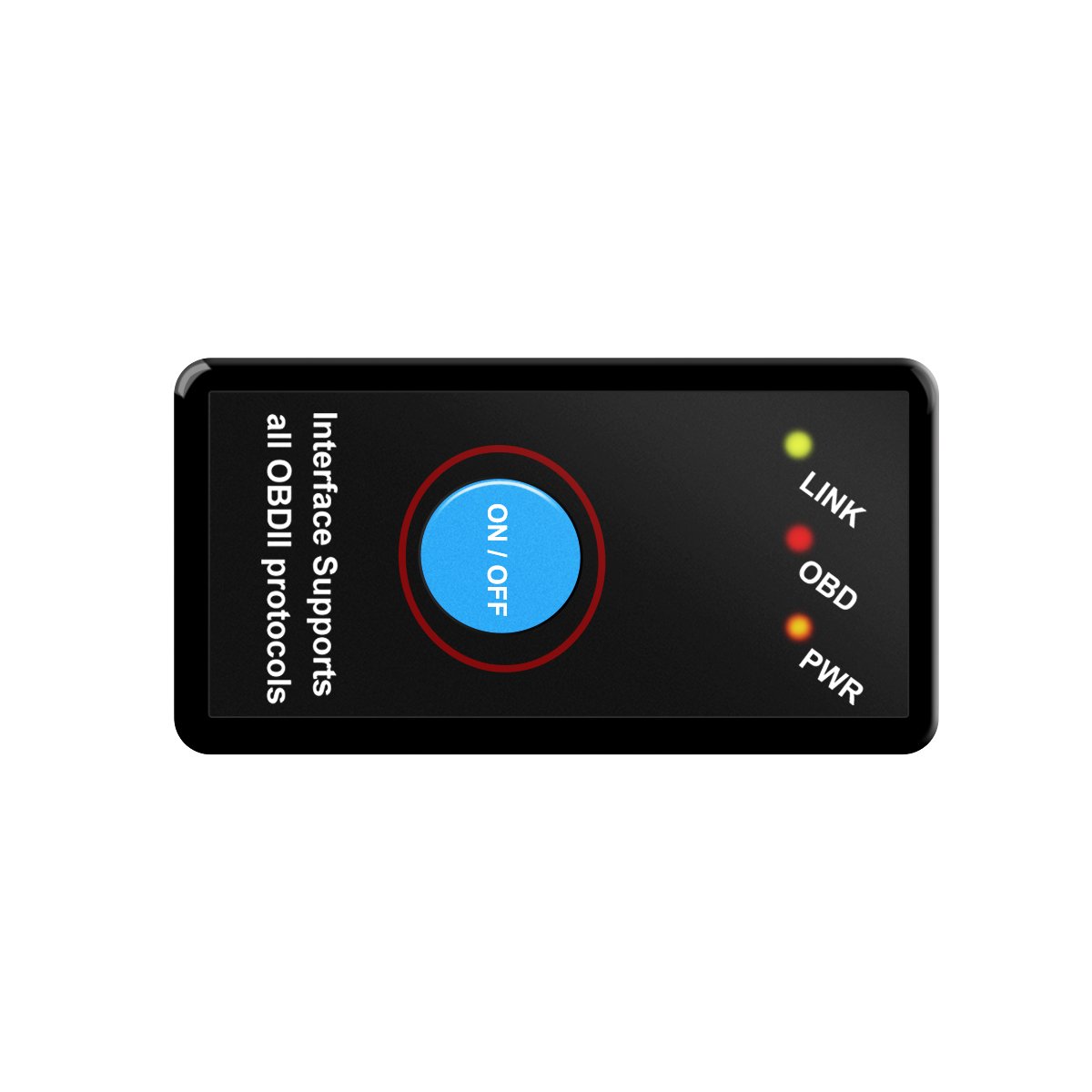

• There are LINK OBD PWR 3 indicator light, power on / off switch on the front side.
• After pressing the power button, start the diagnostic operation when all 3 indicator lights are in the ON state.
• Wireless connection model: Android smartphone V4.0 to V4.3, can correspond to Android Tablet PC.
• It can not correspond to iphone (IOS), please be careful.

Product information:

Shipping Weight: 40 g

Package Dimensions: 3.00 x 10.59 x 14.81 cm
