Item Descriptions:

It is easy to measure.

Easy to manage.

(iPhone only)

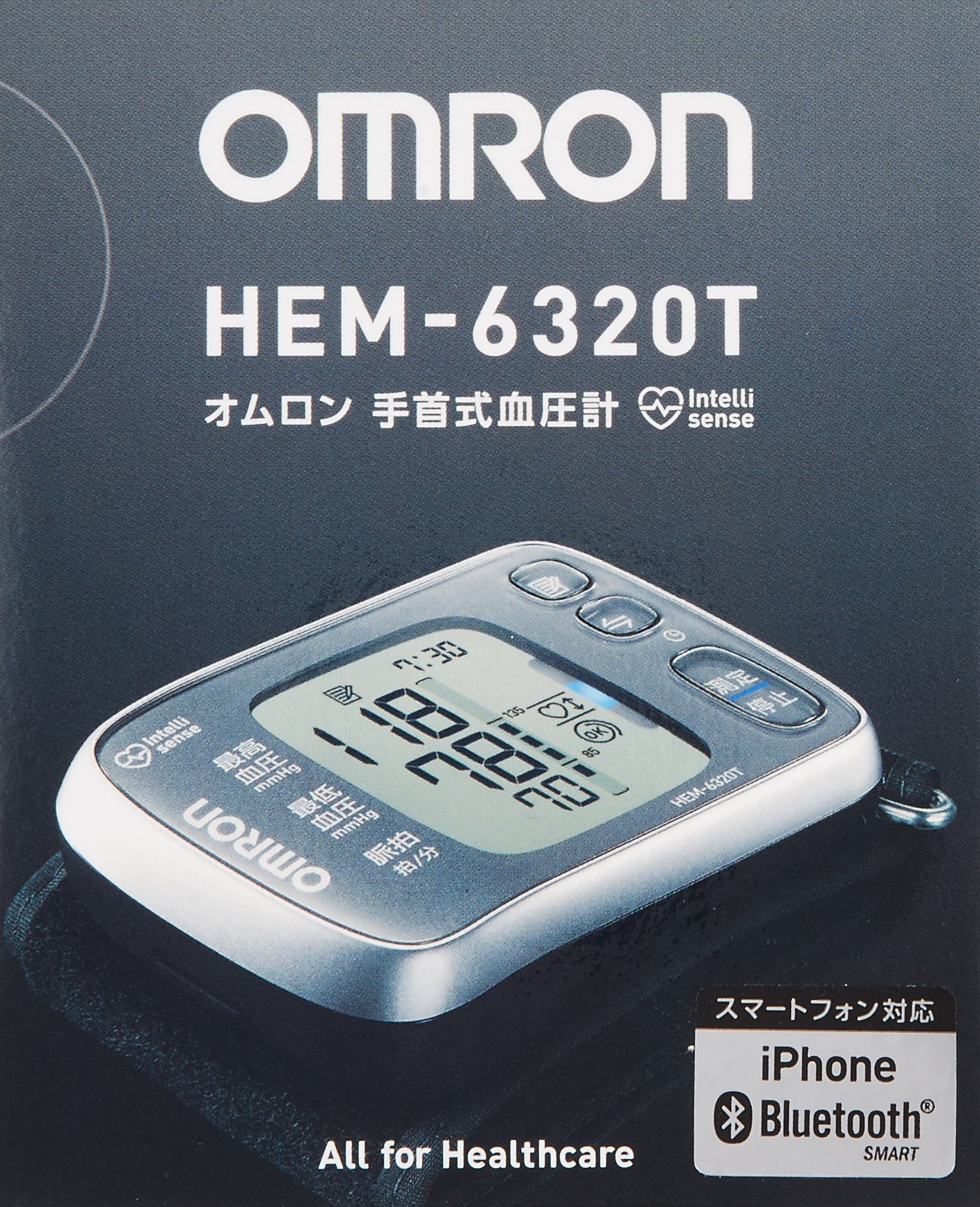

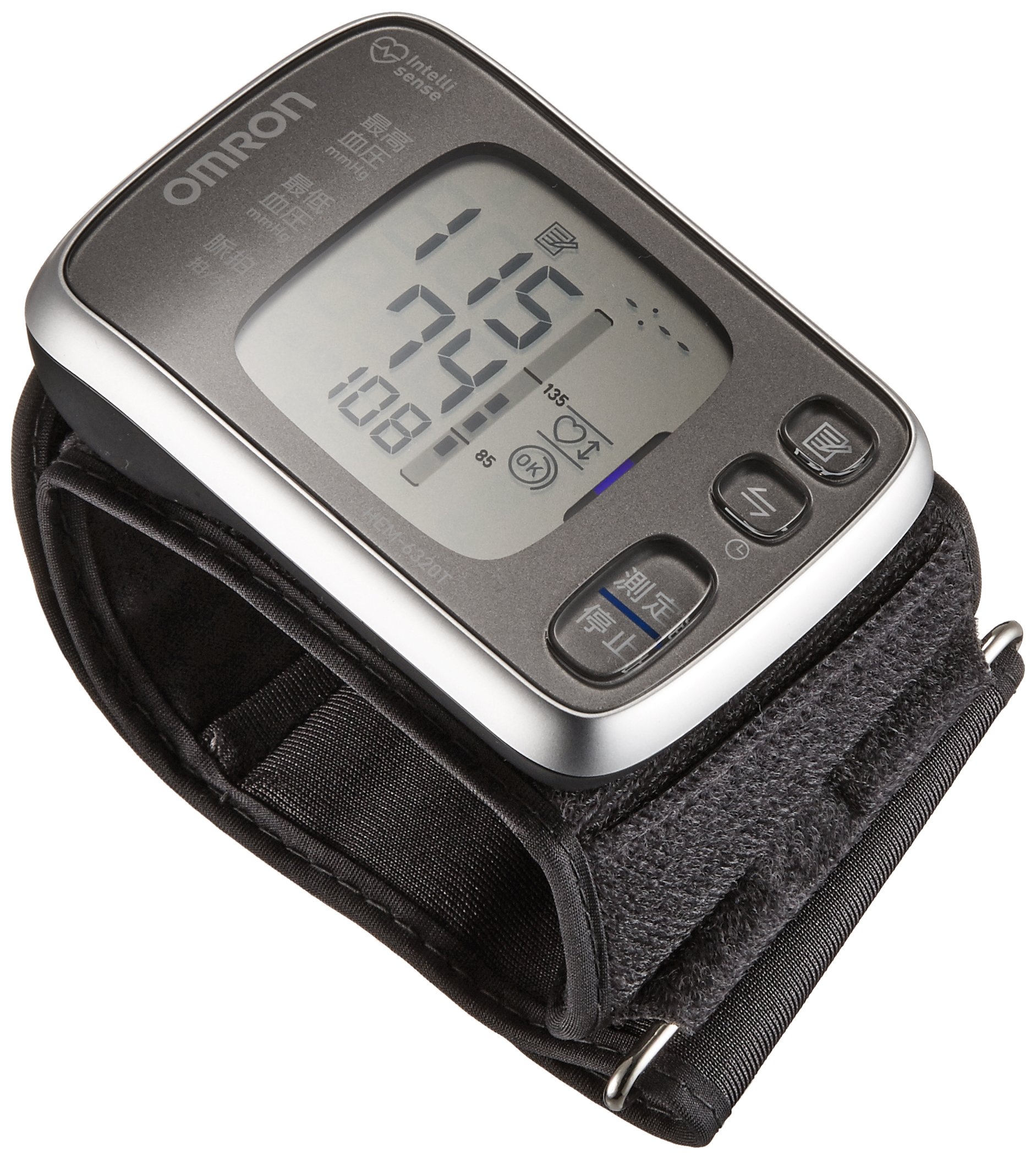

Product name: Omron wrist type sphygmomanometer

Contraindication / Prohibition:

[Contraindication / Prohibition]

· Self-judgment of measurement result, treatment

[It may lead to deterioration of symptoms.

· Measurement with injuries or arms under treatment

[It may lead to deterioration of symptoms.

· Measurement with arms during intravenous injection or transfusion

[It may lead to deterioration of symptoms.

· Use near flammable, combustion assisting gas

[It may cause ignition, ignition or explosion.

· Use beyond the useful life

[It may not be able to measure correctly.

· Use of unspecified number of people at medical institutions and public places

[It will cause accidents and troubles.

Item specification etc.:

【Shape / Structure and Principle】

1. Shape and name of main part

accessories

Trial battery (2 AAA alkaline batteries) storage case

Instruction manual (with quality certificate) Medical device package (this document) Measurement posture confirmation card EMC technical document

2. Body size and mass dimension: approximately 89 (width) x 61 (height) x 25 (depth) mm

(Wrist cuff not included) Weight: About 100 g (battery not included)

3. Electrical Rating

Power supply: AAA alkaline batteries 2 (DC 3 V) Electrical shock protection: Internal power supply equipment BF type mounting part

4. Operation · Principle of operation As the cuff pressure is gradually pressurized, a pulsation with heartbeat synchronized with pressure appears.

The beginning of this pulsation begins to be small, it increases with pressurization, eventually it shows a maximum amplitude, then becomes a mountain pattern that decreases again.

In the oscillometric blood pressure monitor, the amplitude waveform information of the pulsation component and the cuff pressure are analyzed with a microcomputer, and the systolic blood pressure and diastolic blood pressure are decided.

5. Standards concerning performance and safety

(1) Errors in blood pressure measurement by clinical performance test: Average error from auscultation method; within ± 5 mmHg Standard deviation within 8 mmHg

(2) Error in cuff pressure indication: Within ± 3 mmHg

(3) Rapid exhaust:

Time required to rapidly evacuate from 260 mmHg to 15 mmHg; 10 seconds or less

(4) Stability of cuff pressure indication: Changes in display value of cuff pressure after simulated measurement of 10,000 cycles; 3 mmHg or less

6. EMC standard

This product complies with EMC standard IEC 60601-1-2: 2007.

【Purpose or effect】

To measure systolic blood pressure and diastolic blood pressure non-invasively for health management.

Usage note:

【Precautions for use】

1. If you have severe blood circulation disorder or blood disorder, please use under the guidance of a doctor.

2. Internal bleeding may occur temporarily due to compression.

3. Do not use for infants or those who can not express their intention by themselves.

4. Do not use for purposes other than blood pressure measurement.

5. Do not use mobile phones or smartphones near the blood pressure monitor except during communication.

6. Do not disassemble or remodel the sphygmomanometer body or wrist cuff.

7. Use specified batteries.

8. Remove the battery for a long period (over 3 months) when not in use.

9. Please carefully read the owner's manual of the smartphone before using it.

10. Do not place IC cards or other communication media, such as IC cards, metal, magnets, etc. that generate a magnetic field close to each other during communication.

11. Do not change the main unit's battery during communication.

Information on Manufacturers and Manufacturers:

Manufacturing selling agency: Omron Healthcare Co., Ltd.

〒917-0002 Kyoto Town, Kagoshima-shi Tunado-cho 53 Kuninobori

Telephone: 0120-30-6606

Effect / indication:

Non-invasively measuring systolic and diastolic blood pressure for health management

Features:

• Approved number: 227AGBZX00088000 ^ Approximately 89 (W) x 61 (Height) x 25 (Depth) mm ^ AAA alkaline battery 2 (DC 3 V) ^ Trial Battery (AAA
• 2 type alkaline dry batteries), storage case, instruction manual (with quality guarantee), medical equipment package insert, measurement posture confirmation card, EMC technical data ^ body weight (kg): 0.23

Product information:

Shipping Weight: 231 g

Package Dimensions: 5.51 x 8.99 x 11.00 cm
