Product Description

Note :The colored distance guidelines will be shown on the monitor.

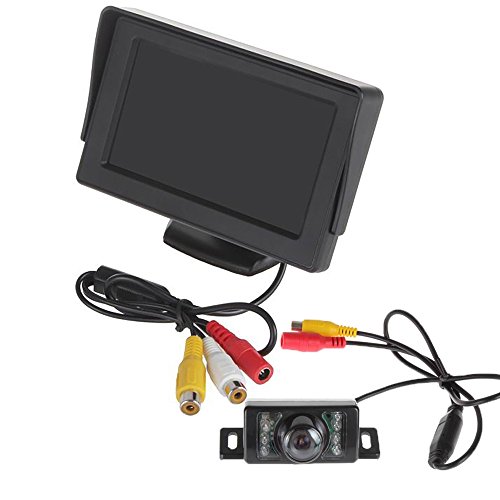

A rearview mirror and backup monitor combined into one, this full color backup monitor is easy to
use and install.

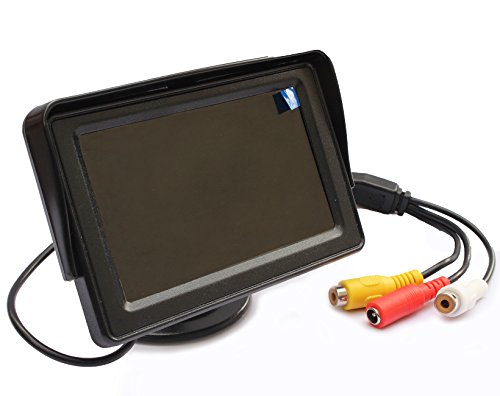

Monitor:
Specifications:
Screen Size: 4.3 inch
Aspect Ratio: 4:3
Resolution ratio: 480 x 272 RGB (WQVGA)
Video System: NTSC / PAL
Voltage: 12V DC
Power: 3W

Features:
Supports DVD, VCD, rearview cameras, and other video devices with RGA connectors
Supports two separate video inputs, the white cable connects to camera, and the yellow one connects
to DVD or VCD Menu to adjust luminance/contrast ratio/language

Camera:
Photosensitive element: CMOS1030
Camera angle: 135°
Pixel: 656 x 492
System: NTSC
Definition: 420TVL
Voltage: 12V DC
Power: 60mA
White Balance: auto
Waterproof Grade: IP67
Sensing Area: 0.16 inch x 0.12 inch (4.08x3.102mm)
Minimum Luminance:0.1-0.5Lux/F=1.2 (0 Lux when infrared night-vision lights are on)
Video Output: RCA, 1.0VP-P, 75Ω
Working Temperature: -4°F -167°F/ -20°C-75°C, maximum relative humanity: 95%
Storage Temperature: -40°F -185°F/ -40°C-85°C, maximum relative humanity: 95%
Visual Range at Night: 0-16ft
Video Cable Length: 19.68 ft (6m)
Power Cable Length: 5.58 ft (1.7m)

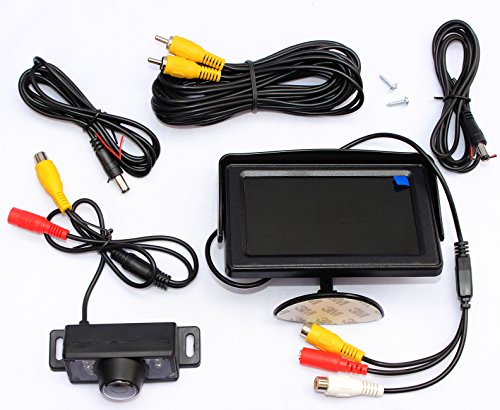

Package Includes:
1x 4.3 inch Car Monitor
2x Power Cables
1x Car Rear View Backup Camera
1x Video Cable

Feature

Monitor Display size: 4.3
Video System: NTSC / PAL Voltage: 12V DC,Power: 3W
Camera:Photosensitive element: CMOS1030
Camera angle: 135°,Pixel: 656 x 492 System: NTSC
Voltage: 12V DC, Power: 60mA ,Waterproof Grade: IP67,Note :No audio input or output
Brand : LotFancy
MPN(PartNumber) : 12R-2684-F
EAN : 6958104818738
