Item Descriptions:

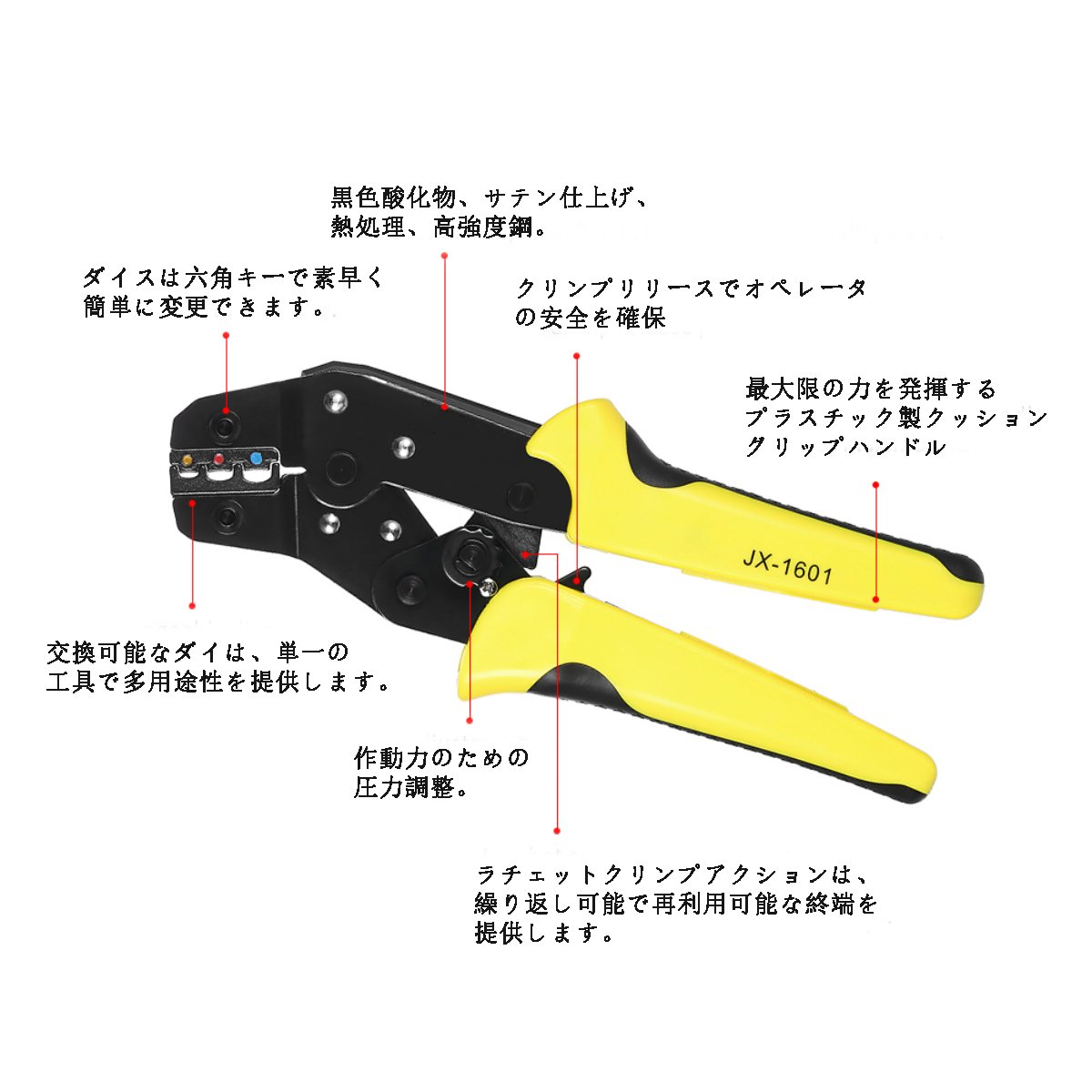

Adjustable crimping pliers:

This professional and practical crimping plier with automatic adjustment function has the convenience, efficiency, and harmlessness to cable core work.

It is easy to use and you can firmly tighten the wires and terminal block by operating the handle once with the handle.

The replacement dice have four.

Depending on the different terminals, you can easily replace the dies by using the dual S2 screwdriver.

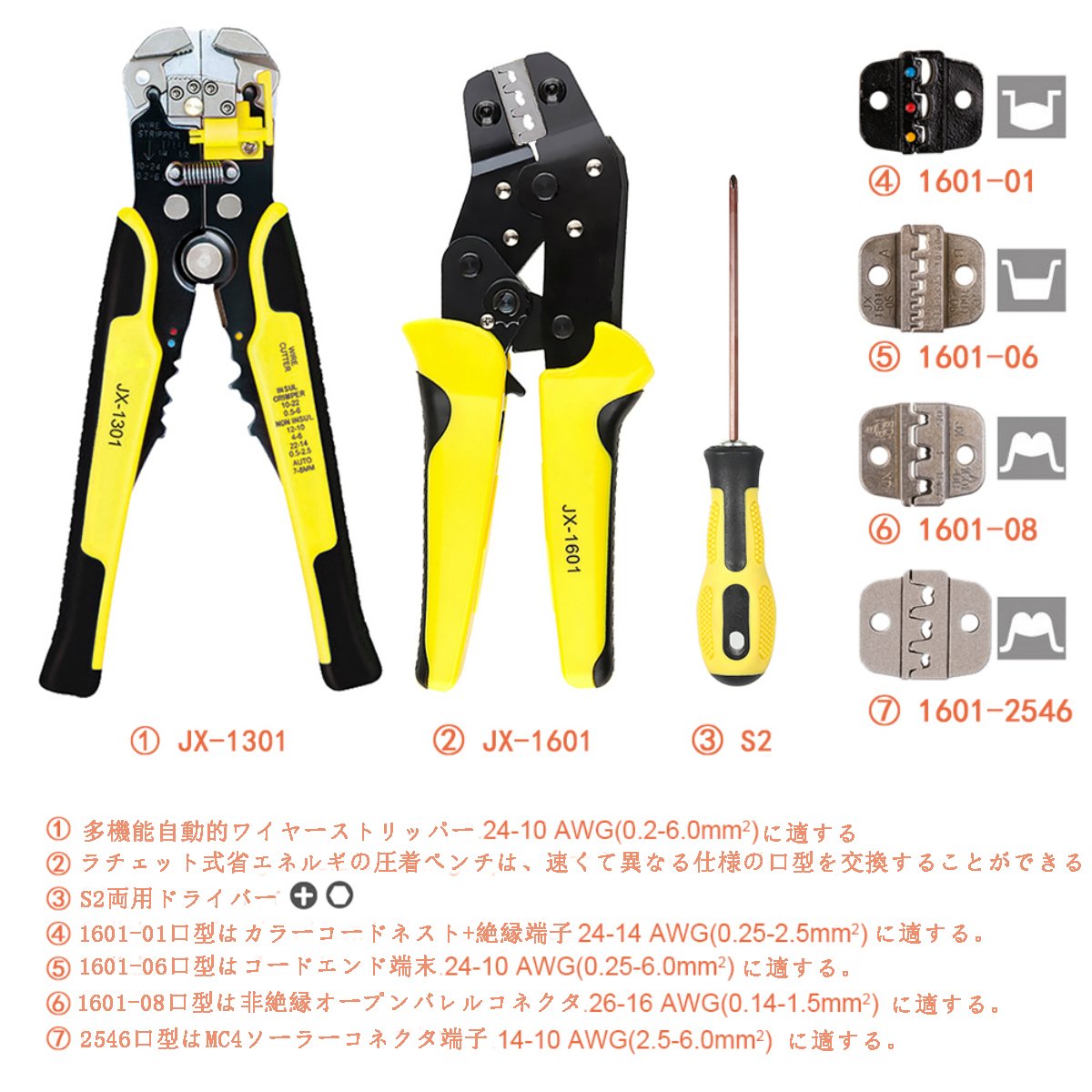

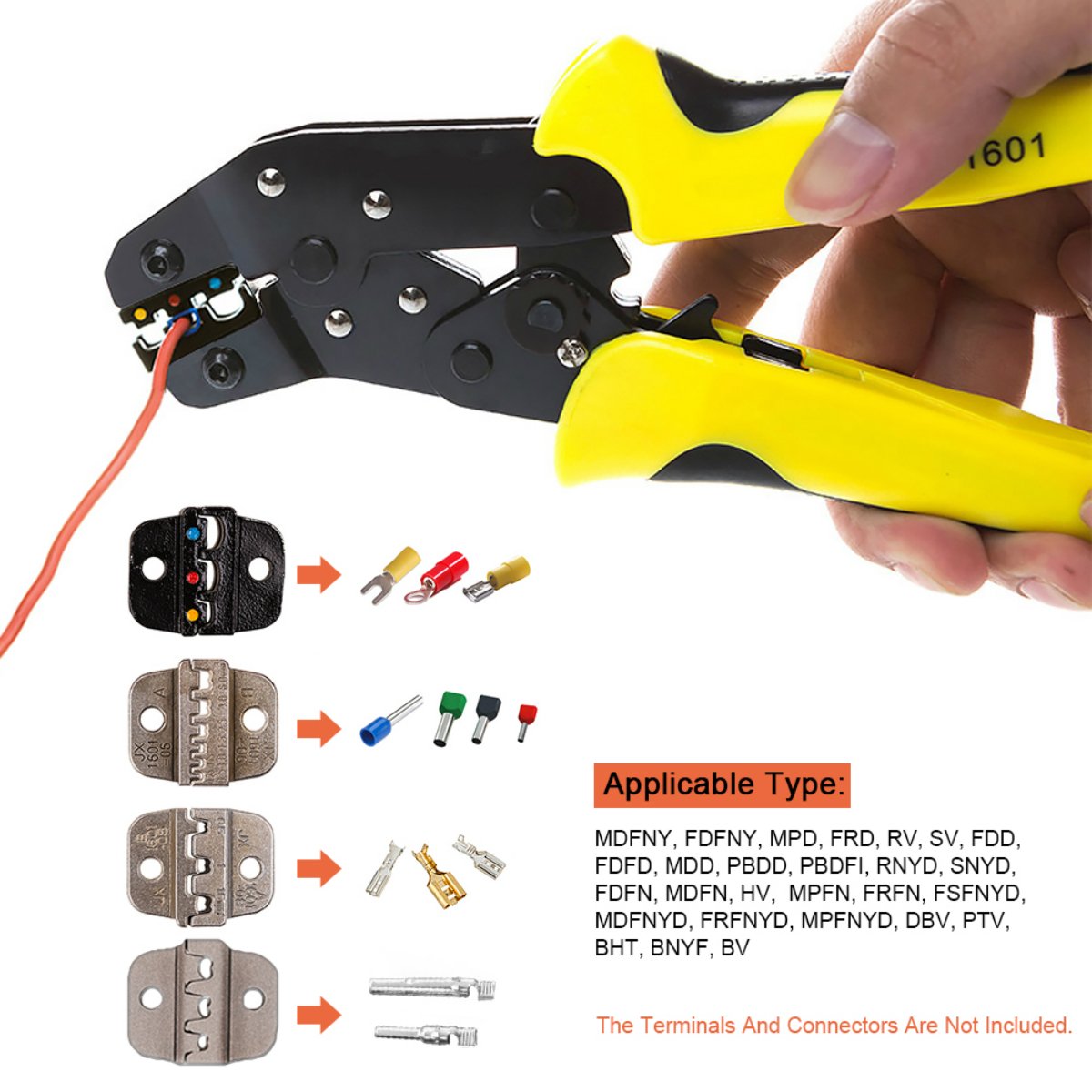

Applicable terminal & Crimp range:

1. Color Cord Nest + Isolated Terminal 24 - 14 AWG (0.25 - 2.5 mm ⊃ 2);

2. Code end terminal 24 - 10 AWG (0.25 - 6.0 mm⊃ 2;);

3. Open barrel connector not insulated 26 - 16 AWG (0.14 - 1.5 mm - 2);

4. MC4 solar connector terminal 14 - 10 AWG (2.5 - 6.0 mm⊃ 2).

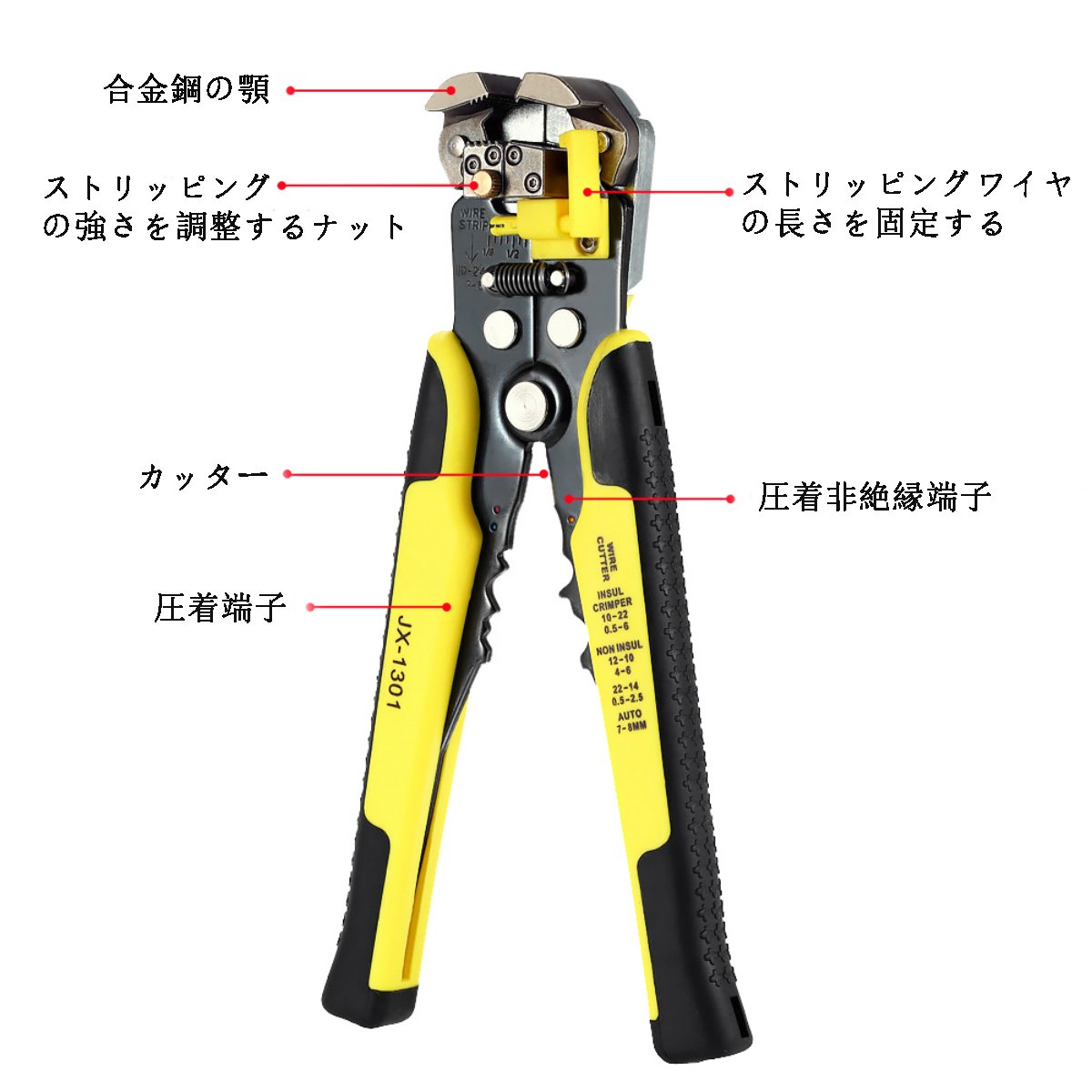

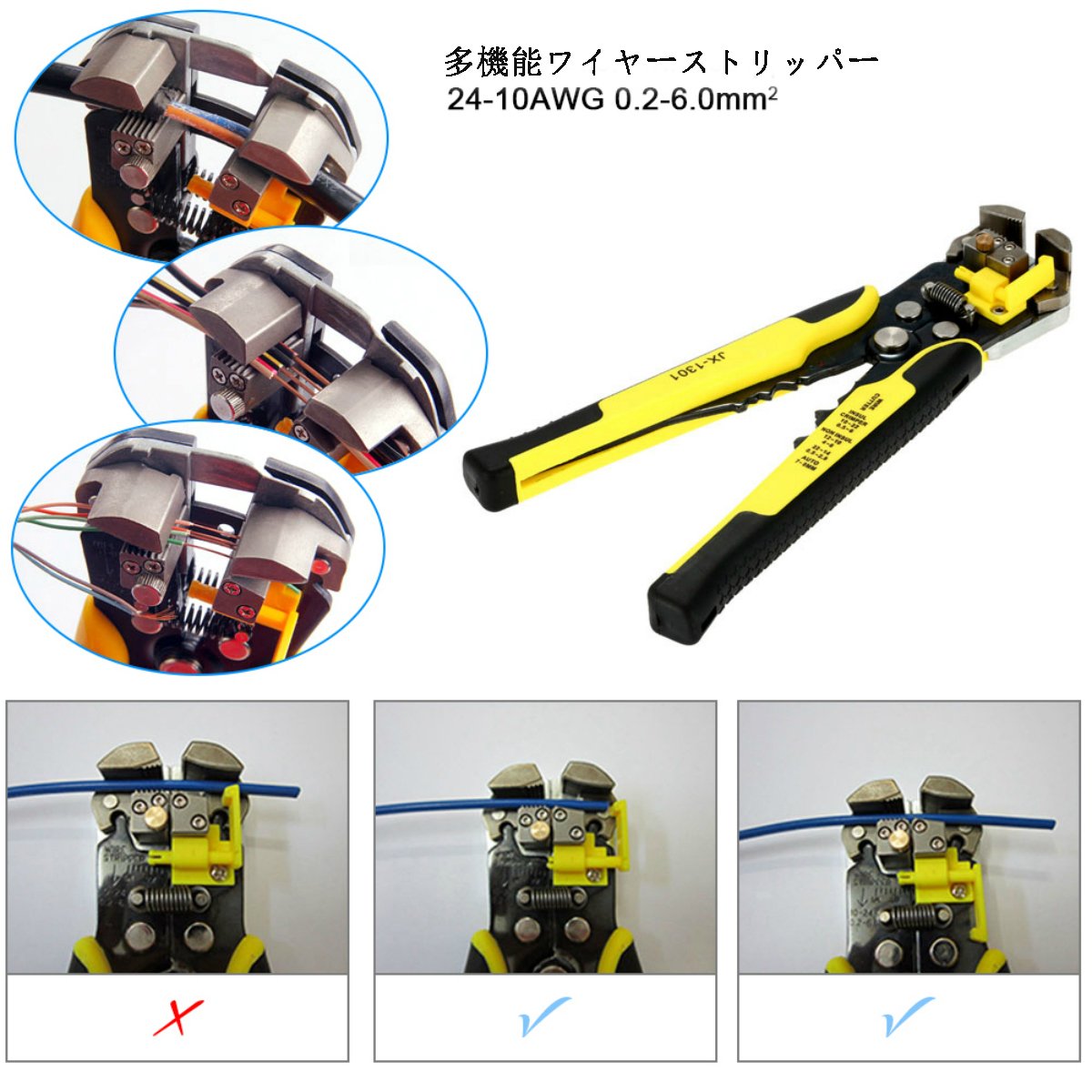

Multifunction wire stripper

High quality steel products, strippy, wire cutting, simple crimping, three tools are concentrated with one tool.

1.

Alloy steel Jaw: Hardness [36-42 HRC]; Applicable Wire Size: AWG 24 - 10 (0.2 - 6.0 mm²)

2.

Adjust the peeling force through the nut: Please fine adjust the nut when the wire is damaged or sliding.

3.

Fixing length of peeling: It can be adjusted according to the desired length.

Four.

Wire cutter: The hard stopper needs to be peeled off and cut off its length.

Five.

For insulated terminals: 10 - 22 AWG [0.5 - 6.0 mm]

6.

For non-insulated terminals 12 - 10 AWG [4.0 - 6.0 mm] 22 - 14 AWG [0.5 - 2.5 mm] for automatic ignition terminal [7 - 8 mm]

specification:

model:

JX-D 4301

Material:

High carbon steel + alloy

Color:

Yellow + black

Crimping pliers Size:

About 19 * 8 * 2.0 cm / 7.48 * 3.15 * 0.79 in

Crimping pliers Weight:

About 348.5 g / 12.29 oz

Wire stripper Size:

About 21 * 10.5 * 2.8 cm / 8.27 * 4.13 * 1.10 in

Wire stripper weight:

316 g / 11.15 oz

Package size:

28 * 14.5 * 6 cm / 11.02 * 5.71 * 2.36 in

Package Weight:

1033 g / 36.44 oz

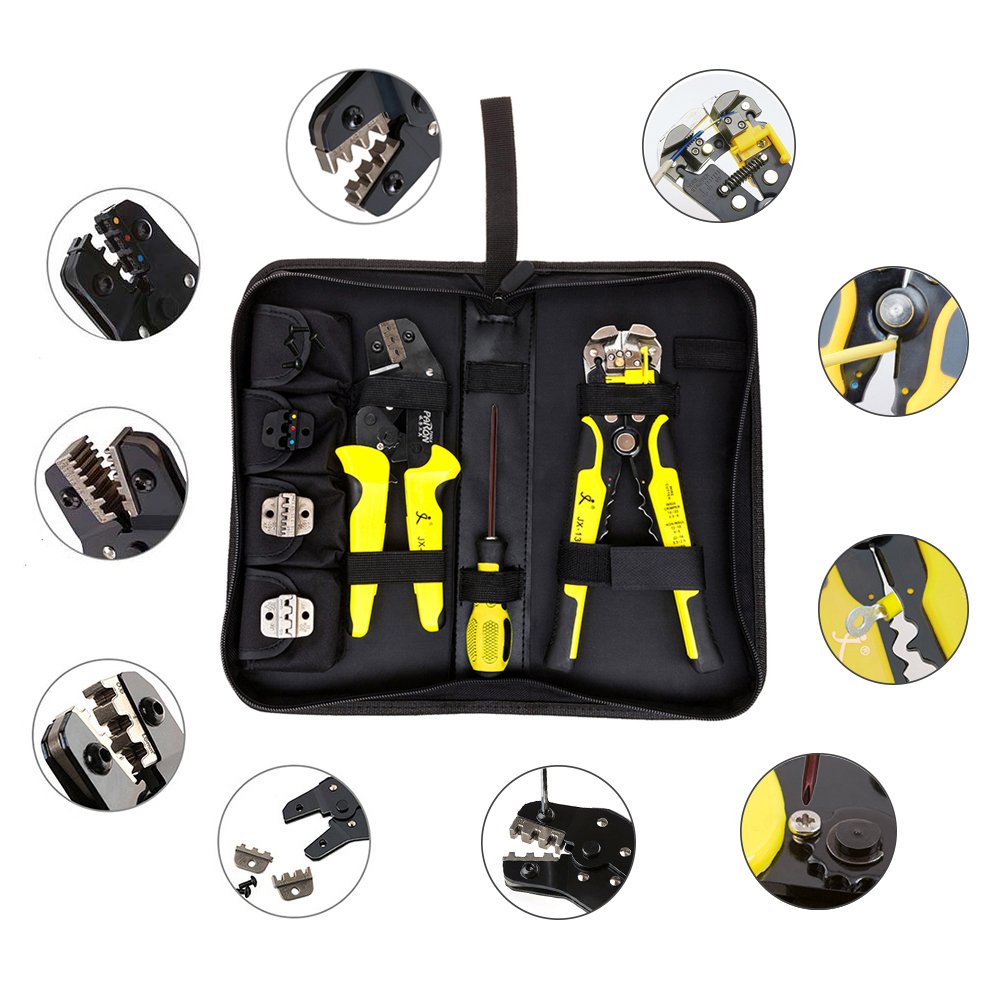

Package list:

1 * Crimping pliers

1 * wire stripper

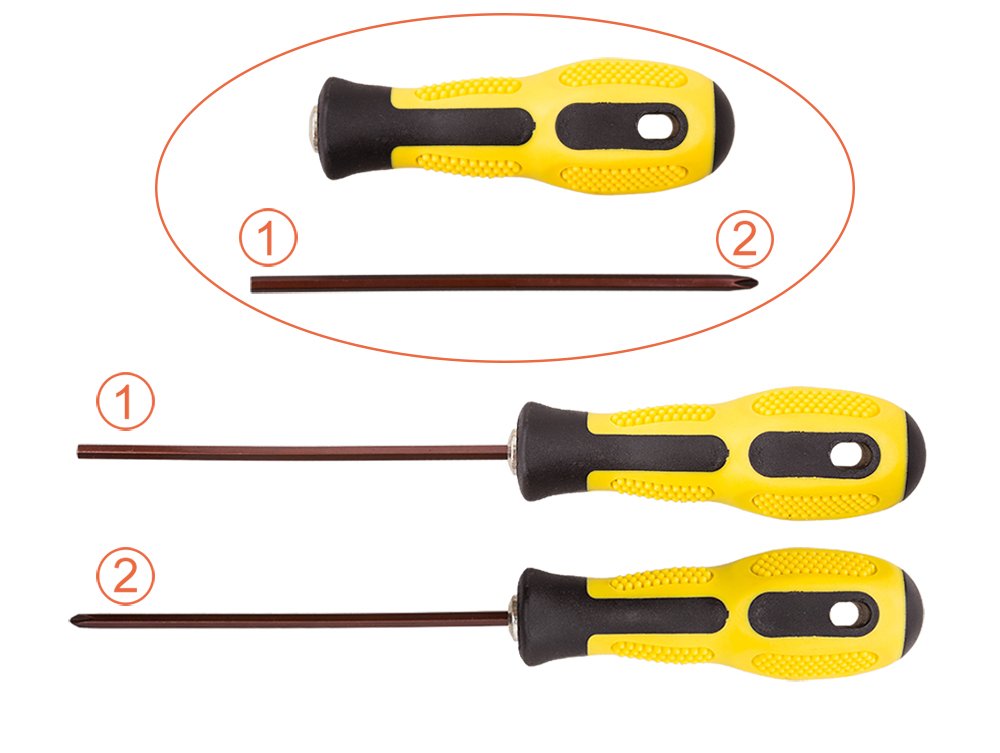

1 * S2 screw diver

1 * Storage bag

3 * Spare Terminal

4 * Screw

Features:

• Professional crimping pliers and wire strippers are equipped with automatic adjustment ratchet mechanism, easy to operate.
• Because the handle grip is large, the lightweight and compact structure and handle design guarantee the perfect crimping effect.
• Crimping pliers can be used for most insulated crimp terminals and connectors.
• Also, the replaceable dies have four and have different crimp ranges.
• The multifunctional wire stripper is applied to the connector of 24 - 10 AWG (0.2 - 6.0 mm 2).
• Crimping pliers and wire strippers are designed based on ergonomics and can save 50% power when crimping.
• [Fake notice!
• !
• 】: Please note that this product is "Nasorkop" only as an authorized dealer.
• Please check before you buy.
• Recently cheaper and more companies selling our products.
• They seem to be conducting fraud activities recently in Amazon, selling products cheaply, inviting customers, after receiving money, do not ship items, close the store.
• Please be careful of our customers.
• Selling counterfeit goods other than "Nasorkop" We can not accept responsibility for responsibility and results etc generated by our shop.
• Please note.

Product information:

Shipping Weight: 1011 g

Package Dimensions: 8.89 x 17.80 x 33.70 cm
