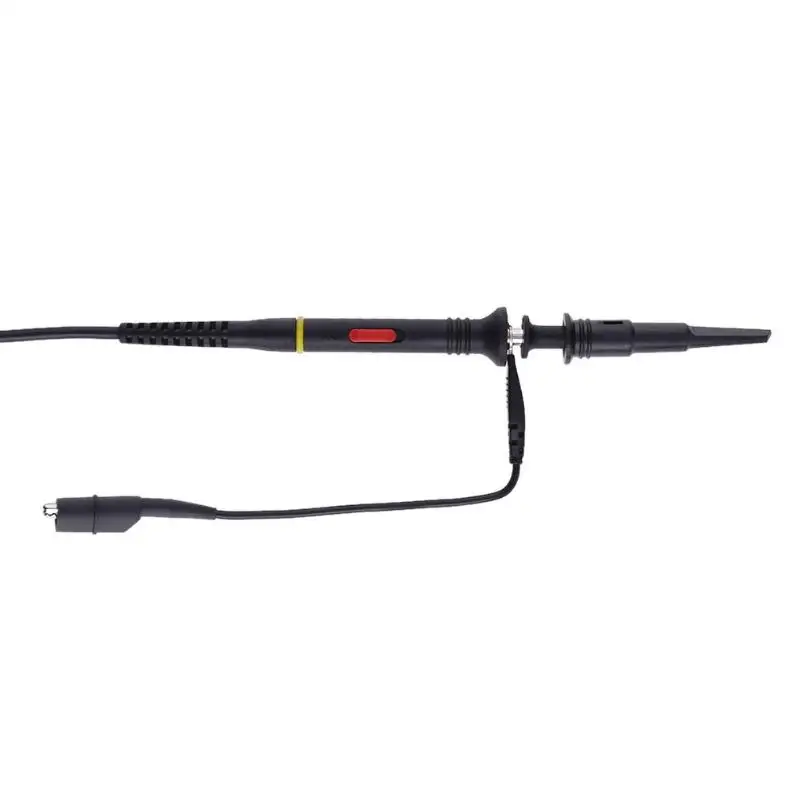

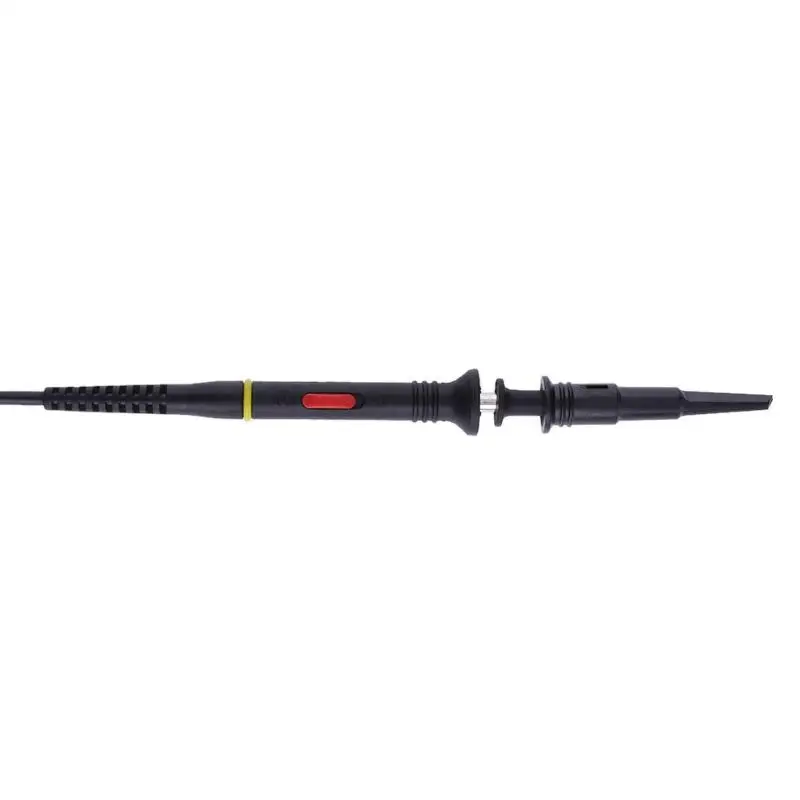

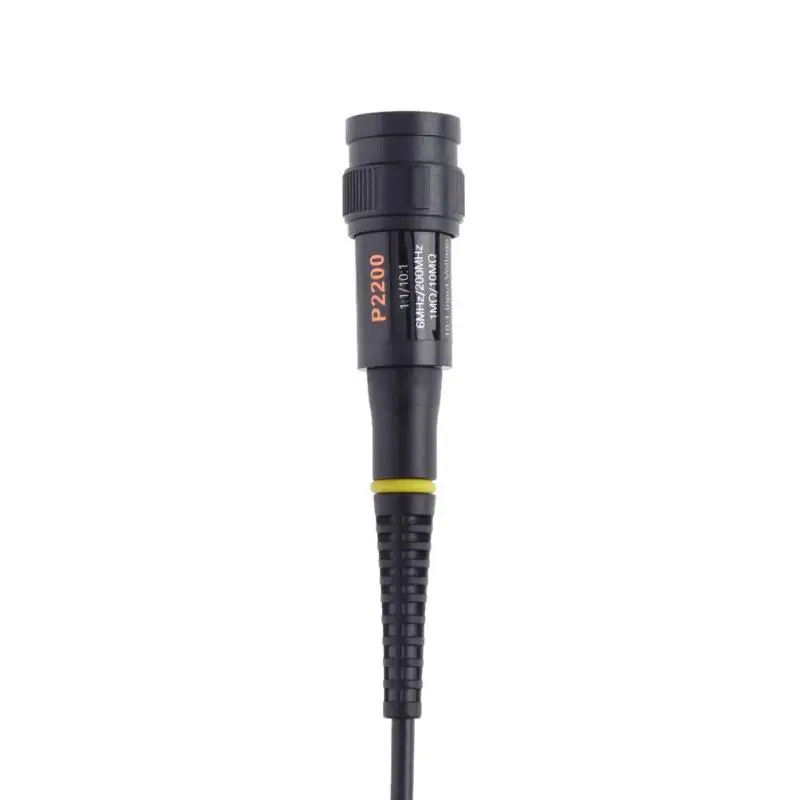

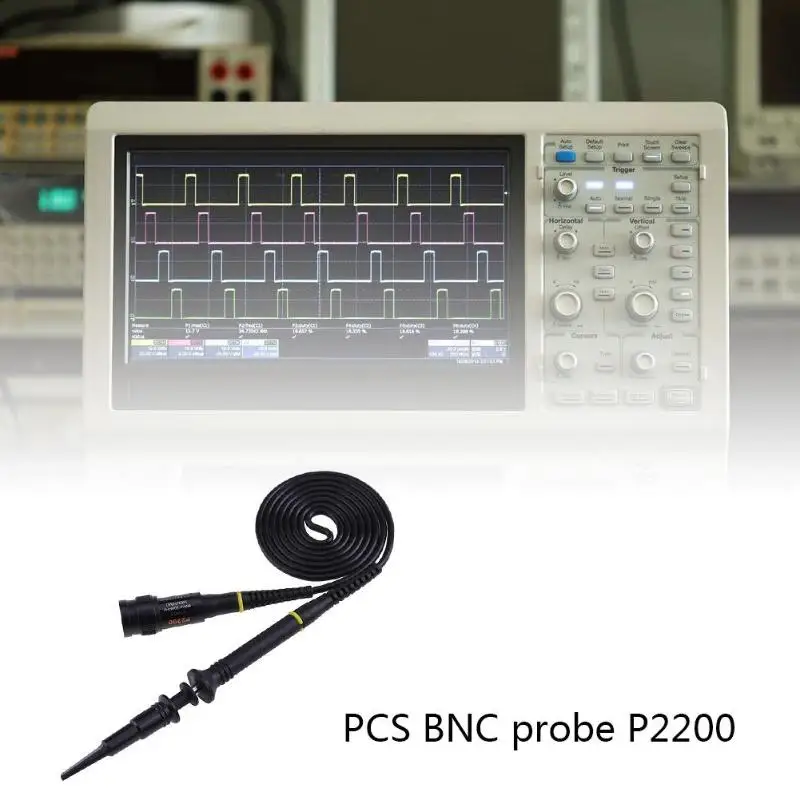

P2200 X1/X10 200MHz Switch Probe Tester Clip Accessory for Oscilloscope
P2200 X1/X10 Probe Tester Clip 200MHz Switch Accessory for Oscilloscope
This oscilloscope probe is top quality of oscilloprobes and very practical for testing the oscilloscope. It is provided with several accessories designed to make probing and measurement simpler.
Features:

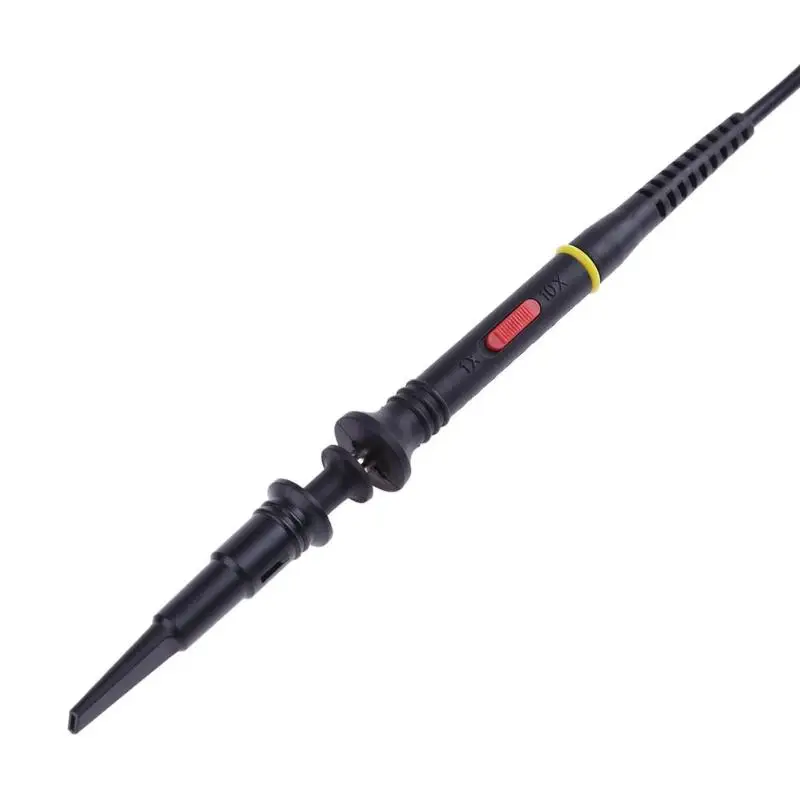

Use the slide switch to set probe attenuation ratio.
Use the alligator clip to attach the probe to a ground reference.
Use the adjustment tool for probe compensation adjustments.

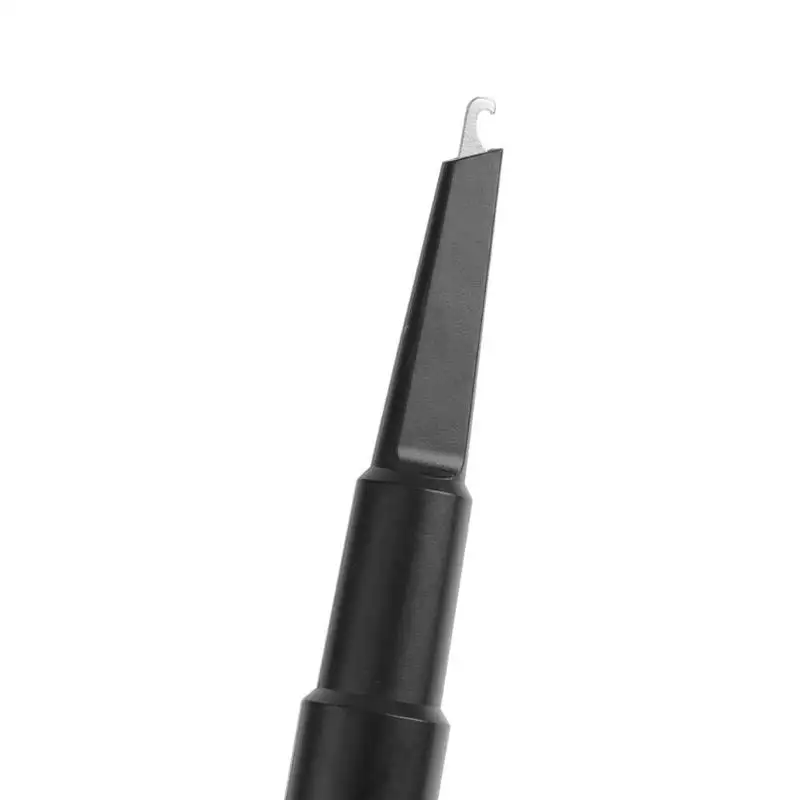

Use locating sleeve could ensure the stability and reliability of the tip exposed to the test point.
Spare maker rings attach the matched color rings onto the probe cable and shaft to identify different channels.
Considerate design and efficient assist tools.
Specifications:
Bandwidth: 1X:DC-6MHz， 10X:DC-200MHZ
Rise Time: ≤1.75ns
Attenuation Ratio: 1X & 10X
Input Resistance: 1X: 1MΩ±2% 10X: 10MΩ±2%
Input Capacitance: 1X: 85pF~120pF 10X: 18.5pF~22.5pF
Maximum Input: 1X: 300 Working Voltage (Vp-p) 10X: 600 Working Voltage (Vp-p)
Compensation Range: 10~35pF
Operation Environment: 0~50 Degree ， 0~80%RH
Storage Environment: -20~60Degree ，0~90%RH
Color: Black
Material: PVC， Copper Pipe

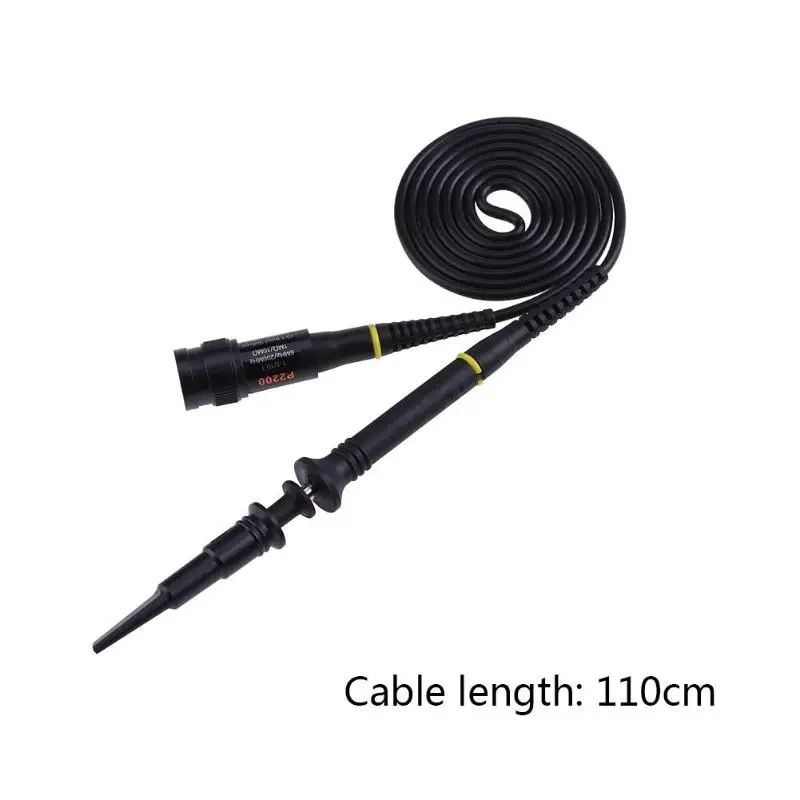

Length: approx. 110 cm/43.31 in
Weight: approx. 83 g
Package Size: approx. 22 X 14 X 1.7 cm/8.66 X 5.51 X 0.67 in
P2200 X1/X10 Probe Tester Clip 200MHz Switch Accessory for Oscilloscope
This oscilloscope probe is top quality of oscilloprobes and very practical for testing the oscilloscope. It is provided with several accessories designed to make probing and measurement simpler.
Features:
Use the slide switch to set probe attenuation ratio.
Use the alligator clip to attach the probe to a ground reference.
Use the adjustment tool for probe compensation adjustments.
Use locating sleeve could ensure the stability and reliability of the tip exposed to the test point.
Spare maker rings attach the matched color rings onto the probe cable and shaft to identify different channels.
Considerate design and efficient assist tools.
Specifications:
Bandwidth: 1X:DC-6MHz， 10X:DC-200MHZ
Rise Time: ≤1.75ns
Attenuation Ratio: 1X & 10X
Input Resistance: 1X: 1MΩ±2% 10X: 10MΩ±2%
Input Capacitance: 1X: 85pF~120pF 10X: 18.5pF~22.5pF
Maximum Input: 1X: 300 Working Voltage (Vp-p) 10X: 600 Working Voltage (Vp-p)
Compensation Range: 10~35pF
Operation Environment: 0~50 Degree ， 0~80%RH
Storage Environment: -20~60Degree ，0~90%RH
Color: Black
Material: PVC， Copper Pipe
Length: approx. 110 cm/43.31 in
Weight: approx. 83 g
Package Size: approx. 22 X 14 X 1.7 cm/8.66 X 5.51 X 0.67 in
1 X Oscilloscope Probe
1 X Accessory Pack
1 X User Manual
1 X Accessory Pack
1 X User Manual
