Item Descriptions:
Product introduction
Three optical digital audio equipment can be connected to this SPDIF / Toslink optical digital audio switcher, Toslink (SPDIF) input terminal of AV amplifier, and it will switch easily.

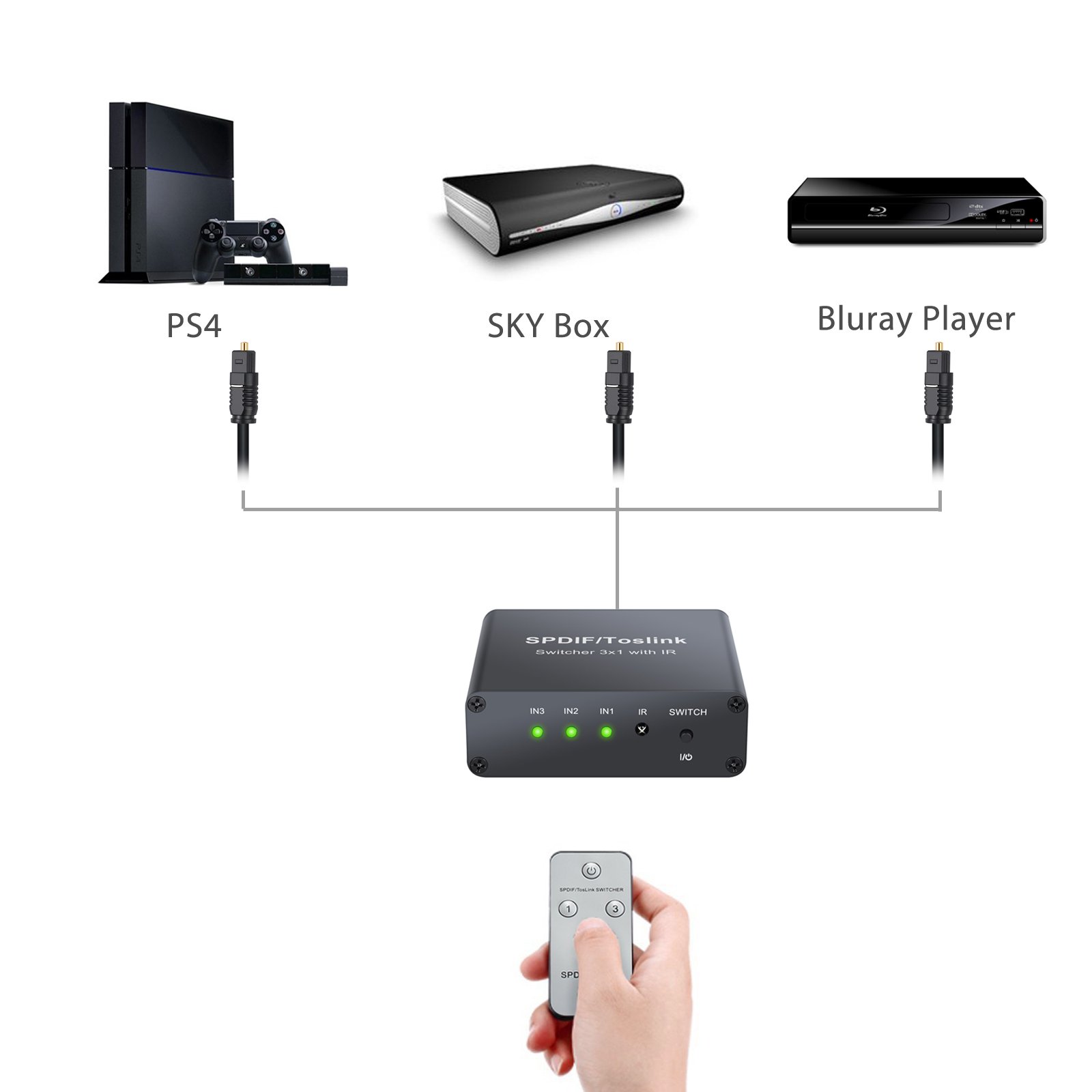

3 Input 1 Output Audio Switch

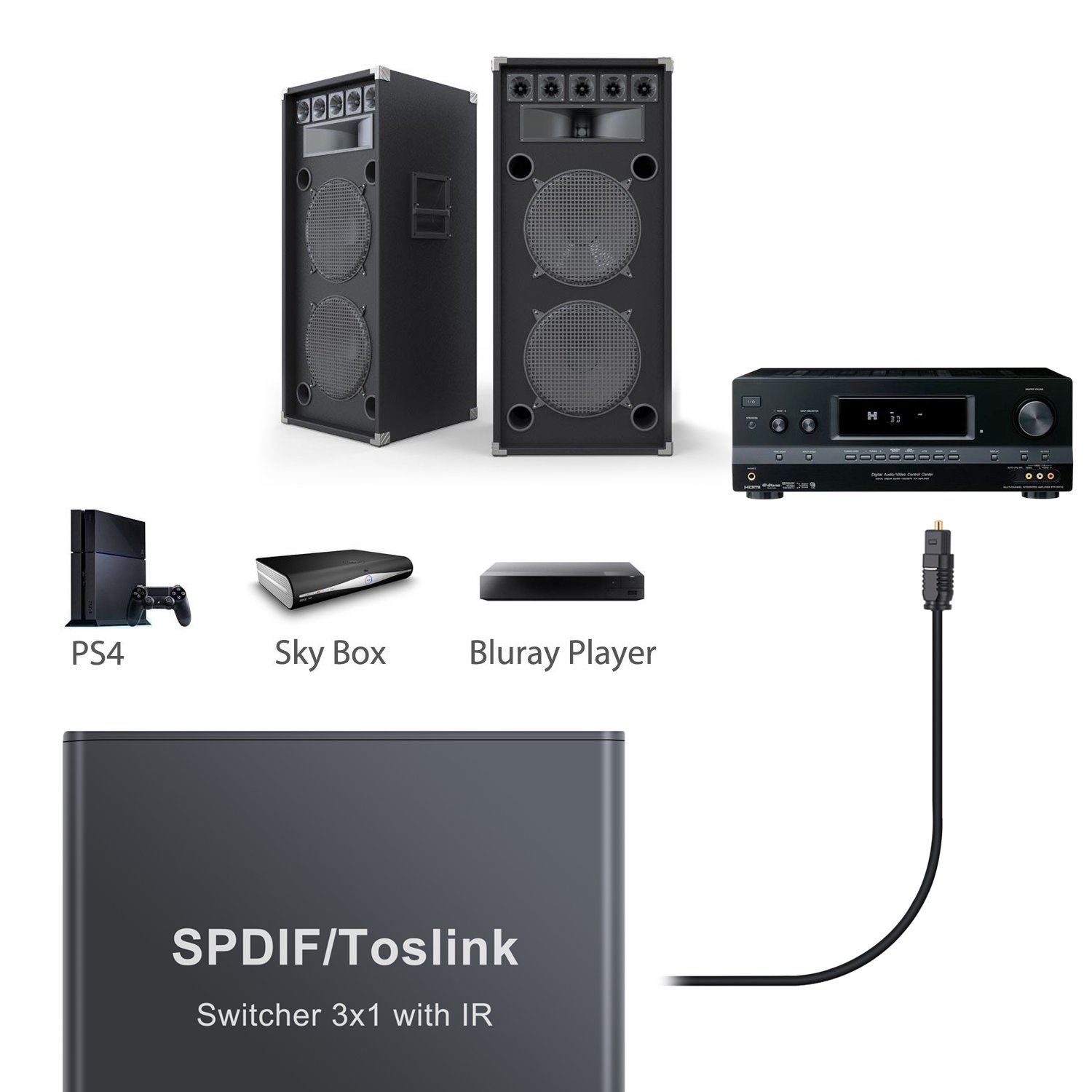

You can set up three optical digital terminal equipped equipment (such as Apple TV, PS3, PS4, Xbox, Blu-ray Player, Cable box, HDTV etc) to one optical digital input equipment (headphones, sound bar, AV receiver,
Connection, switching can be done easily by switching.
Remote control function & simple switching
It can be used only by connecting, IR remote or Switch button to switch input equipment easily.

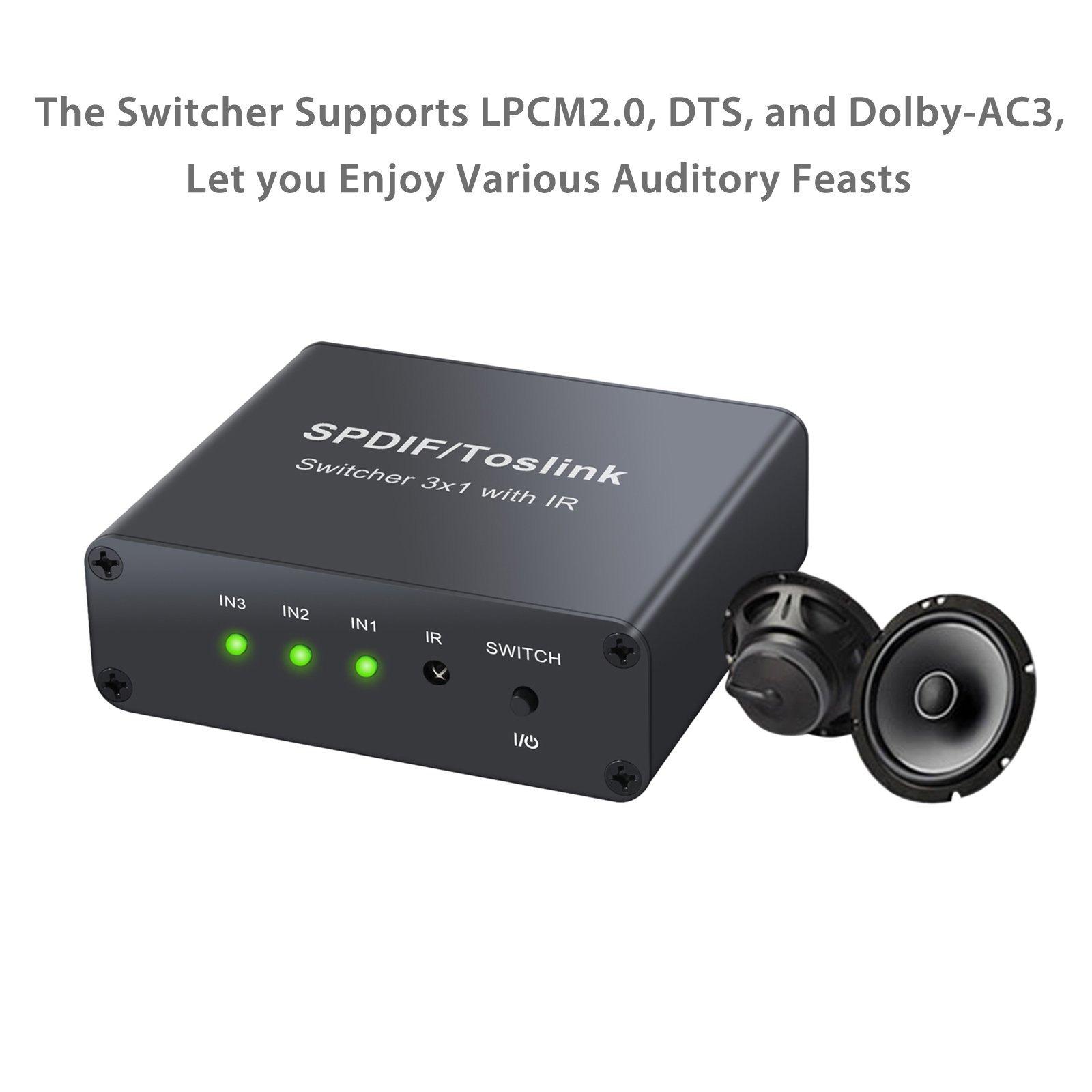

Audio format
Corresponding optical digital audio format: PCM 2.0 / DTS / Dolby-AC 3, also supports signal retiming.

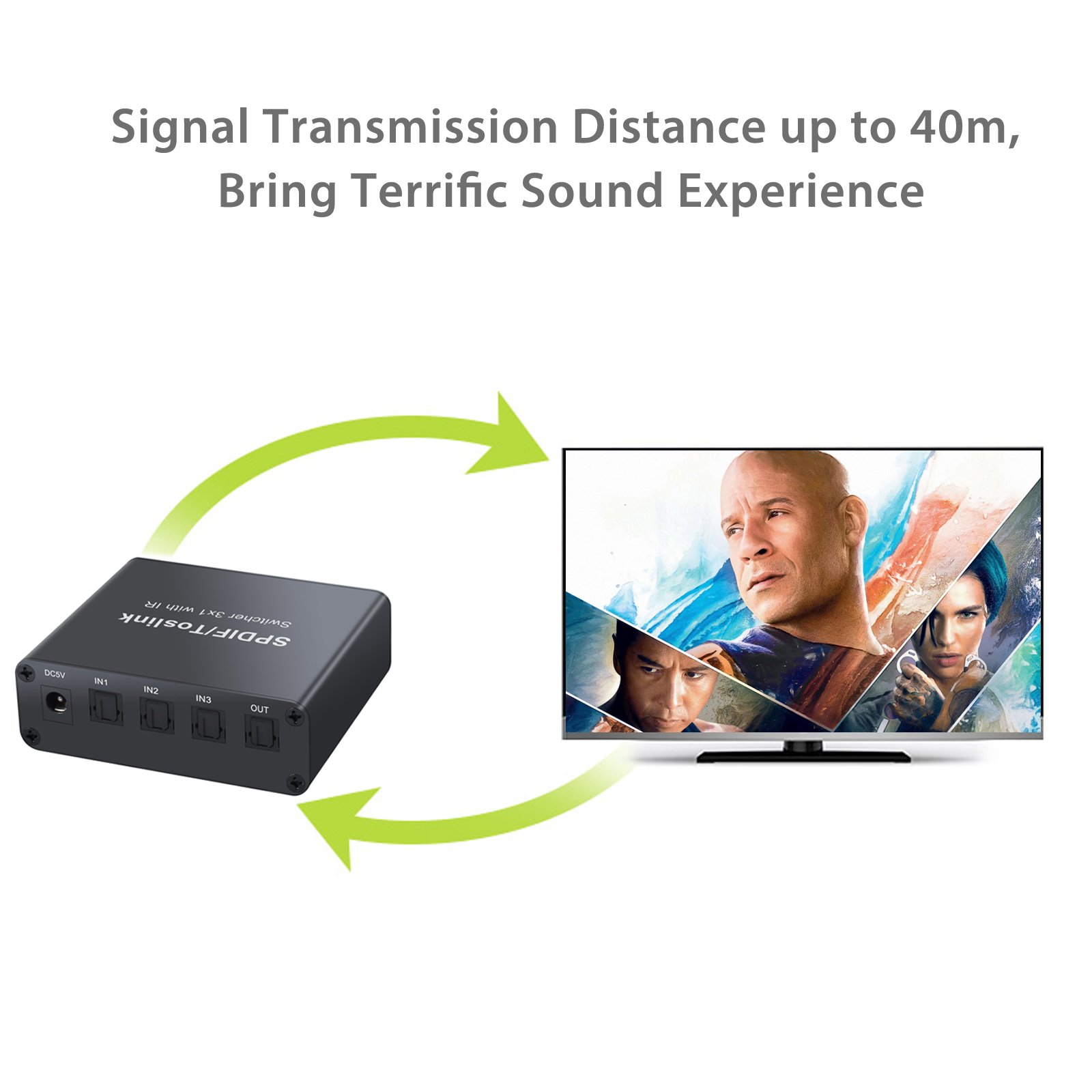

Transmission distance reached 40 m
When using an optical cable with a signal loss of 0.2 Db / m or less, the transmission distance reaches 40 m.
Overload protection
An overvoltage protection function is added to prevent equipment damage due to accidental connection of the power adapter.
Safety guarantee
Sturdy, anti-interference, aluminum case, more stable signal can be transmitted.
All products are warranted for 18 months.
Product Specifications
Audio format: LPCM 2.0 / DTS / Dolby-AC 3
Peak wavelength: 650 nm
Maximum baud rate: 16 Mbps
Output cable length: ≤ 40 m (optical cable with signal loss less than 0.2 Db / m is used)
Maximum operating current: 100 mA
Power supply adapter: Input: AC (50 Hz, 60 Hz) 100 V - 240 V, Output: DC 5 V / 1000 mA
Body size (L × W × H): 84 × 72 × 28 (mm)
Body weight: 112 g

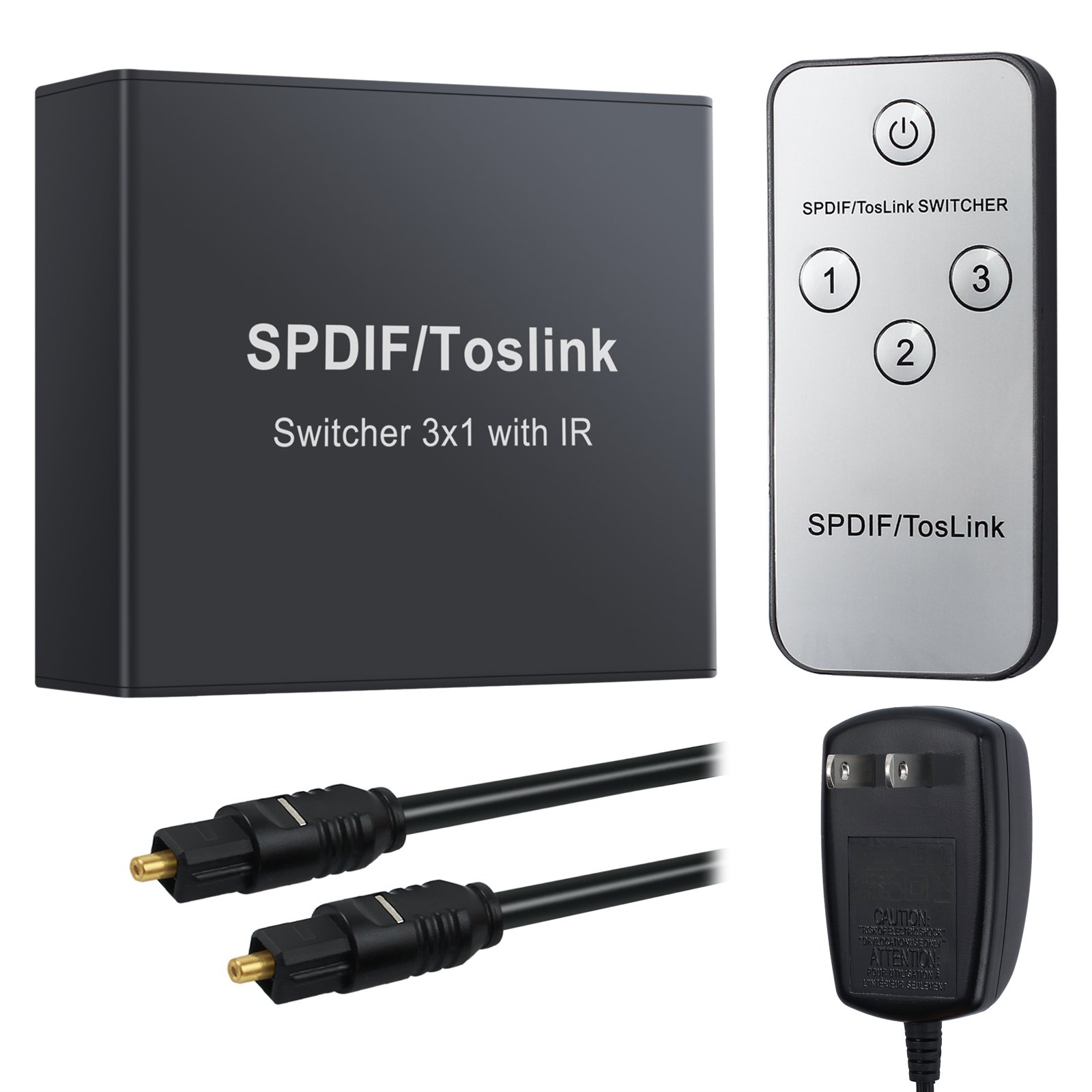

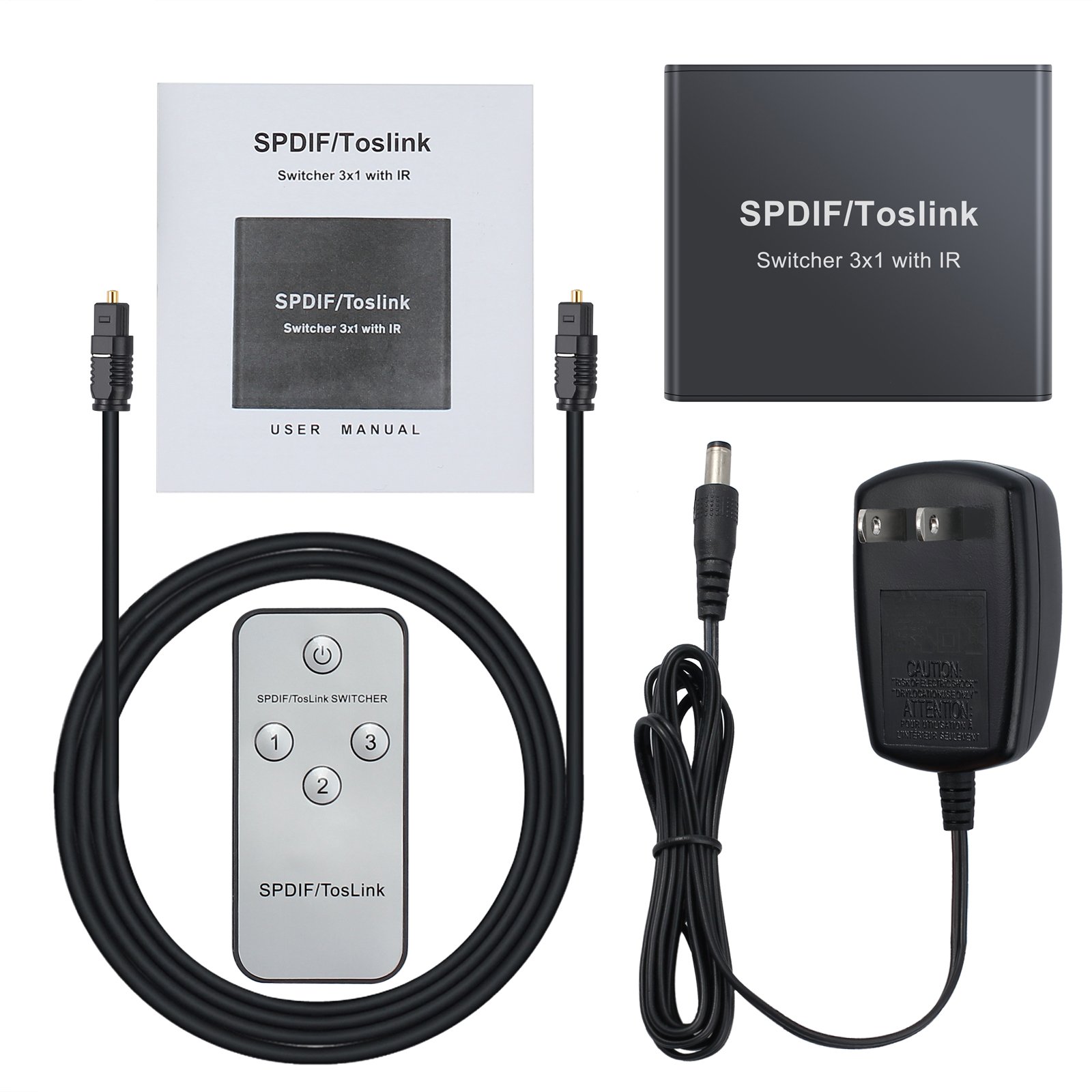

package
1 x optical digital switch
1 x remote control
1 x 5V power adapter
1 x Instruction Manual
Features:
- Please enter model number Confirm this is compatible:
- 【3 Input 1 Output Audio Switching Equipment】 It is possible to connect three equipments with optical digital terminals (Apple TV, PS3, PS4, Xbox, Blu-ray Player, Cable box, HDTV etc) to one optical digital input equipment (headphone,
- , AV receiver, amplifier etc.), it can easily switch and output.
- [Audio format] Corresponding optical digital audio format: PCM 2.0 / DTS / Dolby-AC 3, also supports signal retiming.
- [Remote control function & easy switching] It can be used only by connecting, IR remote or Switch button is used to easily switch input equipment.
- When using an optical cable with a signal loss of 0.2 Db / m or less, the transmission distance reaches 40 m.
- [Overload Protection] Overvoltage protection function is added to prevent damage to equipment caused by accidental connection of power adapter.
- 【Aluminum case】 Sturdy, resistant to interference, aluminum case, more stable signal can be transmitted.
- All products are warranted for 18 months.
Product information:
Shipping Weight: 281 g
Package Dimensions: 5.21 x 10.69 x 22.30 cm
