Product Description

The Sara monic Smart Rig+ is a portable microphone/guitar interface for recording professional quality audio.

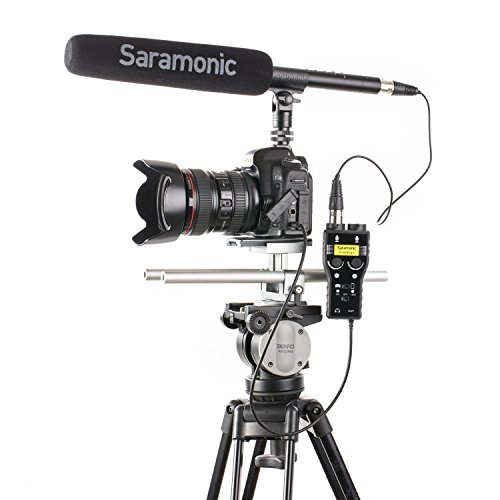

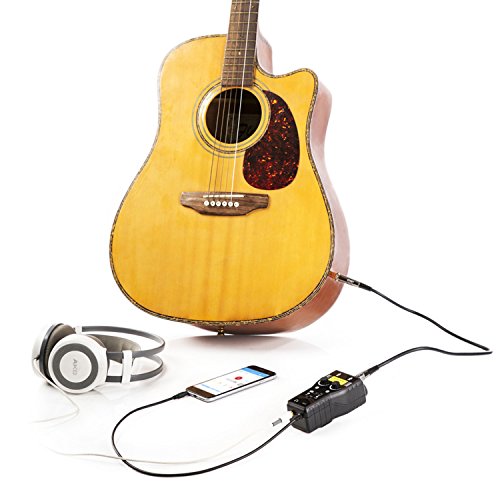

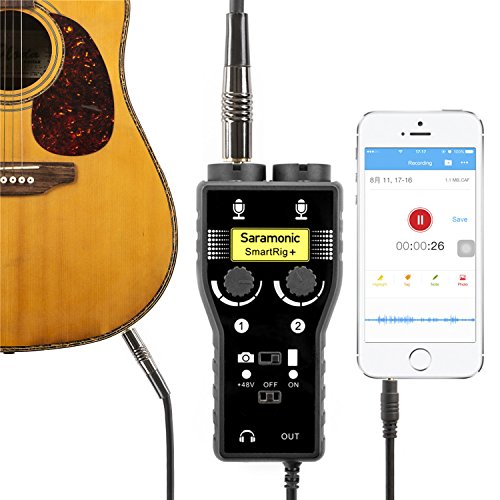

The Smart Rig+ makes your recording work easier by connecting professional microphones and guitars (or other instruments) to your smartphone, tablet, DSLR camera or video camera. 2 independent channels allow you to connect and control gain on multiple microphones or guitars at the same time. The interface also features 3 types of input to accommodate any set up: two XLR mic inputs, two 1/4" (6.35mm) guitar inputs, and two 1/8" (3.5mm) jack inputs for connecting any instrument or microphone. Outputs to a standard 1.8" 3.5mm cable for use with, smartphones, cameras and other devices.

Provides 48V phantom power for microphones, and includes a 3.5mm headphone output for real-time sound monitoring. The two gain control thumbwheels make it easy to set precise levels.Toggle between Mono and Stereo output modes as necessary. Powered by one 9V battery.

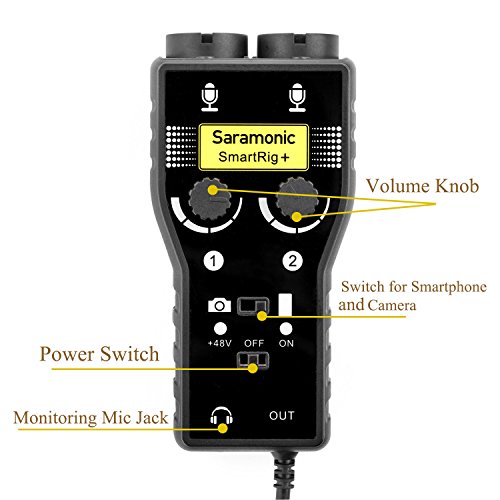

Features
• 2 Independent Channels
• Two XLR Microphone Inputs
• Two 3.5mm (TRS) Microphone Inputs
• Two 1/4" Guitar Inputs
• Gain Control Knobs for Each Channel
• +48V Phantom Power Switch
• Mono/Stereo Output Switch
• Output Switch for Smartphones (TRRS) or Camera/Camcorder/Recorder (TRS)
• 3.5mm Headphone Output Jack for Monitoring

Specifications:
Frequency Response: 20 Hz to 20 KHz, +/- 0.5 dB
Distortion: Less than 0.01% @ 1 kHz, -30 dBu input
Signal to Noise Ratio: 80 dB @ 1 kHz, -30 dBu input
Gain: +20 dB to Infinity
Power Requirement: One 9V Alkaline or Lithium
Dimensions: 4.7 x 1.6 x 1.6" (12 x 4 x 4cm)
Weight: 4.6 oz (130g)

Feature

INPUTS: Two 3-pin XLR, Two 3.5mm (TRS), Two 1/4" (Guitar)
OUTPUTS: One 3.5mm (1/8") Output Connector - Output Switch for TRRS (Smartphones, Tablets) and TRS (DSLR's Camcorders, Recorders)
PHANTOM POWER: +48V Phantom Switch Provides Power to XLR Inputs
OTHER FEATURES: Mono/Stereo Switch, Independent Gain Controls for 2 Channels, Headphone Monitoring Jack
1 Year Saramonic Warranty with Responsive and Friendly Support
Brand : Saramonic
Item model num : SRSMARTRIG2
MPN(PartNumber) : SRSMARTRIG2
EAN : 4897040886451
Product Dimensions(LxWxH) : 19x10x8cm ; 227 g
Package Dimensions(LxWxH) : 17x10x8cm ; 227 g
