Item Descriptions:

type:

Drip-proof type

Product introduction

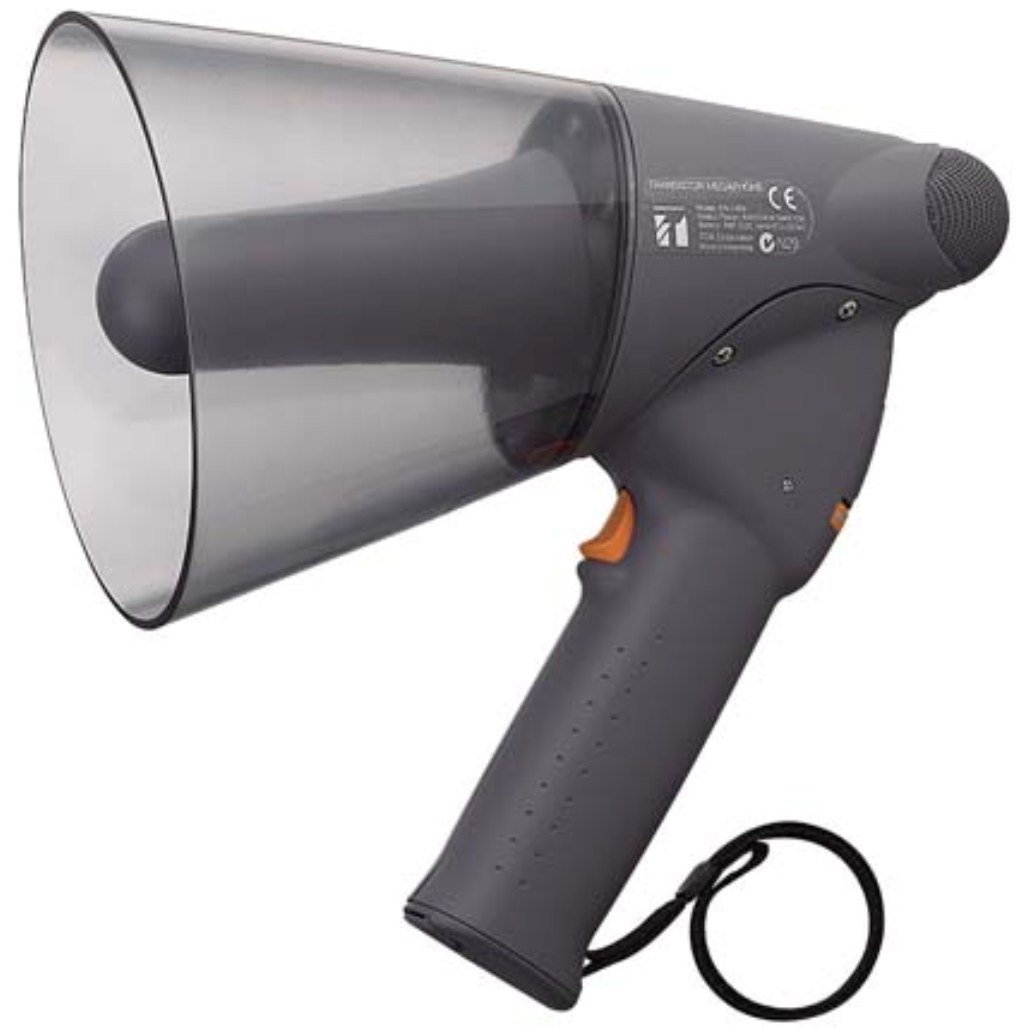

● Small, light weight megaphone with rated output of 6W.

● Drip proof specification (IPX 5)

● Handles and microphones are subjected to antimicrobial treatment.

● By using the included battery spacer, it is possible to use it with 4 AA size batteries.

Award

Year 2005

Good Design Award

Award item

designer

: Azusa Shin

judging committee

: Akiko Moriyama, Hiroko Otsuki, Ryutaro Hirano, Tetsuo Fukuda

Overview

A portable loudspeaker united with a microphone / amplifier / speaker.

It is used when calling attention in shops, schools, events and sports venues, construction sites, etc. and in rescue and recovery activities in the event of a disaster.

The sound input to the microphone part is electrically amplified by the amplifier part and it is efficiently amplified by the speaker part so that the speaker can transmit the sound information far without giving a loud voice.

This series includes a small type (ER - 1106 W / gray color), an ultra - small type (ER - 1103 W / gray color), a type having the function of generating whistle sounds (ER - 1106 W / yellow), a siren sound

There is a type (ER - 1106 S / red color) that has a function to output.

Designer's comment

It was the ultimate purpose of this project to propose a design that will become a new standard in the product category called mature phonographed design, assuming that this product will be sold for about 10 years and continue to be used.

To that end, there is no compromise from either side, such as maximally contemplated functionality and usability, consideration for the psychological effects of the user and the audience, consideration for integration into a wide range of today's wide usage scenes without discomfort

I tried designing.

Jury members' comments

Mega phones are used when calling attention at shops, schools, events and sports venues, construction sites, etc., and during rescue and recovery activities in the event of a disaster.

Evaluate that we designed products that are not usually designed to this level.

It overturns the image of conventional megaphone / loudspeaker.

Coloring is also beautiful.

We also evaluate ergonomically designed design that users can withstand long-term use.

(Information provided: Japan Industrial Design Promotion Organization)

Features:

• Please enter model number Confirm this is compatible:
• Size: Width 15.4 × depth 25 × height 26.6 cm
• Body weight: 660 g (battery specific)
• Material · Material: Body / ASA resin, strap / nylon
• Country of Origin: India
• Set Contents · Accessories: Battery spacer, Handle cap (※ Note) Batteries sold separately
• Power supply: AA batteries R6 PU × 6 (DC 9 V) or R 6 PU × 4 (DC 6 V)
• Rated output: 6 W (when using 6 AA batteries)
• Maximum output: 10 W (when using 6 AA batteries)
• Battery duration: About 10 hours (JEITA) / When using 6 AA batteries, about 6 hours (JEITA) / when using 4 AA batteries
• Magnetic circuit: Neodymium magnet, inner magnet type diaphragm: Polyimide film (diaphragm, bobbin) Antimicrobial treatment: Microphone part, Handle part Operating temperature range: approx. 250 m (JEITA) Frequency response: 450 Hz to 6 kHz (SPL - 20 dB)
• -10 ° to + 40 ° waterproof performance: IPX 5

Product information:

Shipping Weight: 1020 g

Package Dimensions: 19.00 x 28.80 x 29.01 cm
