Product Description

Digital Servo
Torque: 15 kg/cm (208 oz/in) 6.6V;17 kg/cm (236 oz/in) 7.4V
Speed: 0.16sec/60°(7.4V)
Input voltage: DC 6~8.4V
Dimension: 40*20*40.5mm(1.57*0.78*1.59inch)

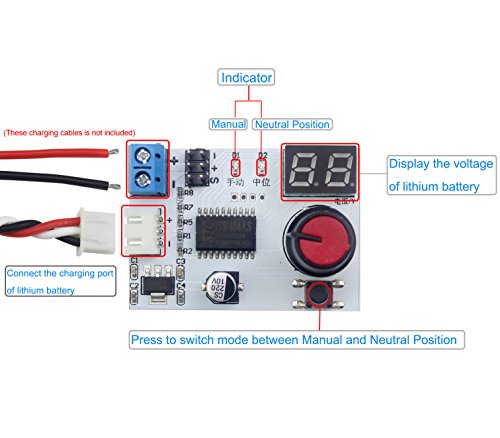

Single Channel Servo Tester
You can use the knob to adjust the position manually or use the servo to return to the middle position
Show the voltage of power supply
Dimension: 50mm*35mm(1.96in*1.38in)
Weight: 13.8g(0.03lb)

How to use:
1)Connect the power to the tester
2)Plug the servo to the servo interface. + is positive pole , - is negative pole, S is signal port;
3)The servo will rotate synchronously when you turn the knob
4)You can press the button below the knob to switch the mode between Manual(control the servo rotation) and Neutral Position(return to neutral position and can not control servo rotation)

How to wire:
1)Connect the charging port of the lithium battery to the white terminal directly
2)Or connect the power supply to the blue terminal, positive voltage 5~8.4v available.

Pacake Content:

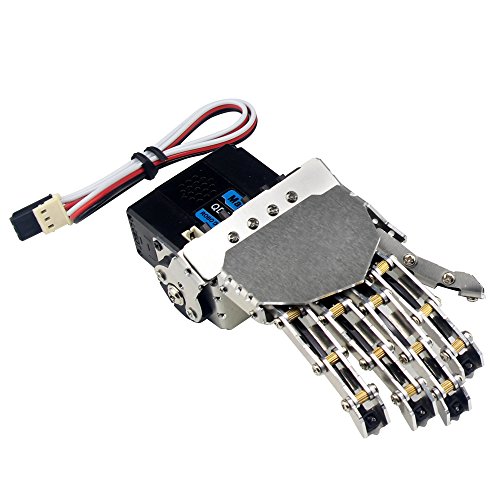

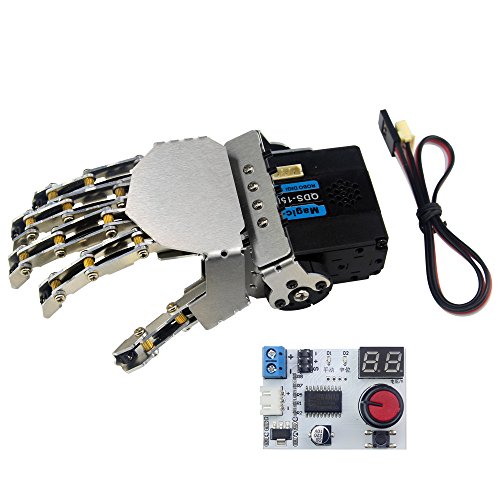

1 x Robotic Palm+Digital Servo(Assembled)
1 x Servo Tester/Driver

For video instruction, please access http://bit.ly/2gMCxns

Feature

Dimension: 122.73x32.00x54.5mm (4.83x1.26x2.15inch)
One servo can achieve the linkage control of five fingers
With 17kg digital servo, control angle 220, full metal gear
With single channel servo tester, which can display battery voltage
Hand-made, attractive appearance, suitable for robot perform dance
Brand : LewanSoul
EAN : 0651519699355
Package Dimensions(LxWxH) : 14x10x10cm ; 177 g
