Item Descriptions:

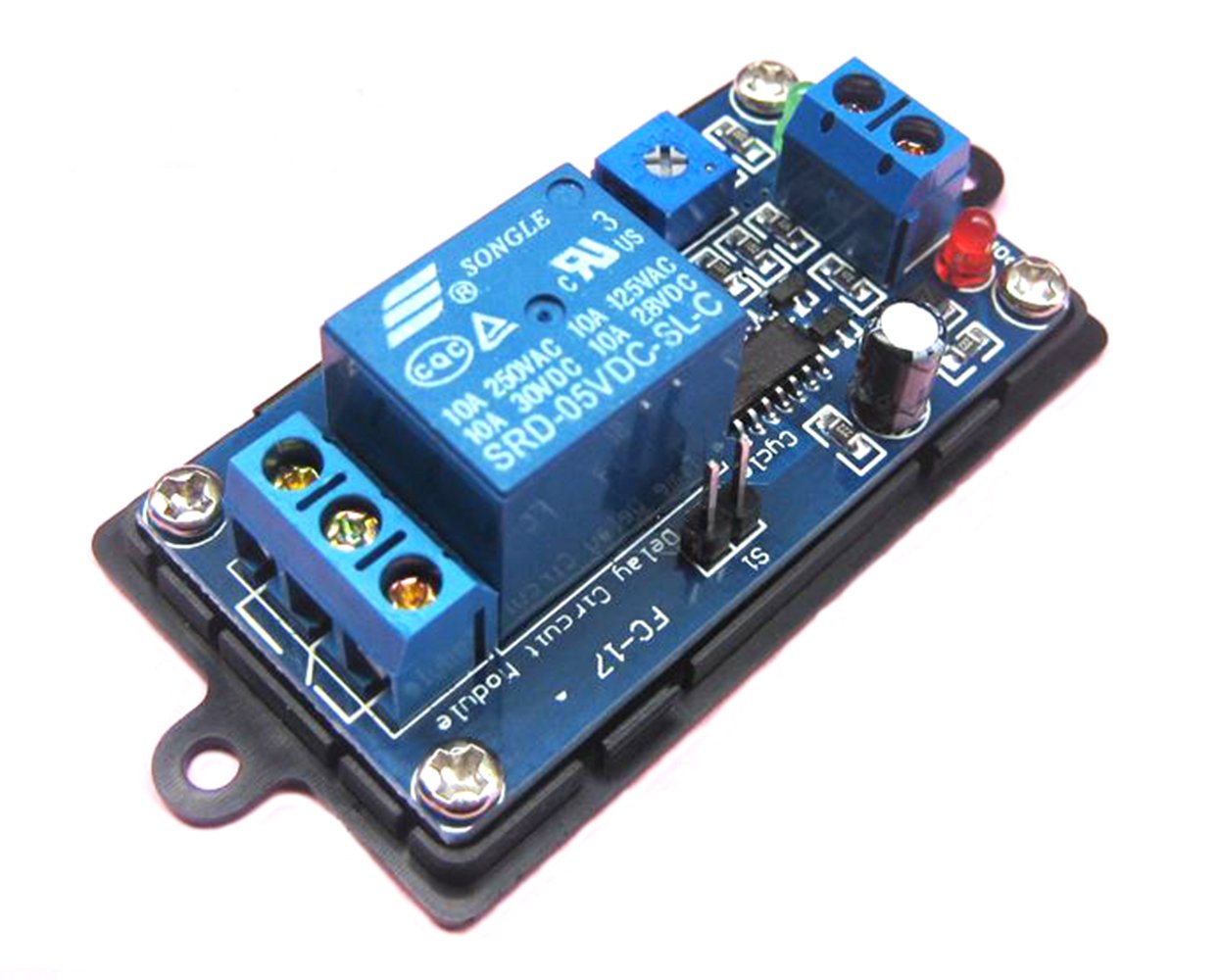

It is an intermittent timer switch that can intermittently operate loads such as wipers and bulbs by repeating relays ON and OFF.
<Features>
· There is a reverse connection protection function of input power supply and it is made not to damage the internal circuit even if reverse connection is made between the plus and minus terminal (Since reverse connection for a long time has a risk of destroying the circuit,
Please refrain from using reverse connection).
• You can independently set the ON time and OFF time of the relay within the range of 1 to 200 seconds.
· Operation status can be confirmed with red LED indicating input power status and green LED indicating relay operation status.
· Since the input power supply voltage is a general purpose DC 12 V, it can be used for automobiles, ships and solar power generation.
Also, if you prepare an AC power adapter, you can use it at home.
· Since the relay contact voltage corresponds to both DC 12 V and AC 100 V / 110 V, it can control a wide range of equipment.

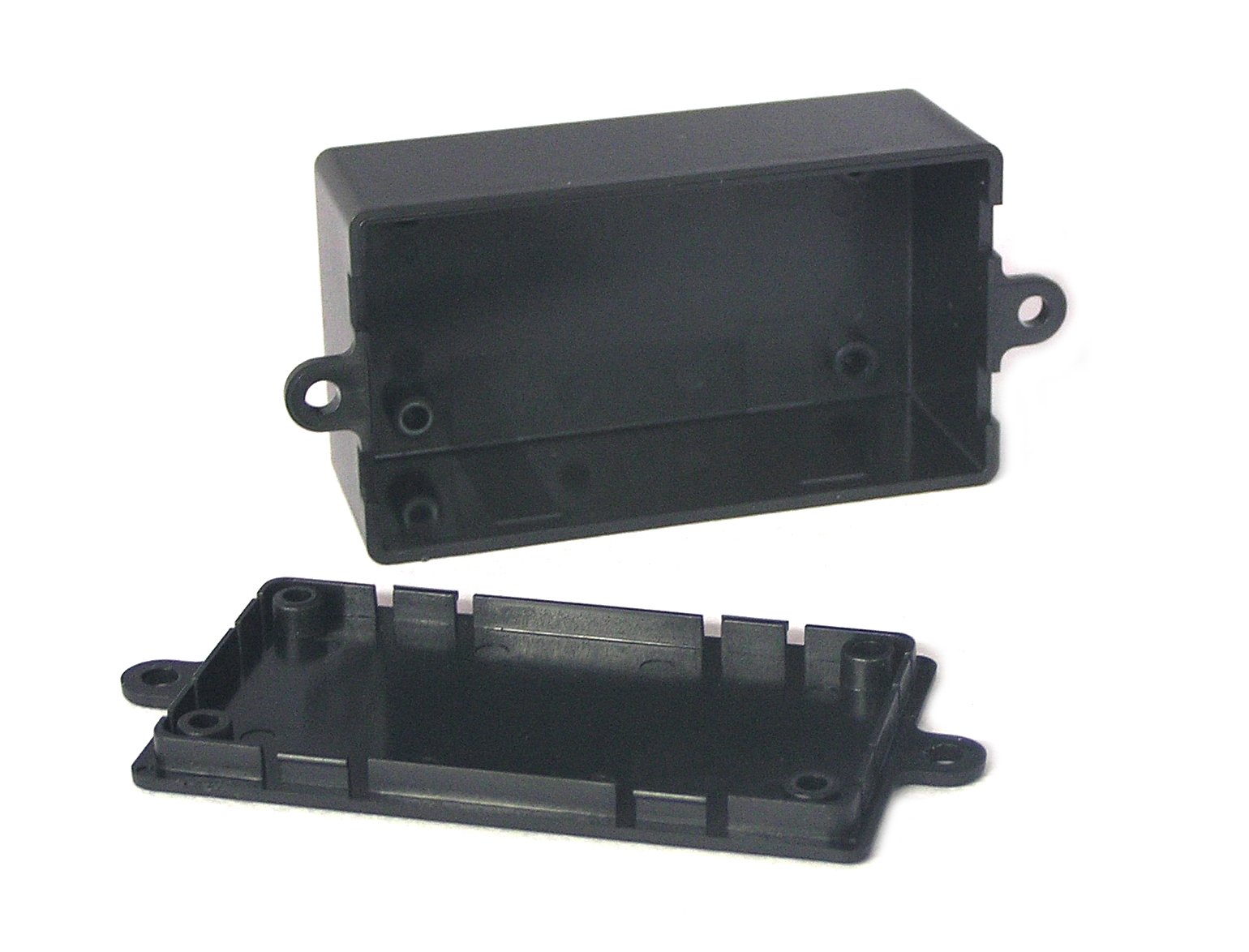

· It is compact and thin, so it is easier to incorporate into products that you want intermittent operation.
<Application example>
· Intermittently operate the wiper of the car.
· Intermittently operate the pump of the live well to prevent the battery from going out.
· Built in the distribution board, control the ventilation fans in the garbage repository, set ON / OFF at 1 minute intervals in the summer, ON for 1 minute in winter, OFF and 3 minutes after and save electricity.
· Make an intermittent semi-automatic system that sprays water on radiator cooling.
· In addition, use for Arduino's work and intermittent operation check of electronic products, life test of electronic products and parts.
Features:
- Input power supply voltage: DC 12 V (consumption current 10 to 50 mA) Relay contact voltage: Supports both DC 12 V and AC 100 V / 110 V
- Relay contact capacity: up to 10 A (In the case of inductive loads such as small motors and ventilators, it is less than 5 A)
- ON / OFF pattern: Both ON start and OFF start correspondence
- Relay ON / OFF time: Independent setting 1 to 200 seconds (adjustment of semi-fixed resistance)
Product information:
Shipping Weight: 45 g
Package Dimensions: 3.30 x 11.51 x 17.20 cm
