1:功能上:是目前市面上读卡种类最多的读卡器。
A:带有六个多功能卡槽,前置USB接口。
B:可读
 1. CF I,CF II,Extreme CF,Extreme III CF,Ultra II CF,HS CF, Micro Drive
 2. Secure Digital Card,Mini SD, Extreme SD, Extreme III SD,Ultra II SD
 3. MMC,MMC II,RS-MMC,MMC 4.0, Ultra MMC,HS RS-MMC
 4. Memory Stick,MS Pro,MS Duo,MS Pro Duo, Extreme MS Pro, Extreme III MS Pro,Ultra II MS Pro
 5. MS-MG, MS-MG Pro,MS-MG Duo,MS-MG Pro Duo, MG ROM,HS MS-MG Pro,HS MS-MG Pro
 6. SM Card,T-Flash,MS Select
 7. xD-Picture

 8:直接读M2卡                      9. usb disk或者USB接口其它设备
C:三重保护存储卡的设计:设计师的用心良苦。
D:严格经过ESD测试和EMI防静电测试。
E:插卡设计符合人体工程学,全部正面插卡,卡槽特殊防呆设计,想反插也插不进,普通读卡器部分卡槽是反插设计,一旦习惯性正插就会损坏存储卡。
F:每块卡座都贴有导电细网泡棉,以防止静电损坏闪存卡
3:技术参数:
A:符合USB2.0 high Speed技术规范,可达480Mbs传输。

4:外观上:小巧精致
5:操作上:随心所欲
A:WIN98以上无需驱动,有LED灯显示工作状态。即插即用。
6.外观:
  3.5inch软驱经典设计,安装在机箱上,与其它配置浑为一体,美观大方
1: Function: is the reader on the market the most types of card reader.
A: With six multi-function card slot, front USB interface.
B: readable
 1. CF I, CF II, Extreme CF, Extreme III CF, Ultra II CF, HS CF, Micro Drive
 Secure Digital Card, Mini SD, Extreme SD, Extreme III SD, Ultra II SD
 3. MMC, MMC II, RS-MMC, MMC 4.0, Ultra MMC, HS RS-MMC
 4. Memory Stick, MS Pro, MS Duo, MS Pro Duo, Extreme MS Pro, Extreme III MS Pro, Ultra II MS Pro
 5. MS-MG, MS-MG Pro, MS-MG Duo, MS-MG Pro Duo, MG ROM, HS MS-MG Pro, HS MS-MG Pro
 6. SM Card, T-Flash, MS Select
 XD-Picture
 8: read directly M2 card 9. usb disk or other USB interface devices
C: triple protection memory card design: well-intentioned designers.
D: Strict ESD test and EMI anti-static test.
E: card design ergonomic, all positive card, card slot special fool-proof design, also want to plug the plug can not be inserted, the ordinary card slot is anti-plug part of the card design, once the habitual is inserted will be damaged storage card.
F: Conductive fine mesh foam is attached to each deck to prevent static electricity from damaging the flash memory card
3: Technical parameters:
A: In line with USB2.0 high Speed ​​technical specifications, up to 480Mbs transmission.

4: Appearance: small and exquisite
5: Operation: arbitrary
A: no need to drive more than WIN98, LED lights show work status. Plug and play.
6. Appearance:
  3.5inch floppy drive classic design, installed in the chassis, muddy with other configurations, nice

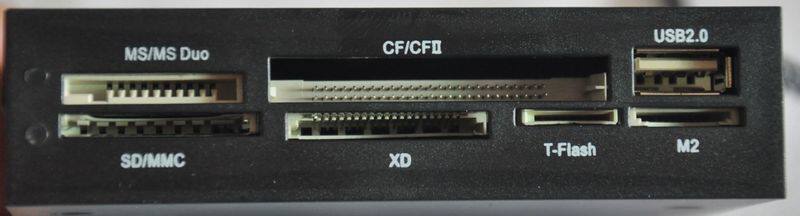

完全符合软驱尺寸标准及螺丝孔位,可以在电脑机箱内完全替代软驱的位置通过自带的5PIN接口与电脑主机板板载USB接口(插针式)连接使用面板:
Full compliance with floppy drive size standards and screw holes, the computer chassis can completely replace the floppy drive position through the built-in 5PIN interface with the computer motherboard on-board USB interface (pin) connectionpanel:

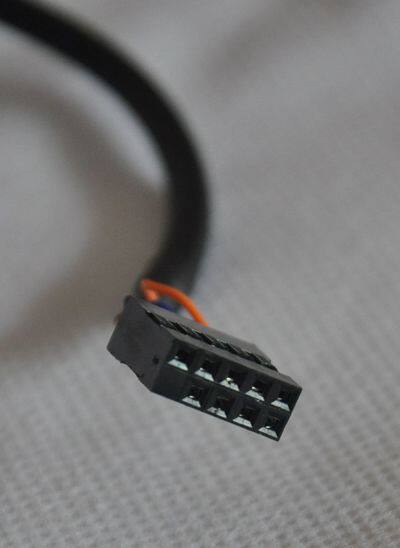

连接电脑主板的九针口:
Nine-pin connector to the motherboard:

全套图:
Full set of pictures:
