Item Descriptions:

Product description

◆ Automatically turn on / off the electric appliances every day for every 24 hours in 15 minute increments.

◆ The whole dial rotates once in 24 hours and pushes down "ON / OFF" ◆ Do not short the tracking prevention plug ◆ With energizing lamp ◆ Applicable electric appliance · Heater use equipment 1500 W or less: Electric pot, electric carpet,

Heating toilet seat etc. · Transformer equipment 750 W or less: Television, stereo, AV equipment etc · Motor equipment 400 W or less: Fan, ventilation fan, pump etc · Lighting equipment 750 W or less: Fluorescent lamp, stand, illumination etc /

AC 100 V 50/60 Hz Size (approx.): Width 82 × depth 38 × height 82 mm (excluding protrusions) Mass (approx): 115 g Rated power: 1500 W (at the time of resistance burden) Watch error: ± 10 min

24 hour timer error: ON / OFF at ± 5 minutes / 15 minutes Number of operations: 1 to 48 actions (in 15 minutes) / ※ For people living in West Japan (60 Hertz region) Hertz changeover switch is available

Because, please use the switch to 60 Hz.

It is 50 Hz at the time of shipment, and it may be time-shifted when used in the 60 Hertz region.

※ Note · Air conditioners can not be used for coolers.

· It may not be able to be used for remote control, automatic operation electric appliances with sensors, and electronic timer built-in appliances.

· Use metal halide lamps with 250W or less alone.

· This unit is not waterproof, so it can not be used outdoors or where it is exposed to water.

From Amazon

24 hour program timer II

Switch the electric appliances in 24-hour increments of 15 minutes

Program timer that can be turned "on / off" many times automatically

Can be used repeatedly every day with one set

Easy setting

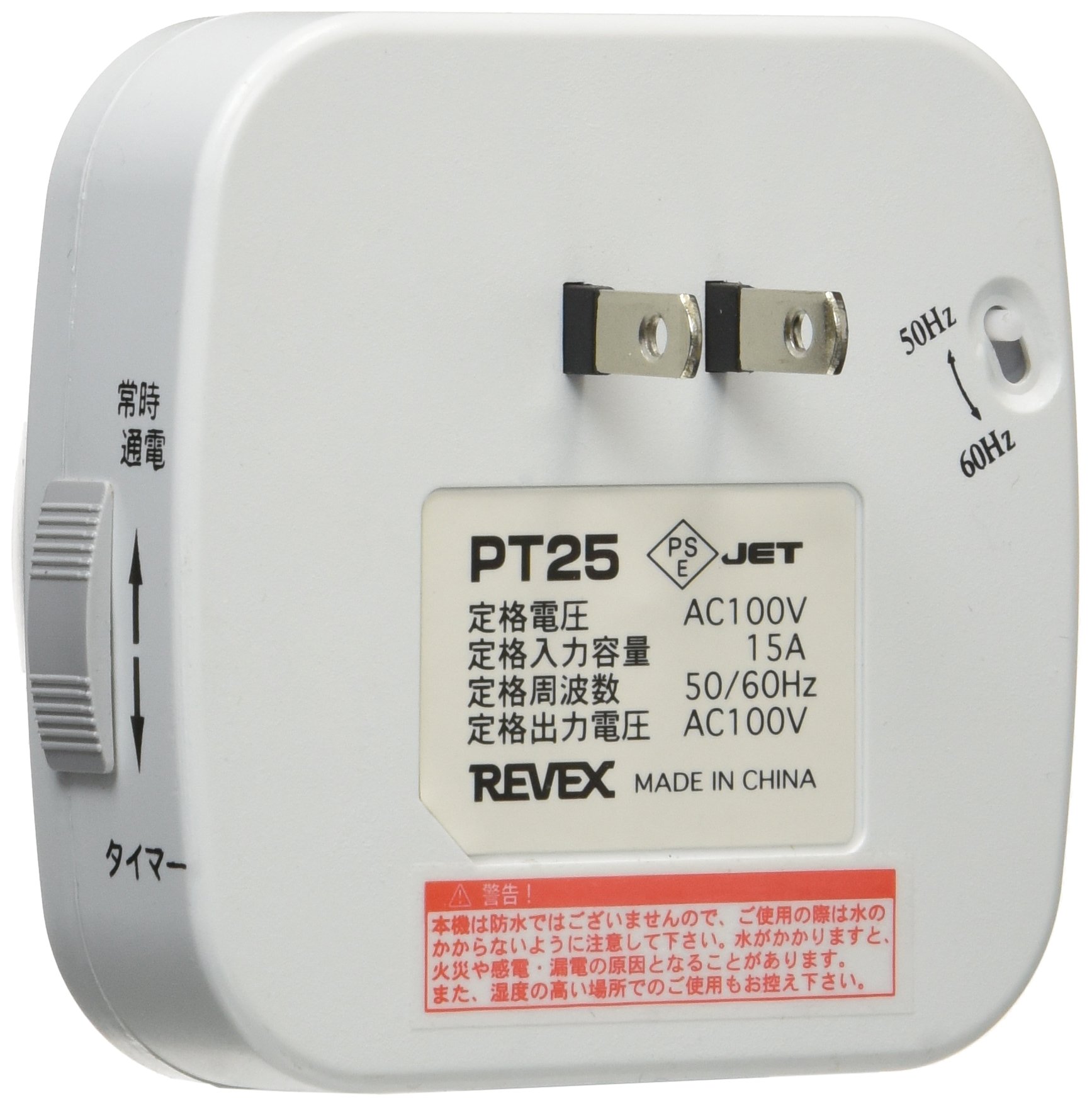

1. Adjust the power frequency (50 Hz / 60 Hz) (*)

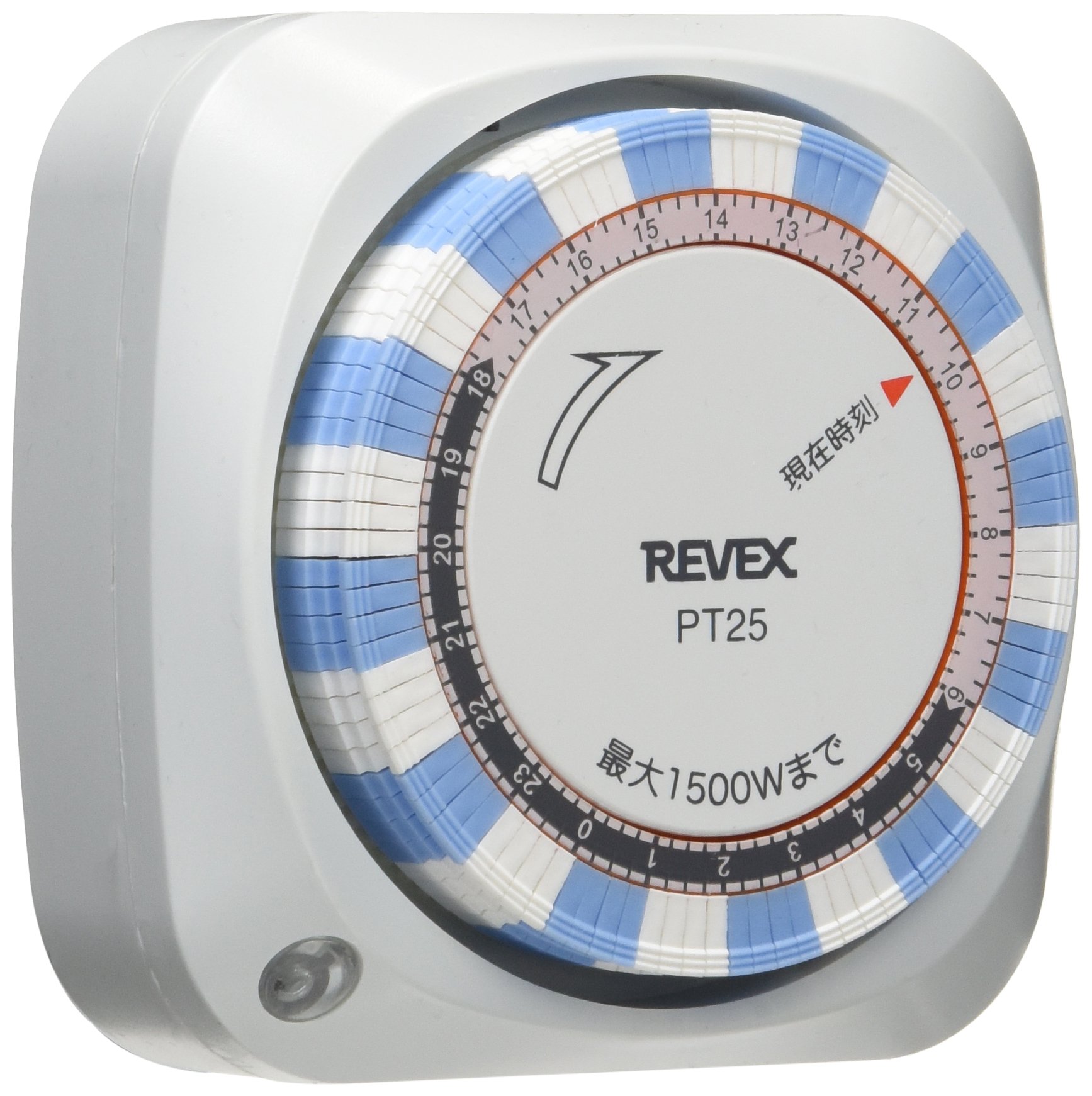

2. Push down on the front piece at the time you want to energize (check with the orange line)

3. Set the current time

4. Set the "Energizing / Timer" switch to timer

5. Plug in the power outlet and exit

※ 50 Hz on the east side and 60 Hz on the west side, with the boundaries around Fujikawa (Shizuoka) and Itoigawa (Niigata)

※ There are mixed areas near the boundary.

Please contact the power company for details

Useful and useful

1. For security lighting in absence

2. When you do not need electricity to save electricity

3. Illuminations are turned on / off automatically

4. Use a fan or mosquito repellent to make a comfortable summer

5. Automatically ventilate periodically

6. To the aquarium light

【Program Timer Rating】

Number of operations: 1 operation ~ 94 operation (in 15 minutes)

Input: AC 100 V, 50 · 60 Hz

Power consumption: 1 W

Capacity: Up to 1500 W (with resistive load)

Time error: ± 15 minutes (maximum) / 24 hours

Timer error: ± 5 minutes / 15 minutes

Adopt tracking prevention plug

Adopt tracking prevention plug to prevent fire caused by short circuit

【Applicable Appliances】

Heater use equipment 1500 W or less: electric pot, electric carpet, toilet seat etc.

Transformer used equipment 750 W or less: TV, stereo, AV equipment etc.

Motor used equipment 400 W or less: Fan, ventilation fan, pump etc.

Lighting equipment 750 W or less: Fluorescent light, illumination etc.

※ Please use the metal halide lamp of 250W or less alone

※ Note: It can not be used for air conditioner · cooler

※ It may be unusable for remote control operation, automatic operation device with sensors, equipment with built-in electronic equipment

Features:

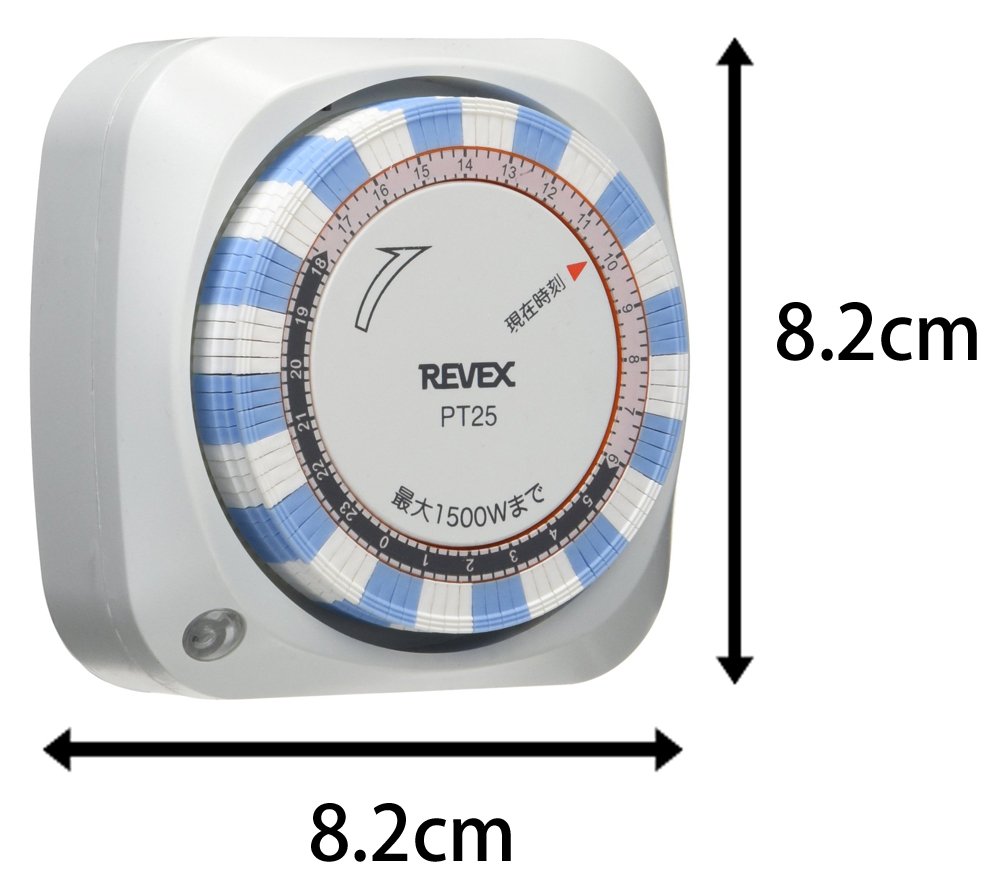

• Size: Width 8.2 × depth 8.2 × height 3.8 cm
• Body weight: 0.115 g
• Material · Material: Polycarbonate
• Country of Origin: China
• Input voltage: AC 100 V, 50/60 Hz (frequency switching type)
• Power consumption: 1 W or less, rated input / output capacity: up to 1500 W
• Timer setting unit: 15 minutes
• Time error: Up to ± 10 minutes at 24 hours, Timer error: ± 5 minutes at 15 minutes
• Frequency switching: Switch the switch according to the point frequency of contract electric power company
• Example: Tokyo, Tohoku, Hokkaido Electric Power Company 50 Hz, Chubu · Kansai · Shikoku · Kyushu Electric Power Co., Ltd. 60 Hz

Product information:

Shipping Weight: 158 g

Package Dimensions: 6.50 x 11.51 x 19.99 cm
