Model

BF-UV5R

Hot Spots

Dual band / dual display / dual standby

A/B band independent operation(UV UU VV)

128 groups channels storage

Shortcut menu operation mode

VFO !#!amp!*! Memory channels scan

Emergency Alarm

Time-out Timer (TOT)

0~9 grades VOX selectable

PTT !#!amp!*! ANI ID

FM radio and 25 stations storage

Voice companding

50 CTCSS/104 DCS

High/Low TX power selectable

Busy channel lock-out(BCLO)

DTMF function

OFF SET function

Wide/Narrow Band(25kHz/12.5kHz)

Yes

VOX function

Yes

Busy lockout function

Yes

Scanning function

Yes

Monitor function

Yes

Time-out Timer (TOT) function

Yes

LCD display

Yes

Dual display

Yes

Battery voltage display function

Yes

Channel name display and editing functions

Yes

Signal strength indicator

Yes

Keypad lock function

Yes

Built-in Led torch

Yes

FM radio

Yes

Wire clone function

Yes

Emergency alarm function

Yes

Low battery alarm

Yes

Power saving function

Yes

High/Low TX power selectable

Yes

4W/1W

ROGER SET

Yes

Chinese and English voice prompt

Yes

PC software programmable

Yes

Basic Descriptions

Rated Voltage

7.4V DC±10%

Output power

≤ 5W

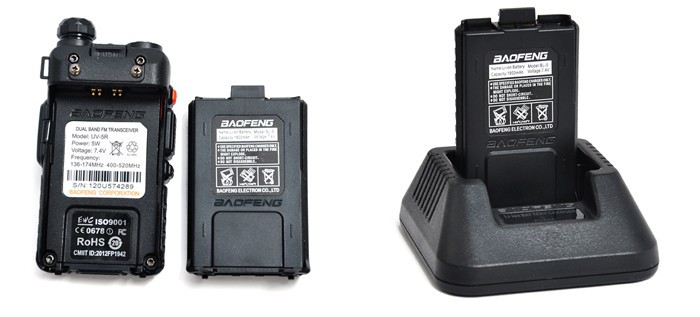

Battery type

Li-ion battery

Battery capacity

1800mAh

Working temperature

-20~+50°C

Antenna Impedance

50Ω

Weight

255g

Dimension(L×W×H)

58×32×110mm(Not Antenna)

Specification

Frequency stability

±2.5ppm

Carier wave tolerance

5ppm

Modulation

16kΦF3E / 11kΦF3E

Max frequency deviation

!#!lt!*! 5kHz(Wide)
!#!lt!*! 2.5kHz(Narrow)

Modulation character

6 dB per fold frequency patch

Emission current

!#!lt!*! 1.6A(5W)

CTCSS / DCS

0.5±0.1kHz(Wide)
0.3±0.1kHz(Narrow)

Sensitivity

!#!lt!*! 0.16μV(12dB SINAD)

Silent sensitivity

!#!lt!*! 0.2μV

Intermediation Distortion

!#!lt!*!10%

Inter modulation

8-12mv

Adjacent channel selectivity( wide/narrow)

!#!lt!*!-65dB(Wide) !#!lt!*!-60dB(Narrow)
