Digital tube color scheme: blue / red / green, please leave a message or to ask the customer service Remarks shoot, if no message default hair blue.
Handle color scheme: white / black, please leave a message or to ask the customer service Remarks shoot, if no message default hair black.
T12 heating core: only T12-K common tip

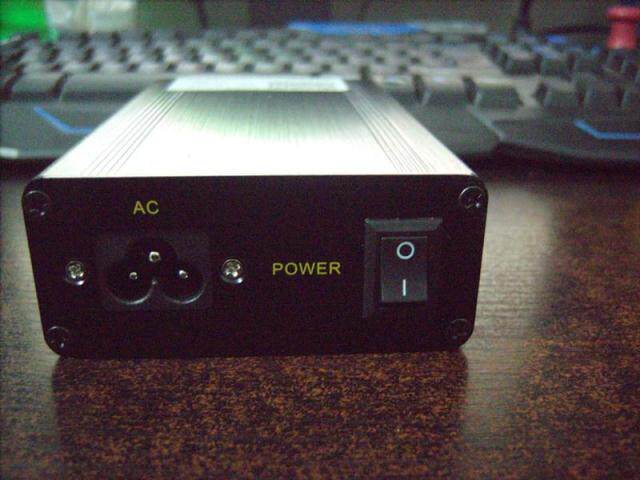

Use Tips:American standard power cord connector

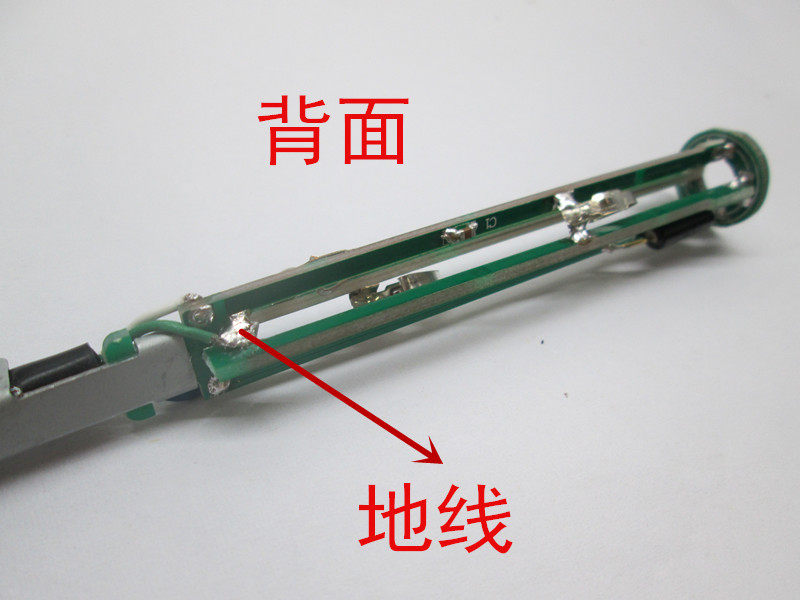

1. Aluminum alloy must use three-hole strip, do not use no ground strip, do not use in a humid environment, the housing can be added to a ground wire to the ground, which is more secure and more stable.
2. The new heater just need to plug a few times, because there is a new heating element induction process, and soon after with several temperature will stabilize, because we help customers aged over before, but because heating element in aging process will be burned black. It caused many customers mistakenly think that we are using secondary batteries. Any advice I can understand.
3. The heating element can not be the same rotation as 936, because 936 is separated from the core, T12 as one of the core hose back into the rotation pressure may lead to short-circuit the poles heater and circuit damage, if it is caused by damage to the core and therefore we will no warranty.
Precautions:

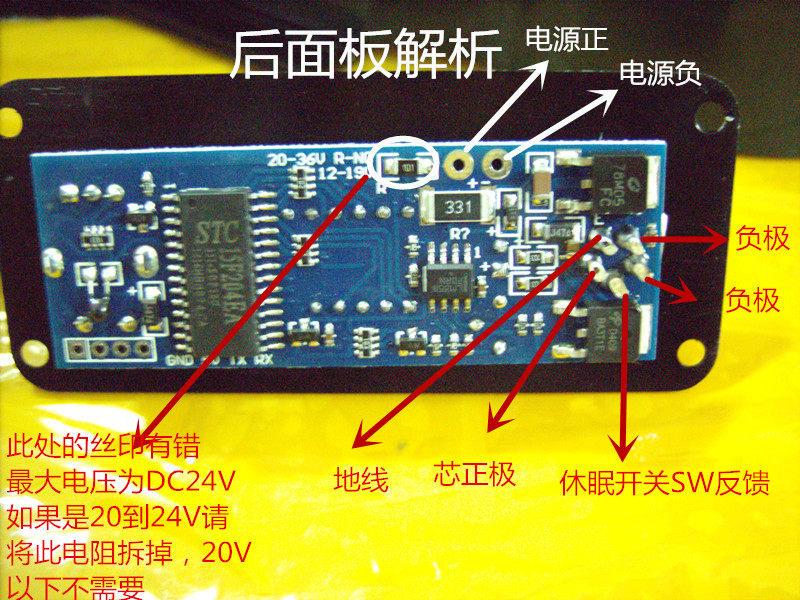

(1) Select the motherboard and handle finished (default with blade) customers are not included in the chaff and power, plus the power board requires its own voltage DC DC19V3.42A, maximum 24V DC, if you use 20 to 24V power supply, 100 ohm resistor set on the motherboard removed

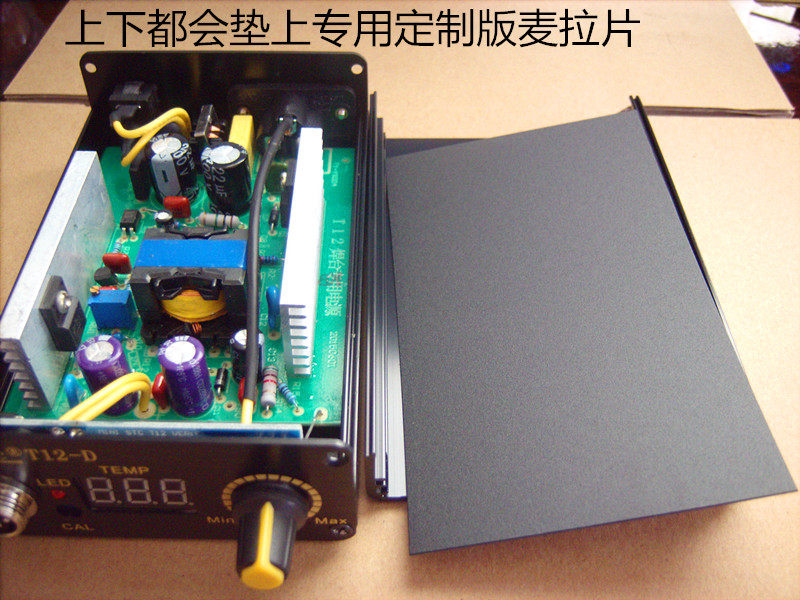

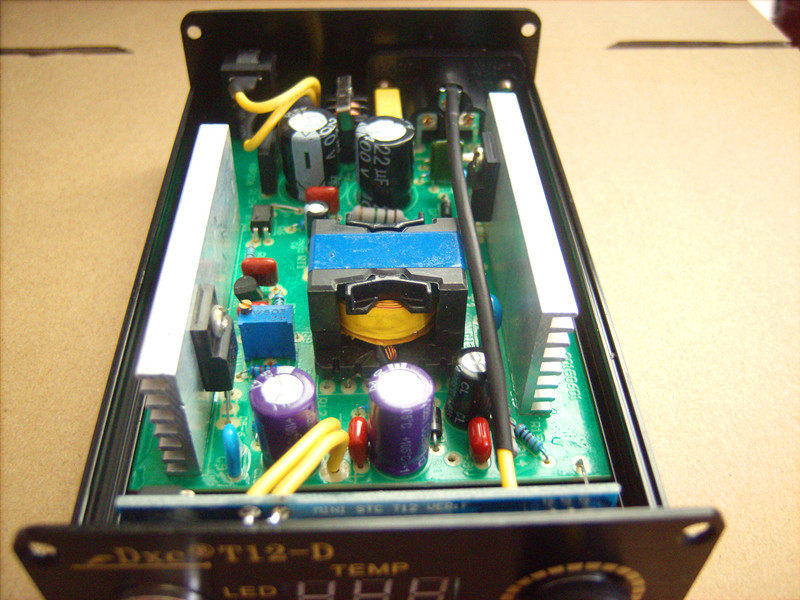

(2) Internal high-voltage power supply board, non-professionals should not open, please check the goods before receiving broken and loose inside

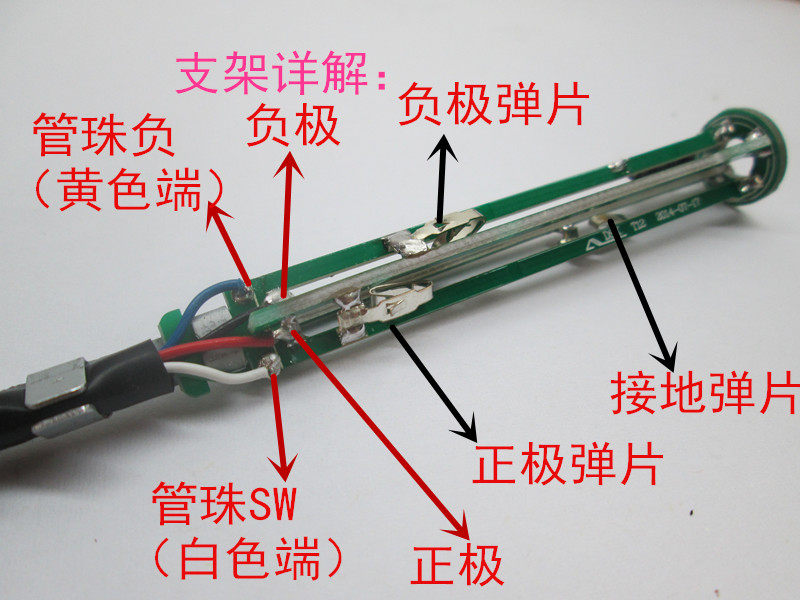

(3) If you want to cancel the sleep function: the capacitor 104 is applied between the anode and the SW on the board to five core aviation head.

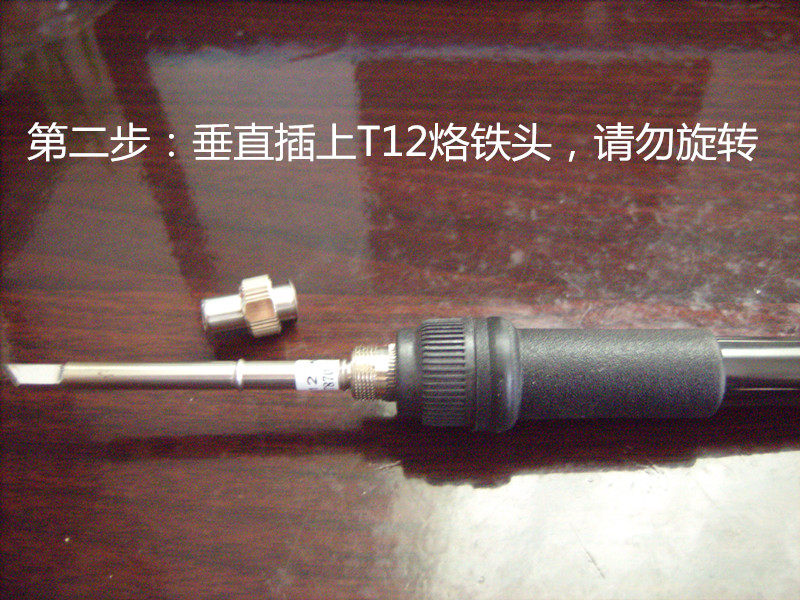

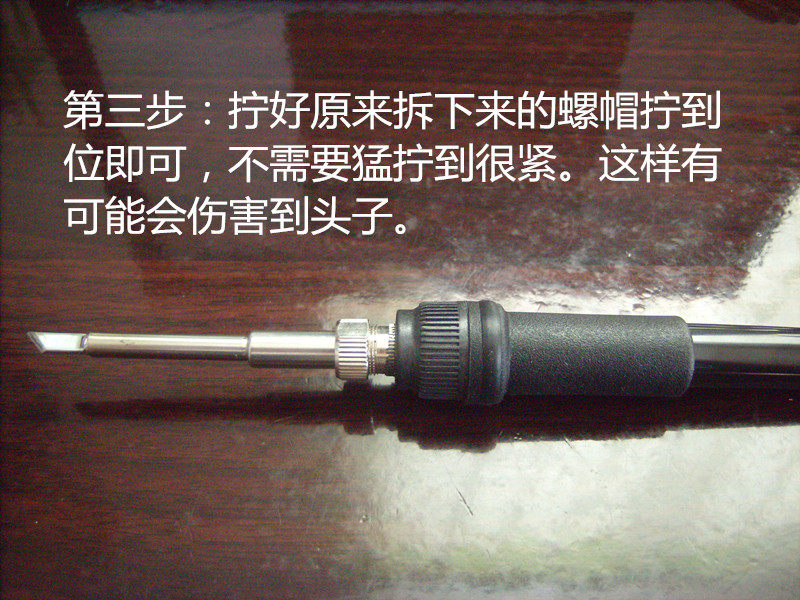

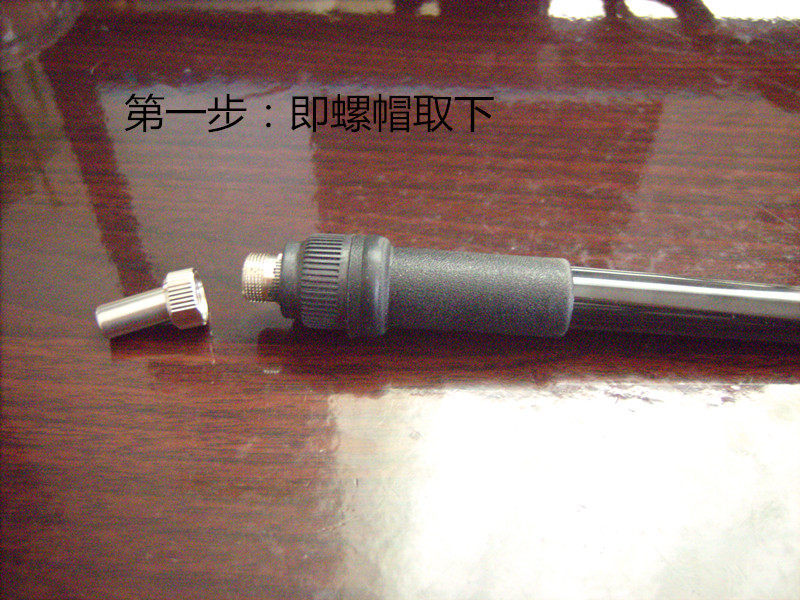

(4) Replace the rear heater core has to change step, heating core to unscrew the nut straight out, and then insert the vertical, must be inserted in the end, can not rotate heater, heating core because there are two electrodes.

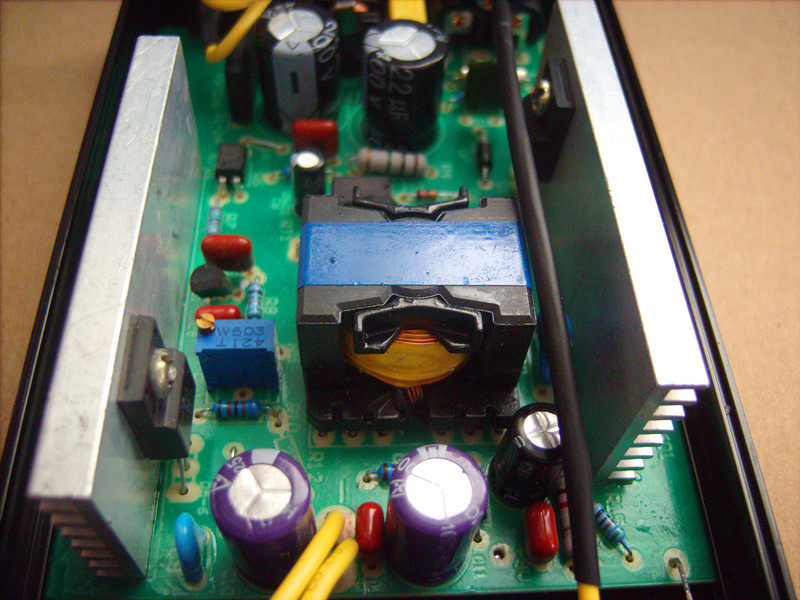

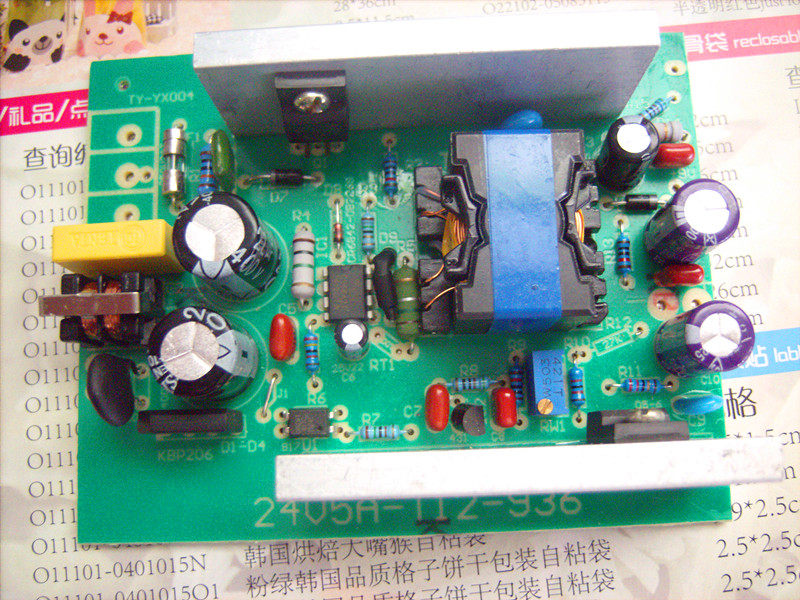

The latest facelift Power: Using wide-voltage design 110V to 220V can be used, the power supply board after several tests and adjustments, the new more stable and better results.

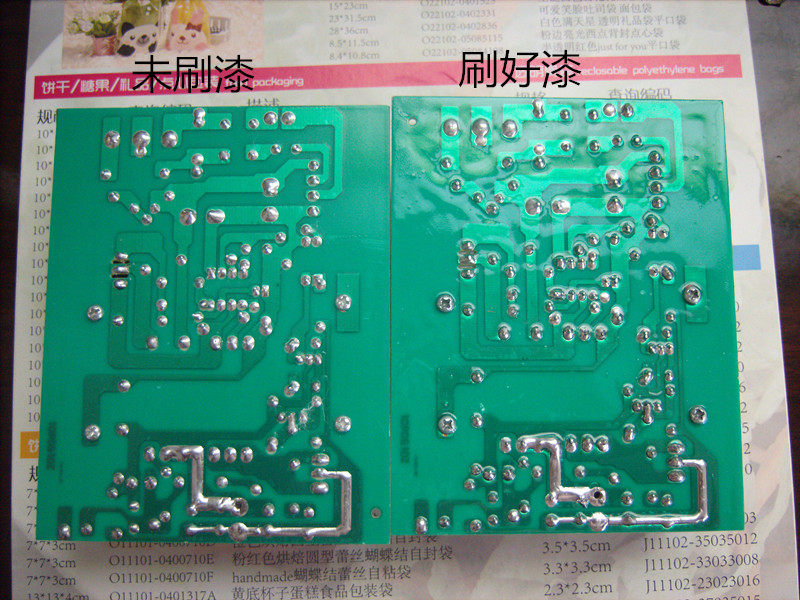

All power will brush before shipping three anti-paint environmental protection, better protect the power supply board and enhanced security.
Machine use:

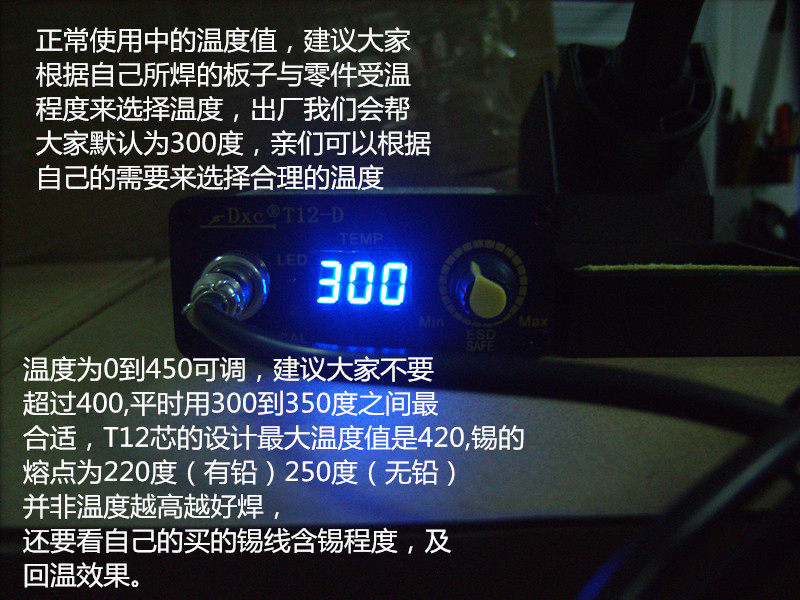

1. Open the power supply can be directly heated, clockwise rotation can increase the temperature, on the contrary desuperheating, a scale of 5 degrees, adjusted to set up their own temperature.
2. If you stand still for three minutes when not in use automatically after hibernation:

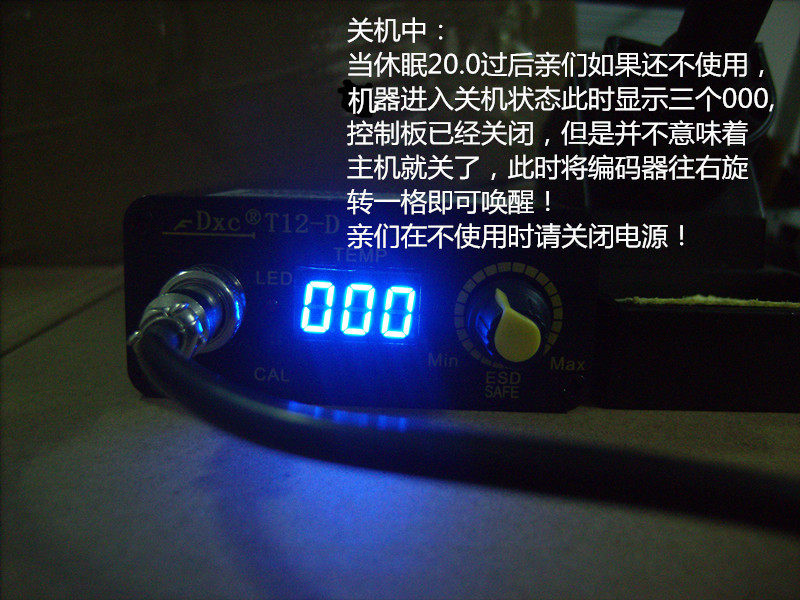

3. After five minutes dormant, if we do not use, it will enter the auto power-off state, turn off the power when not in use.
Replace the core approach: To facilitate packaging, we have removed the package may put core, you need to hold yourself pro core, the following is a method.
Measuring machine is normal, lamp and monitor status:
1. T12 tip is not inserted, turn the light flashed off, display SER 1 seconds after the display 500.
2. plug T12 tip, boot light uniform flashing, indicating rapid heating from room temperature generally show the set temperature to rise, approaching a set temperature, lights strobe. The indicator does not flash or flashes intermittently, indicating the tip temperature reaches the set temperature or compensation temperature alternately.
