Product Description

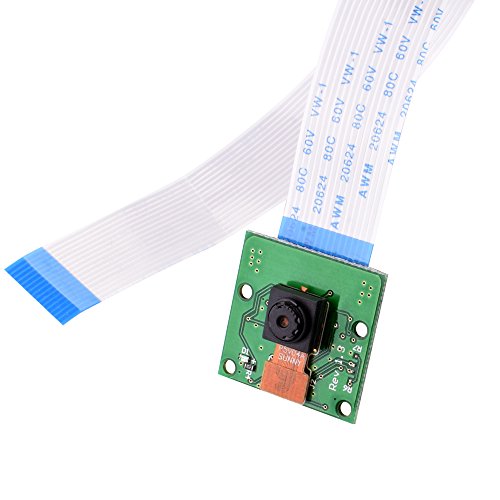

The Kuman Camera Module is a custom designed add-on for Raspberry Pi. It attaches to Raspberry Pi by way of one of the two small sockets on the board upper surface. The camera is supported in the latest version of Raspbian, Raspberry Pi's preferred operating system.

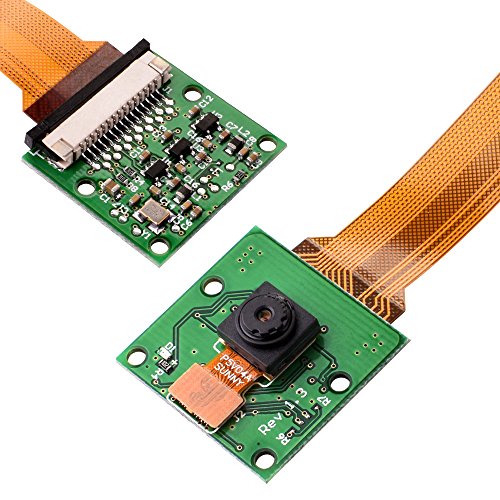

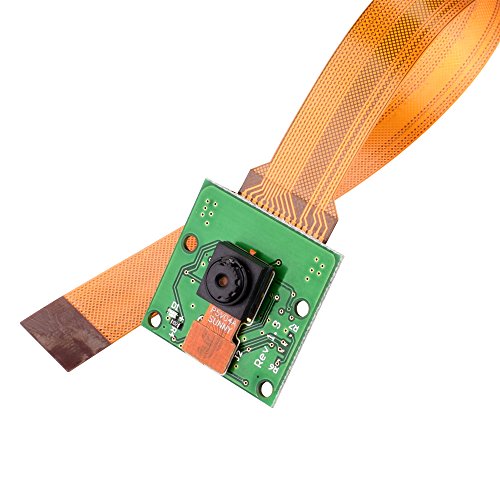

The board itself is tiny, at around 25mm x 20mm x 9mm. It connects to Raspberry Pi by way of a short ribbon cable.

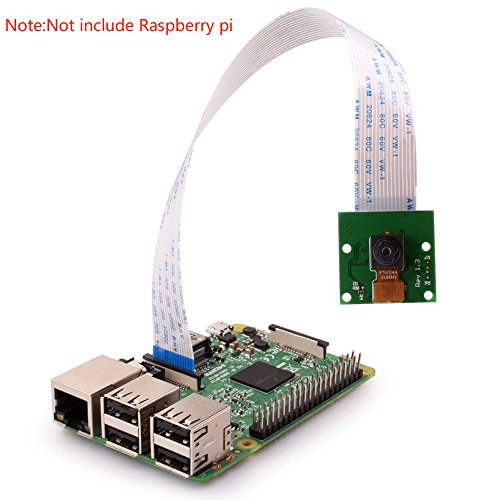

Note: Raspberry Pi is NOT INCLUDED.

Feature:
Angle of View: 54 x 41 degrees
Field of View: 2.0 x 1.33 m at 2 m
Full-frame SLR lens equivalent: 35 mm
Fixed Focus: 1 m to infinity
Max frame rate: 30fps

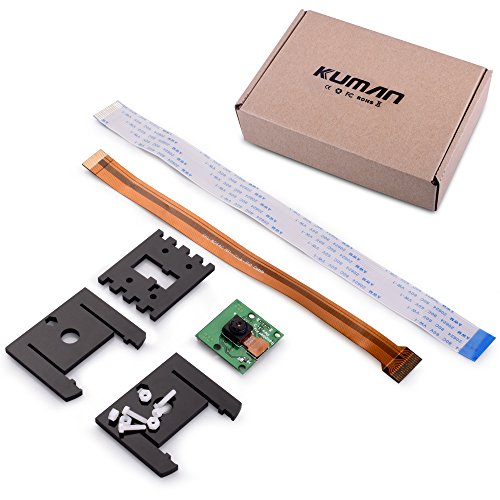

Package including:
1pcs 5MP Mini Camera Module 5MP 1080p OV5647 Sensor
1pcs 15cm 15pin FPC cable
1pcs 15cm 15pin to 22pin 0.5mm pitch FPC cable
3pcs adjustable camera mount

Feature

High-Definition video camera for Raspberry Pi 3 2 model B B+ A+ raspberry Pi Zero/Zero W
This interface uses the dedicated CSI interface, via the CSI bus, a higher bandwidth link which carries pixel data from the camera back to the processor.
The camera is capable of 2592 x 1944 pixel static images, and also supports 1080p30, 720p60 and 640x480p60/90 video.

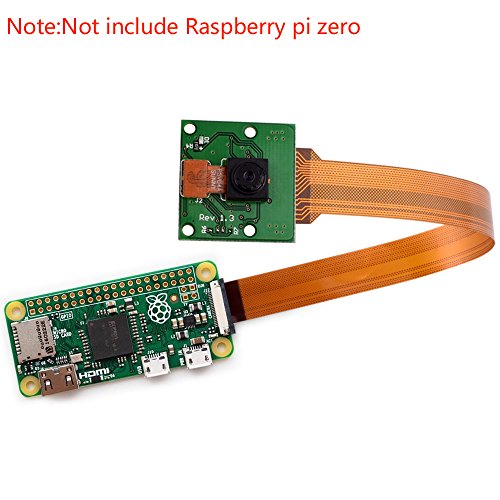

Raspberry Pi Zero 15 cm flat ribbon cable to 15-pin MIPI Camera Serial Interface (CSI) connector
Black acrylic Adjustable mount, allows for different angles of repose,and 4 screws to secure your camera.
Brand : Kuman
Item model num : SC09-US
MPN(PartNumber) : SC09-US
Product Dimensions(LxWxH) : 12x3x6cm ; 18 g
Package Dimensions(LxWxH) : 11x6x3cm ; 18 g
