Item Descriptions:

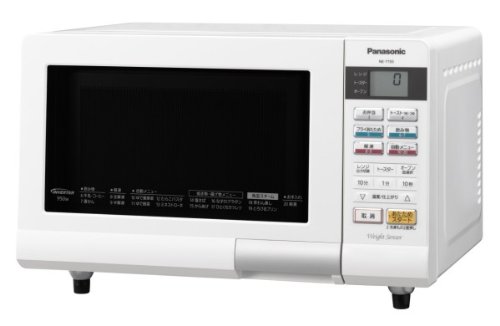

Product description

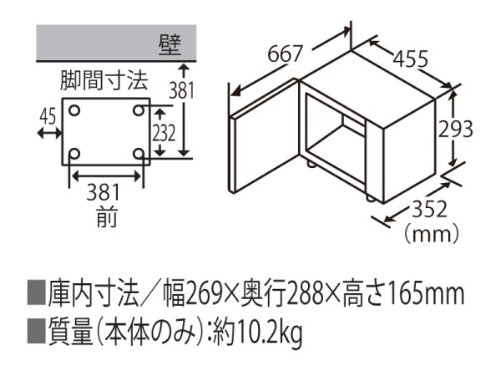

■ Quickly warm up "950 W inverter" & "Weight sensor" loaded ■ "Pottery · Deep fried food" menu loaded with about 15 minutes for one person ■ Newly opened ■ Lightly "Easy Handle" ■ Inside shape: Turntable ■ Dimension:

Width 455 × depth 352 × height 293 mm ■ Accessories: square plate (1 piece), round plate (1 piece)

From Amazon

950 W inverter (* 1) & weight sensor

With high power 950 W inverter and weight sensor, everyday warming up / thawing is automatically finished quickly.

Range output, time, gram setting is unnecessary for automatic menu.

* 1: Maximum output time is up to approximately 1 minute 30 seconds, and then automatically switched to 500W.

"Pottery · fried food" menu which can be done in about 15 minutes for one person Newly installed

Grilled fish and deep-fried dishes in about 15 minutes for one person!

No trouble to flip over.

"Square plate steam (* 2)" automatic menu installed

"Square plate steam" function which generates hot water to the attached corner dish and generates steam can be easily enjoyed with steaming brown steak and mellow pudding automatic menu.

※ 2: After cooking, hot water will remain in the square plate, so careful handling.

Open and close lightly "Easy Handle"

Just by pulling the handle gently towards you, the door opens and closes smoothly.

No need to put power when closing.

Easy to use "operation button"

The operation buttons are large, easy to push, ease of use is up.

Other fulfillment functions

Automatic cleaning (deodorant)

Extract two choices

Full thaw / half thaw

Standby power 0

Automatic menu

01. Warm / start

11. Boiled root vegetables

02. Frozen thing pressed twice

12. Tako pasta

03. Lunch box

13. Minestrone

04. 1 toast / 2 sheets

<Grind / Fried Menu>

05. Fly for warmth

14. Salt Mackerel

06. Milk · Coffee

15. Karate

07. Liquor

16. Gratin of eggplants

08. Full thawing

17. Hitori Cutlet

09. Half-thawing

<Care>

10. Boiled leaves

18. Deodorizing

Elek Steam Oven Range Oven Range Function Comparison List

In case

NE - S266 - W

NE-M 266-H

NE - C236 - W

NE - M 156 - W

NE - T 156 - W

sensor

Swing search infrared sensor

Steam sensor

Weight sensor

Range output

Automatic

1000 W Inverter: Maximum about 3 minutes (600 W) * 1

950 W Inverter:

Maximum about 1 minute 30 seconds (500 W) * 1

900 W Inverter:

Maximum about 1 minute 30 seconds (500 W) * 1

oven

Heating method

1 stage cooking upper and lower heater oven

Steam / temperature control

Steam fermentation (35 · 40 ° C) / 100 ~ 250 ° C ※ 4

Fermentation (35 · 40 ° C) /

100 ~ 250 ℃ ※ 4

Fermentation (40 ° C.) /

100 ~ 230 ℃ * 5

steam

Tank formula (300 mL)

Heated steam (steam control function)

Square plate (oven only)

Steam warm without lap /

Steam thawing / care

cooking

Far-red W heater / single-sided grill

Far-red heater / single-sided grill

Far-red heater

Steam unpacking

Decompression (full thawing / semi-thawing)

Automatic menu

8 minutes menu * 7

Set with vegetables [4 sets]

ease of use

Incandescent ball interior light (1 light)

Gray liquid crystal (no backlight)

Toast (automatic)

Square plate used /

1 piece 4 minutes (necessary to turn over)

Square plate used /

1 piece 5 minutes (necessary to turn over)

Round tray cradle (Ami) used / 1 piece 4 minutes

Automatic cleaning

Inside / water basin / deodorant / draining water

Deodorizing

accessories

Healthy wave corner dish

352 x 310 mm (1 sheet)

Handling recipe collection

Healthy wave corner dish

352 x 310 mm (1 sheet)

Handling recipe collection

Square plate

311 x 311 mm (1 sheet)

Handling recipe collection

A round tray

270 mm diameter (1 sheet)

Square plate

285 x 285 mm (1 sheet)

Ami (1 sheet)

Handling recipe collection

A round tray

270 mm diameter (1 sheet)

(Oven is for round plates only, can not use square plate)

Ami (1 sheet)

Handling recipe collection

Number of recipes posted

76 (44) * 8

58 (32) * 8

57 (34) * 8

26 (21) * 9

22 (19) * 9

size

(Width × depth × height)

52.9 × 40 × 34 cm

※ Maximum depth including handles included: 44.4 cm · Depth dimension when door is opened: 65.5 cm

52.9 × 40 × 33.5 cm

※ Maximum depth including handles included: 44.4 cm · Depth dimension when door is opened: 65.5 cm

48.3 × 39.6 × 31 cm

※ Maximum depth with handle included: 43.9 cm · Depth dimension when door is opened: 65.2 cm

45.5 × 35.2 × 29.3 cm

※ Maximum depth dimension with handle included: 35.2 cm · Depth dimension when door is opened: 66.7 cm

45.5 × 35.2 × 29.3 cm

※ Maximum depth dimension with handle included: 35.2 cm · Depth dimension when door is opened: 66.7 cm

Body weight

About 14.9 kg

Approximately 14.1 kg

About 13.1 kg

Approximately 10.2 kg

Approximately 10.2 kg

* 1 The duration of maximum output varies depending on the model, after which it automatically switches to the output in ().

This works with a limited menu such as "warm".

※ 2 Operating time at 240 ~ 300 ℃ in the oven is about 5 minutes.

After that it will automatically change to 230 ℃.

※ 3 Operating time at 240 ~ 250 ℃ in the oven is about 5 minutes.

After that it will automatically change to 230 ℃.

※ 4 Operating time at 220 ~ 250 ℃ in the oven is about 5 minutes.

After that it automatically changes to 210 ℃.

※ 5 The operating time of the oven at 210 to 230 ° C is about 5 minutes.

After that it will automatically change to 200 ℃.

※ 6 Corresponds with some automatic menu such as pottery · grilled fish · fried food.

* 7 "8 minutes" "12 minutes" "10 minutes" in the menu corresponding to the automatic menu "Konbari 8 minutes" "8 minutes menu" "Konari 12 minutes" "Steaming 10 minutes" "Steamed burning 10 minutes" "Steamed baking 15 minutes"

"15 minutes" does not include time such as preparation.

* 8 In (), the number of automatic menus except [care].

* 9 Number of automatic menus in ().

Features:

• Size: 29.3 × 45.5 × 35.2 cm * Please open either the left or right side, please open 4.5 cm on the opposite side and 10 cm or more on the back side.
• Body weight: 10.2 Kg
• Main materials: synthetic resin, metal, glass
• Producing countries: China
• Power cord length: 125 cm
• Power consumption: "Microwave" 1.41 kW "Oven" 1.33 kW
• Warranty period: 12 months
• Accessories: square plate (1 piece), round plate (1 piece)

Product information:

Shipping Weight: 12201 g

Package Dimensions: 33.50 x 38.99 x 49.50 cm
