Item Descriptions:

Color:

Security alarm

Anti-theft alarm system 12V General purpose explosion repels a suspicious person!

!

This product is anti-theft vibration reaction alarm system kit.

Since 12 V / 125 dB vibration sensor is installed, it can maximize appeal to surroundings when alarming.

There is also the effect of collecting gaze and retreating the suspicious person and increasing witness at the same time!

Protect your car perfectly from bike thief and mischief.

When you turn on the setting and sense the vibration of the car body

Around the 125 dB (the same level as the noise under the elevated train through which the train passes) a large volume of warning sounds beeping around.

Since it is a general purpose product of 12V, it can be used for various purposes regardless of motorcycle or car

Adaptive model:

Suitable for all types of automobiles including Suzuki, Honda, Yamaha, Kawasaki, Harley Davidson

Mounting method:

1. Red wire: Connect to the positive electrode of the battery.

2. Black wire: Connect to the negative electrode of the battery.

(Ground wire)

3.2 yellow lines: Connect to the left / right of the control line of the rotary light separately.

(Generally, baby blue and orange)

4. Pink & gray line: Controls the frame out of the automobile.

Cut out the original Frame Out cable of the Automova, connect the pink wire to the original frame out cable above and connect the gray wire to the bottom original frame out cable.

5. Orange Wire: Connect to the anode cable of the electric door or the anode cable of the brake switch.

6. Blue line: It is a start cable.

In general, connect to the yellowish red wire of the start relay.

Popular anti-theft alarm!

Easy installation Bike security

Description of item:

Color: Black

Siren device size :: 6.0 x 4.9 x 2.6 cm

Module system size: 6.4 x 6.0 x 1.8 cm

Package contents: 279 g

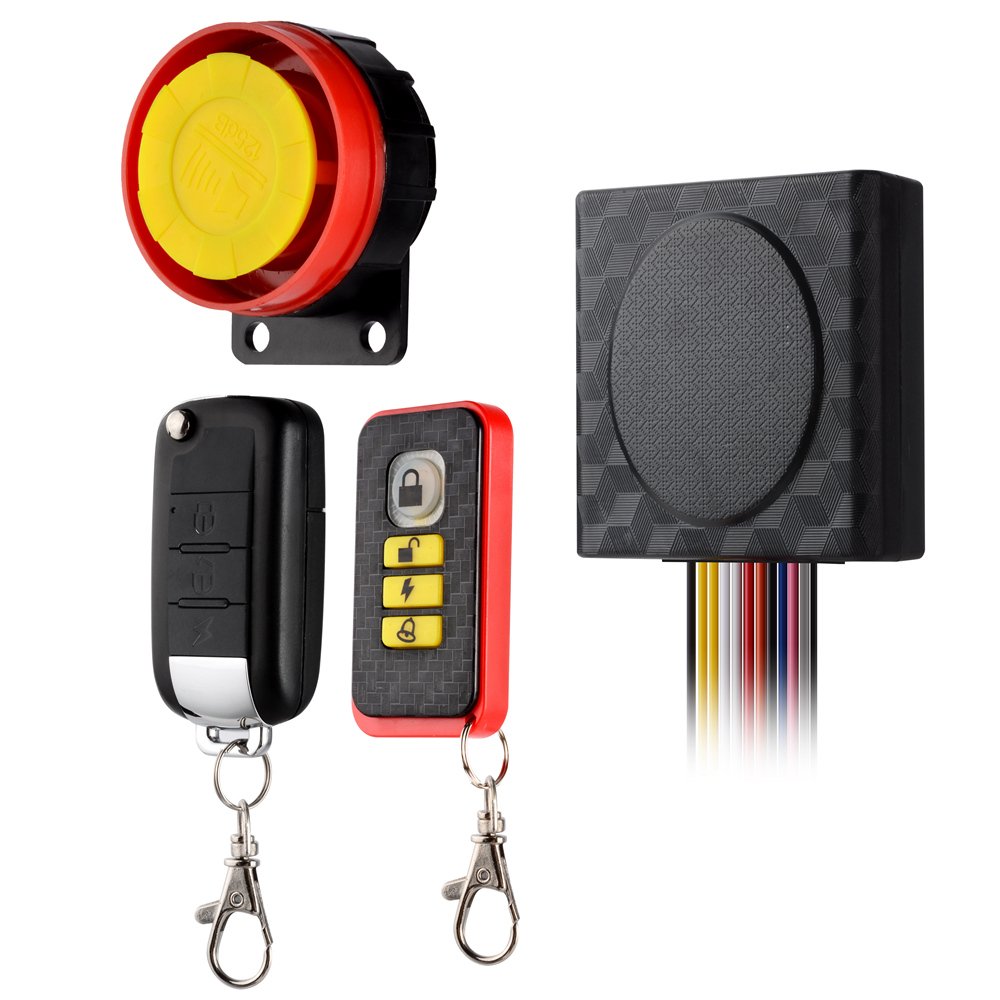

Package contents:

1x Strong siren warning (125 dB)

1 x Smart Alarm

2x remote controller

1 x connection cable

Notes:

※ This continuous type adapts to all types of auto motors with AC ignition!

Depending on each auto mower, the ignition device and the continuous type may be different.

※ Main body · Remote control is not waterproof so please be careful about wet and rain.

※ This item will be a product that makes it hard to stolen or mischief.

We can not assume any responsibility in case of being victimized.

Please use it after acknowledgment.

※ In order to fully understand the function of this product and to use it more safely and effectively, please have a look at the video of the following link before using it.

Link: https://www.youtube.com/watch?v=2hqf7deVPxw

Features:

• Please enter model number Confirm this is compatible:
• It has an automatic remote engine start & shock sensor.
• Adapt to all auto motors with 12 / 24V battery!
• With a remote controller: Theft prevention is possible.
• Remote alarm & release device (flash warning light / 125 db powerful siren warning)
• Emergency alert: When you turn off the power, you can prevent hijacking.
• You will definitely protect your car from thieves and pranks!
• About the product The quality assurance of 12 months is attached.
• In order to fully understand the function of this product and to use it more safely and effectively, please be sure to look at the video of the following link before using (link: https: //www.youtube.com/watch?
• v = 2hqf7deVPxw).
• If you have any questions or consultation, please do not hesitate to contact us via email at any time.

Product information:

Shipping Weight: 258 g

Package Dimensions: 4.19 x 15.01 x 22.00 cm
