Product Description

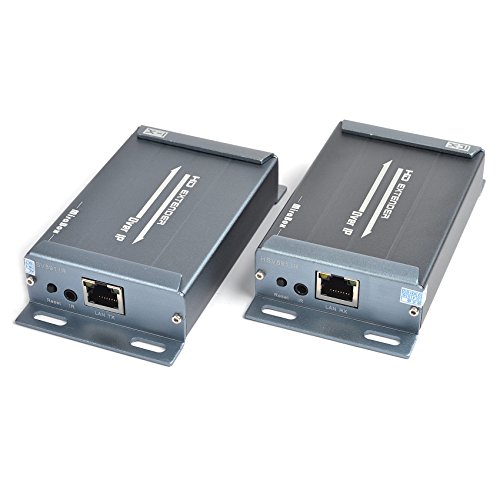

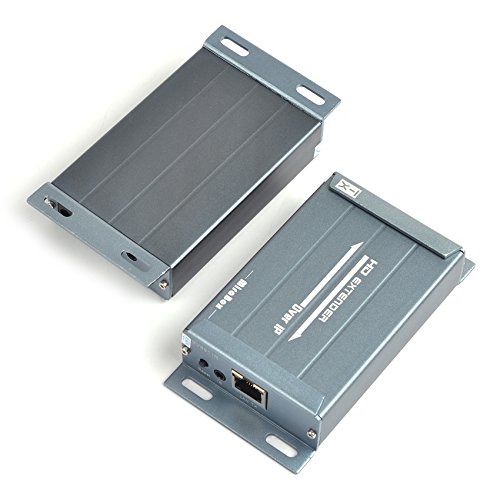

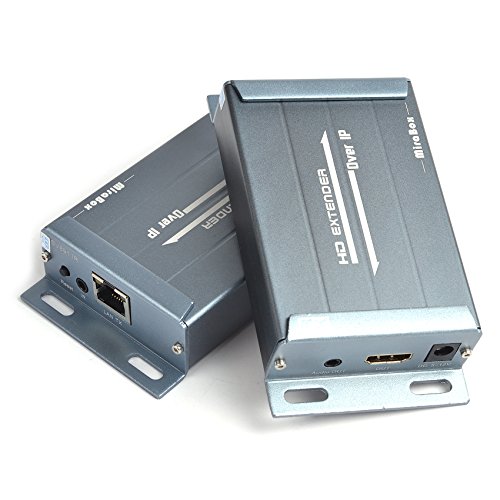

HDMI Over cat5 Extender With 3.5mm Audio Extractor Support IR 100m/400feets/328ft 1080p/720p/1080i HDMI Transmitter And Cascade Receiver

Introduction

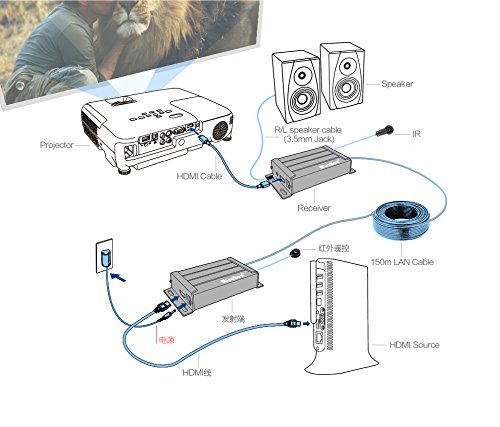

This product not only can work as other normal HDMI extender by CAT5/6 cable up to maxim 150 meters, but also can transmit HDMI data over local network.
data could be transmitted over switch, router and other Ethernet device, and extend the transfer distance to over 20km. It also could work in broadcast mode, like HDMI splitter, broadcast HDMI signal from one sender to multiple receivers.

1.HSV891-IR HDMI IR Extender supports sending IR remote control signal from receiver side to sender side which could be used to control HDMI source devices.

2.HSV891-IR HDMI IR Extender also integrate HDMI audio extractor that could extract stereo audio out from HDMI signal and output via 3.5mm jacket.

3. The data support IR Remote Control could be transmitted over switch, router and other Ethernet device, and extend the transfer distance to over 20km.

Specifications:
Power Supply:1pc X DC 5~12V/1A
IR Frequency Range:20KHz~60KHz
Resolution Supported: 1080p@50Hz / 1080p@60Hz / 1080p@24Hz 1080i@50Hz / 1080i@60Hz
Working Temperature: -10°C ~ 60°C
Link Connection: UTP/STP CAT5/5e/6
3.5mm Audio Output:60mW THD<0.1% SNR 110dB
Power Consumption: 3W(max)each
Working Mode:
*Point to Point mode
*Broadcast mode( Point to MultiPoint)
*Cascade mode
Transfer Distance:
CAT5 100metersCAT5e 120metersCAT6 150meters
*Cascade Mode:20Km maximum
Dimensions: 123x64x25mm
Weight : 110g
