• Increase / boost wifi signal for bigger coverage

ITEM DESCRIPTIONS:


This indoor signal booster can increase the effective range and coverage area of your Wi-Fi network. Ideal for

increase the 2400-2500Mhz frequency devices. Simply attach the booster in between the standard antenna on

a wireless router or wireless access point and watch your range grow. The amplified wireless signal may even

penetrate complex environments with many walls and obstacles. It can save on wiring costs with this easy-to-build

wireless infrastructure for home or business use.











Features:

Made In Taiwan
Compatible with wifi b/g
Signal activity and power LED
High Gain， High Value， High Performance
Low-noise receive gain
Ideal for use with 2.4GHz Wireless LANs
Plug-and-play， Easy installation， no driver needed
Operation Range: 2400-2500 MHz
Operation Mode: Bi-directional， half-duplex， Auto-Switching via carrier sensing
Frequency Response: ± 1dB over operation range
Input Power: 6dBm (Min.)-20dBm (Max.)
Input Power 5 ~ 20 dBm
Optimal Input Power 9 ~ 13 dBm
Output Power: 2000mW/33dBm nominal for 802.11b/11Mbps
Connector: SMA Receptacle， 50 ohm
Transmit Gain: 13-17dBm nominal
Receiver Gain: 8-12dBm
Receive Noise Figure: 3.0dBm nominal
Operating Temperature: 20 to 70 degree
Operating Humidity: Up to 95% relative humidity
Dimension (inches): 3.1 (L) x 2.2 cm (W) x 1.1 cm (H)

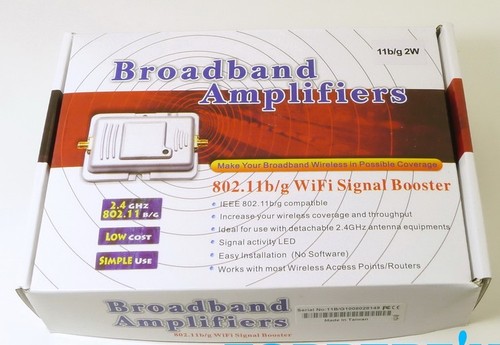

• 1 x WiFi Broadband Amplifier Signal Booster
• 1 x Power Plug
• 1 x SMA cable
• 1 x Antenna
• 1 x User Manual
