Item Descriptions:

Style name:

Cannon

Product introduction

18-200 mm, production completed.

From Amazon

Birth of a lens dedicated to digital single lens reflex camera

Designed exclusively for digital single lens reflex cameras, it realizes an ultrahigh magnification zoom lens that covers almost the same angle of view as the focal length of the lens for 35 mm film, 28-300 mm.

One can shoot most shooting scenes without changing the lens.

In addition, if combined with 11-18 mm dedicated lens for digital single lens reflex cameras developed at the same time, we can enjoy a wide angle of view up to 17-300 mm in terms of angle of view of 35 mm film size.

Adopting a large number of special glass materials, adopt optical design that takes into consideration the characteristics of digital camera.

Improve image quality and make it compact

By innovatively utilizing the XR (high refractive index) glass, we optimized the distribution of the whole optical power, seeking compactness and correcting various aberrations well.

Furthermore, it adopts three composite aspheric lenses and two LD (special low dispersion) lenses, and corrects on-axis and lateral chromatic aberration, which is a major factor of improving the image quality in digital, well, and as a general-purpose zoom lens,

Performance was realized.

Optimum optical design for digital single lens reflex cameras, taking account of the angle of light incident on the image pickup device

In consideration of the influence of aberration fluctuation caused by zooming, an optical design is taken into consideration so that the angle of light incident on the image pickup element from the center of the screen to the periphery is kept within a certain range.

Reduction of decrease in peripheral light quantity

Compared with the lenses designed for conventional film cameras, the reduction of the peripheral light quantity is suppressed, and the screen uniformity from the center to the periphery is realized.

High resolution performance achieved

As a dedicated lens for digital single lens reflex cameras, it realizes image quality superior in high resolution performance, high contrast performance, and flatness, and can cope with various shooting scenes.

Aggressive adoption of internal surface coating for thorough ghost flare countermeasure

Adoption of newly developed multi-coat and internal surface · coating (multi-coat on lens bonding surface) positively in order to suppress reflection due to light from the lens front surface and image quality due to the influence of the imaging device

A minimum shooting distance of 0.45 m is realized.

Maximum shooting magnification 1: 3.7

The shortest shooting distance of the conventional 28-300 mm lens was further shortened, and 0.45 m was realized.

The maximum photographing magnification on the side of 200 mm is 1: 3.7, and close-up photography can be easily enjoyed.

Mechanismal design realizes lightweight and compact design with high magnification

By constructing mechanically, we put complicated structure in a compact body, and realized excellent portability and operability as a general purpose zoom lens.

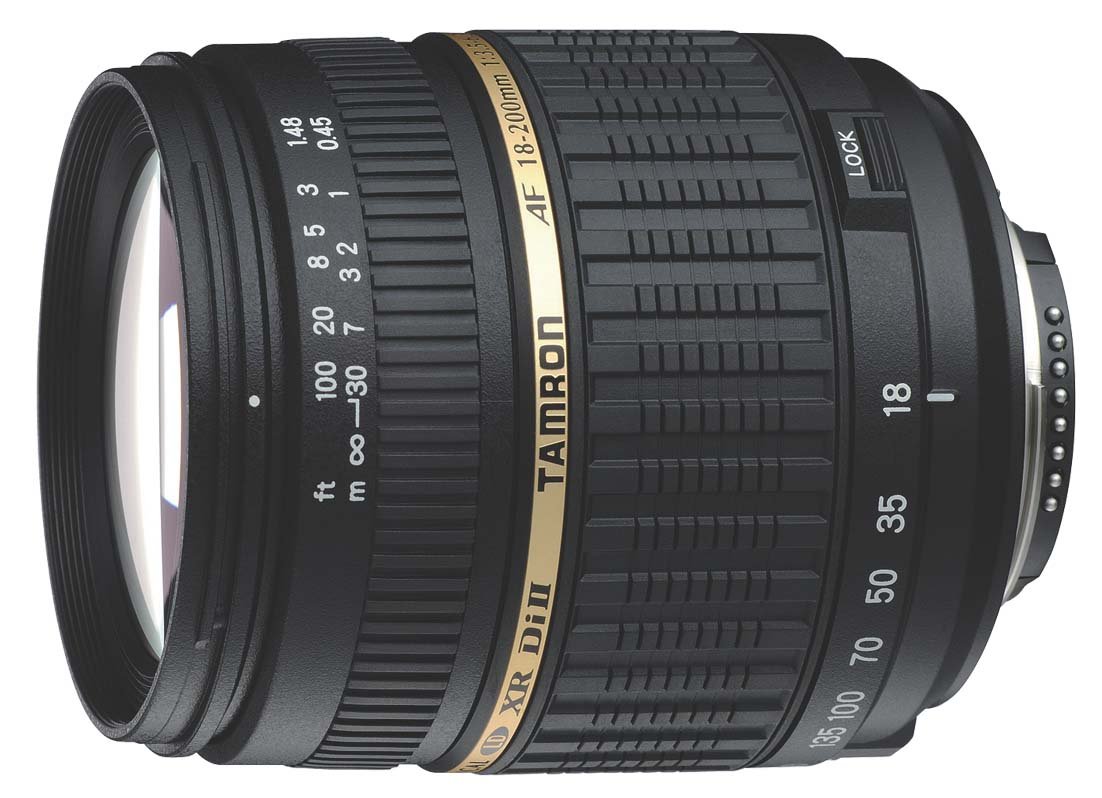

In order to commercialize "AF18-200 mmF / 3.5 - 6.3 XR DiIILDAspherical [IF] MACRO" which has a complicated structure in terms of production, we are trying to innovate manufacturing technologies such as high precision, light weight and strength improvement of parts

There.

Adopted zoom lock mechanism convenient for carrying

"Zoom lock mechanism" which prevents self-weight fall at the time of carrying is carried.

Standard flower-shaped hood with excellent light-blocking property

In order to realize a clear and comfortable drawing performance, a flower shaped hood which cuts harmful light rays coming from outside the angle of view with an effective shape suitable for the square frame of the screen was equipped as standard.

Adopted a design that matches a new digital generation lens expressing "high performance, high precision feeling" as "DiII" series

Adopting a ring of gold color for the ring part to become a design point.

We tried to improve visibility and design as "DiII" lens series.

Adopted a new rubber pattern for zoom / focus ring.

Consideration of unity feeling and operation feeling when attached to the camera.

Show all product descriptions

Features:

• Please enter model number Confirm this is compatible:
• ● 28-300 mm * Realizes ultra-high magnification angle of view digitally (* 35 mm format conversion)
• Optimized optical design to derive the potential of digital single lens reflex camera
• ● Excellent portability, lightweight and compact design
• ● Close-up (macro) is easy.
• Close up of 45 cm * easily (* Distance from sensor position of camera to subject)
• ● Focal length 18-200 mm

Product information:

Shipping Weight: 557 g

Package Dimensions: 10.69 x 10.79 x 13.59 cm
