Product Description

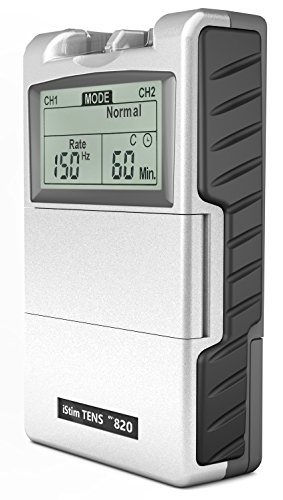

The iStim EV-820 is your ultimate solution for pain relief. It features 5 stimulation modes with adjustable pulse width, pulse rate and treatment timer, and 12 fixed preset programs

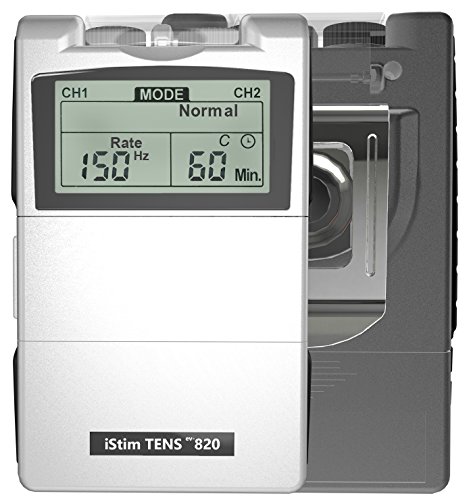

The 5 modes include Burst, Normal, Modulation, Strength Duration 1 and Strength Duration 2. Its large liquid display showing the mode name and all settings is ideal for users to check the setting at any time

Pulse Amplitude: Adjustable, 0-100 mA peak into 500 ohm load
Wave Form: Asymmetrical Bi-Phasic Square Pulse
Size: 10.1cm(L) x 6.1cm(W) x 2.45cm(H)
Weight: 150 grams with battery
Pulse Rate: Adjustable, from 2 to 150 Hz, 1Hz/step
Pulse Width: Adjustable, from 50 to 300 microseconds(μS), 10μS/step
Programs: 5 stimulation modes of Burst(B), Normal, Modulation, Strength Duration 1(SD1)and Strength Duration 2(SD2) 1 Special mode(including 12 fixed preset programs from P1~P12)
Timer: Adjustable, from 5 to 60 minutes or Continuous.
Battery: 9V Battery

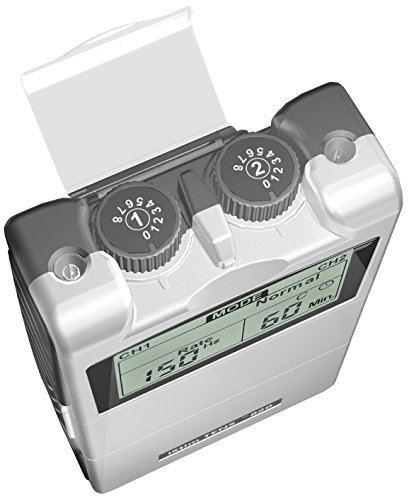

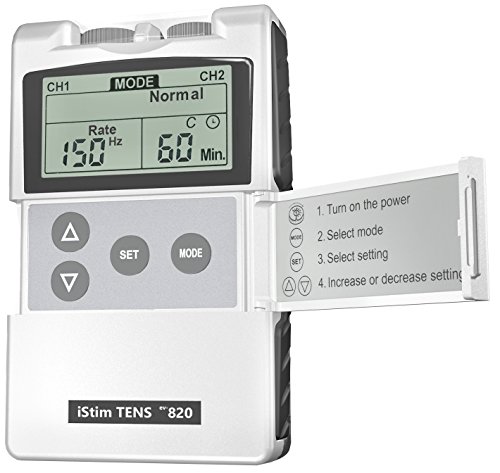

Features: ? Flip top cover ? 5 modes 1 special mode which includes 12 preset programs ? Protective strips on both sides of the unit ? Large LCD showing all settings ? Easy-to-use control buttons ? Simple directions for use inside the cover ? Patient compliance meter up to 999 hours for automatic record use time ? Storage of the last used settings ? Easy to open swing cover ? Unbreakable, stainless steel belt clip ? Treatment time countdown ? Low battery indicator
