Item Descriptions:

【Features of Network Camera HC 02】

◆ Picture quality switching between viewing and recording possible

The network camera HC 02 can be watched on a smartphone such as iPhone, Android.

Moreover, it is possible to watch with your favorite picture quality according to the mobile line environment.

When watching on a normal mobile line outdoors etc., watch it while suppressing data traffic in SD mode.

When the Wi - Fi environment is available, watch it in beautiful video in HD mode.

Of course, picture quality at the time of recording can be set separately from viewing time.

◆ Three recording modes

As a surveillance camera for crime prevention, we prepared three functions to make it easy to use according to various situations, such as children, elderly people, pet watching camera.

· Quick recording

You can record at your favorite timing.

· Schedule recording

We record at a fixed time every day.

· Motion sensor recording

Responds to what you moved and record for 3 minutes

Approximate Recording Time

(In HD mode)

16GB ... about 72 hours

32GB ... about 145 hours

64GB ... about 290 hours

* Attention ... Continuous recording time and necessary capacity will be around somewhat depending on usage environment.

[Convenient function of network camera HC 02]

◆ Various alert functions

In monitoring mode, when there is a reaction to the motion sensor, we inform you with the following functions.

· App notification

Notification and ringing notification to special application (up to 5 terminals)

·E-mail notification

Send an alert mail to the set e-mail address

Send alert mail along with the sensor image to the mail address set in this item such as Gmail.

(Activation of SMPT, Authentication Required. Please contact Mail Provider for detailed setting)

Easy Easy initial setup

The network camera HC 02 does not have troublesome settings, you can simply complete the initial setup simply by operating the application while downloading the application and viewing the screen.

Troublesome LAN cable wiring etc is not necessary.

◆ We installed the camera sample!

Please try it first.

Search and download "Yoosee" from the App store, Google Play Store.

When you start Yoosee, tap "Register" under the login button.

Enter your email address and password (arbitrary character string) and tap Create to create an account.

Return to the login screen, enter the email address and password you entered in 3 login!

Press the "+" button at the upper right of the screen and tap "Register a terminal connected to the network".

Enter "Camera ID (3083265)", "Camera name (any name)", "Camera password (123)" from the top and tap Save in the upper right of the screen.

Sample camera registration is completed!

You can experience camera operation and application functions by pressing playback button of thumbnail.

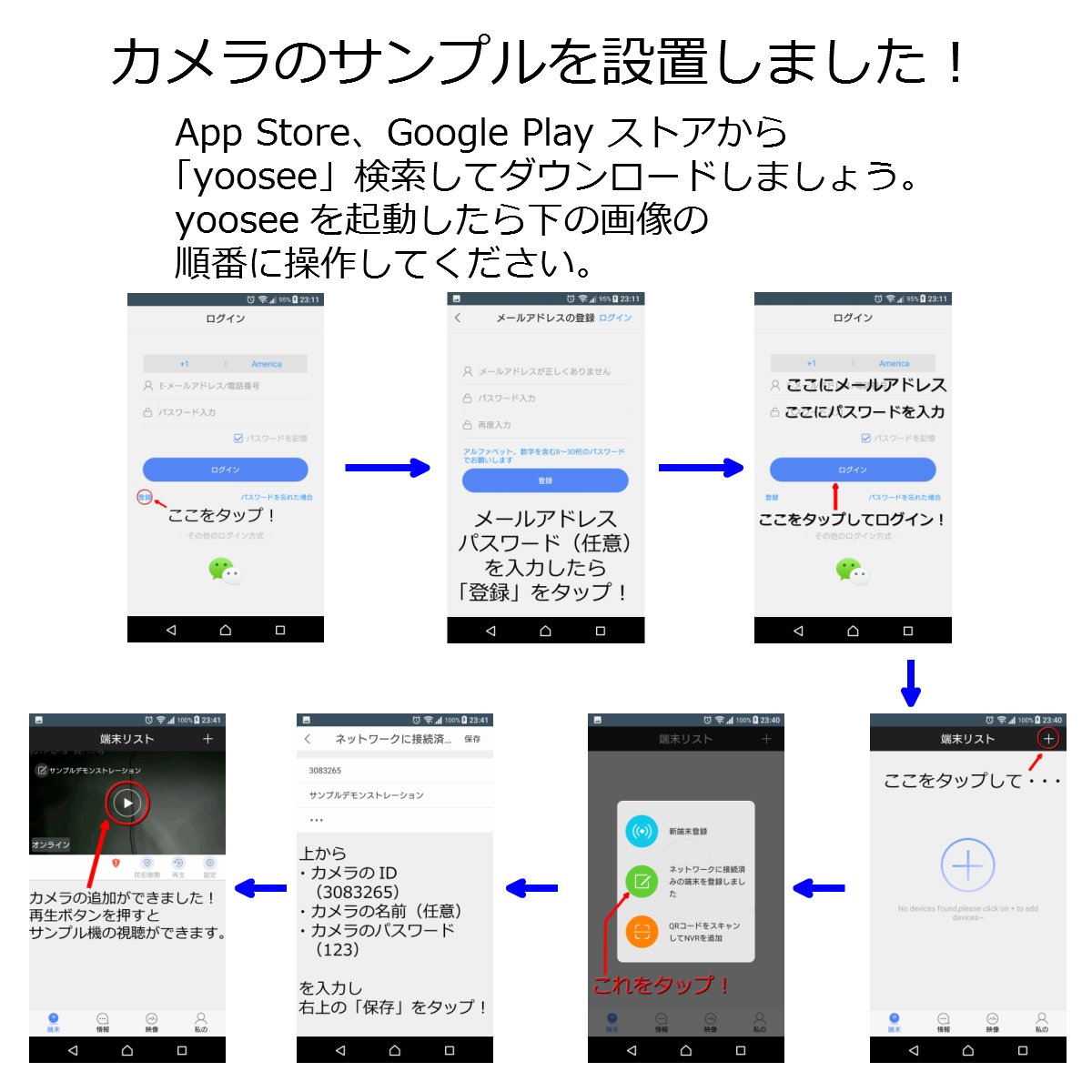

We prepared images of sample camera registration procedure in the image list at the top of this page.

If you have any questions please do not hesitate to ask E-enemo online.

[Crime prevention, watch over network camera HC 02]

◆ Examples of use in crime prevention scenes

Motion sensor function

ON

Then

Start monitoring

.

A special application receives an alarm!

Check straight!

Discover suspicious persons in the camera, send sounds, threaten, repel!

Offensive security

Can do!

Threatening sounds to the criminal using mutual call function,

Warn intrusion with sensor buzzer

The network camera HC <

A night vision camera that also supports shooting in the dark

So even in the middle of the night

Shoot firmly evidence

I can do it.

◆ Example of use in watching scenes

Children leave their answering machine and go shopping.

Since the network camera HC 02 is equipped with a microphone and a speaker, it is possible to talk while watching the state of the child from outside while saying "What would you like a snack?" "I will return at the time of ○○."

It is useful for helping sickness and nursing care, responding to visitors in absence, watching pets, etc.

* Attention ... Please install so that the camera does not get wet.

[Product details of network camera HC 02]

◆ Specs details

Ethernet ... 10Base-T, / 100Base-TX, RJ45 Connector

Protocol ... TCP / IP, HTTP, TCP, UDP, SMTP, DHCP, DNS, DDNS, NTP, UPnP, P2P etc.

Wireless ... WiFi 802.11b / g / n wireless network

Other ... ONVIF compatible

◆ Operating environment

Input voltage ... DC 5 V 2A * Dedicated AC adapter included

Operable temperature ... -10 to 50 ° C, operable humidity ... 95% or less

Included items ... dedicated AC adapter, dedicated USB charging cable, wall fixing bracket set, Japanese instruction manual with warranty card

◆ Authentication

Construction design certification (

Technical standard conformity certificate

), PSE authentication

Features:

• Please enter model number Confirm this is compatible:
• 【Cute design familiarize your room】 Adopt design that is familiar to many rooms.
• Bedroom in the house, living room, entrance, study ... ... If you are indoors, watch over the video with the video recording function anywhere.
• Children are safe because they are not afraid of appearance.
• ※ There is no waterproof function so please refrain from using outdoors.
• * Copy products of the same shape are on sale.
• Please be careful in case of purchase because there is a risk of violating the radio law in Japan.
• 【Reliable clever camera】 High quality, 15 m night vision camera, schedule recording, sensor, alarm notification, function to output sound from camera, story function, pan / tilt swing function, necessary function for security camera / baby monitor tightly
• It is a crammed and fast home security camera.
• Use it for nighttime crime prevention for a long time, surveillance camera, baby camera, nursing care and pet watching.
• 【Easy connection application】 Initial setting with Japanese high-performance application.
• Just operate along the screen display.
• Easy wireless connection with cable less.
• It is the most widely used application in the world.
• ※ Attention ... You can ask the authority of phone and GPS at the time of application DL, but it is possible to turn off the authority because it is not used on this model (it exists as a function for overseas models).
• [Please be sure to check before purchasing] Environment of router you use ... Wireless is only for 2.4 Ghz band.
• Connection in 5 GHz band is not possible.
• Unsupported models not supported by UPnP (connectable by specifying MAC address).
• Supported devices ... iPhone (iPhone iOS 10 or later), iPad (iPad iOS 10 or later), iPod Touch (iPod Touch iOS 10 or later), Android (Android smartphone / tablet released in 2016 release model or later), Windows PC (win 7 or later), ONVIF
• Connection support will be outside.) First of all, if you would like to use the wireless using a computer, initial setting is required on the smartphone.
• If it is wired, it can be detected from dedicated software after LAN connection if it is a UPnP compatible router.
• (When not compatible with UPnP, specify the MAC address of the lower part of the camera to the router and register it)
• 【Manufacturer Warranty · Connection Support】 We will guarantee operation for one year from the date of purchase.
• We will support connection by Japanese technical staff.
• Please inquire from the E - enemo website described in the instruction manual.

Product information:

Shipping Weight: 580 g

Package Dimensions: 10.21 x 17.30 x 18.21 cm
