Product Description

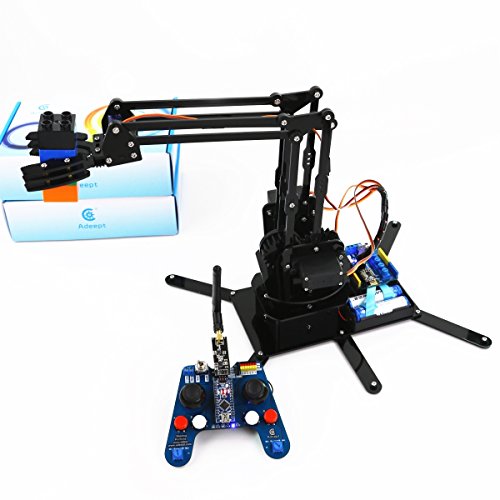

Here is a desktop mini robot "who" can do a lot of things. This robotic arm is developed based on Arduino and can be controlled in more than one way. It's totally open source so you can extend more self-defined functions and operations.

Be able to imitate movements of human's arm and hand,robotic arm can be programmed to grab and move objects or use tools automatically.Robotic arms are the earliest industrial and modern robots.In application,they can work hard for human to realize mechanization and automation of manufacture,even under the hostile environment so as to protect human safety, thus they are widely used in areas including machinery manufacture,metallurgy,electronics,light industry,atomic energy, etc.

Tutorial Link:

https://www.adrive.com/public/MzamrF/Adeept_RoboticArmKitForArduino_V1_0.zip

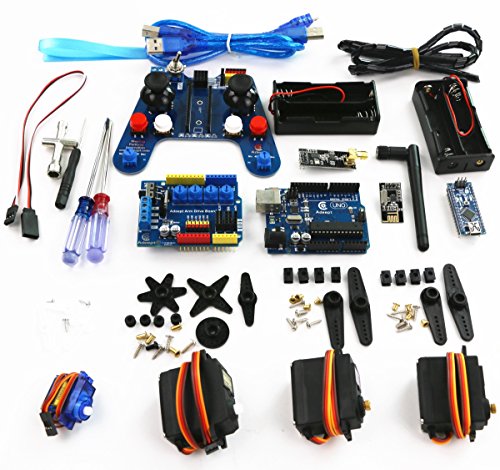

Package List:

1x Adeept Arduino UNO R3
1x Arduino Nano

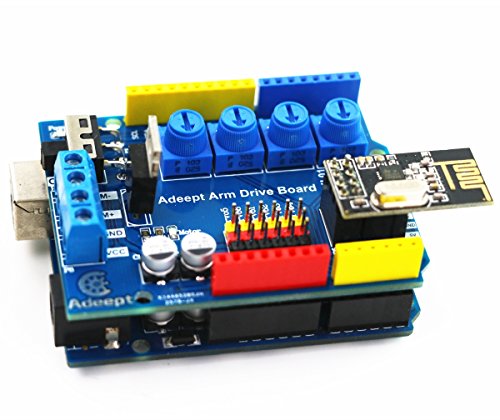

1x Arm Drive Board

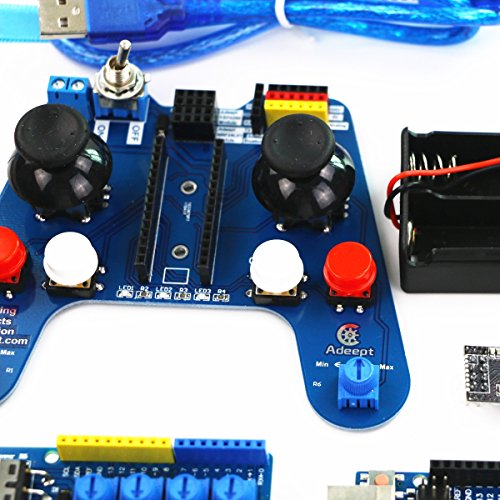

1x Remote Control Shield
1x NRF24L01 2.4 Wireless Communication Module
1x NRF24L01 2.4 Wireless Communication Module with Antenna
1x Small Servo
1x Plastic Gear Servo
2x Metal Gear Servo
1x Adeept Acrylic
2x M2 Nut
74x M3 Nut
1x M4 Nut
1x M2*10 Screw
2x M2*14 Screw
3x M2.5*8 Screw
4x M3*4 Screw
4x M3*5 Screw
58x M3*8 Screw
15x M3*12 Screw
12x M3*14 Screw
3x M3*18 Screw
1x M3*30 Screw
1x M4*40 Screw
4x M3*10 Countersunk Head Screw
12x M3*6 Copper Standoff
4x M3*12 Copper Standoff
1x M3*30 Copper Standoff
1x M4 Washer
1x F624ZZ Bearing
2x 18650*2 Battery Holder
1x Mini USB Cable
1x USB Cable
1x Servo Extension Cable
1x Small Slotted Screwdriver
1x Cross Socket Wrench
1x Large Cross-head Screwdriver
1x Large Blade-head Screwdriver
1x Winding Pipe
1x Ribbon

Feature

The robotic arm kit is designed based on Arduino UNO R3 and Nano. This is a complete and fun Arduino learning kit. We carefully prepared a detailed guidebook/tutorial(PDF), the guidebook contains complete circuit diagrams and assembly steps, according to our tutorial, you will be able to easily build your own desktop robotic arm.
The entire system is divided into two parts, the robotic arm and the remote control, the communication between them based on NRF24L01 2.4G wireless module.
Pull the left stick to the left and the robotic arm will turn clockwise in a range of 0-180 degrees; push it to the right, the arm will turn counterclockwise in the same range. Push the left stick forward and the arm will stretch forward; pull it backward, the arm will retract back. Push forward the stick on the right, the arm will reach up; pull it backward, the arm will draw back. Push the right stick to the left, the arm will pinch the grippers; pull it to the right, the grippers will open.
Quick-responding technical support for free.
Working Voltage: DC 7V~12V, Powered by four 18650 rechargeable lithium batteries.(This kit does not contain batteries and you need to prepare yourself)
Brand : Adeept
Item model num : ADA019
MPN(PartNumber) : ADA019
EAN : 0745780192315
Product Dimensions(LxWxH) : 24x6x16cm ; 1139 g
Package Dimensions(LxWxH) : 23x17x7cm ; 1139 g
