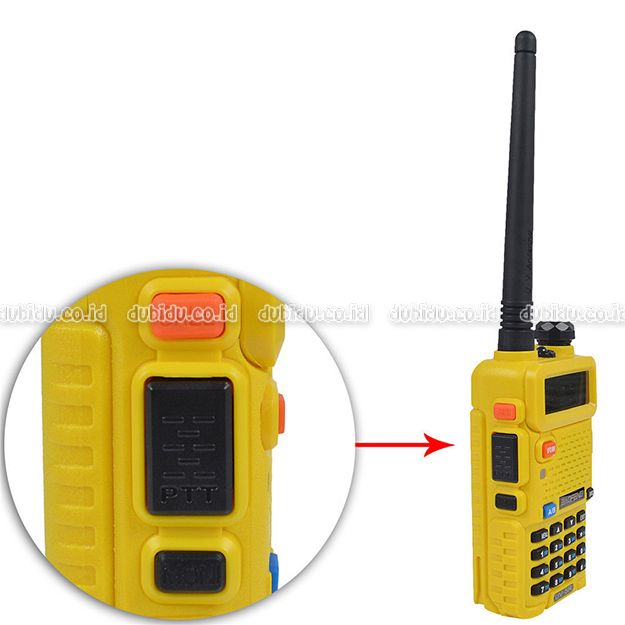

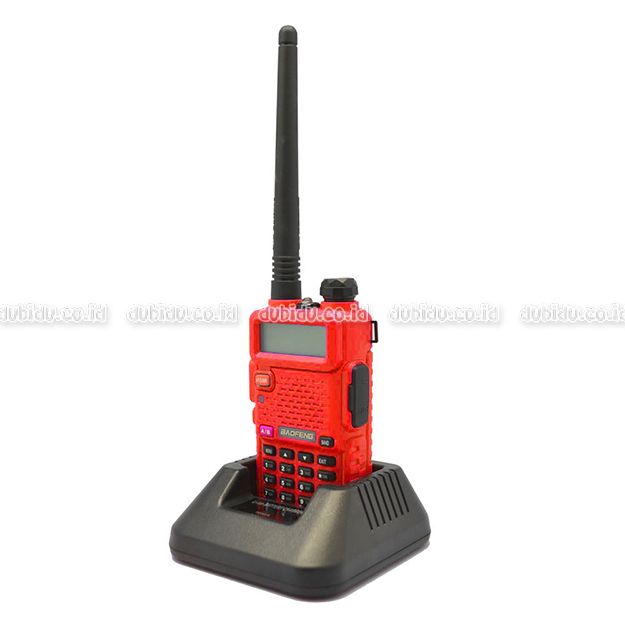

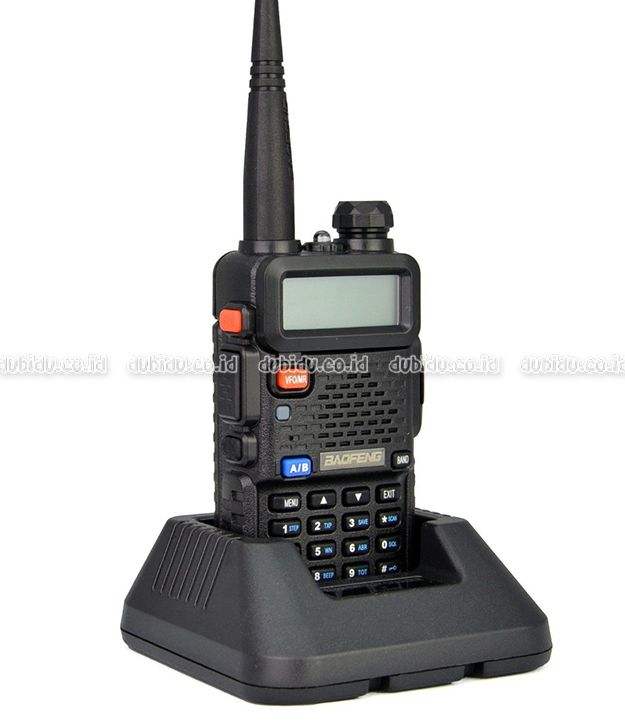

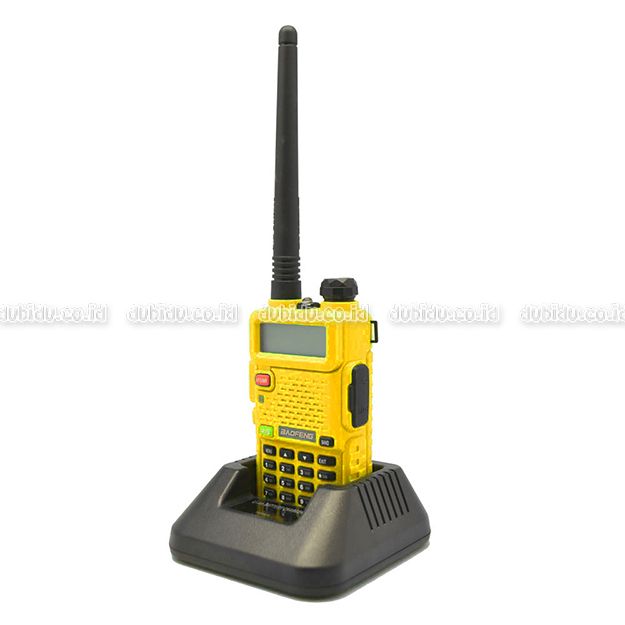

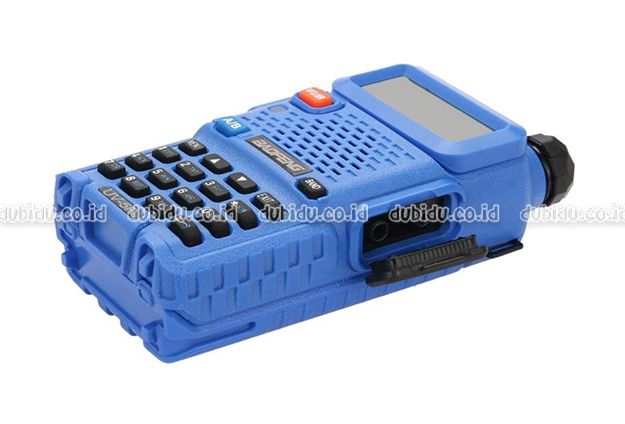

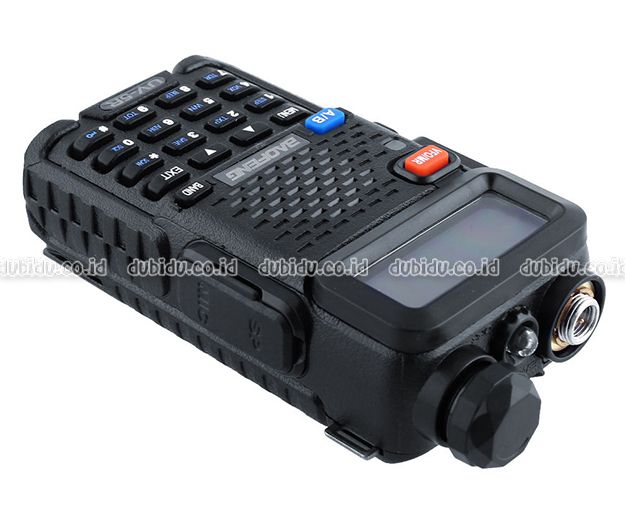

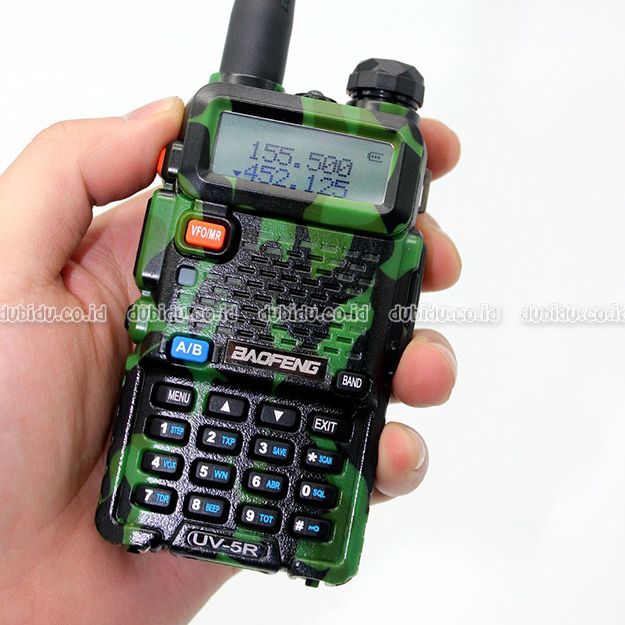

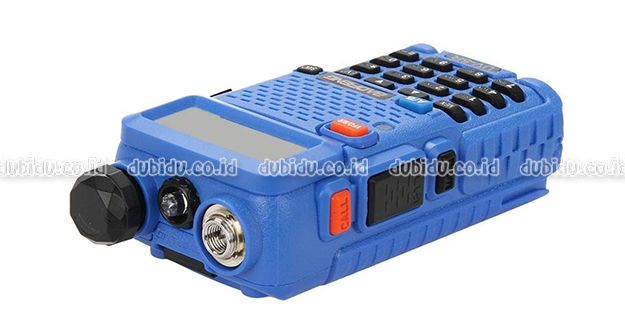

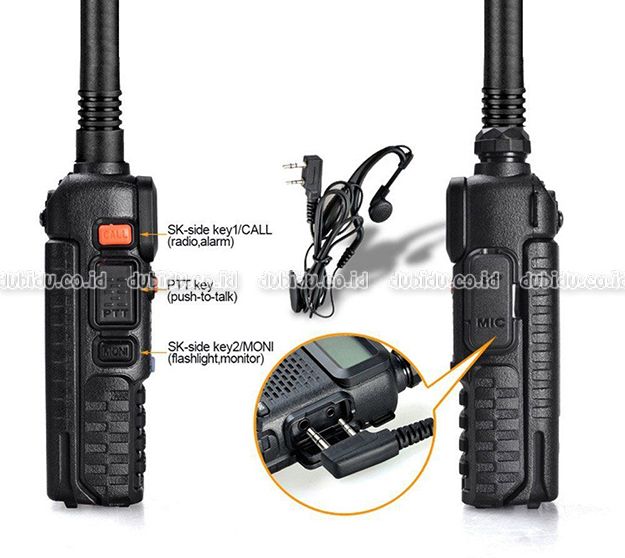

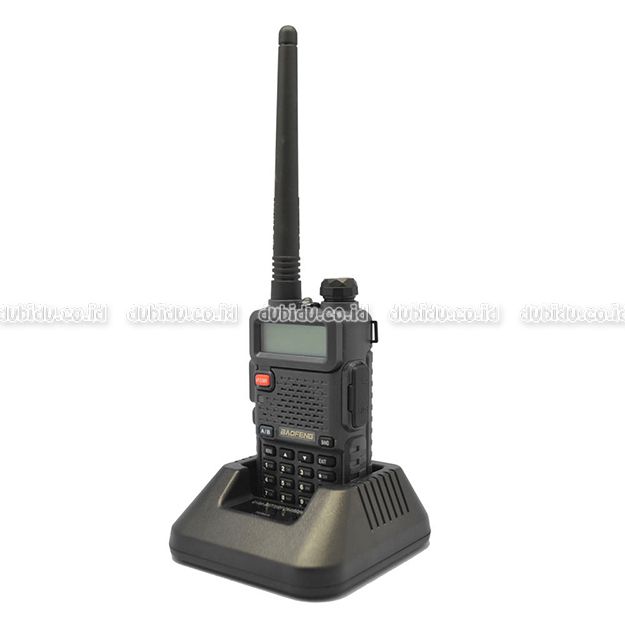

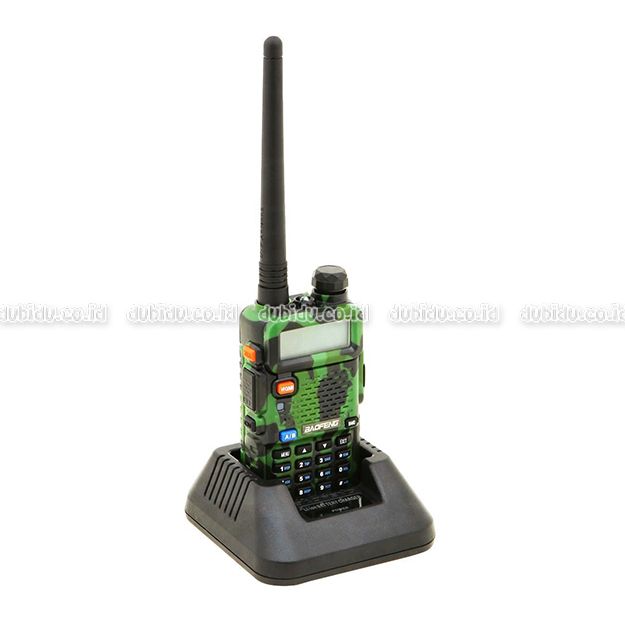

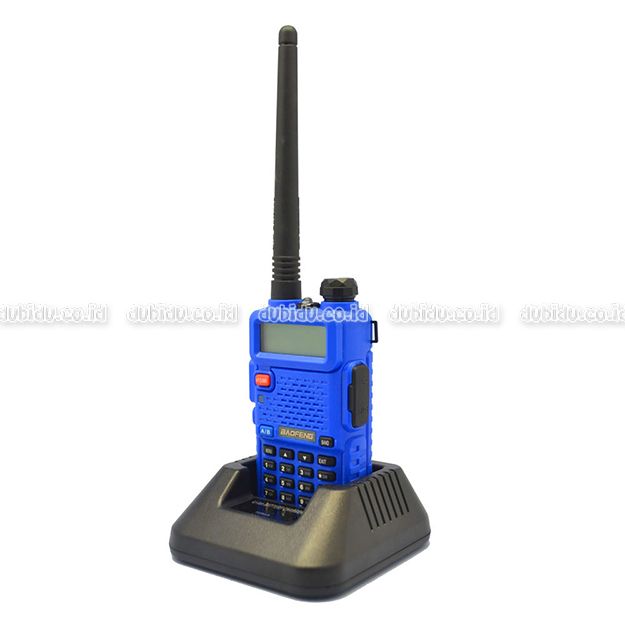

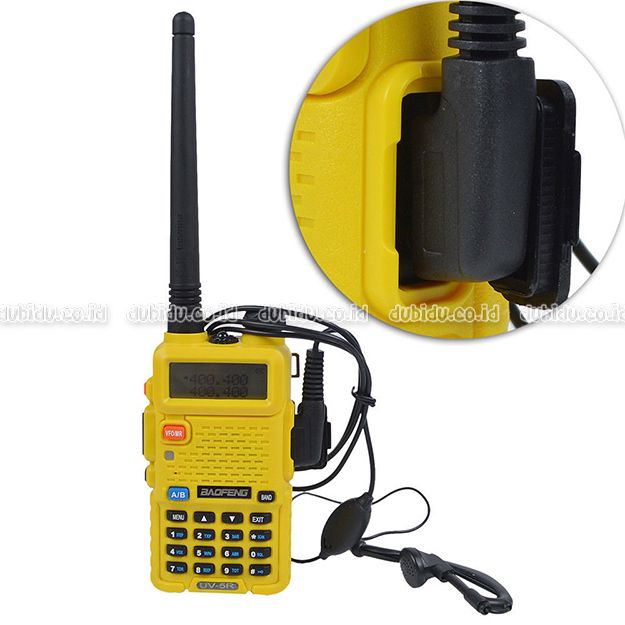

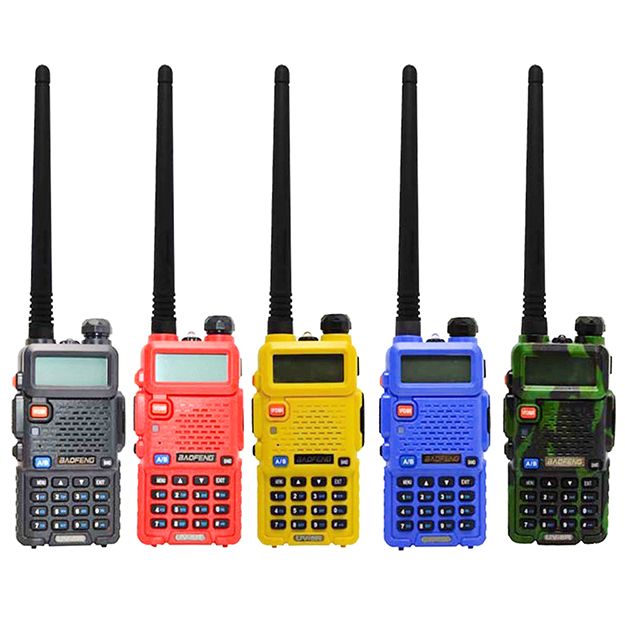

DESKRIPSI Baofeng Walkie Talkie HT (Handy Talkie) UV5R/UV-5R 1.5" LCD 5W 128-CH Dual Band UHF/VHF merupakan Handy-Talkie dengan berbagai fitur seperti FM radio, PTT (Push To Talk), Emergency Alarm, Built In Monochrome LED, Torch LED Light. Handy Talkie ini didesain menarik dengan beberapa variant warna, selain itu Handy Talkie ini dilengkapi dengan earphone, docking charger, dual band antenna, serta belt clip. Baofeng UV-5R siap menemani aktivitas outdoor Anda. Cocok untuk Anda yang bekerja di lapangan, pecinta Alam, maupun untuk keperluan komunikasi lainya.

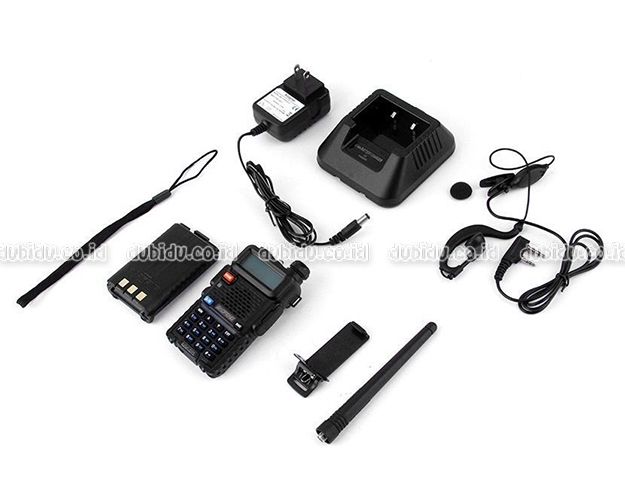

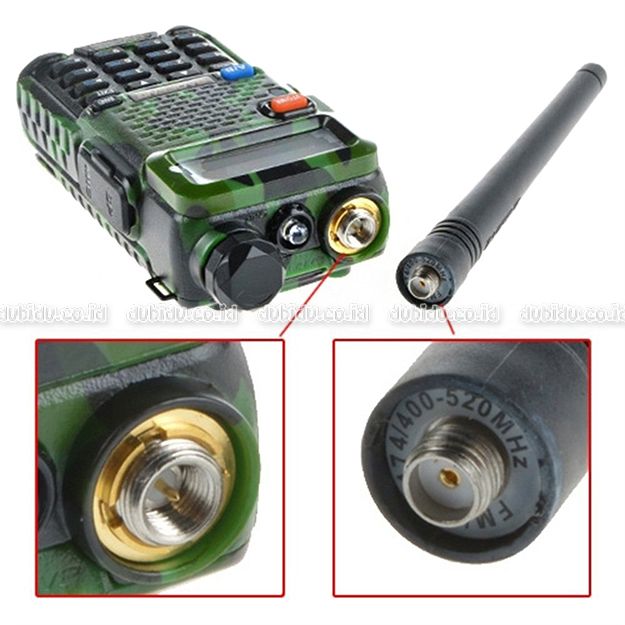

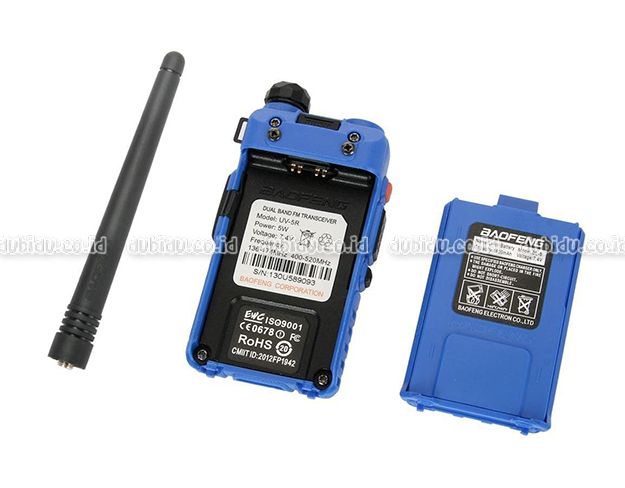

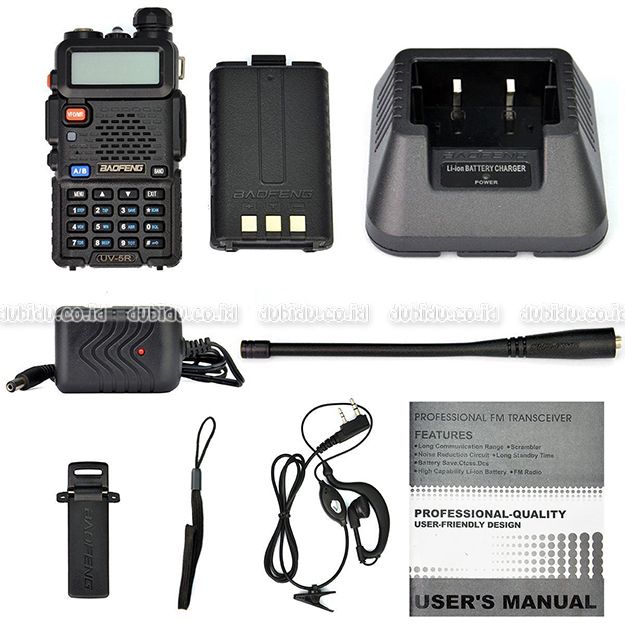

The BaoFeng UV-5R is a compact hand held transceiver providing 4 watts in the frequency range of 136-174 MHz and 400-480 MHz. It is a compact, economical HT that includes a special VHF receive band from 65 - 108 MHz which includes the regular FM broadcast band. Dual watch and dual reception is supported. You get up to 128 memories. Other features include: selectable wide/narrow, battery save function, VOX, DCS/CTCSS encode, key lock and built in flashlight. Selectable frequency steps include: 2.5, 5, 6.25, 10, 12.5 and 25 kHz. RF power may be selected at 4 or 1 watts. This radio comes with an SMA-Female antenna, flexible antenna, BL-5 Li-ion battery (7.4V 1500 mAh), belt clip, wrist strap, AC adapter (8.4V 600ma) and drop-in charging tray. This radio requires the PC03 FTDI programming cable.
FEATURE Dual band, dual display, dual standby A/B band independent operation 128 groups channels storage Shortcut menu operation mode VFO & Memory channels scan Emergency Alarm Tri-color background light selectable 0~9 grades VOX selectable PTT & ANI ID FM radio Voice companding CTCSS/DCS coder PC programmable Wide/Narrow Band(25kHz/12.5kHz) Transmitter time-out timer(TOT) High/Low TX power selectable usy channel lock-out(BCLO)
SPESIFICATIONS BAOFENG UV-5R The transceiver is a micro-miniature multiband FM transceiver with extensive receive frequency coverage, providing local-area two-way amateur communications along with unmatched monitoring capability VHF/ UHF DUAL-BAND TWO WAY RADIO Frequency Range: 136-174 / 400-520MHz Dual-Band Display, Dual Freq. Display, Dual-Standby Output Power: 4 /1Watts 128 Channels 50 CTCSS and 104 CDCSS Built-in VOX Function 1750Hz Brust Tone FM Radio (65.0MHz-108.0MHz) LED Flashlight Large LCD Display Hight /Low RF Power Switchable 25KHz/12.5KHz Switchable Emergency Alert Low Battery Alert Battery Saver Time-out Timer Keypad Lock Monitor Channel Channel Step: 2.5/5/6.25/10/12.5/25KHz ROGER SET SMA-FEMALE ANTENNA
DETAIL SPESIFICATIONS Handy Talkie Item number UV-5R Frequency Range 65-108MHz (FM Receive only) 136-174MHZ and 400-520Hz (TX/RX) Channel No. 128 Frequency Stability 2.5ppm Antenna High gain DualBand antenna Antenna Impedance 50O Operating Voltage DC 7.4V Mode of operation Simple or semi-duplex Dimension(W x H x D) 100 x 52 x 32 mm Weight 250g(including battery, antenna)
